상세스펙
Specifications

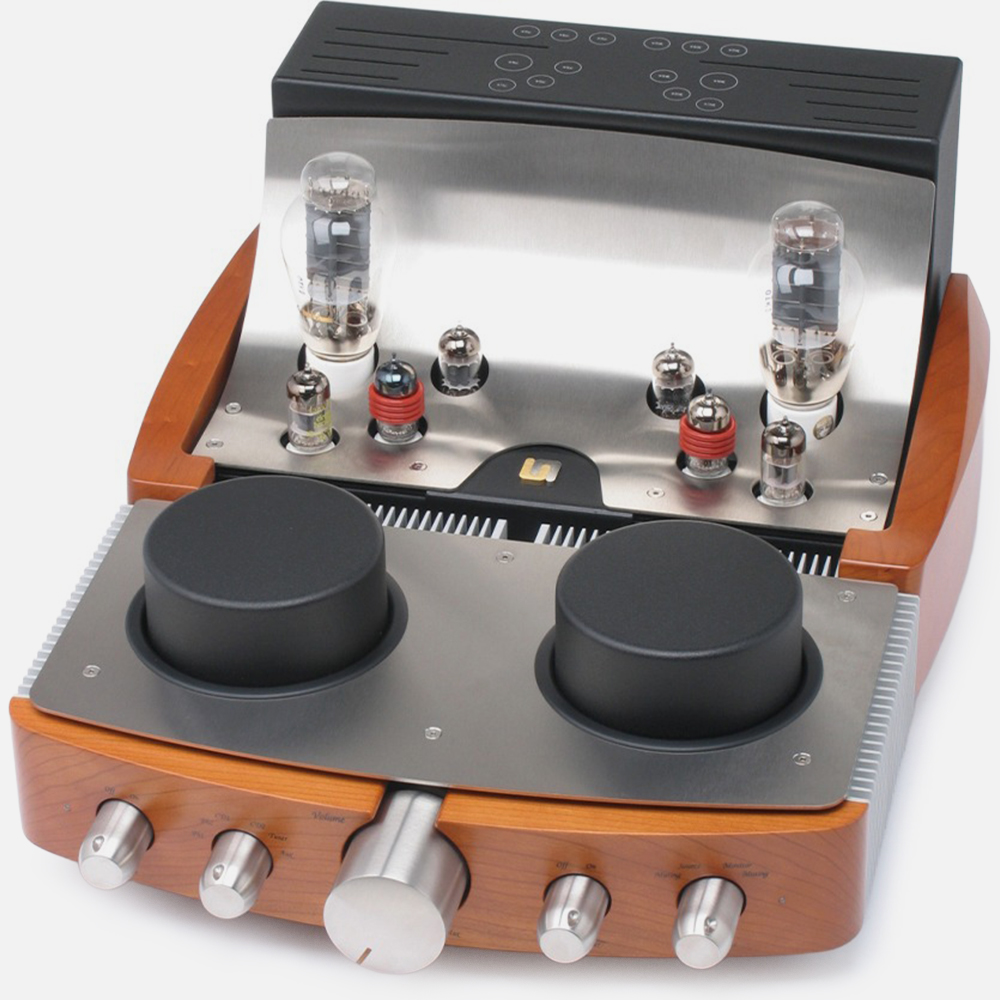

| Type | Tube Preamplifier – Dual Mono – 3 integrated chassis |
| Valves | Line : 2 x 300B, 2 x ECC82/12AU7 2 x 6C45P, 2 x ECC83/12AX7 Phono : 4 x 6C45P, 2 x ECC83/12AX7 |
| Operating Mode | Pure Class A |
| Inputs | 4 line (also 2 balanced) 1 tape 2 phono |

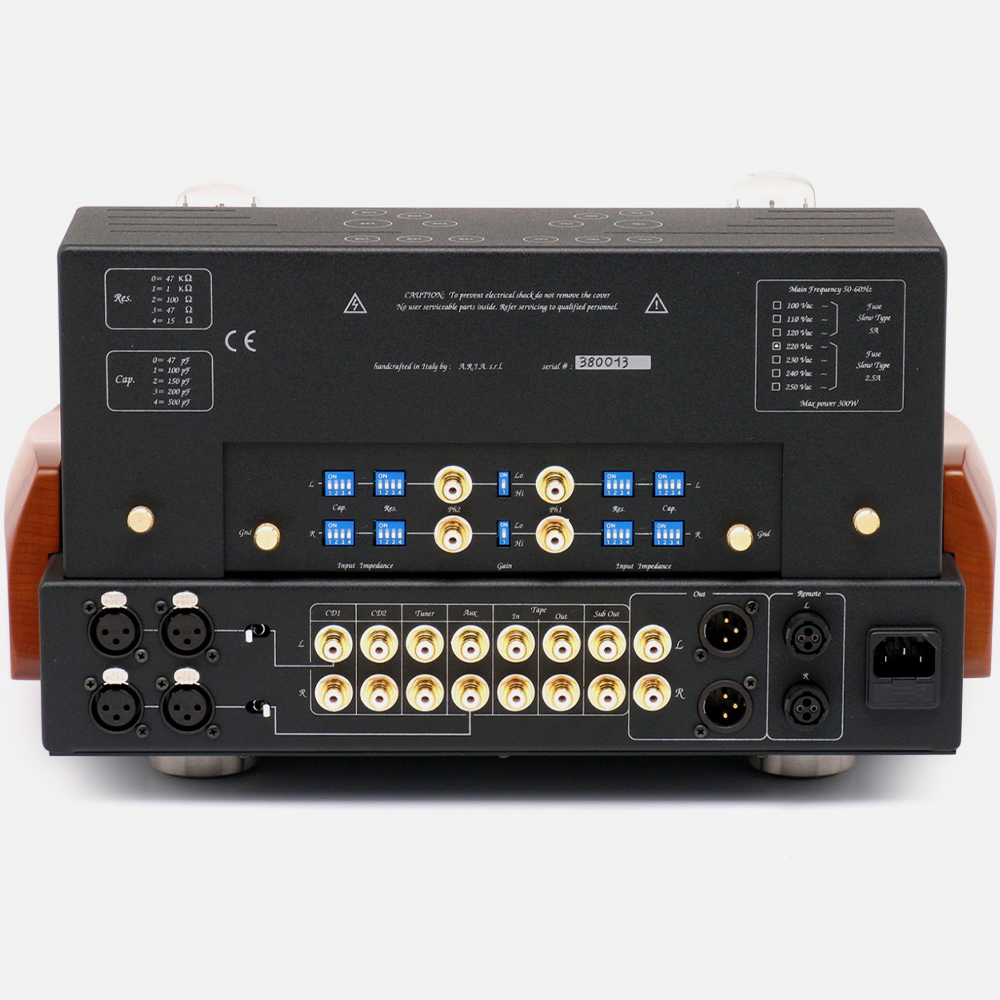

| Outputs | 1 unbalanced 1 balanced 1 tape (active) 1 subwoofer (active) 2 remote power-on for REFERENCE |
| Output Impedance | 50Ω |
| Input Impedance | 47kΩ for line inputs, user selectable for Phono Inputs |
| Maximum line gain | 20dB |
| Phono Gain | 45dB (low) – 55dB (high) |
| RIAA | Passive ± 0.2dB |
| Maximum output | 18Vrms (1% THD) |
| Volume Control | Manual and Radio (43MHz) |
| Bandwidth | 18Hz -> 100kHz @ ± 0.1dB |
| Maximum power consumption | 320W |
| Dimensions (H x W x D) | 451 x 560 x 210mm (17.8 x 22 x 8.3 inches) |
| Weight | 30Kg (66.1lbs) |
