Specifications
| Output power | 100+100 W RMS at 8Ω 180+180 W RMS at 4Ω 290+290 W RMS at 2Ω |
| Capacitor bank value | 80,000uF |
| Frequency response | -1dB @ 12Hz and 100kHz |
| Input impedance | 47kΩ |
| Input stage | Pure class A, 2 ECC83 double triode valves |
| Output stage | Dynamic Class A power BJT double complementary pair |

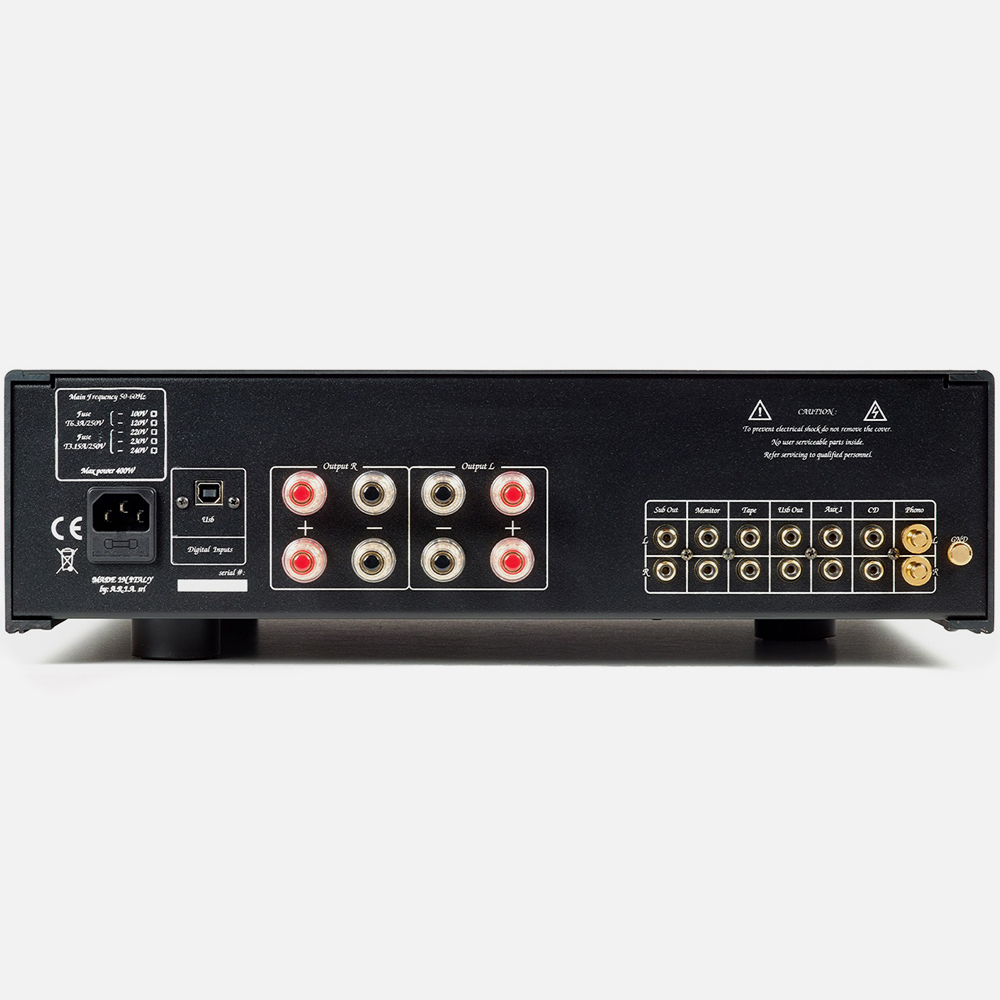

| Inputs | 3 line RCA, 1 USB, 1 monitor |
| Line outputs | 1 tape RCA, 1 DAC, 1 subwoofer (volume controlled) |
| Output connectors | 4 + 4 bi-wiring |
| THD | <0.25@ 1kHz, 10W |
| Power Consumption | 360W (at max power on 8Ω) |
| Dimensions | 43.5cm x 18 cm x 44 cm |
| Net weight | 16 kg |
| PHONO STAGE | |
| Input impedance | 47kΩ / 220 pF (MM) - 100Ω / 440pF (MC) |
| Gain | MM 40 dB, MC 50 dB |
| Gain Selection | +0 dB / +10 dB |
| Maximum input voltage | 120 mV @ 1kHz (MM) |
| RIAA Equalization | active at low frequencies, passive at high frequencies |
| THD | 0.09% @ 5 mV, 1kHz, MM |
