Specifications
| Output power | 100+100 W RMS su 8Ω 180+180 W RMS su 4Ω |
| Frequency response | -1dB @ 12Hz e 45kHz, -3 dB @ 6Hz e 80 kHz |
| Input impedance | 21kΩ //300pF |
| Input sensitivity | 860mV RMS |
| Input stage | Pure A class, double triode totem pole ECC83 and parallel totem pole ECC81 This single stage due to the particular circuitry is able to amplify the input signal and drive directly the power stage |
| Output stage | Class AB thermostable, complementary Hexfet (3 pairs for channel) |
| Number of stage | 2, This amplifier due to the particular circuitry is realized by only two stages : input stage and output stage, and use only local feedback |

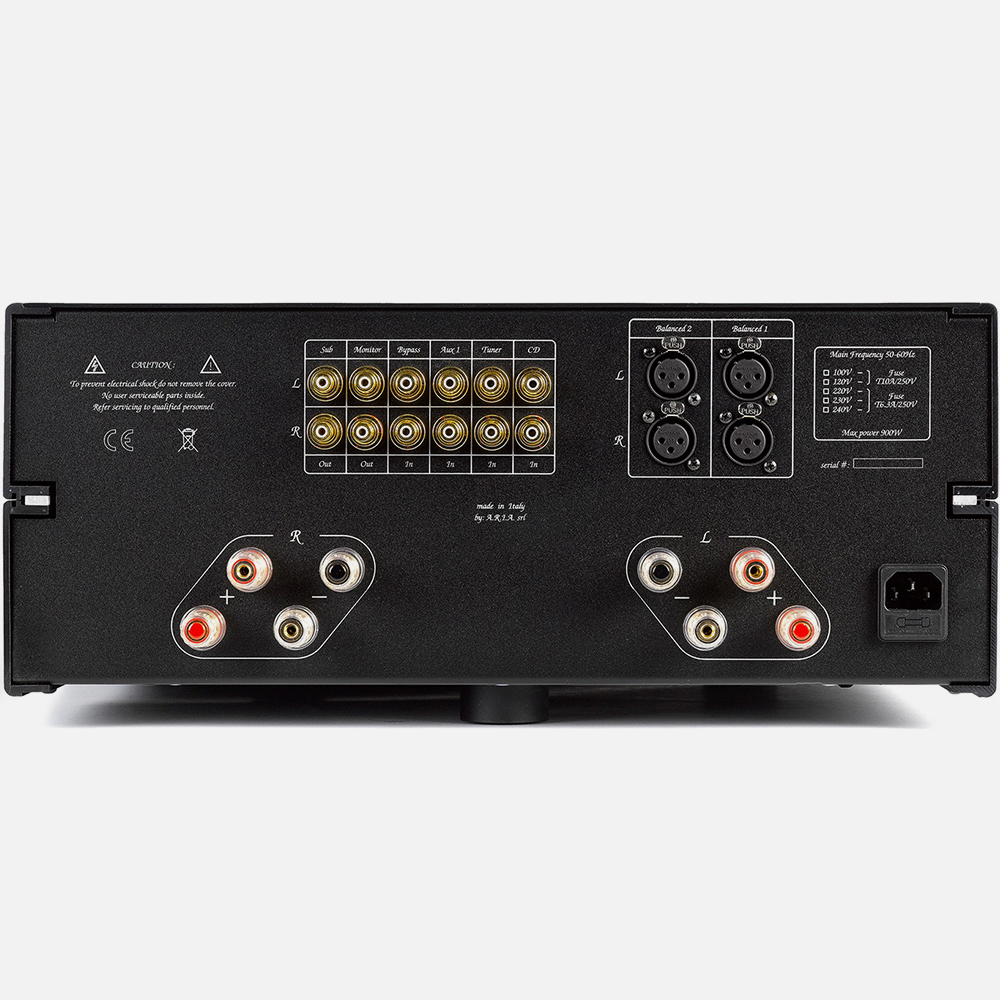

| Input | 6 line (3 unbalanced, 2 balanced, 1 “bypass” unbalanced) |
| Line Outputs | 1 tape, 1 sub (volume controlled) |
| Output connectors | 4 + 4 bi-wiring |
| Global Feedback factor | 0 dB |
| THD | < 0.15% @ 1kHz, 1 W < 0.50% @ 1kHz, 10 W |
| Output resistance | <0.4 ohm, resistive on all audio frequencies |
| Power Consumption | 550 W (at max power on 8 ohm) |
| Dimensions | 43.5cm x 18 cm x 44 cm |
| Net weight | 20 kg |
