상세스펙
General

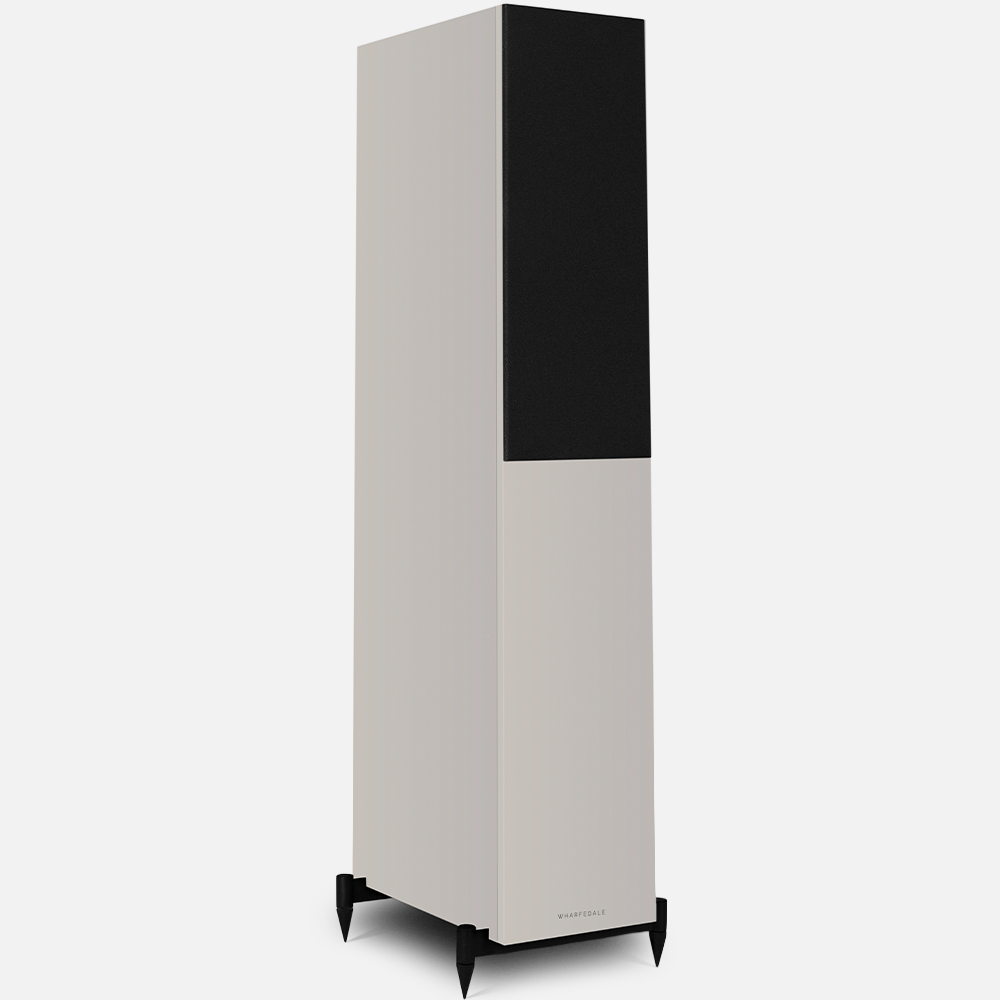

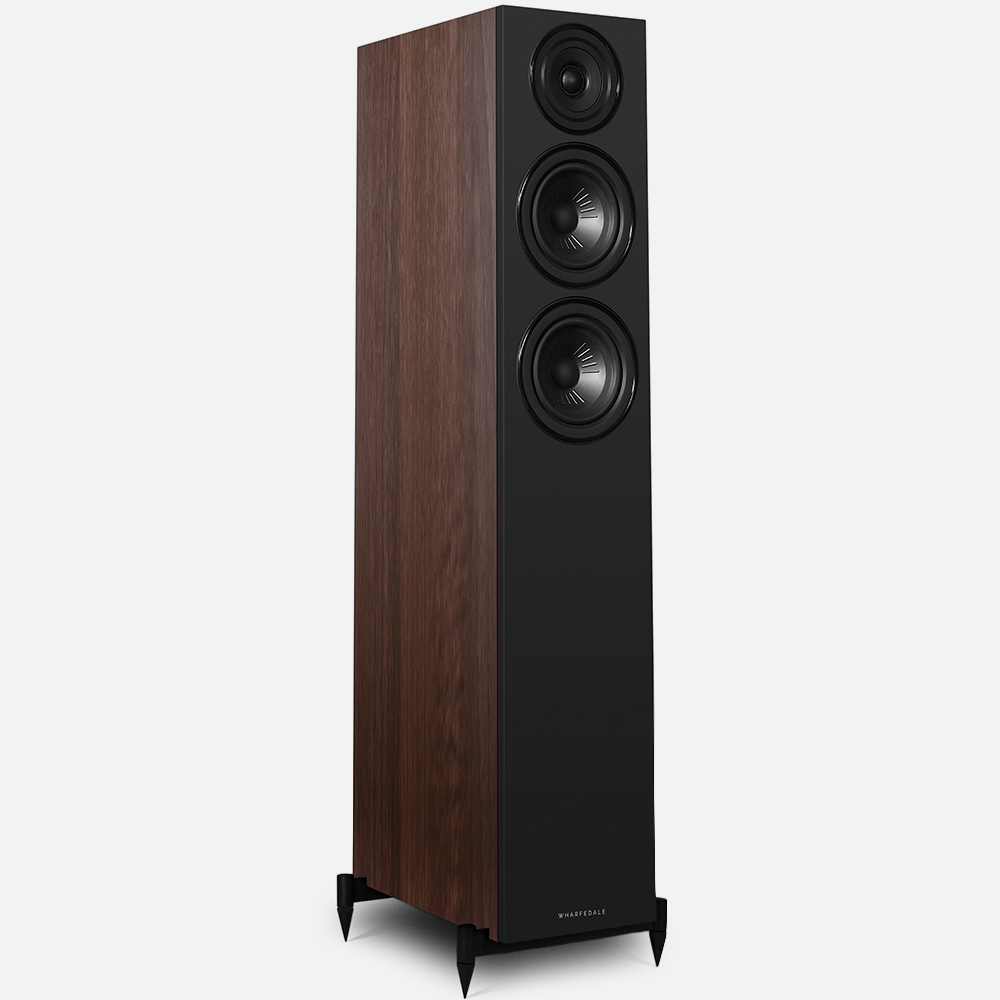

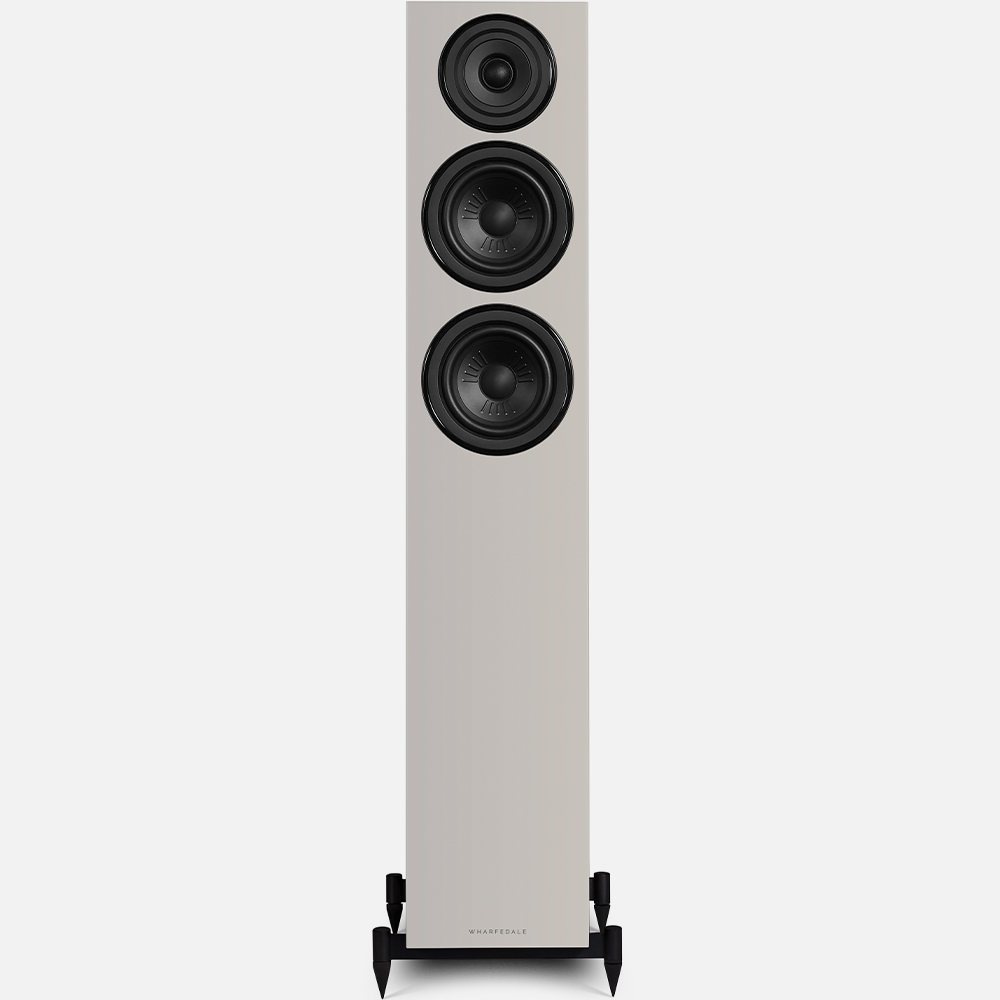

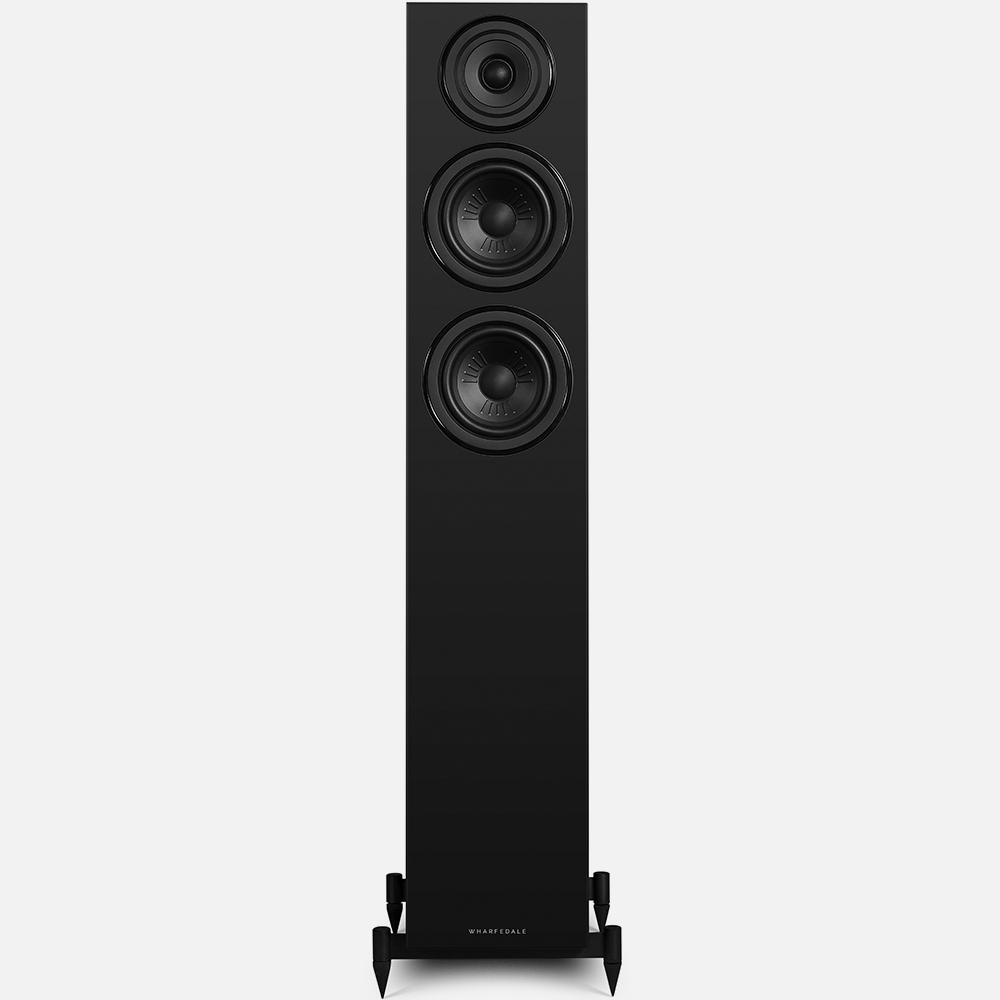

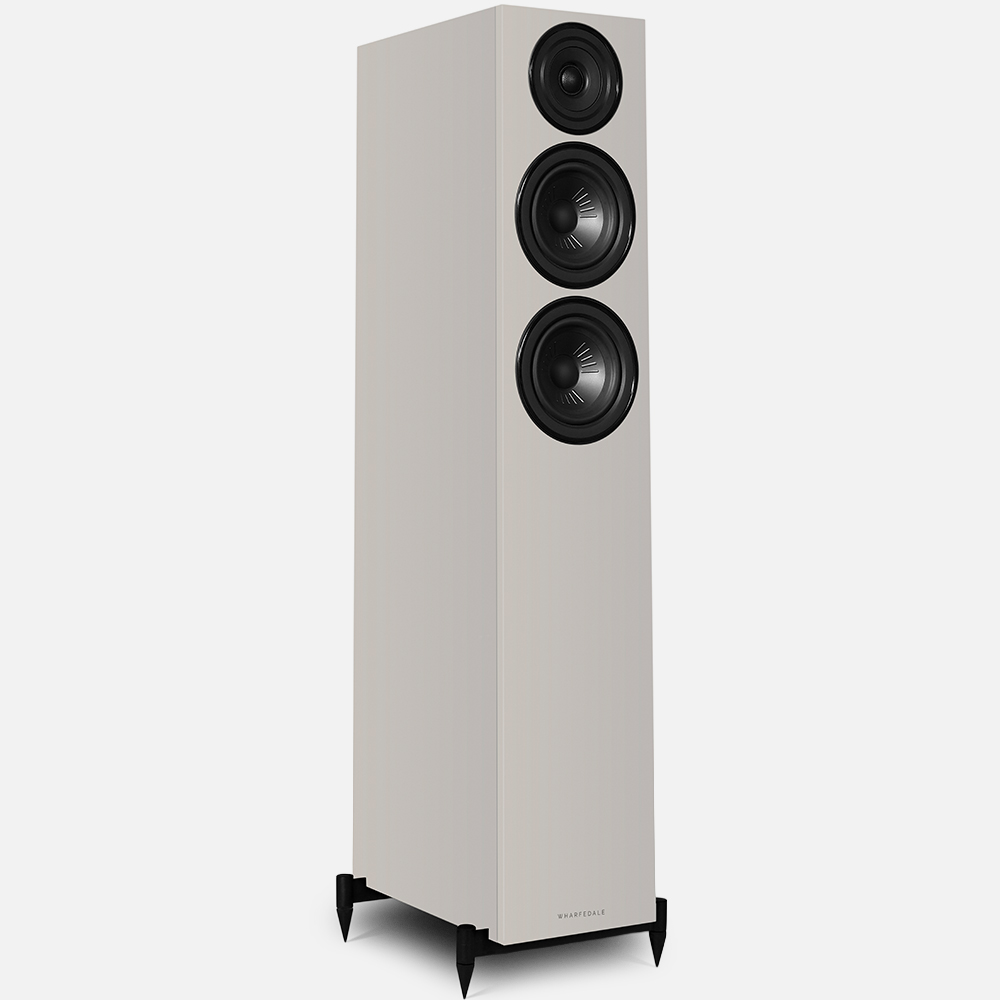

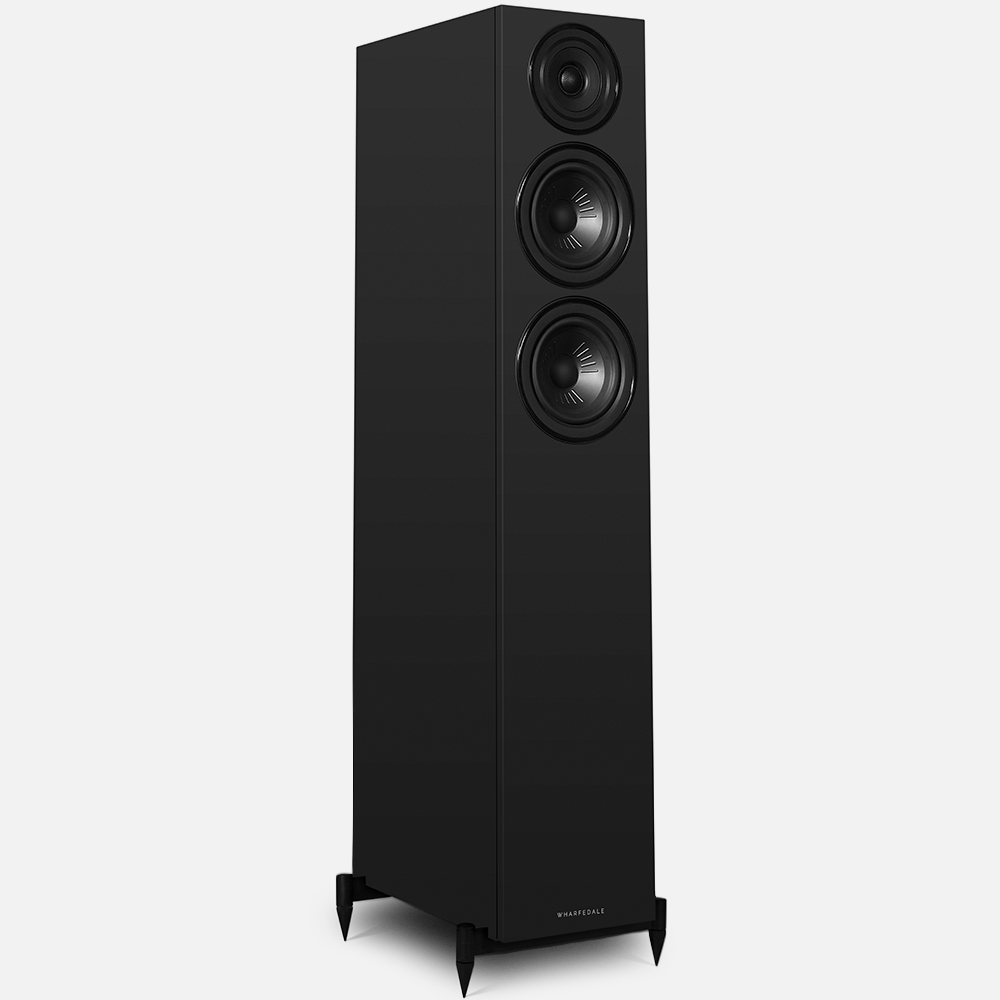

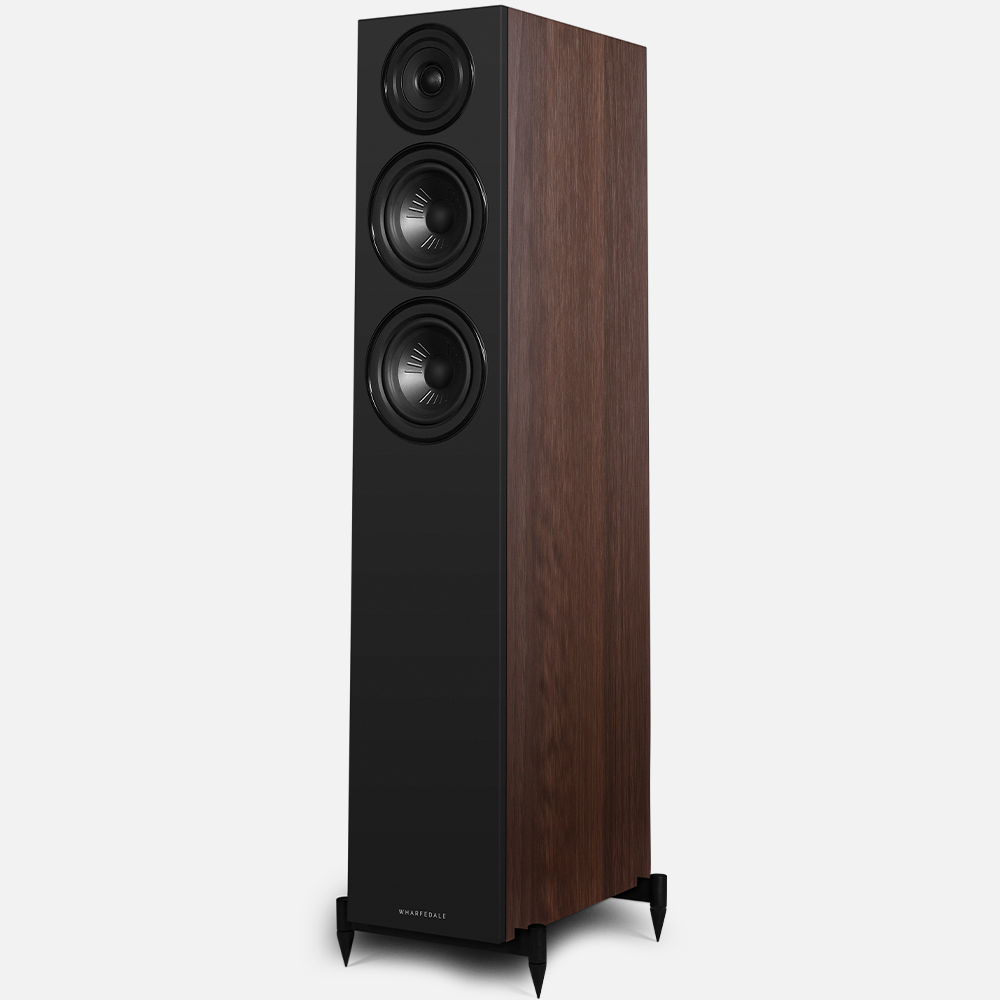

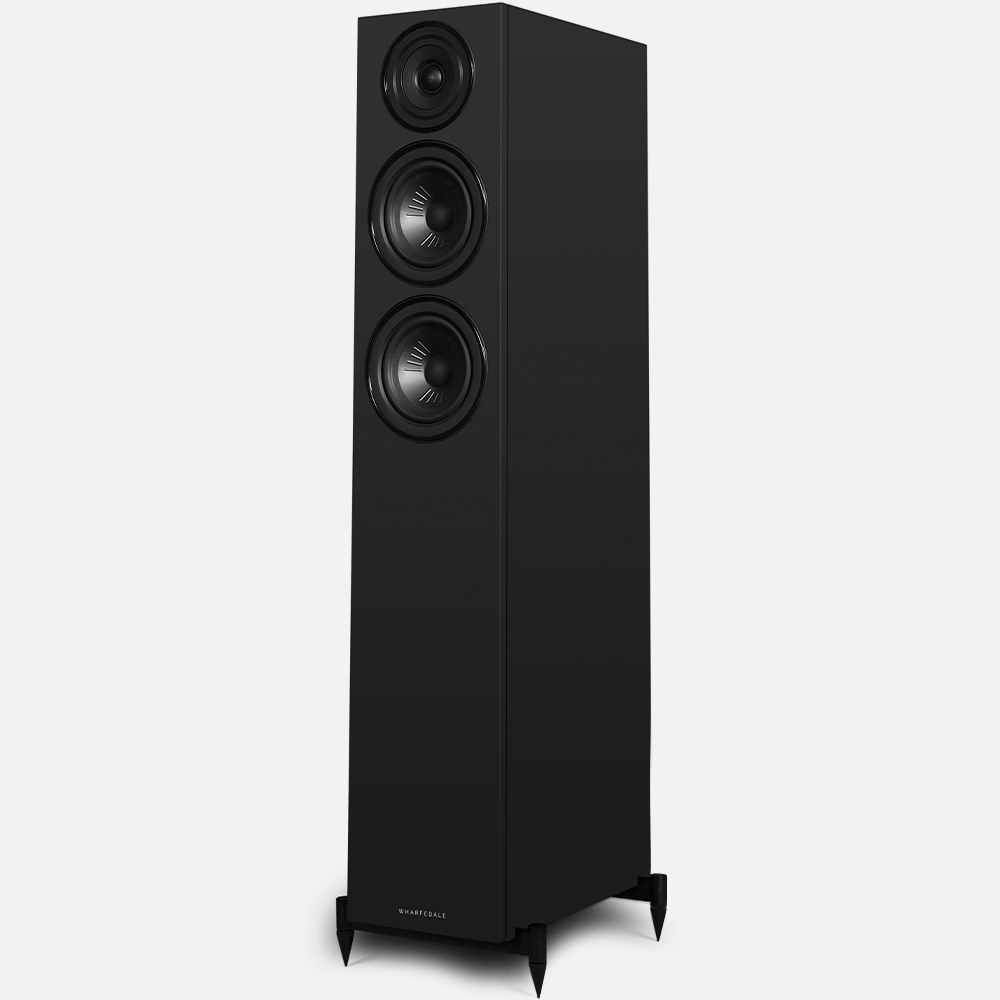

| General Description | 2.5-way floorstanding speaker |

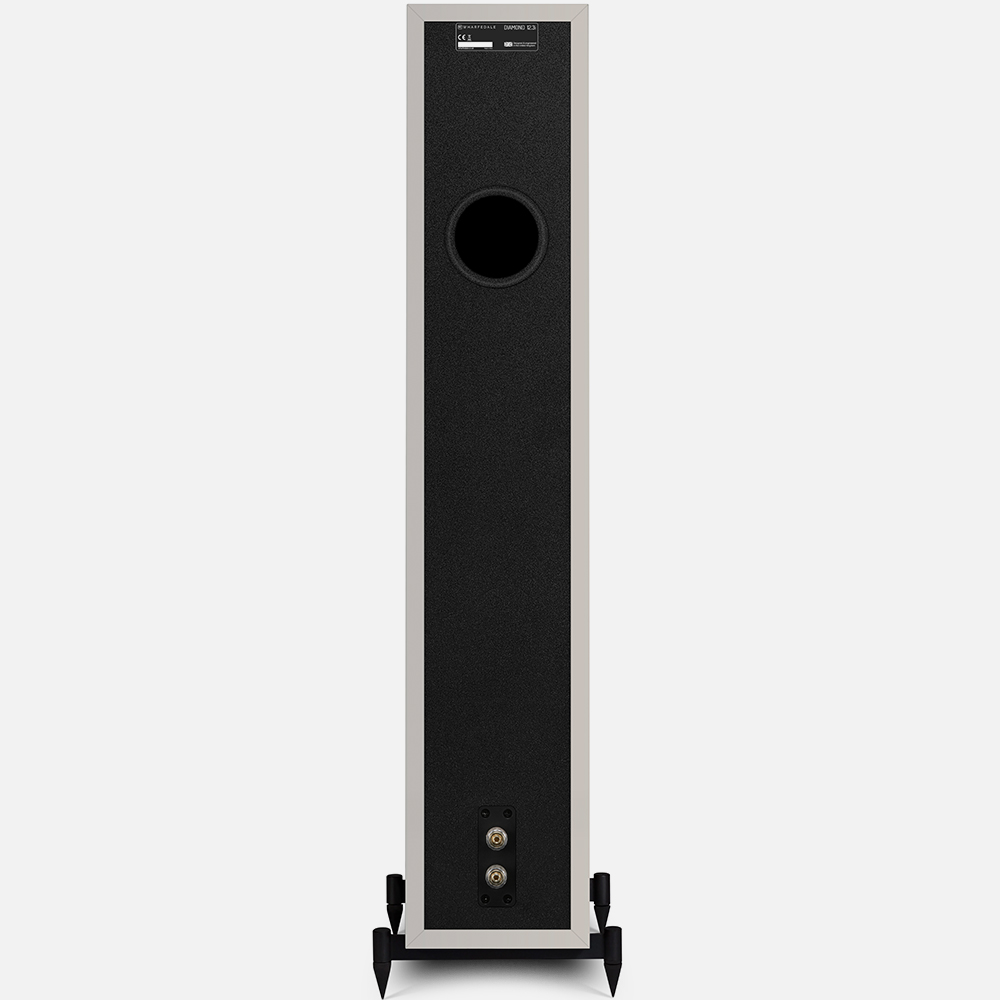

| Enclosure Type | bass reflex |
ABR
| Bass Driver | 5" (130mm) advanced PP Cone |
| Midrange Driver | 5" (130mm) advanced PP Cone |
| Treble Driver | 1" (25mm) Textile Dome |
Full-range Driver
| AV Shield | No |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended Amplifier Power | 30-150W |
Peak Power Handling
| Peak SPL | 102dB |
| Nominal Impedance | 8Ω Compatible |
| Minimum Impedance | 5.0Ω |
| Frequency Response (+/-3dB) | 45Hz - 20kHz |
| Bass Extension (-6dB) | 40Hz |
| Crossover Frequency | 2.2kHz |
| Cabinet Volume (in litres) | 26.6L |
| Dimensions ( H x W x D ) | (925+50) x 180 x (320+28)mm |
| Net Weight | 19.5kg/pcs |
