상세스펙
General

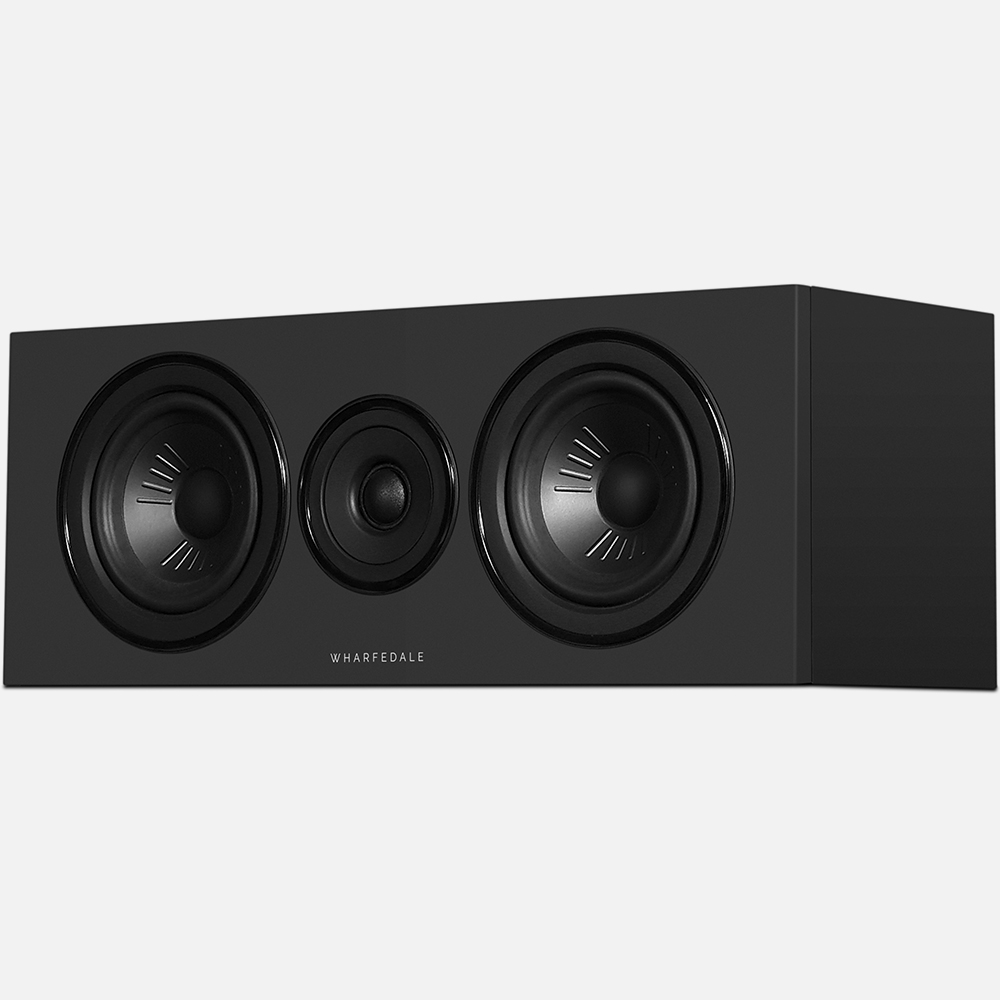

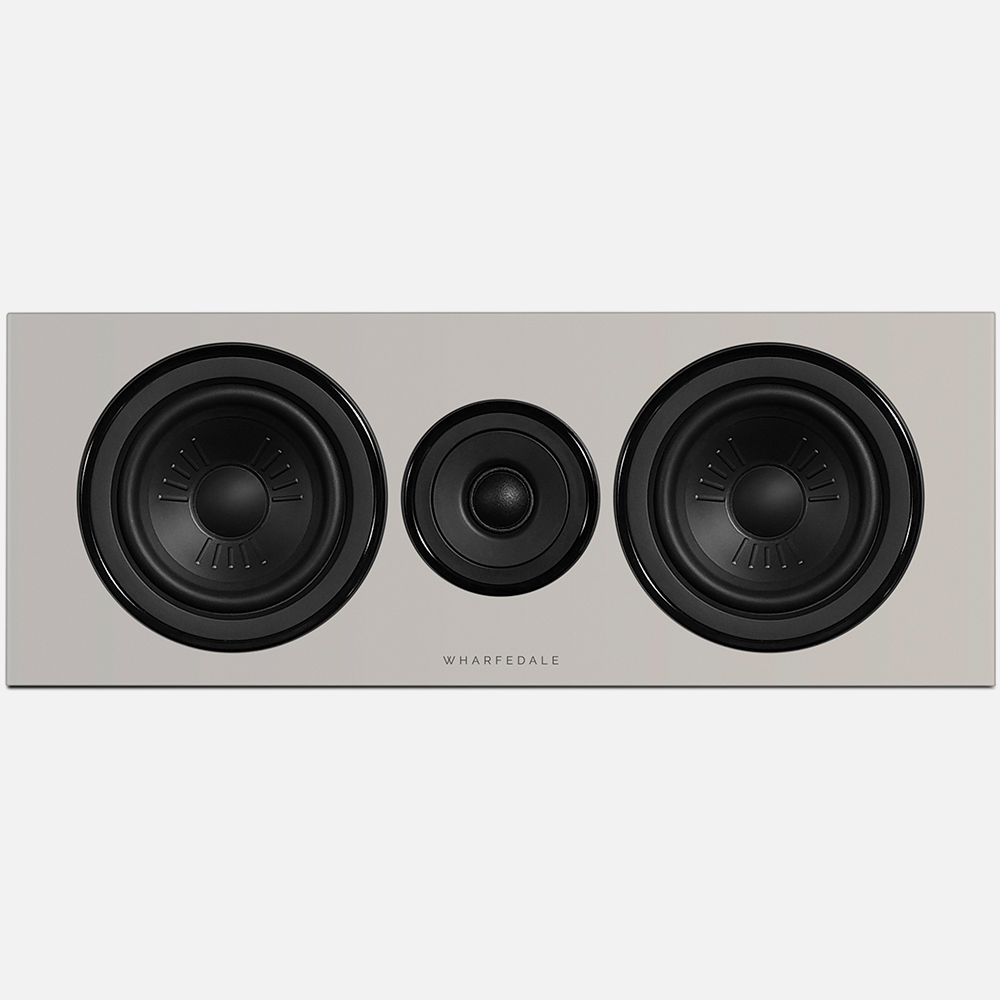

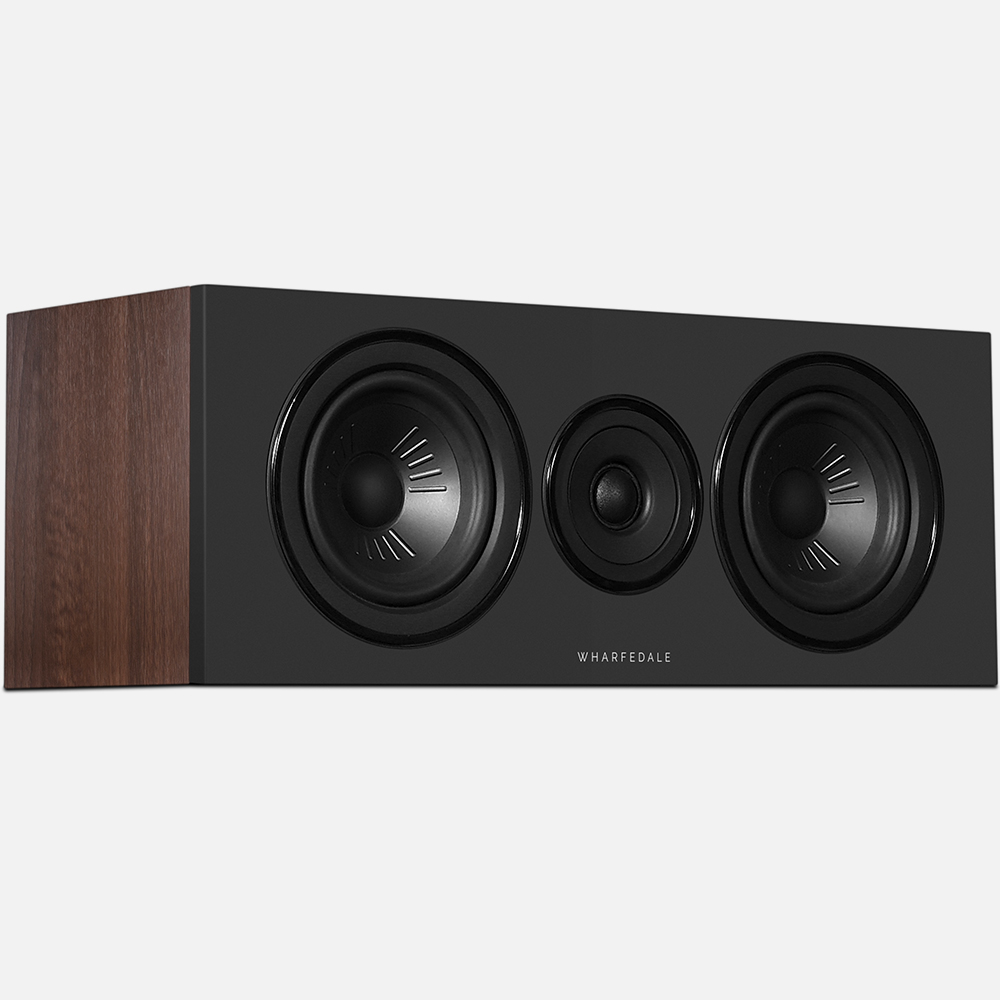

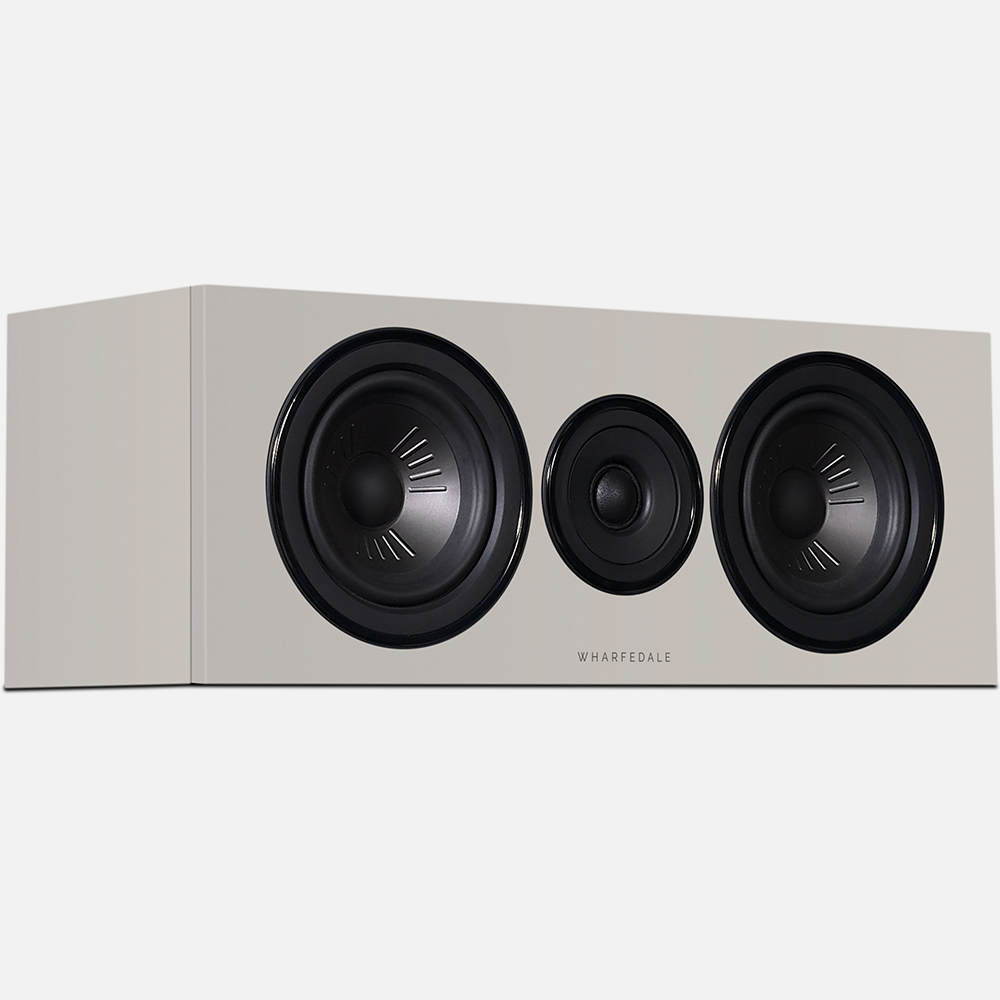

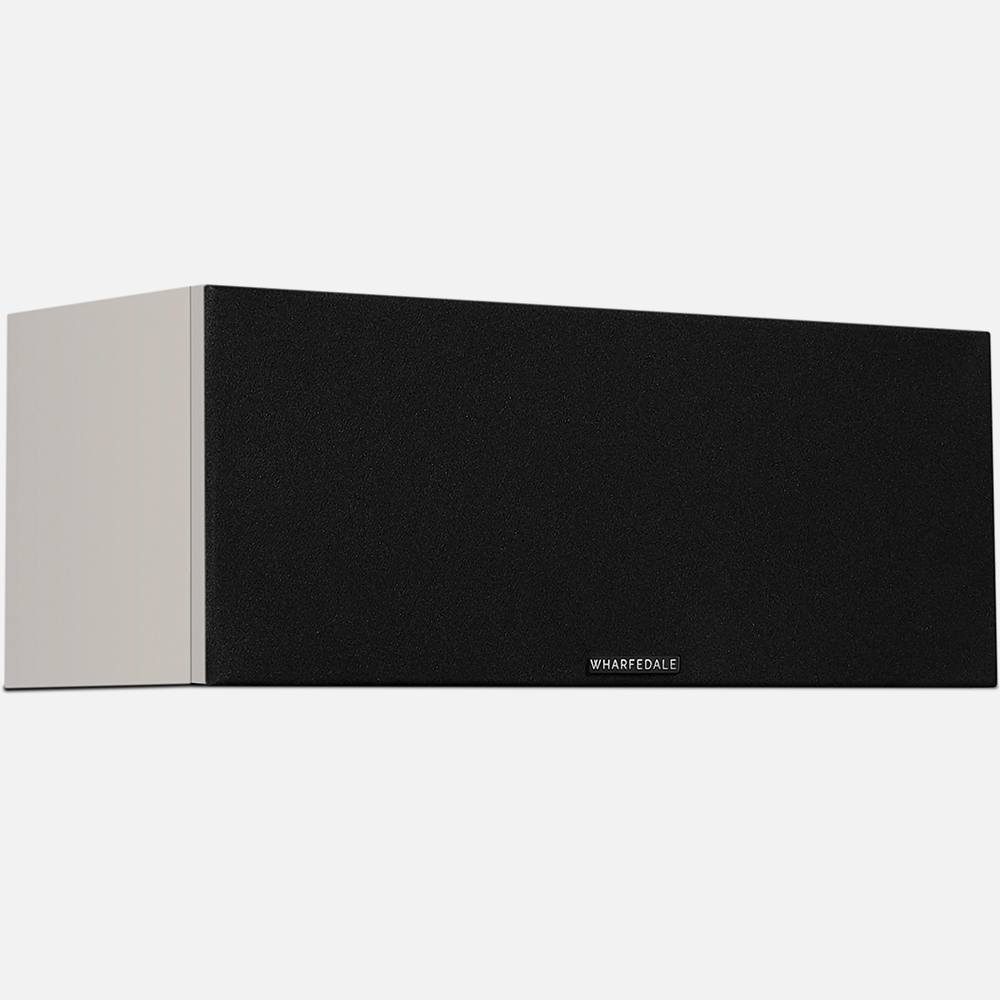

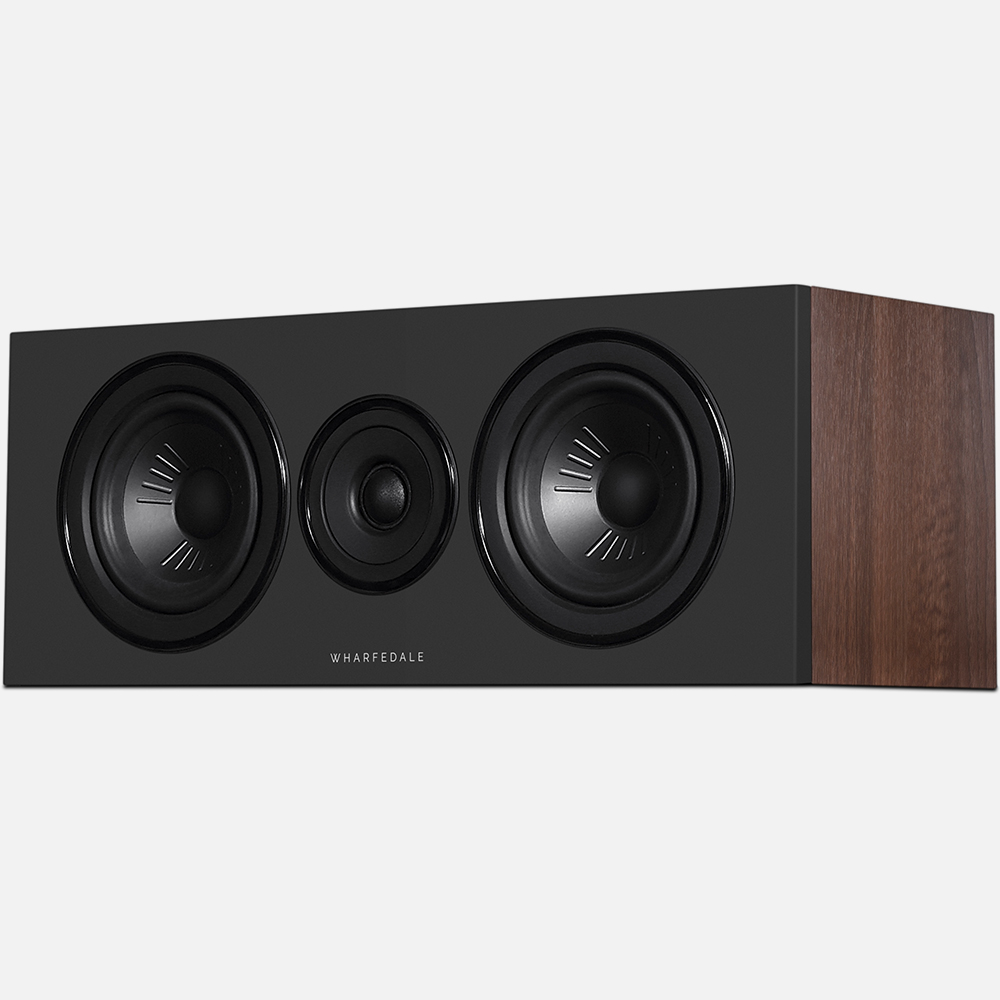

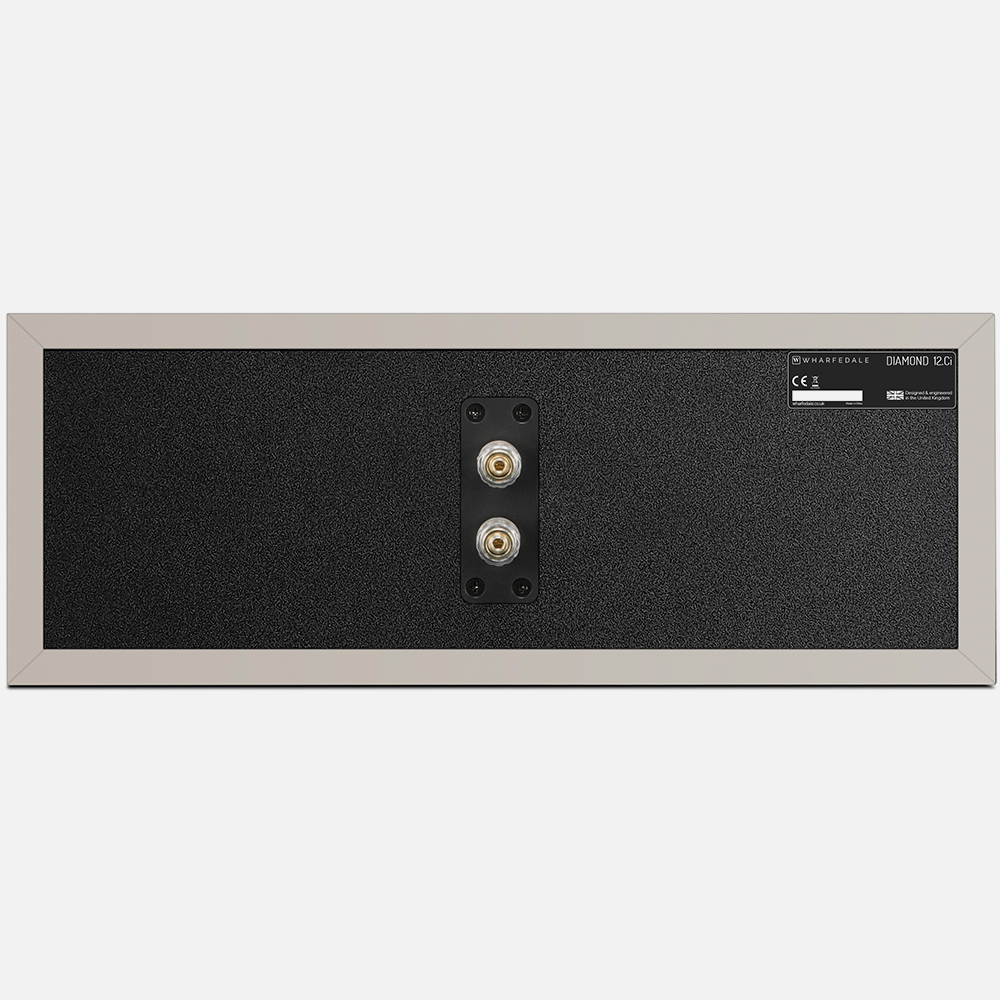

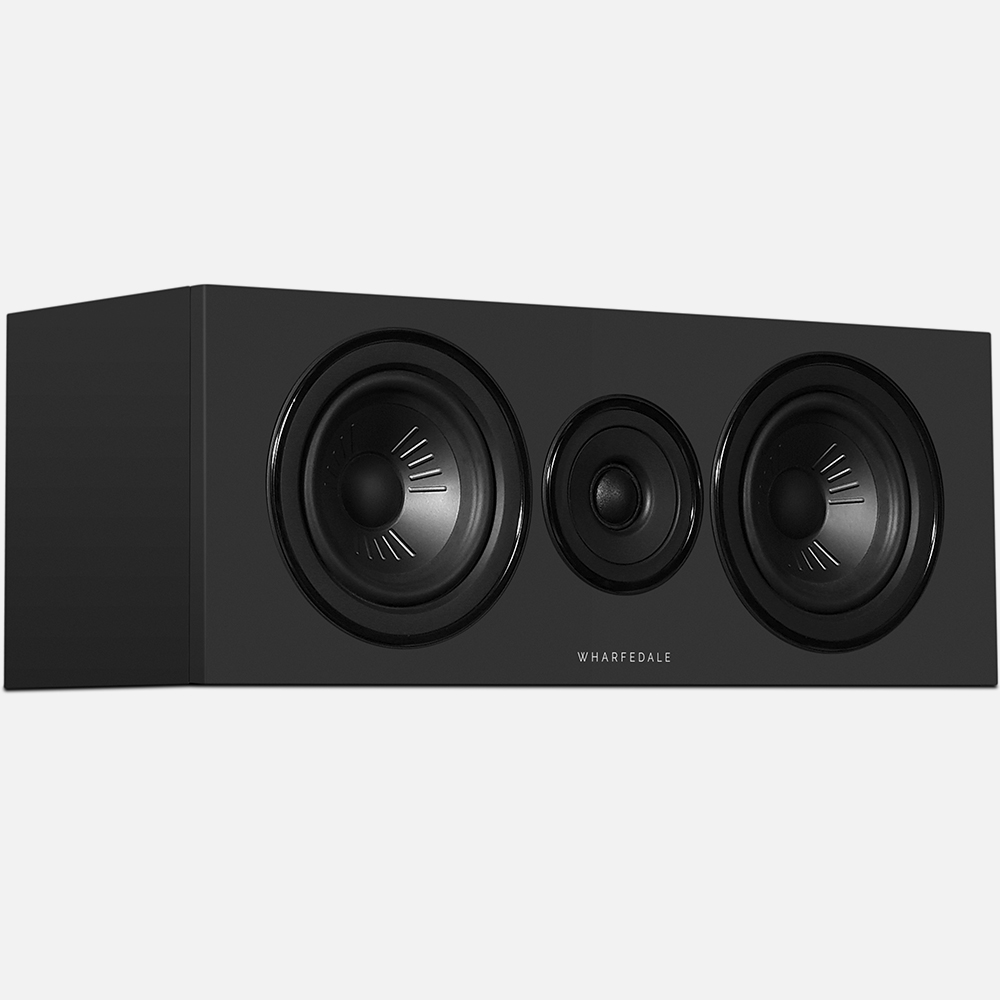

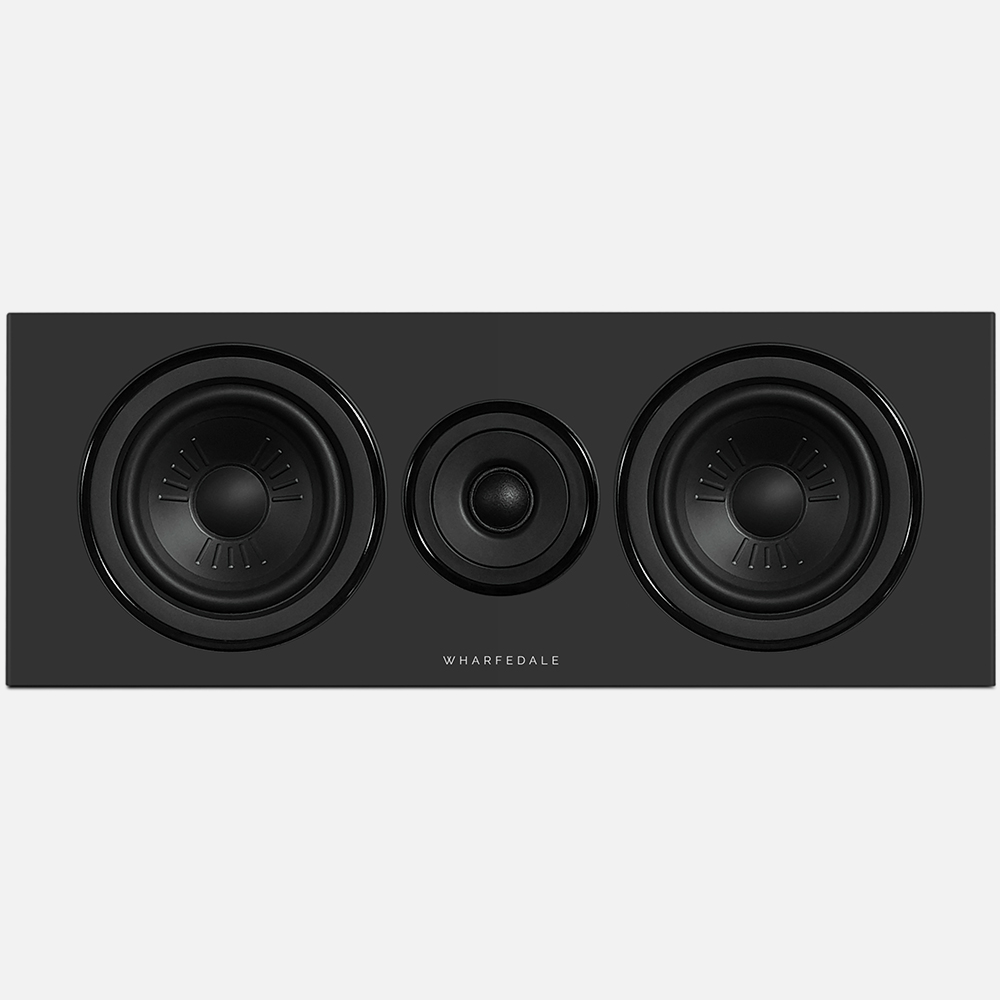

| General Description | 2-way centre speaker |
| Enclosure Type | closed-box system |
| Transducer Complement | 2-way |
ABR
| Bass Driver | 5" (130mm) advanced PP Cone x2 |
Midrange Driver
| Treble Driver | 1" (25mm) Textile Dome |
Full-range Driver
| AV Shield | No |
| Sensitivity (2.83V @ 1m) | 90dB |
| Recommended Amplifier Power | 20-120W |
Peak Power Handling
| Peak SPL | 96dB |
| Nominal Impedance | 8Ω Compatible |
| Minimum Impedance | 4.0Ω |
| Frequency Response (+/-3dB) | 90Hz - 20kHz |
| Bass Extension (-6dB) | 80Hz |
| Crossover Frequency | 2.2kHz |
| Cabinet Volume (in litres) | 8.7L |
| Dimensions ( H x W x D ) | 180 x 480 x (180+28)mm |
| Net Weight | 8.5kg/pcs |
