General

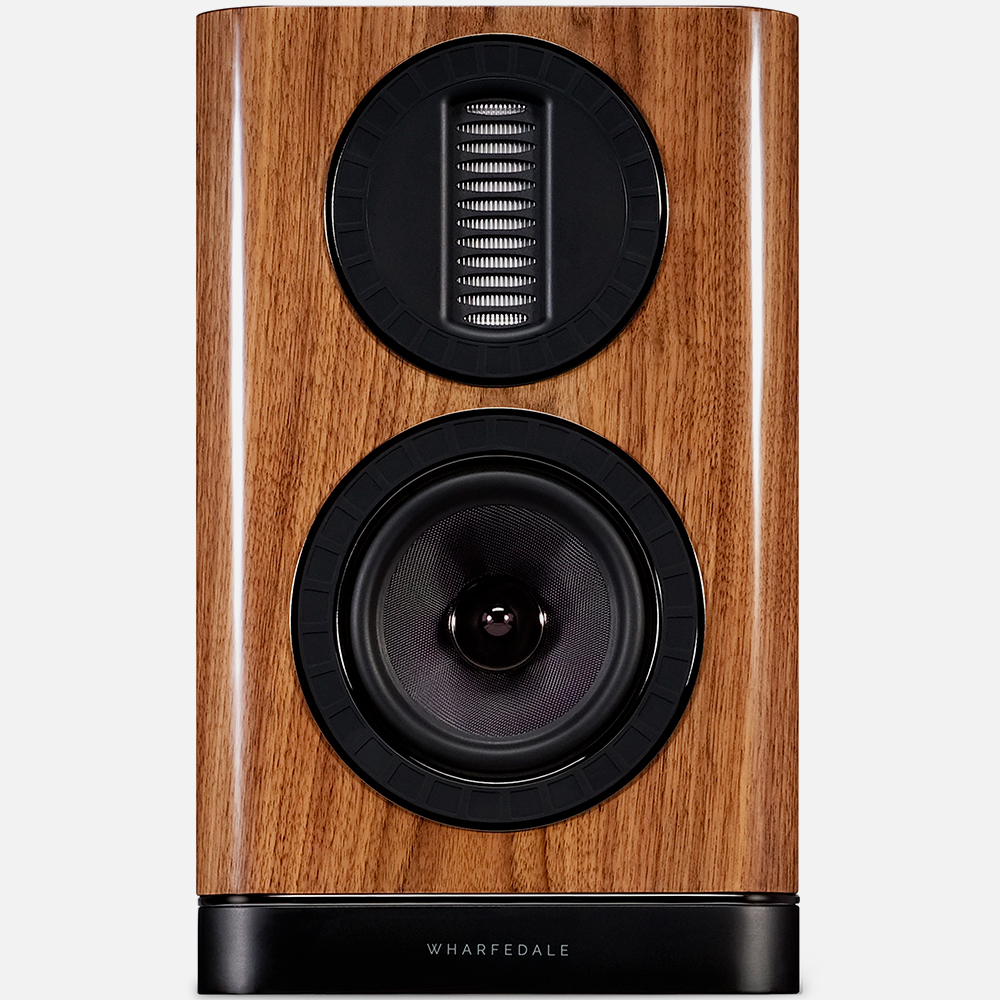

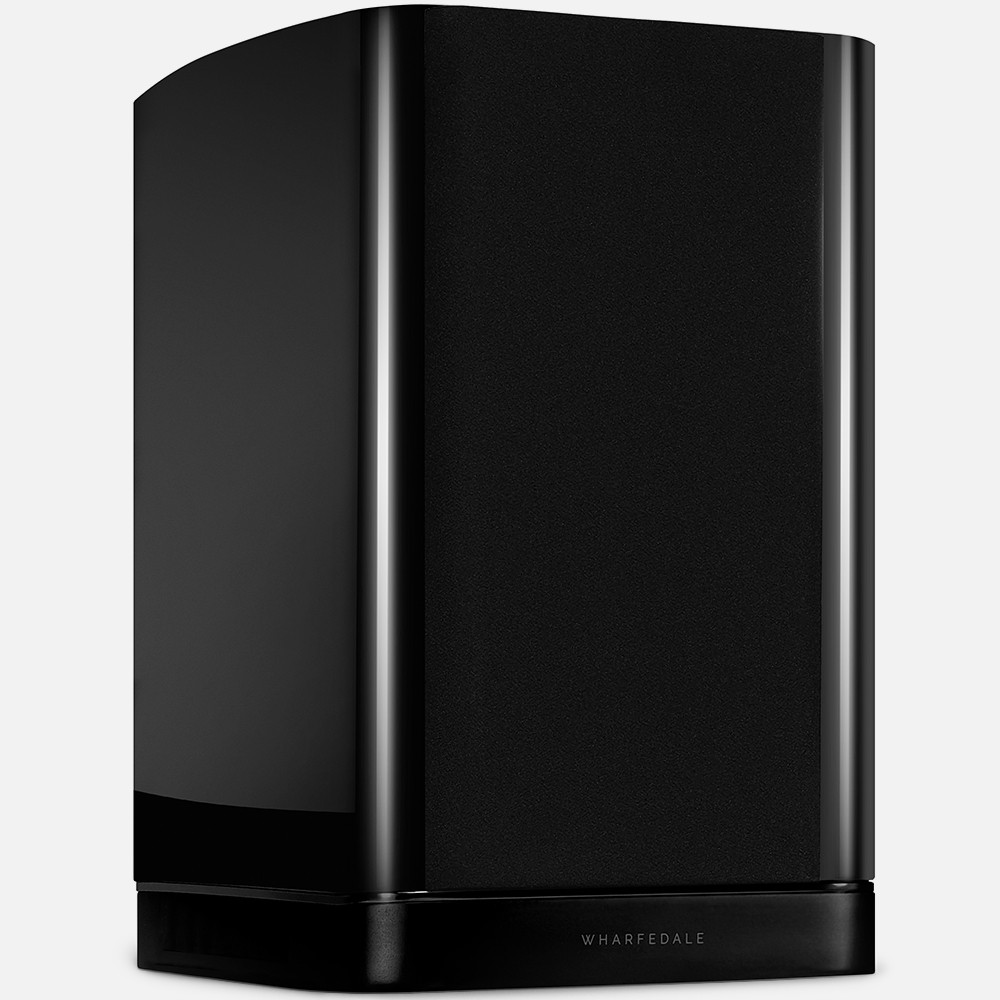

| General description | 2-way bookshelf speaker |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
ABR
| Bass driver | 5"(130mm) Black Glass Fibre Matrix Cone |
Midrange driver
| High Frequency Driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 86dB |
| Recommended amplifer power | 25-100W |
| Peak SPL | 103dB |
| Nominal impedance | 6Ω(8Ω compatible) |
| Minimum impedance | 4.1Ω |
| Frequency response(+/-3dB) | 48Hz ~ 22kHz |
| Bass extension (-6dB) | 44Hz |
| Crossover frequency | 2.9kHz |
| Cabinet Volume (in litres) | 16.5L |
Dimensions(mm)
| Height (on plinth) | 386mm |
| Width | 246mm |

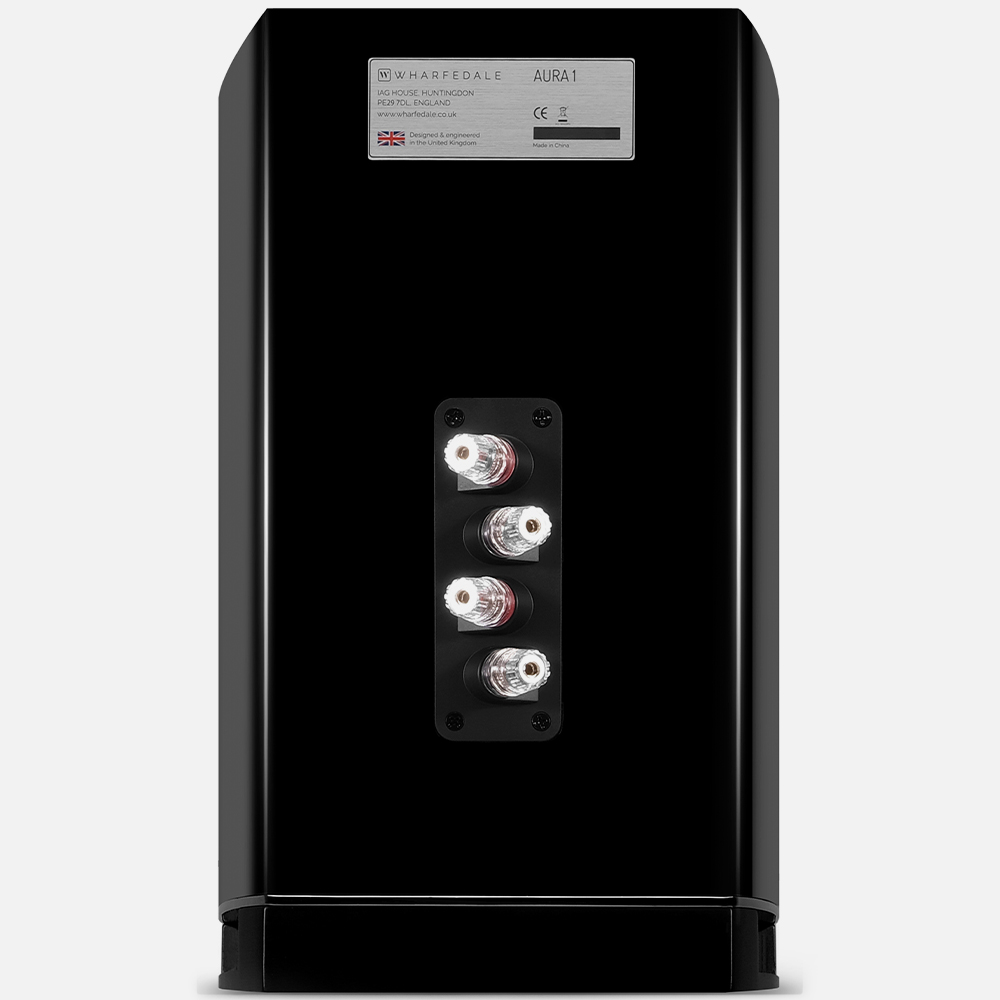

| Depth (with terminals) | (300+52)mm |
| Carton size | 640 x 425 x 510mm |
| Net weight | 12.5kg/pcs |
| Gross weight | 26.5kg/ctn |

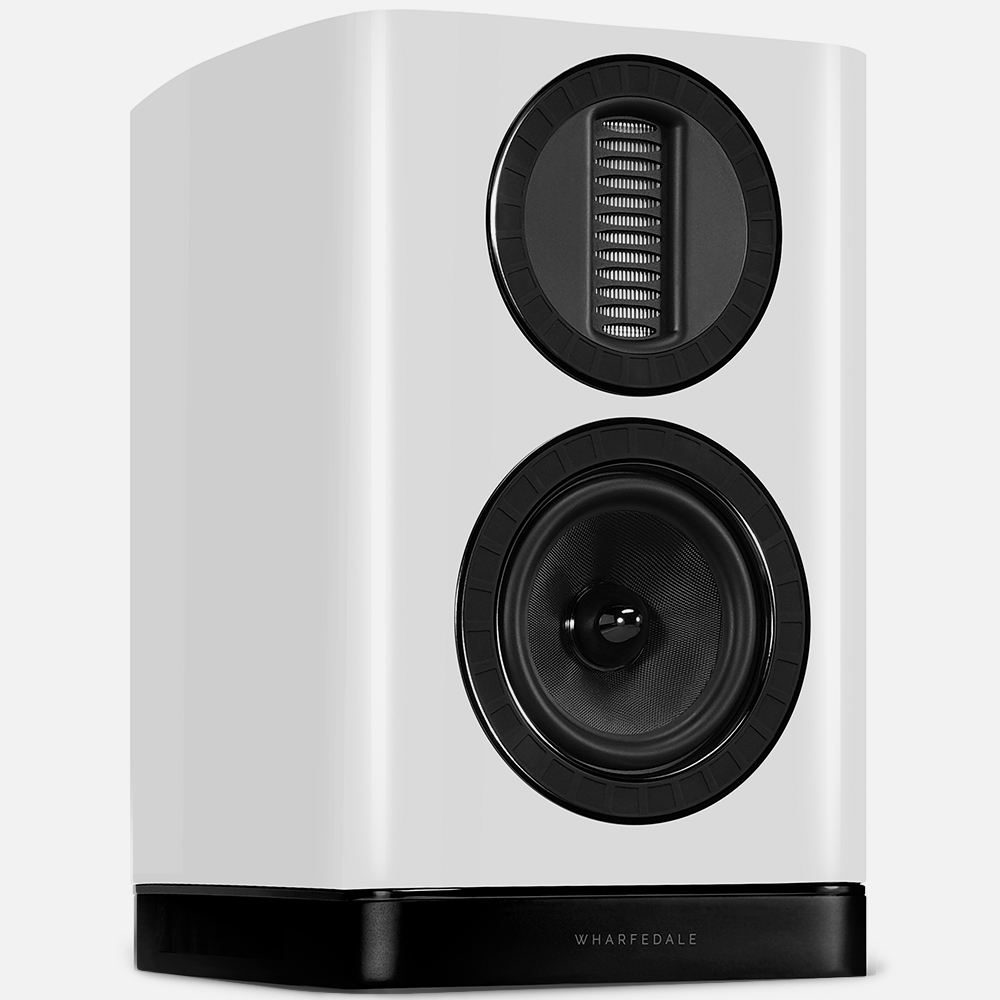

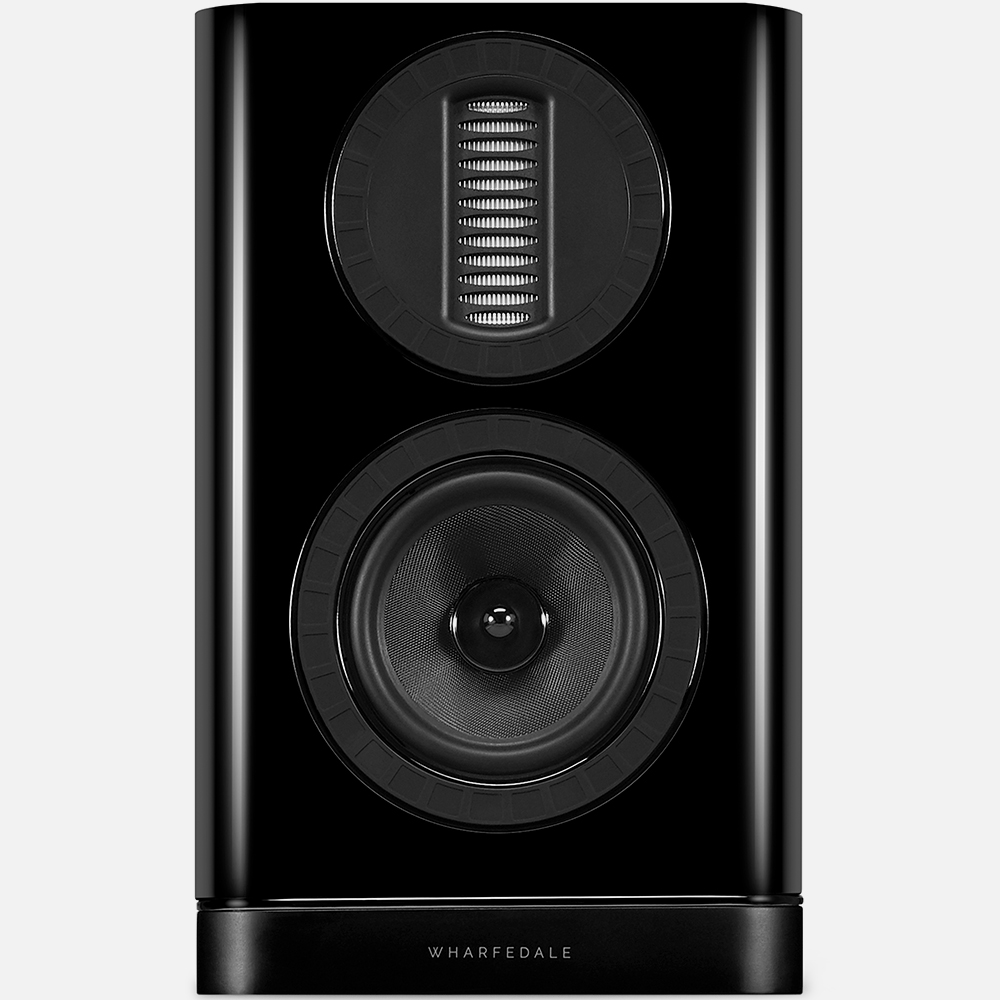

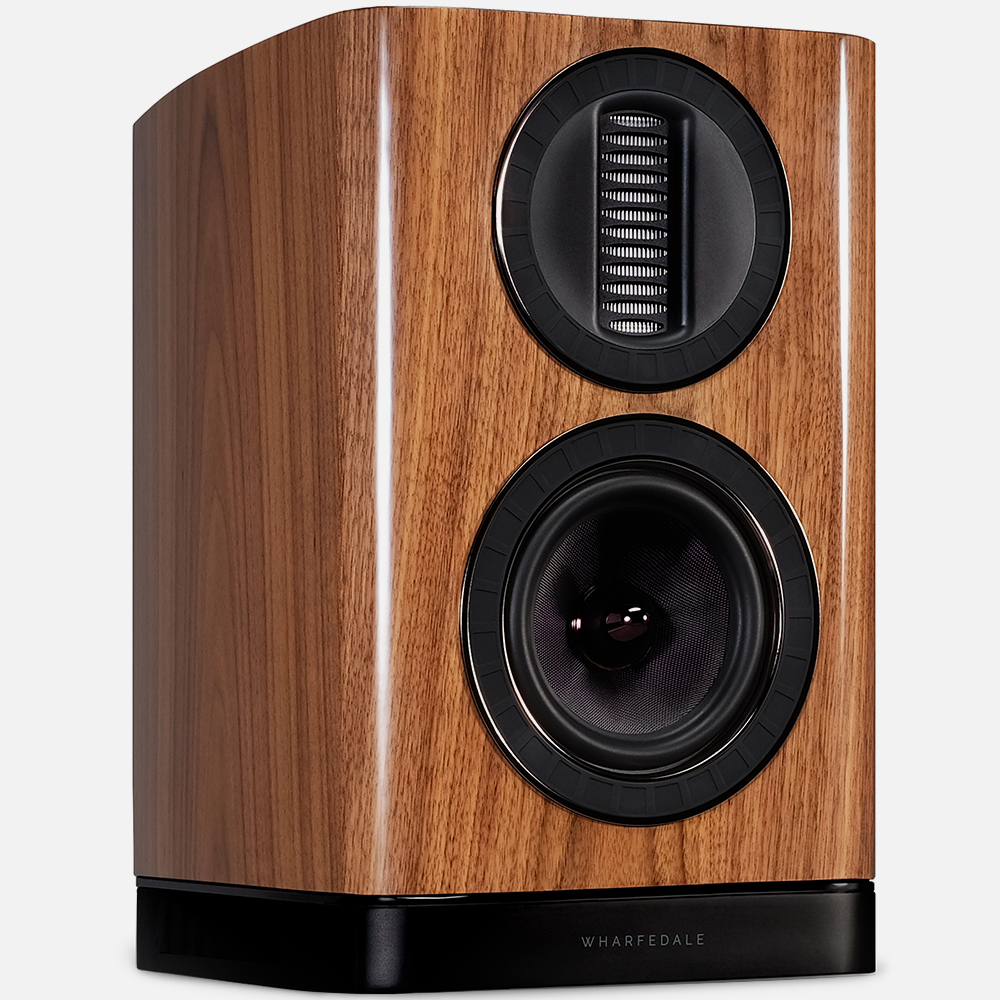

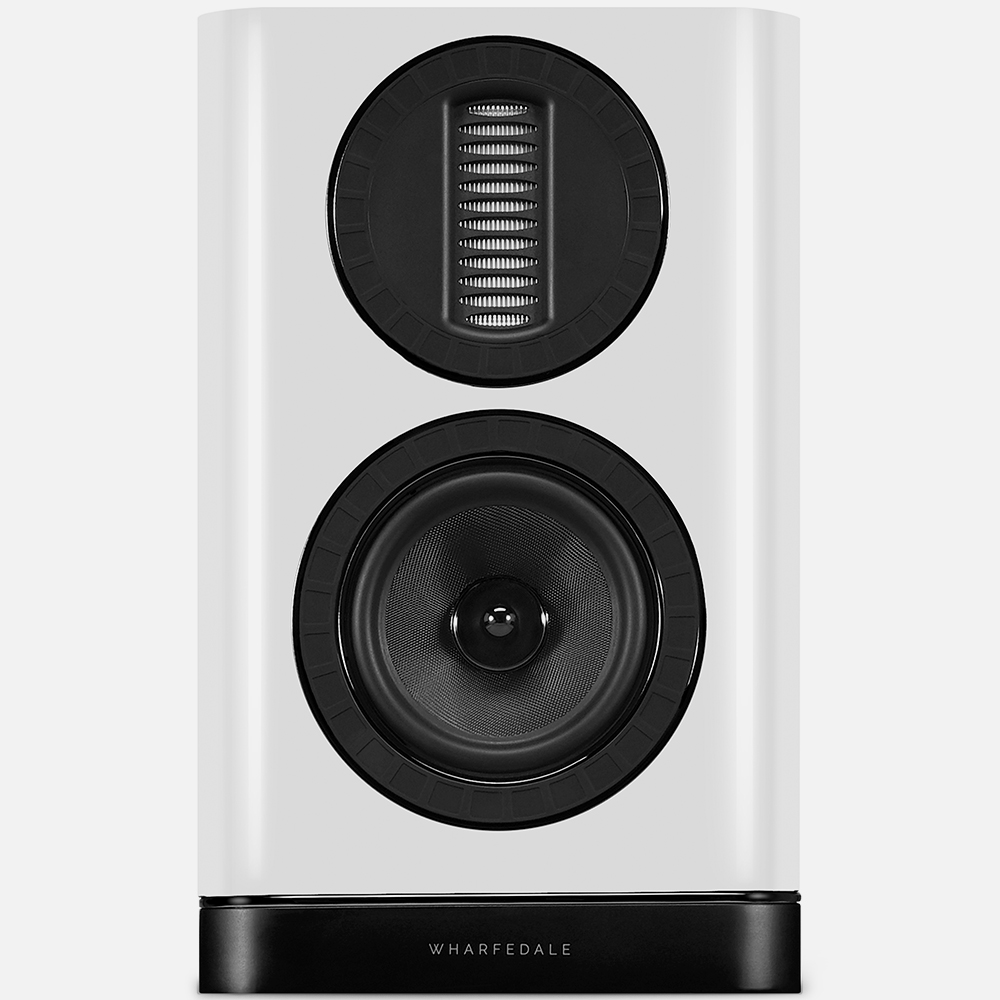

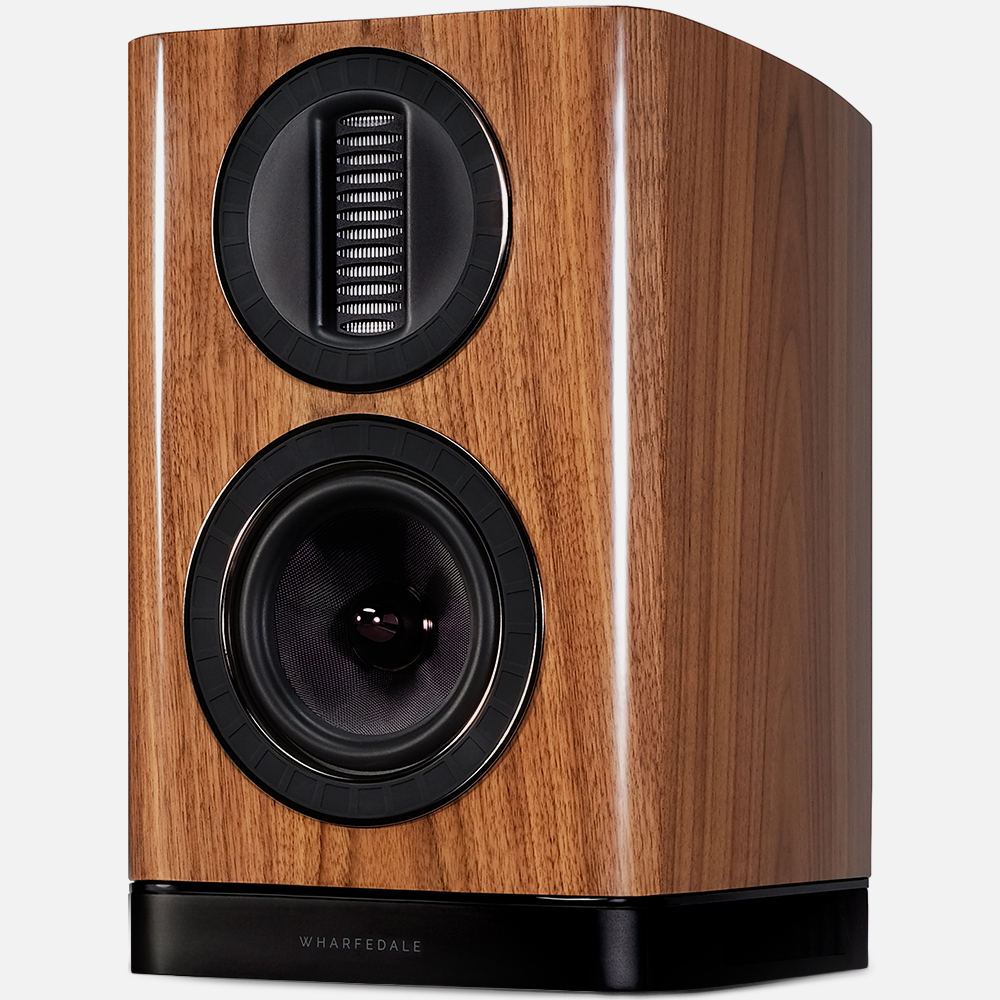

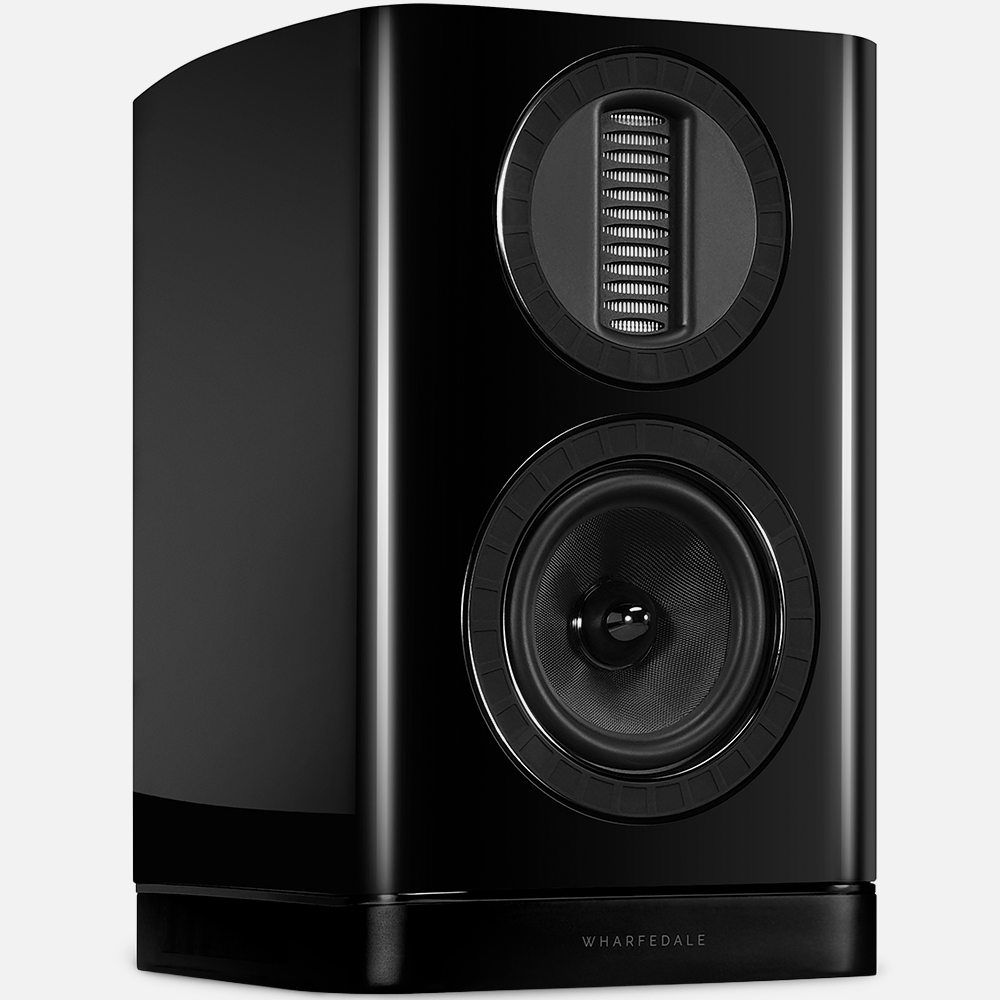

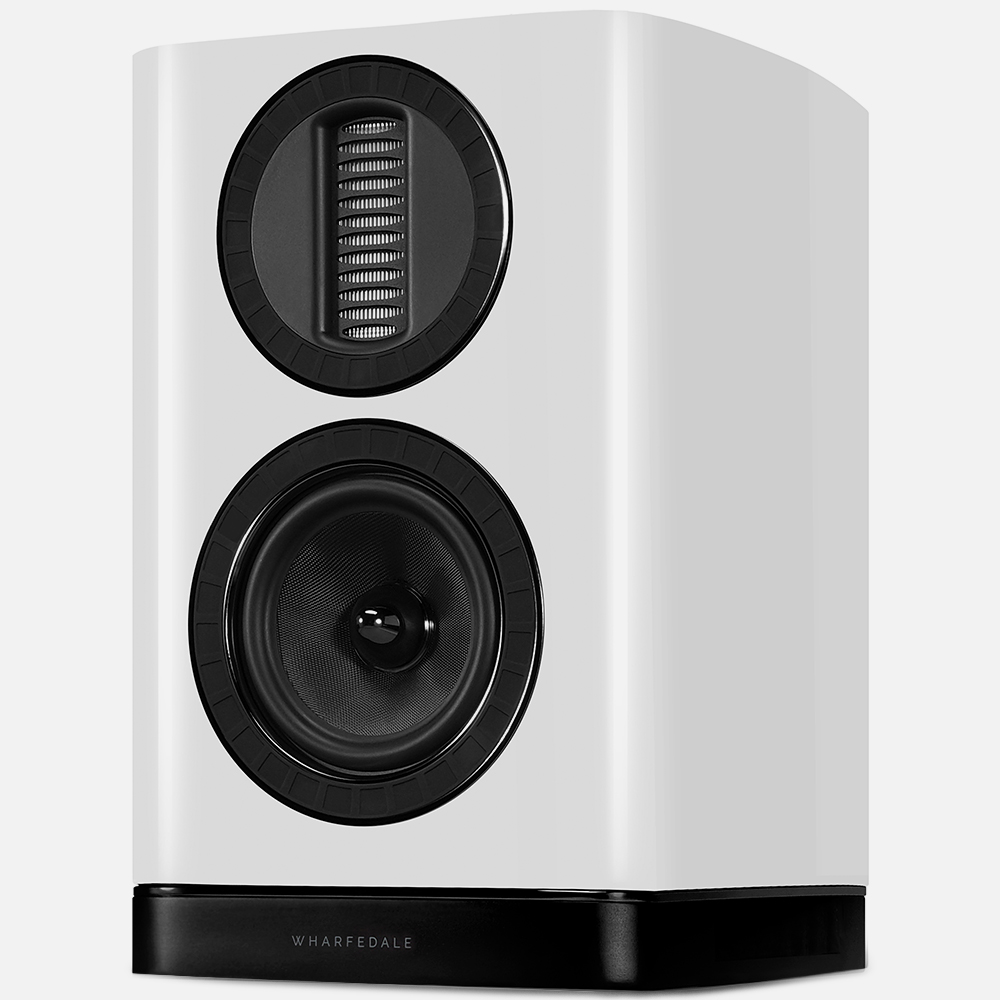

| Finish | Walnut/White/Black hi-gloss |
