상세스펙
General

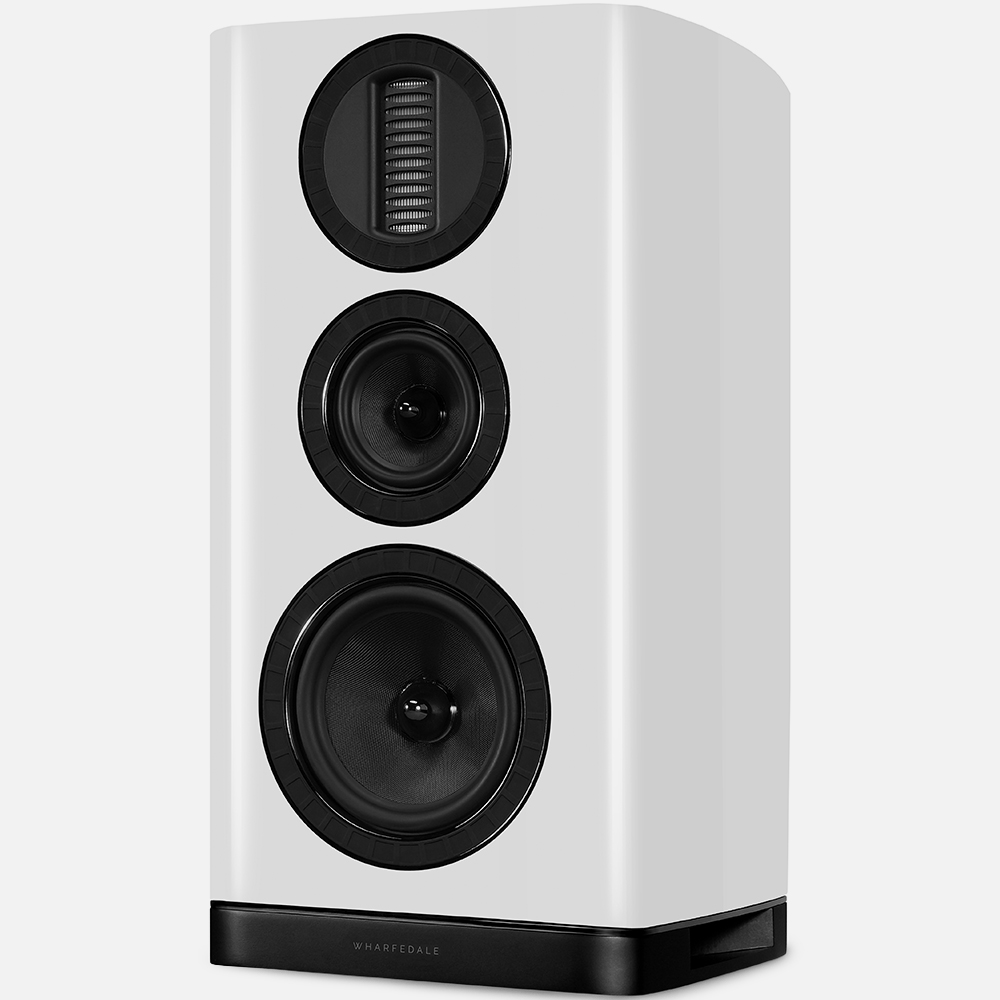

| General description | 3-way bookshelf speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
ABR
| Bass driver | 6.5"(150mm) Black Glass Fibre Matrix Cone |
| Midrange driver | 4"(100mm) Black Glass Fibre Matrix Cone |
| High Frequency Driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended amplifer power | 25-150W |
| Peak SPL | 103dB |
| Nominal impedance | 6Ω (8Ω compatible) |
| Minimum impedance | 3.5Ω |
| Frequency response(+/-3dB) | 42Hz ~ 22kHz |
| Bass extension (-6dB) | 33Hz |
| Crossover frequency | 520Hz,4.5kHz |
| Cabinet Volume (in litres) | 4.8L,29L |
Dimensions(mm)
| Height (on plinth) | 560mm |
| Width | 286mm |

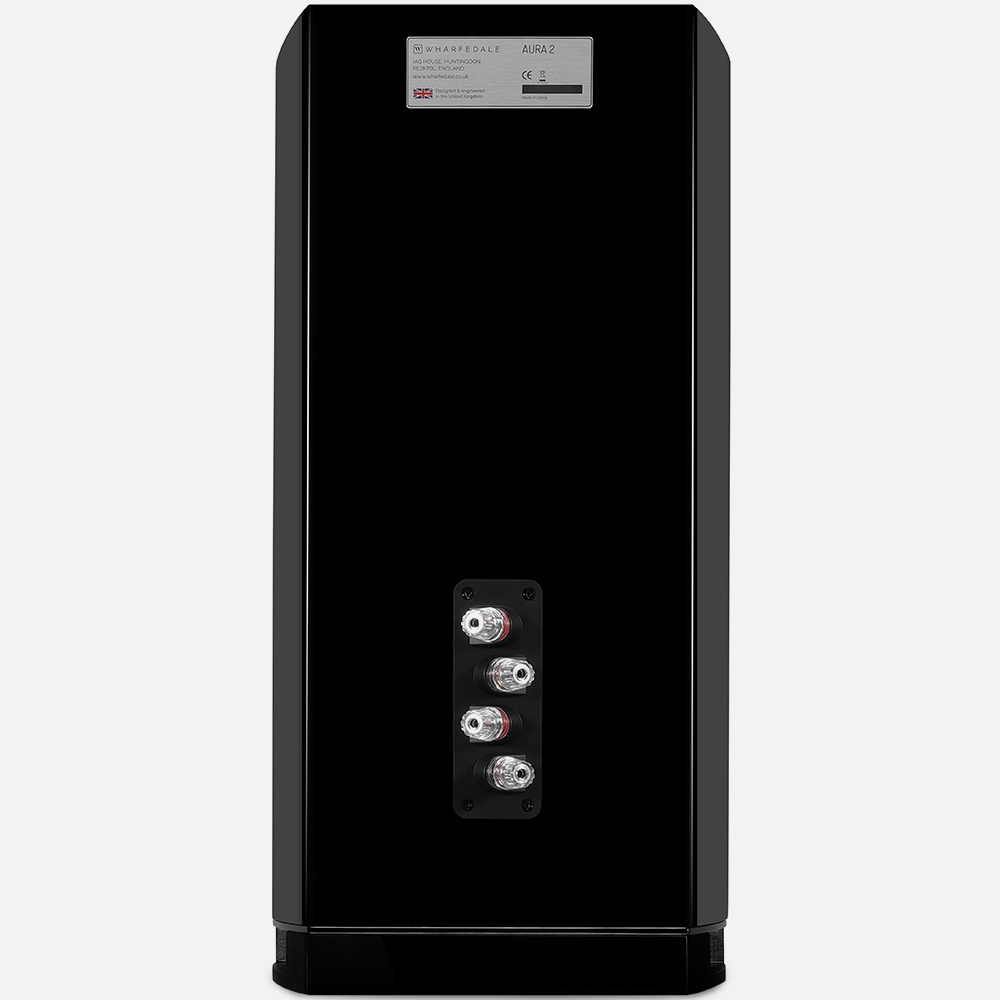

| Depth (with terminals) | (350+52)mm |
| Carton size | 505 x 425 x 730mm |
| Net weight | 20.5kg/pcs |
| Gross weight | 22.5kg/ctn |

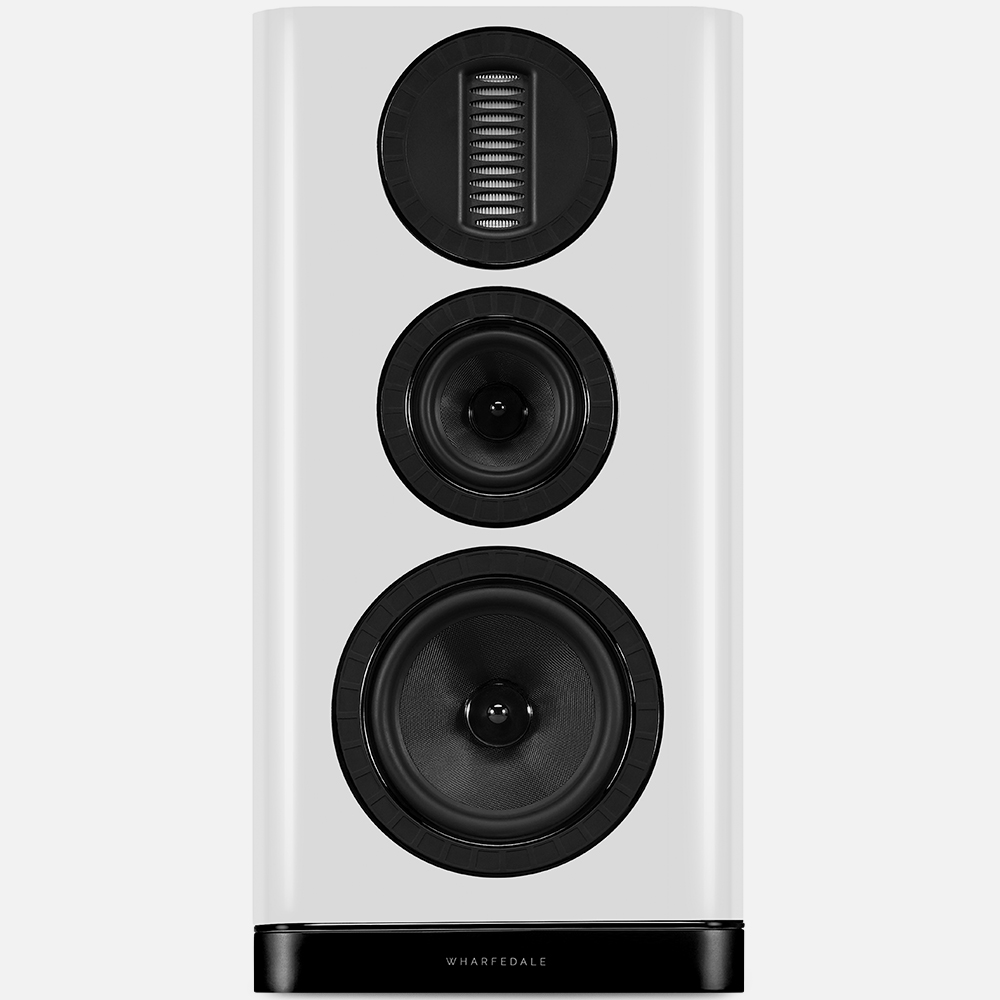

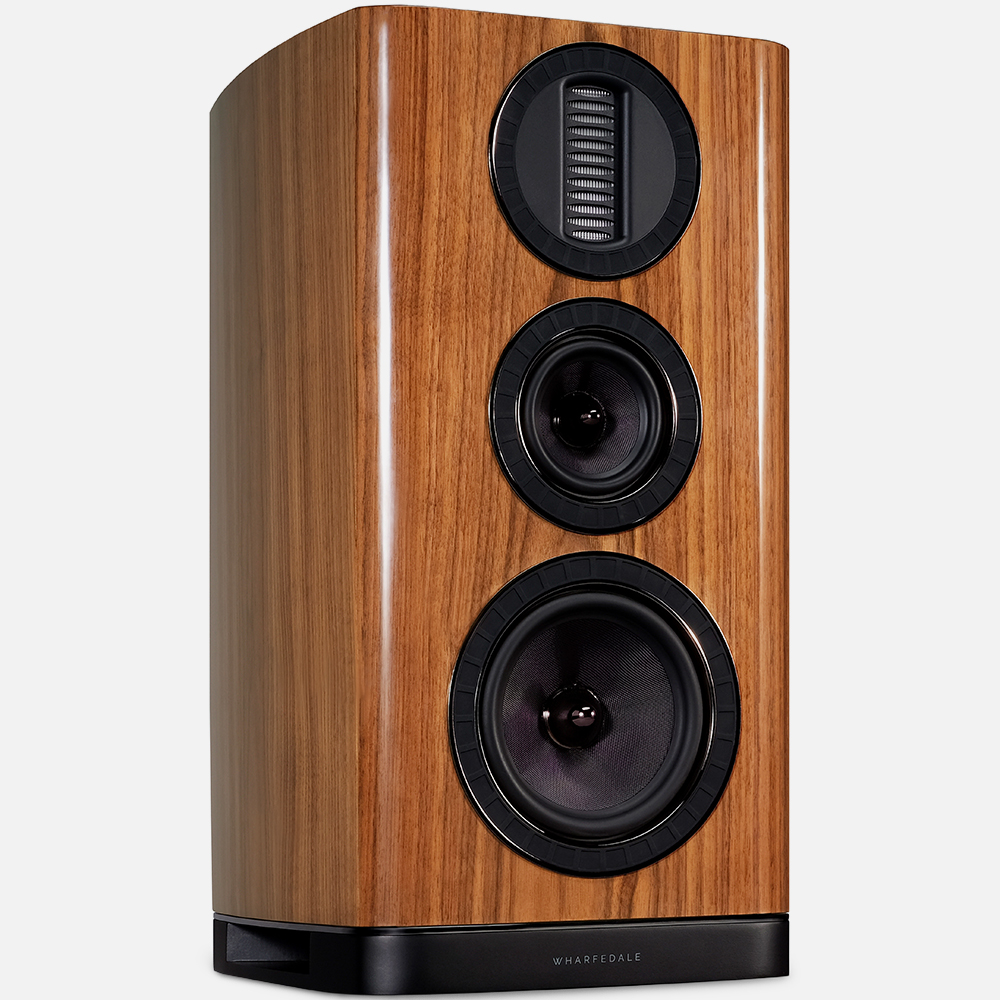

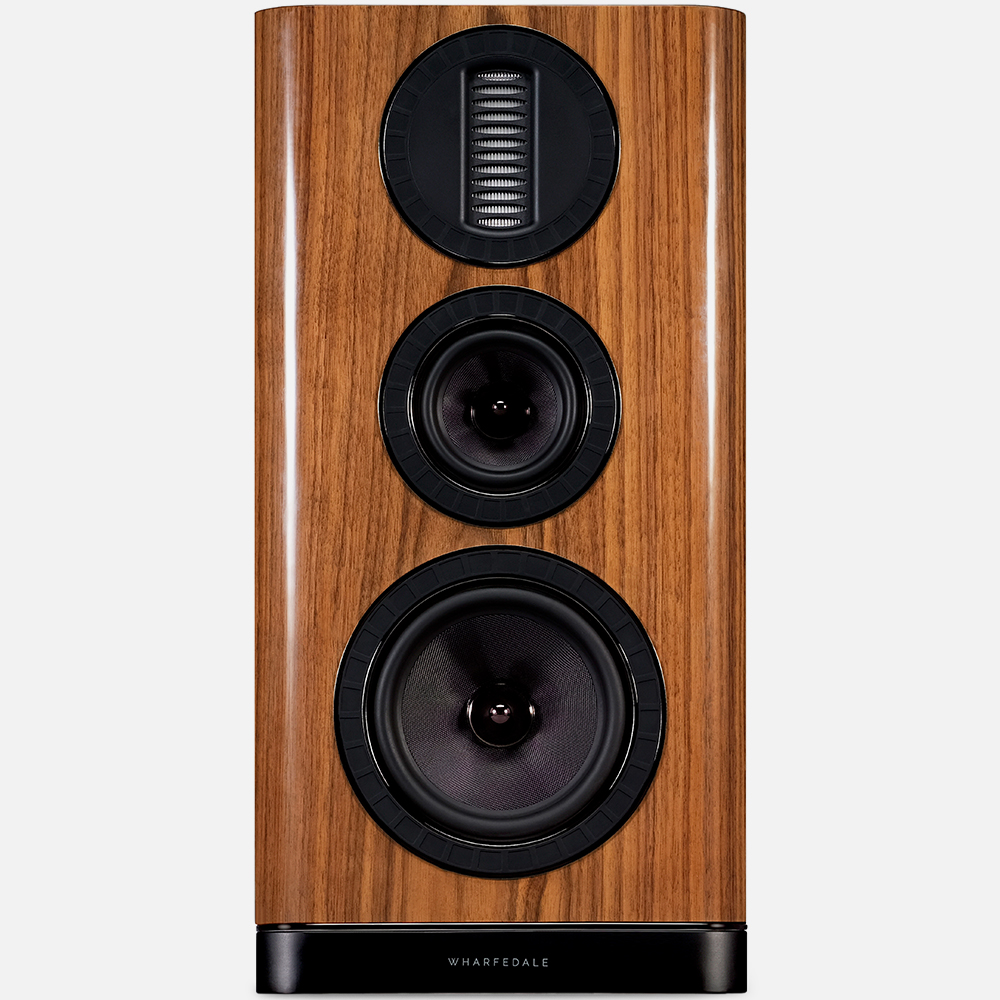

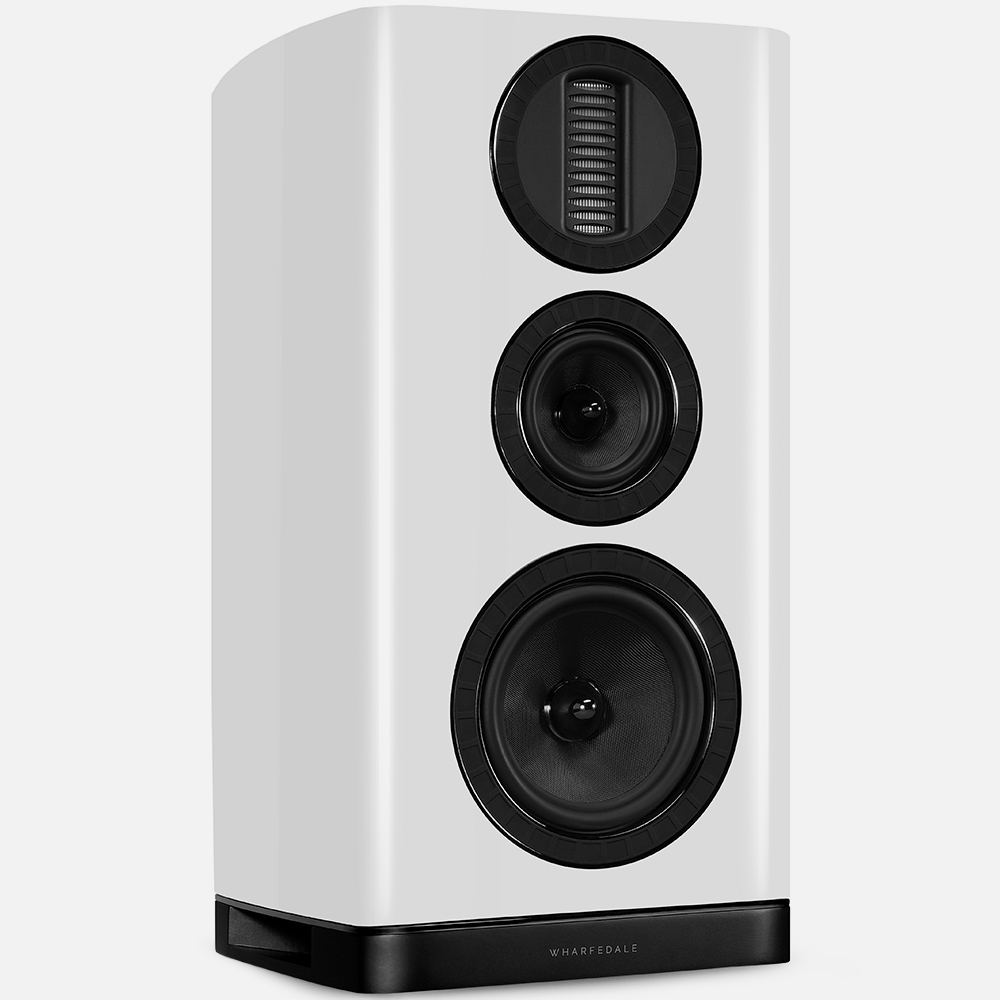

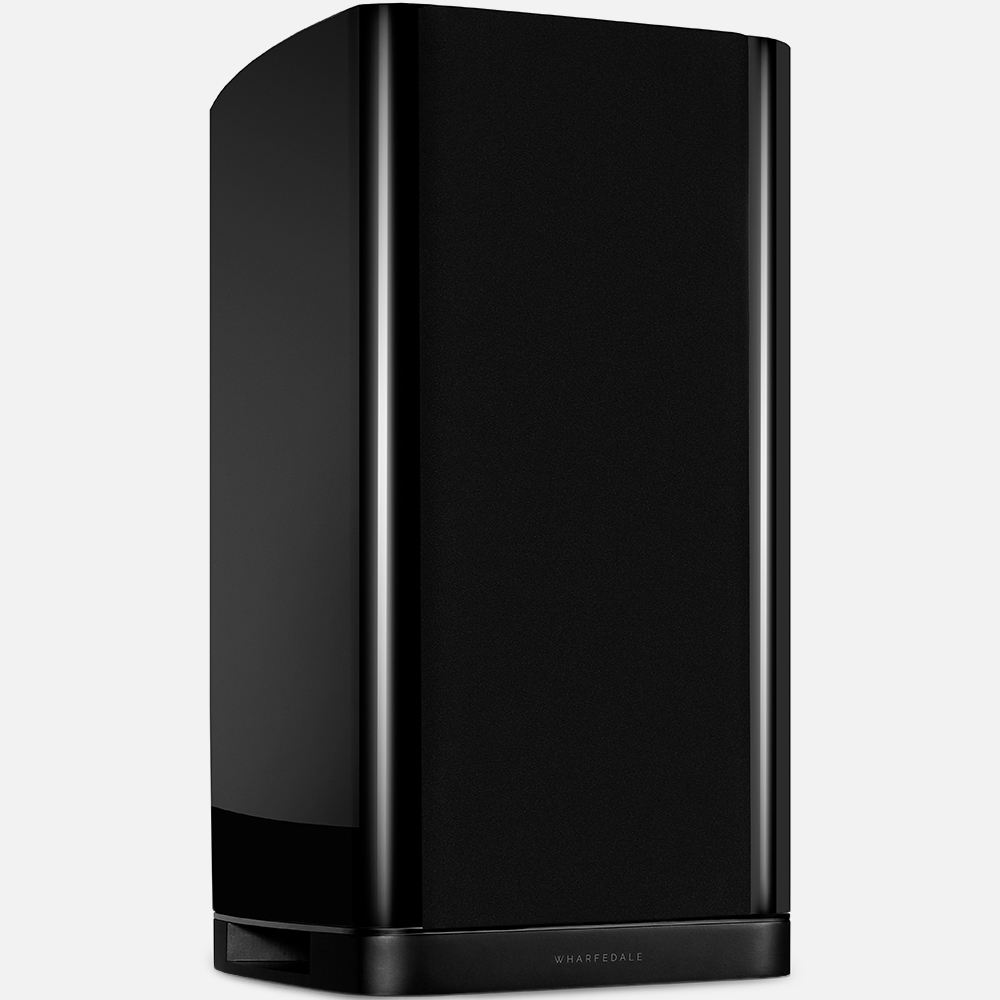

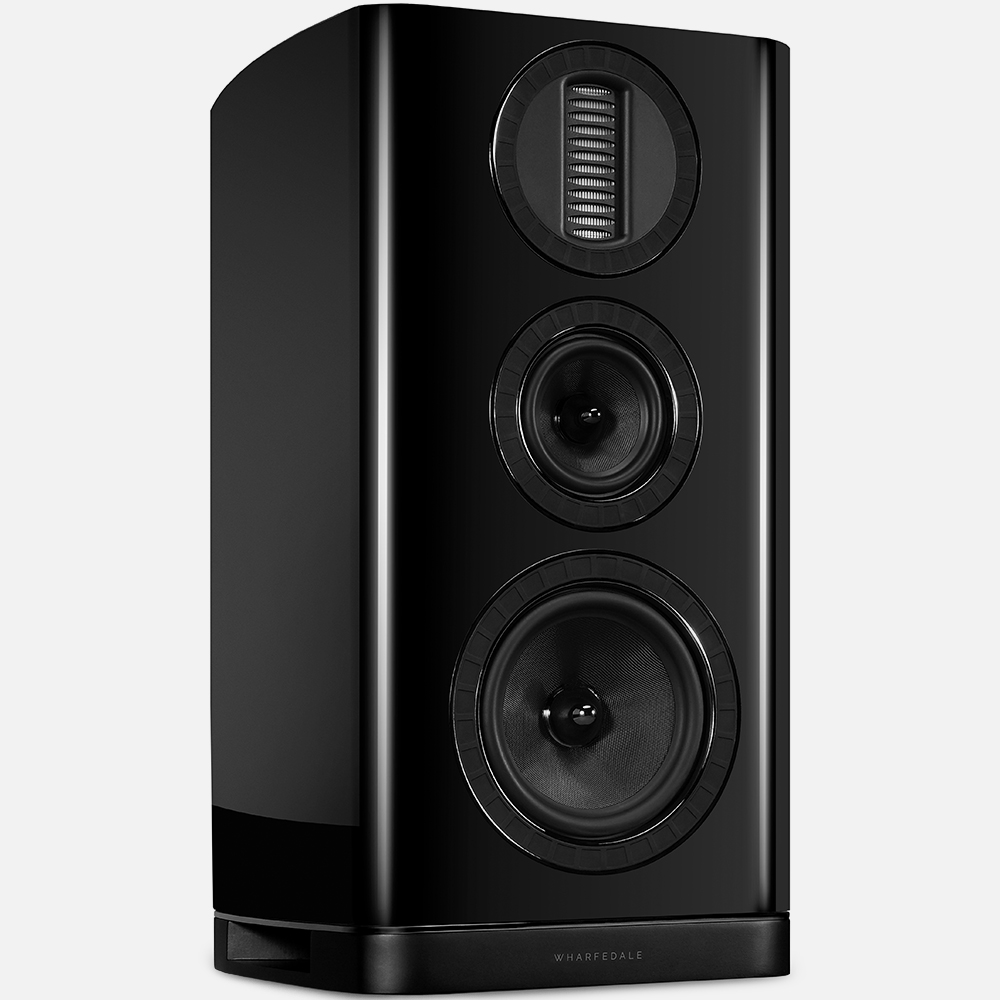

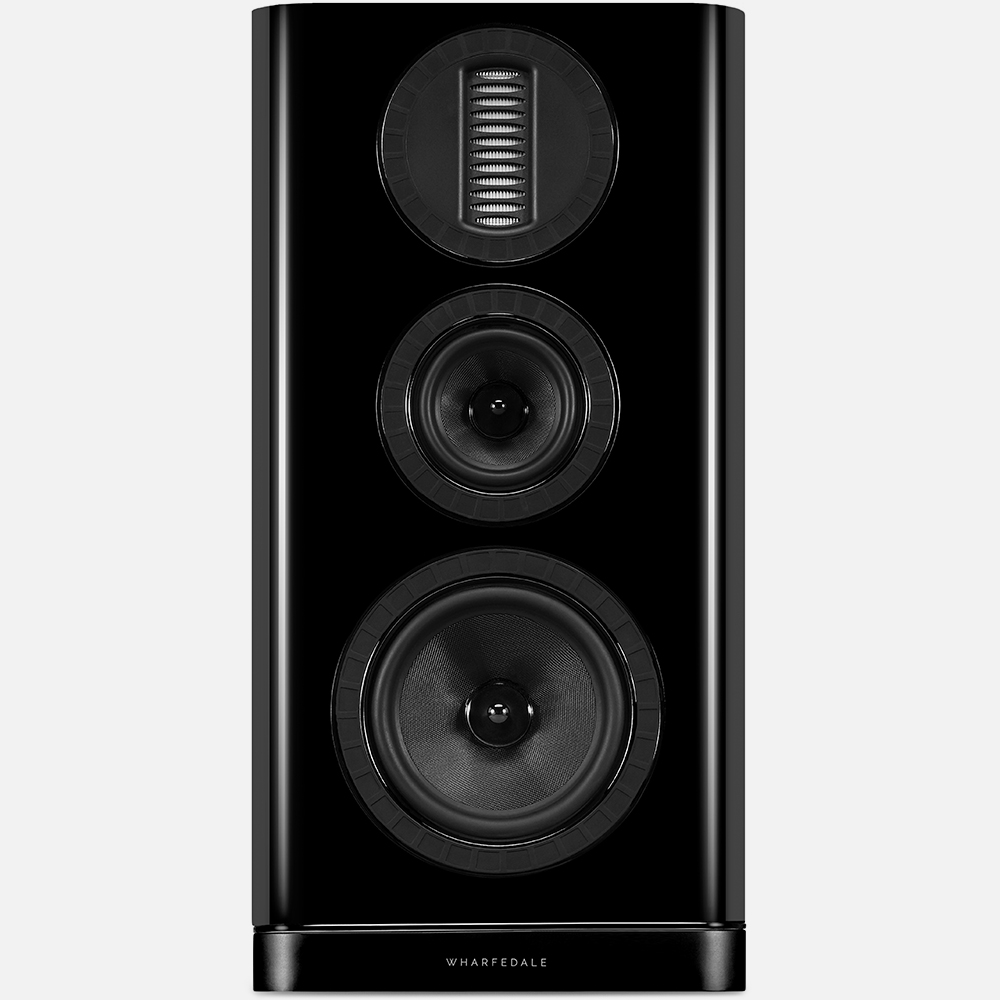

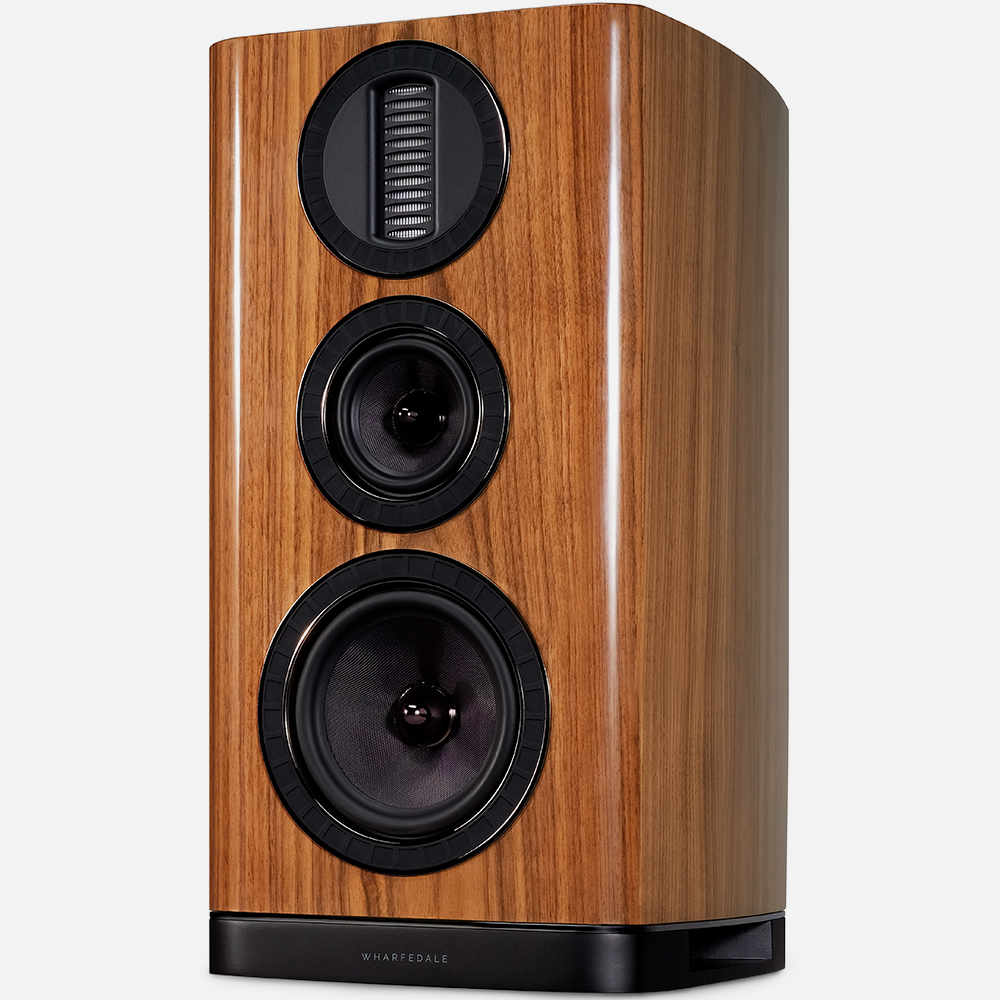

| Finish | Walnut/White/Black hi-gloss |
