상세스펙
General

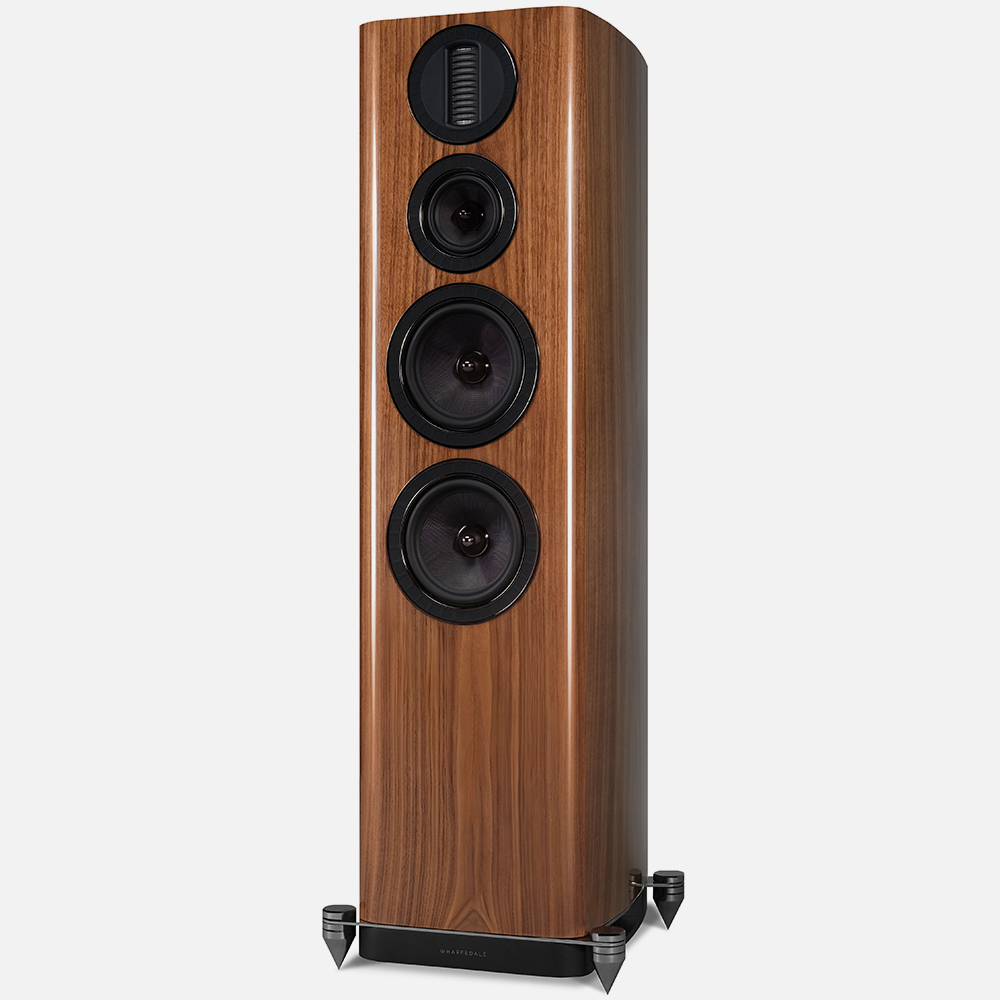

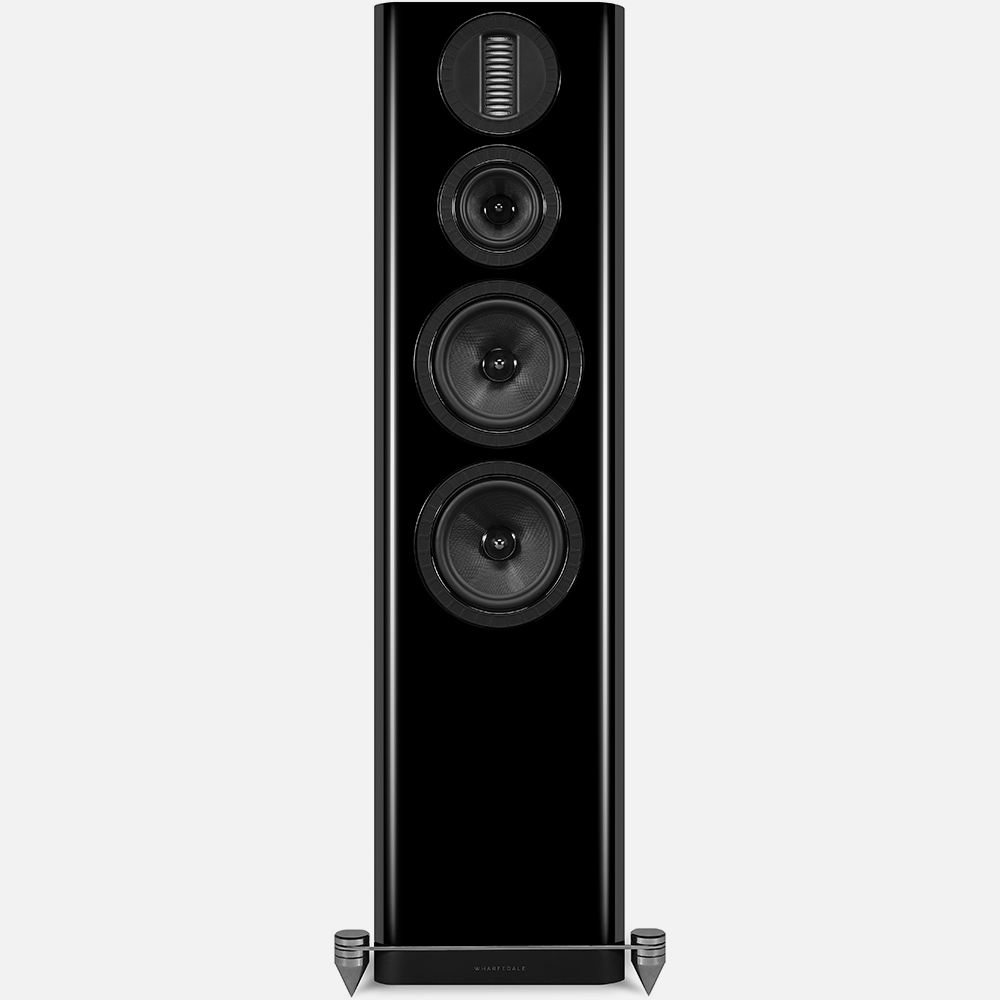

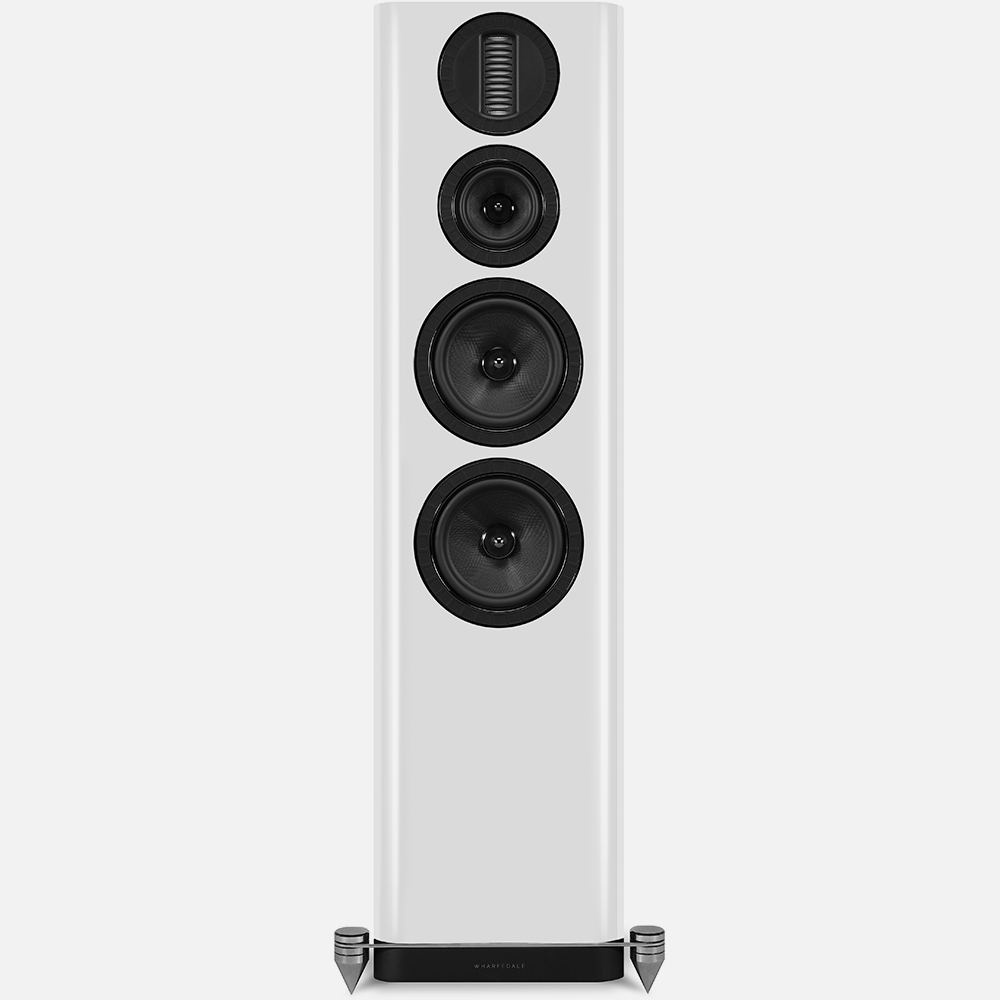

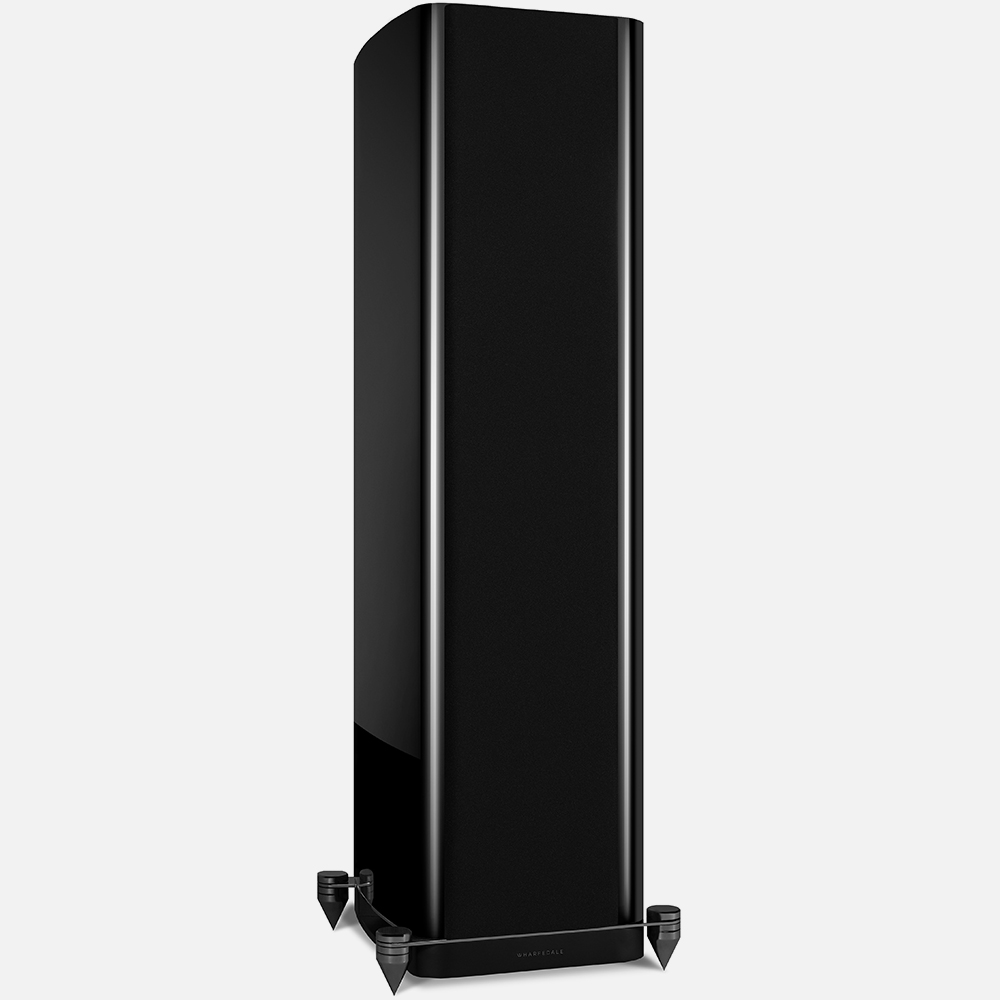

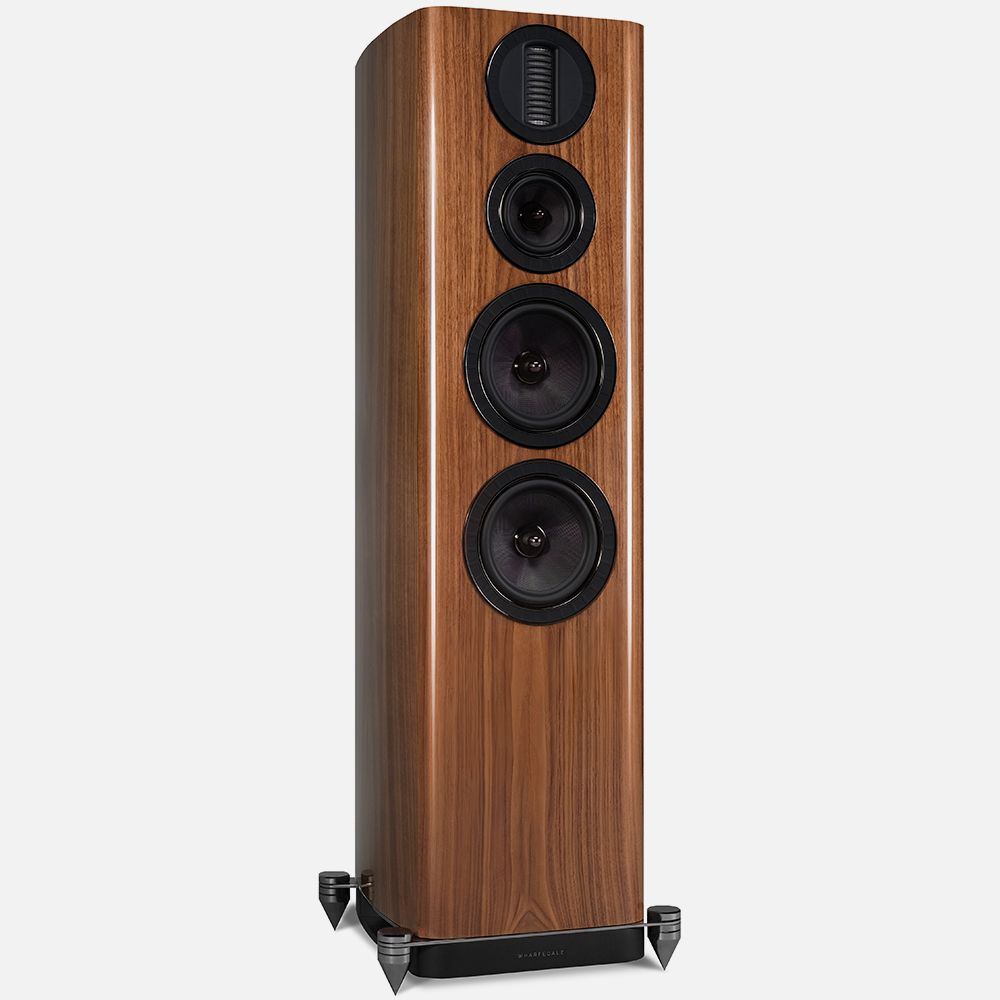

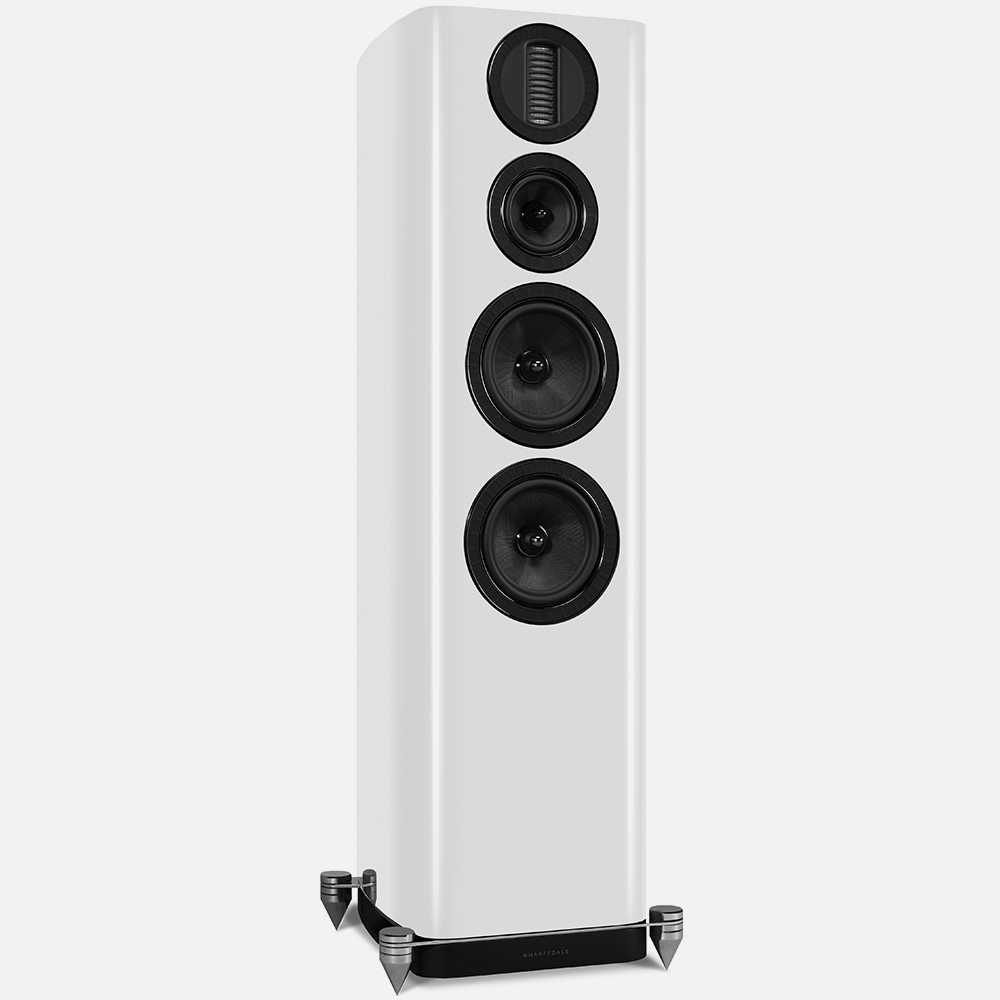

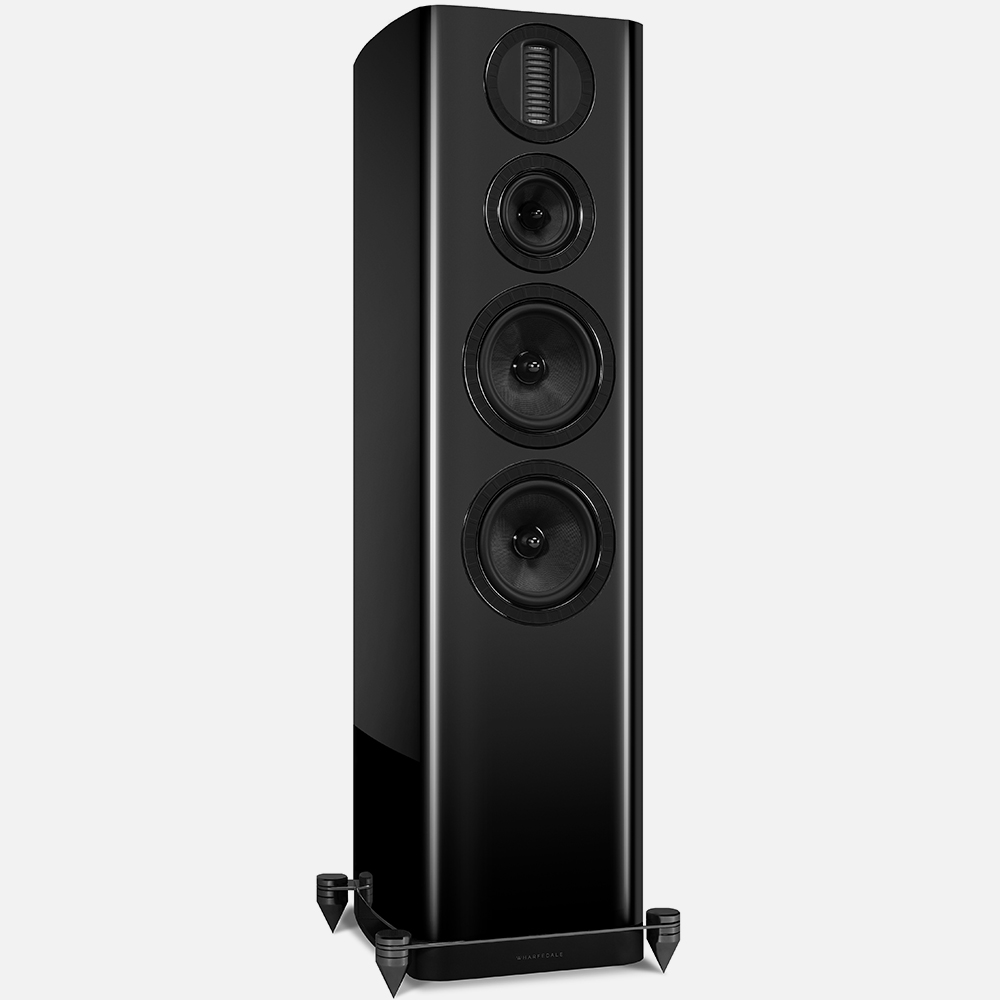

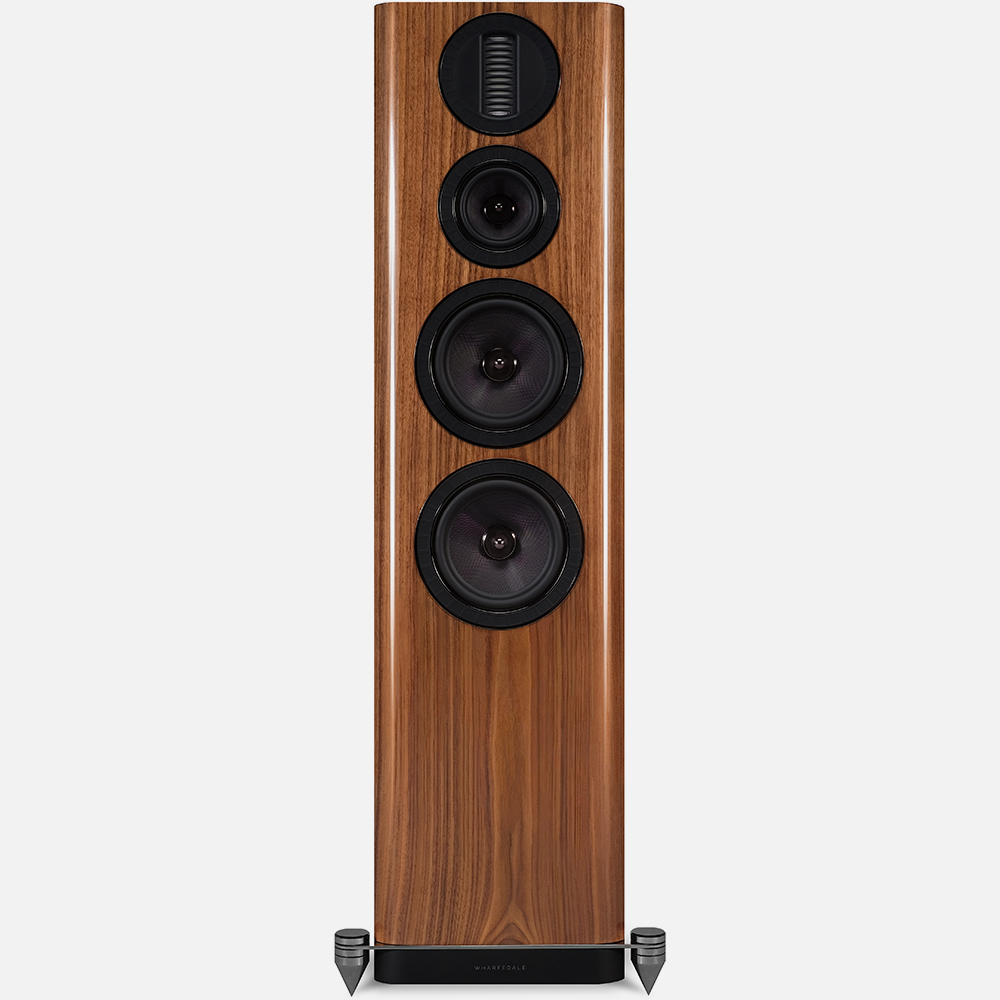

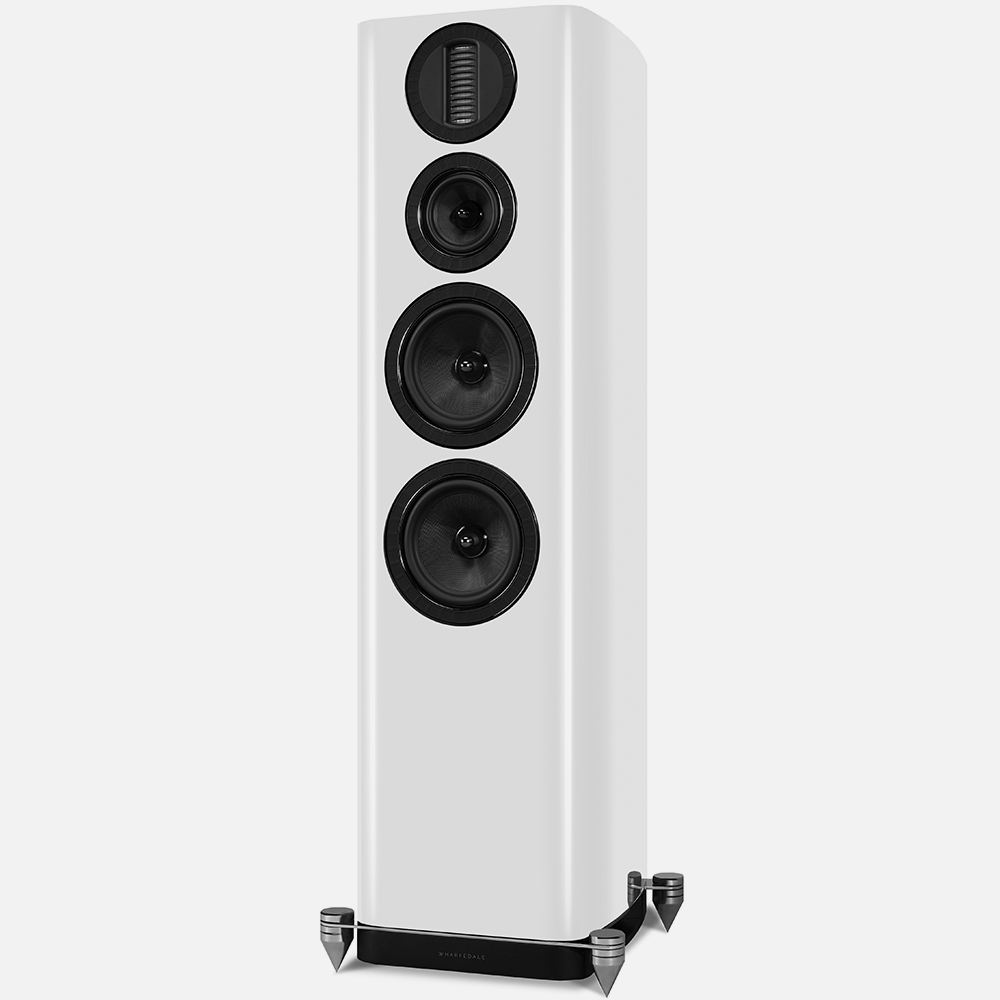

| General description | 3-way floorstanding speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
ABR
| Bass driver | 6.5"(150mm) Black Glass Fibre Matrix Cone x2 |
| Midrange driver | 4"(100mm) Black Glass Fibre Matrix Cone |
| High Frequency Driver | 27*90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended amplifer power | 30-200W |
| Peak SPL | 107dB |
| Nominal impedance | 4Ω (8Ω compatible) |
| Minimum impedance | 3.1Ω |
| Frequency response(+/-3dB) | 37Hz ~ 22kHz |
| Bass extension (-6dB) | 26Hz |
| Crossover frequency | 475Hz ,3.3kHz |
| Cabinet Volume (in litres) | 4.8L/67.2L |
Dimensions(mm)
| Height (on plinth) | 1107mm |
| Width | 286mm |

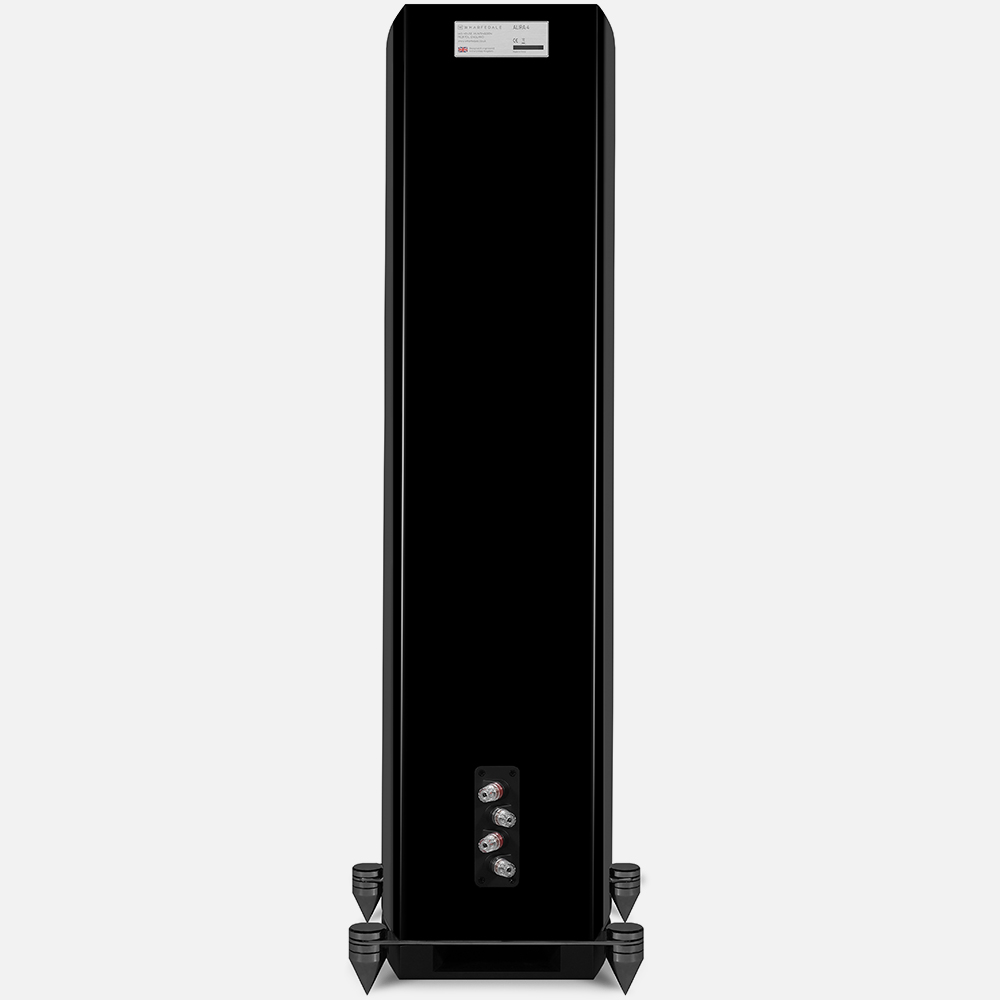

| Depth (with terminals) | (350+52)mm |
| Carton size | 505 x 425 x 1255mm |
| Net weight | 24.5kg/pcs |
| Gross weight | 26.5kg/ctn |
| Finish | Walnut/White/Black hi-gloss |
