상세스펙
General

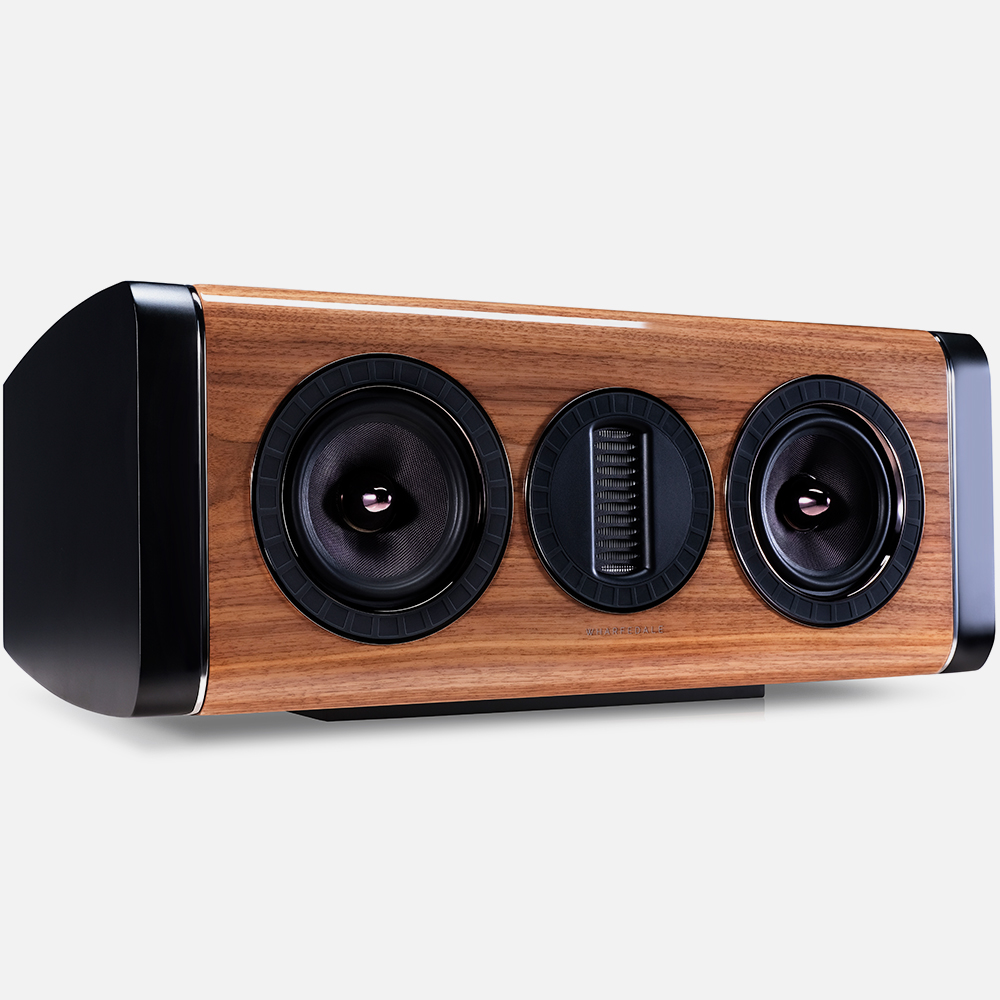

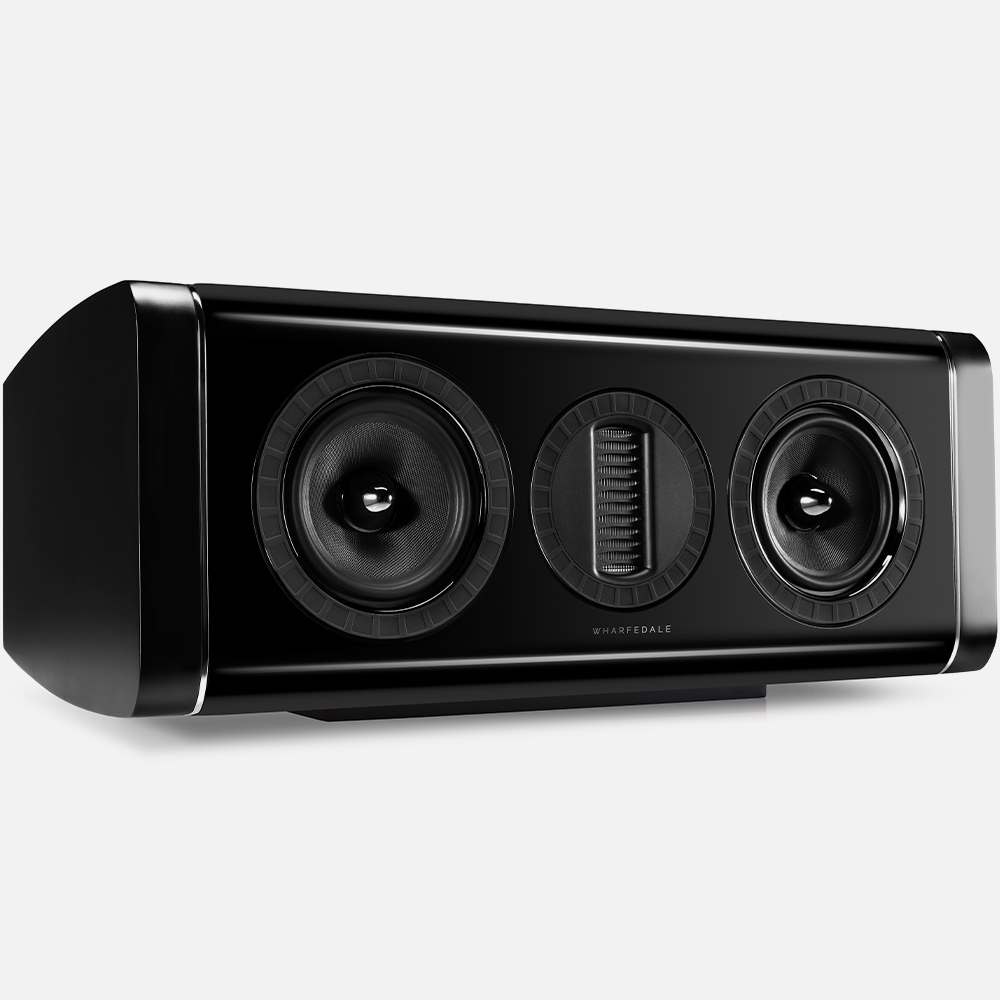

| General description | 2-way centre speaker |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
ABR
| Bass driver | 6.5"(150mm) Black Glass Fibre Matrix Cone x2 |
Midrange driver
| High Frequency Driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended amplifer power | 25-200W |
| Peak SPL | 107dB |
| Nominal impedance | 4Ω (8Ω compatible) |
| Minimum impedance | 3.6Ω |
| Frequency response(+/-3dB) | 48Hz ~ 22kHz |
| Bass extension (-6dB) | 40Hz |
| Crossover frequency | 1.9kHz |
| Cabinet Volume (in litres) | 39.5L |
Dimensions(mm)
| Height (on plinth) | 303mm |
| Width | 668mm |
| Depth (with terminals) | (350+52)mm |
| Carton size | 820 x 505 x 430mm |
| Net weight | 25.5kg/pcs |
| Gross weight | 27.5kg/ctn |
| Finish | Walnut/White/Black hi-gloss |
