General

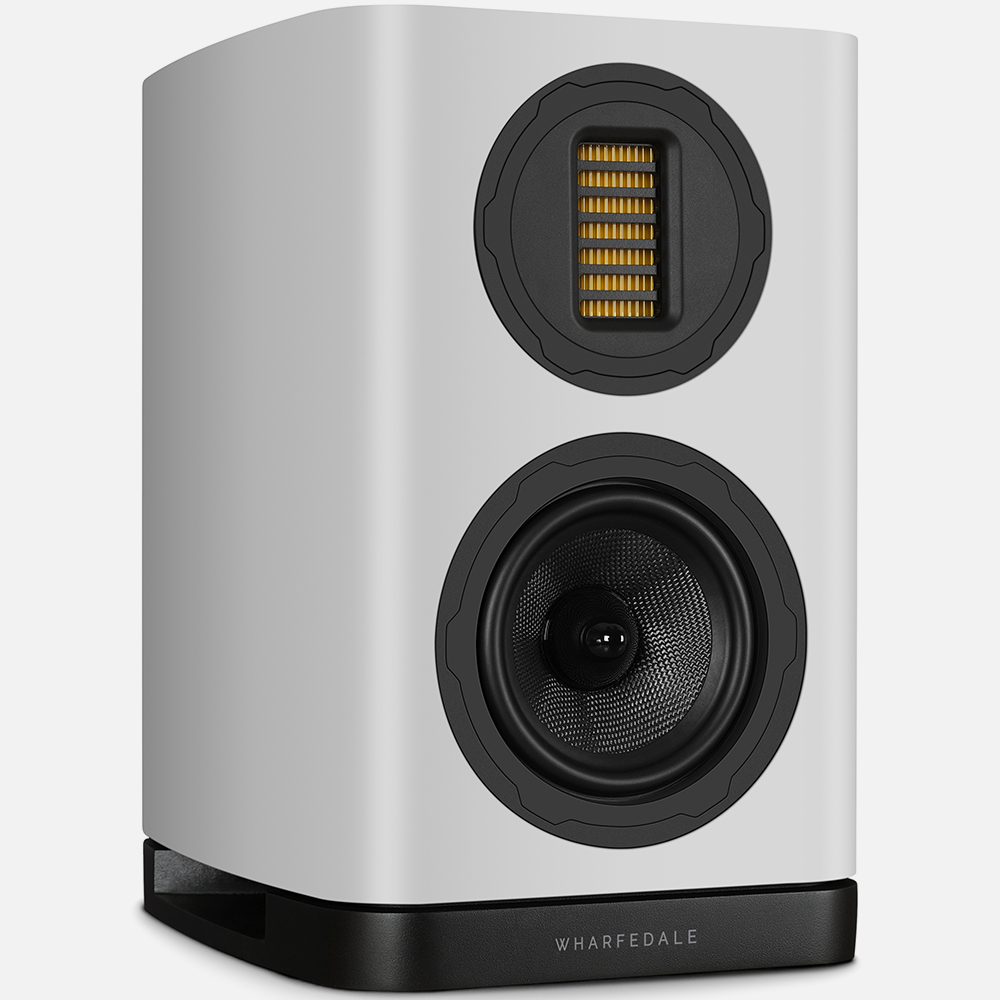

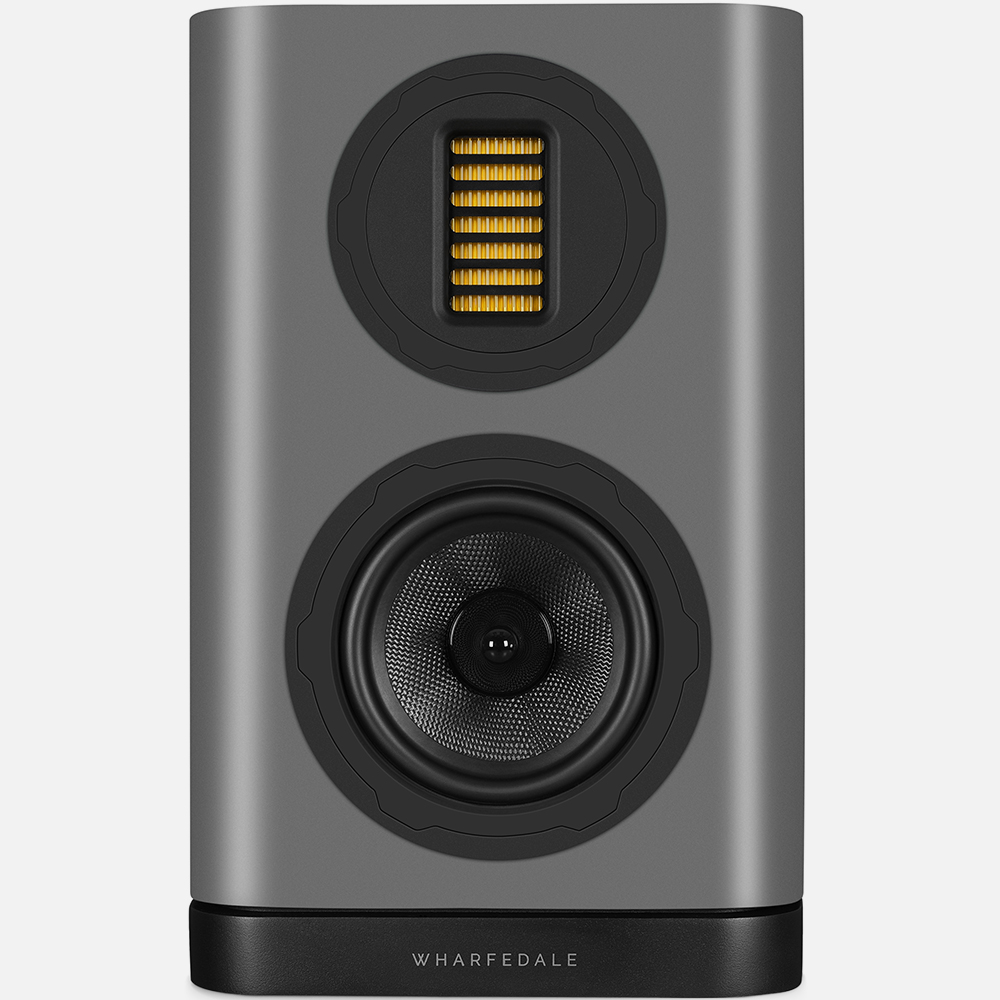

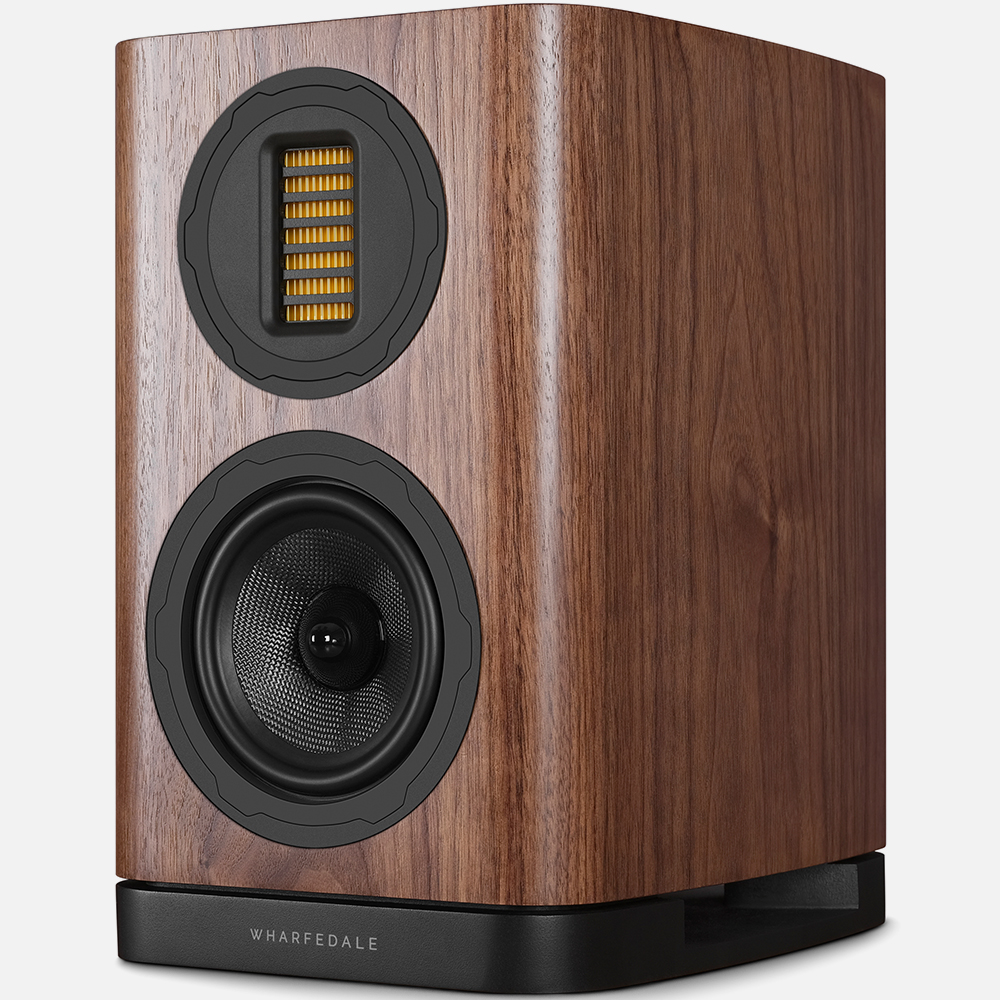

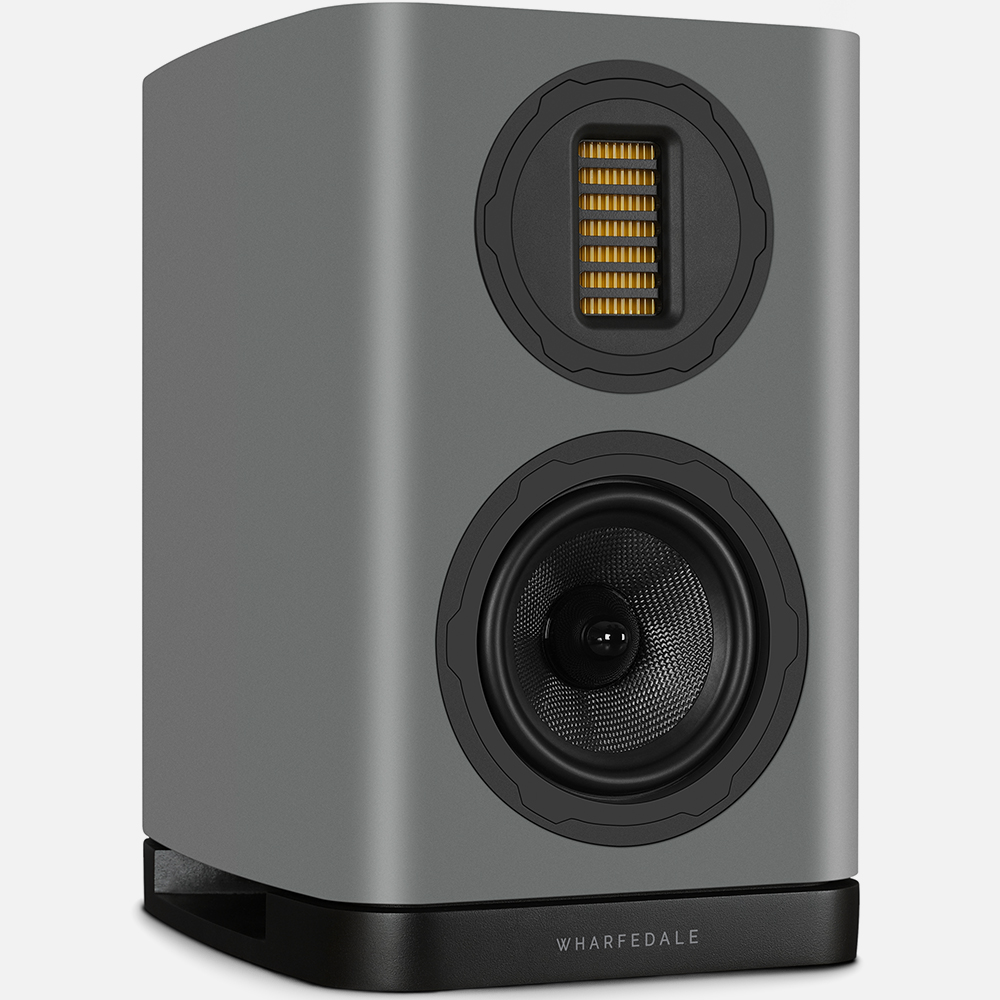

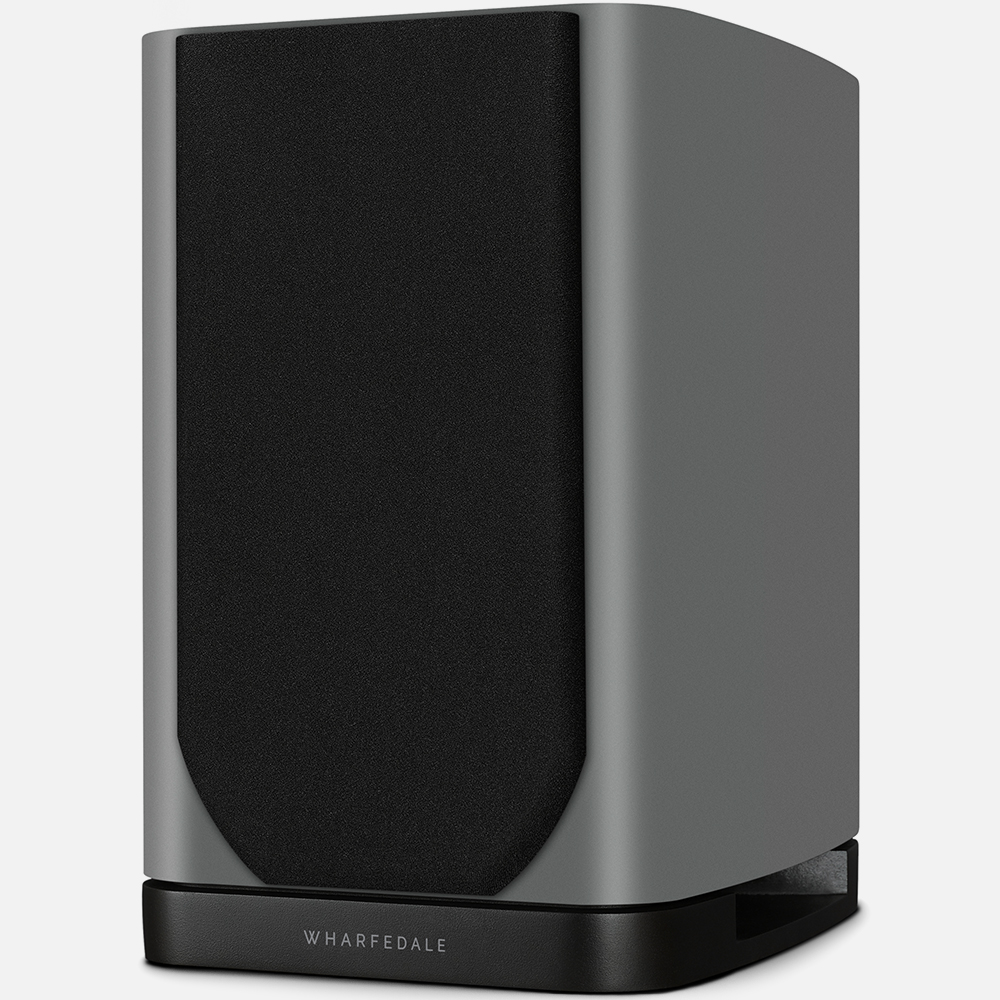

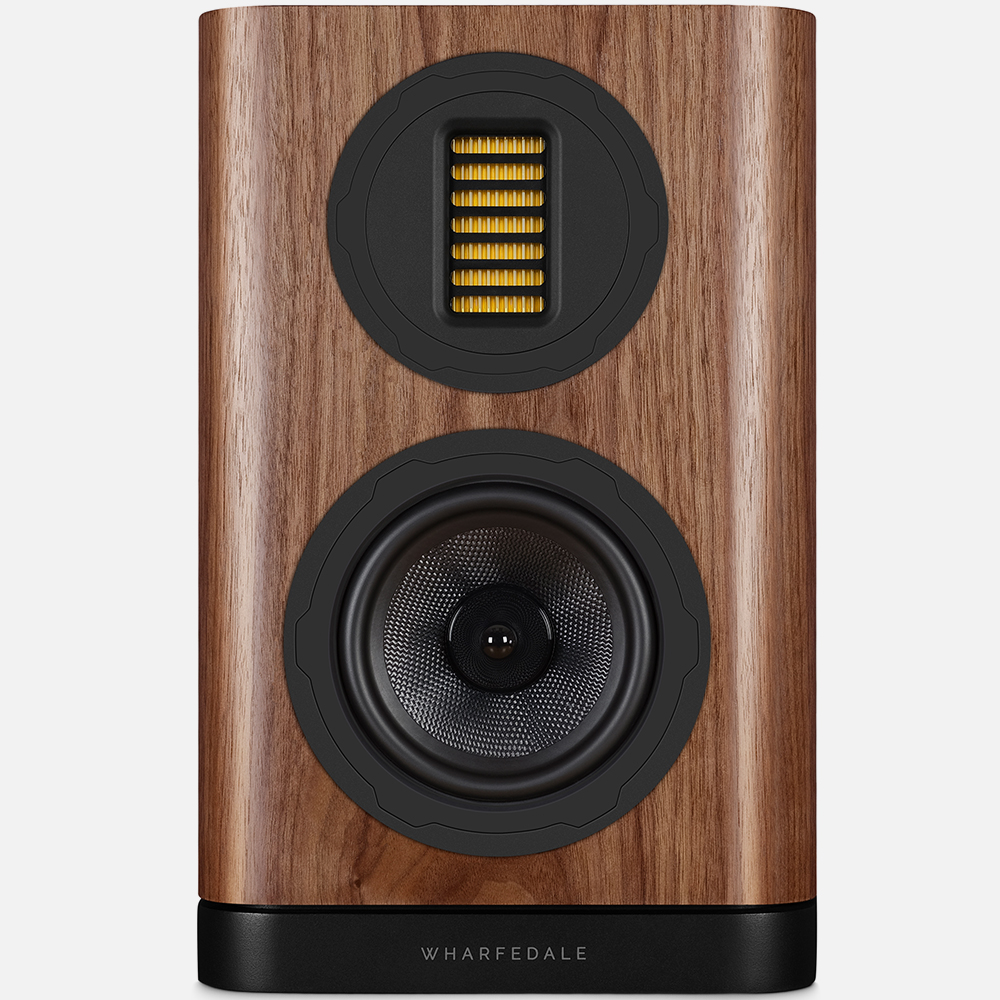

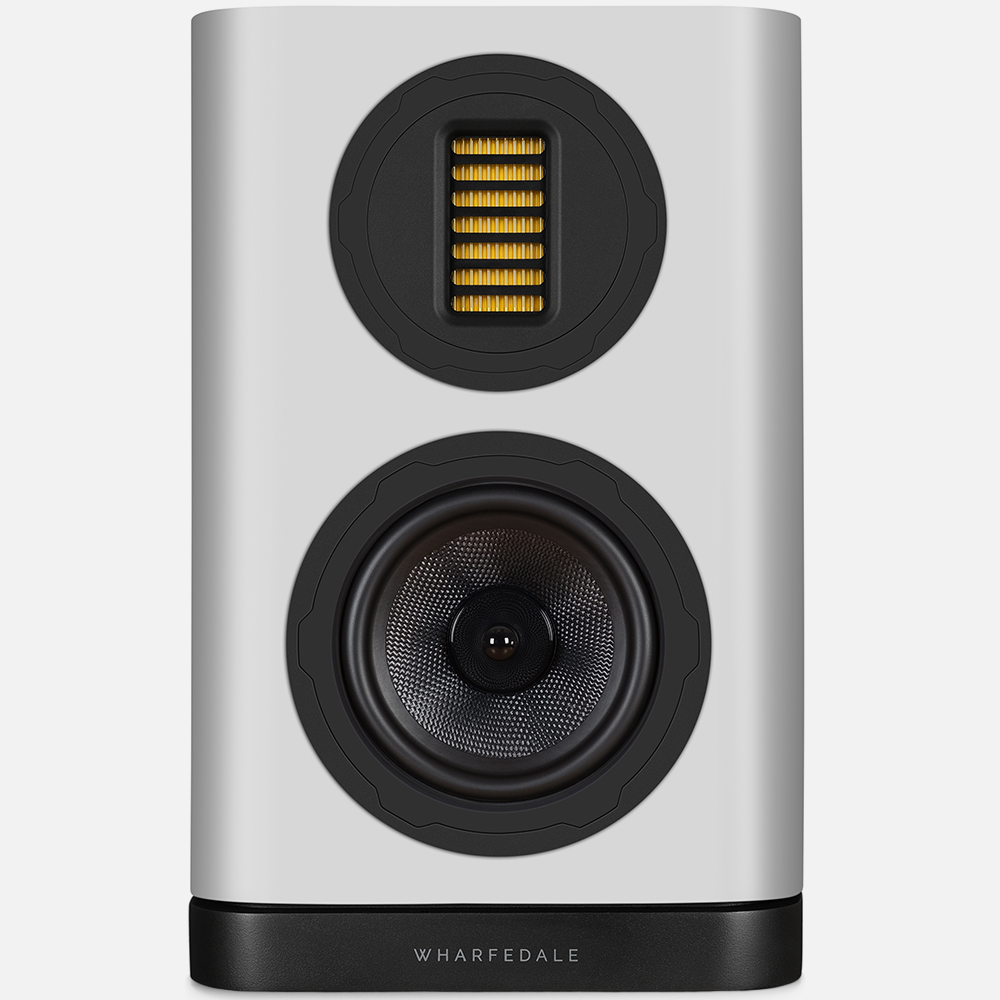

| General description | 2-way bookshelf speaker |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
ABR
| Bass driver | 5"(130mm) Black Woven Kevlar Cone |
Midrange driver
| Treble driver | 35 x 70mm AMT |
Full-range driver
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 87dB |
| Recommended amplifier power | 25-100W |
Peak power handling
| Peak SPL | 98dB |
| Nominal impedance | 4Ω (8Ω compatible) |
| Minimum impedance | 3.4Ω |
| Frequency response (+/-3dB) | 56Hz – 24kHz |
| Bass extension (-6dB) | 46Hz |
| Crossover frequency | 2.7kHz |
| Cabinet Volume (in litres) | 11.5L |
Dimensions (mm)
| Height (on plinth) | 340mm |
| Width | 220mm |
| Depth (with grille+terminal) | (285 + 40)mm |
| Carton size | 610 * 415 * 455mm |
| Net weight | 8.0kg/pcs |
| Gross weight | 20.5kg/ctn |
| Finish | Walnut/Black Oak Veneer |
| Standard accessories | rubber feet |
