General

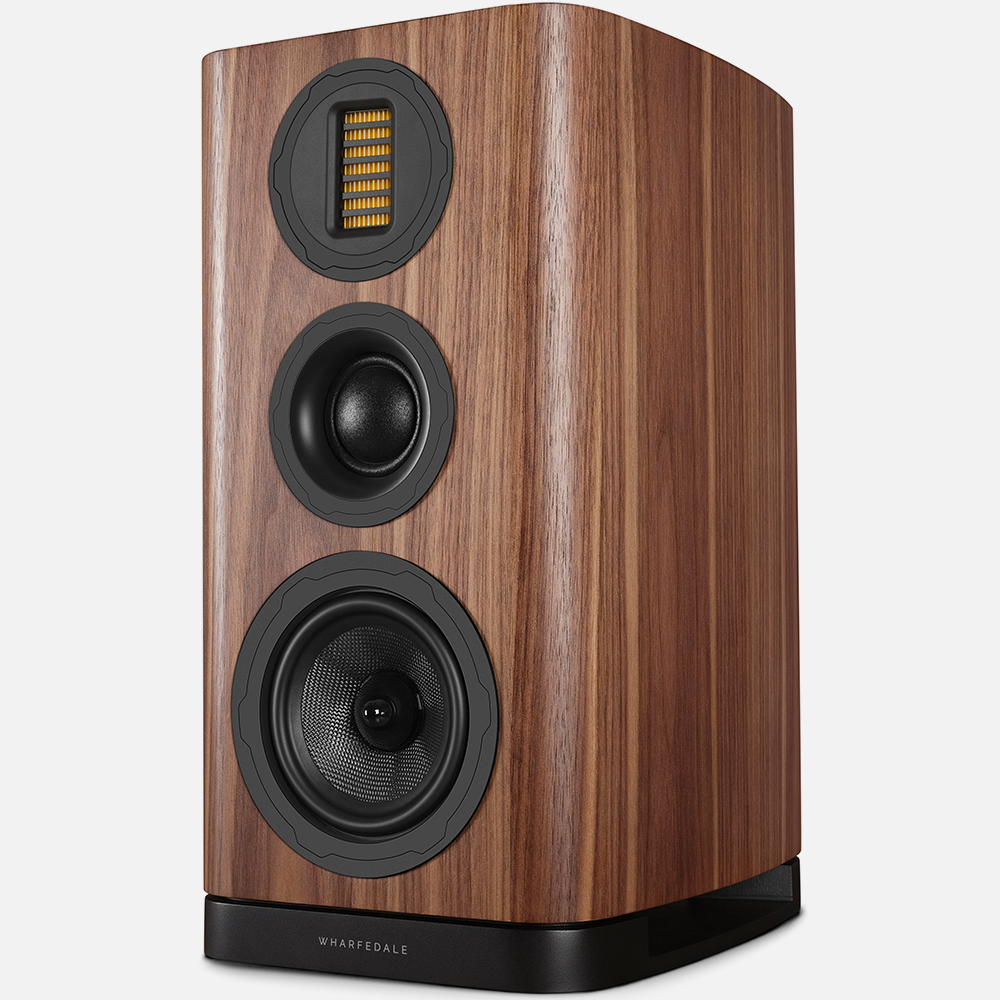

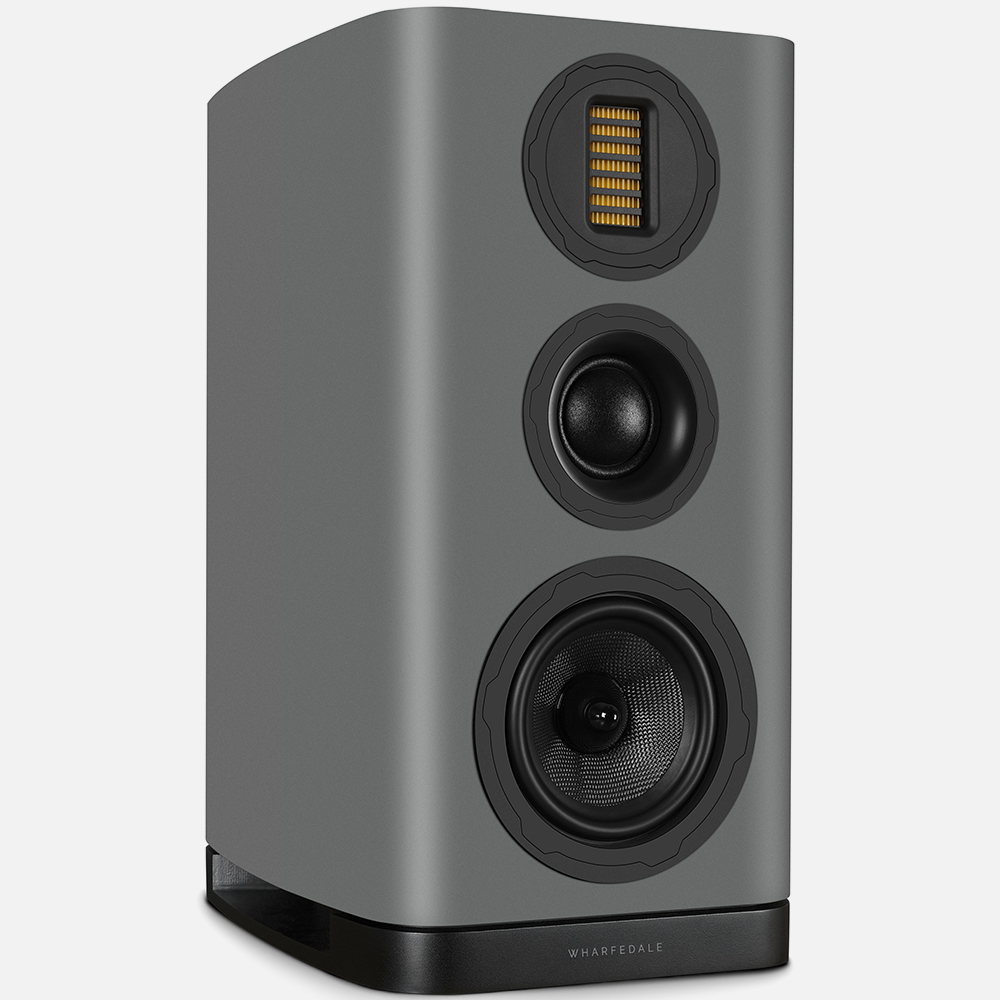

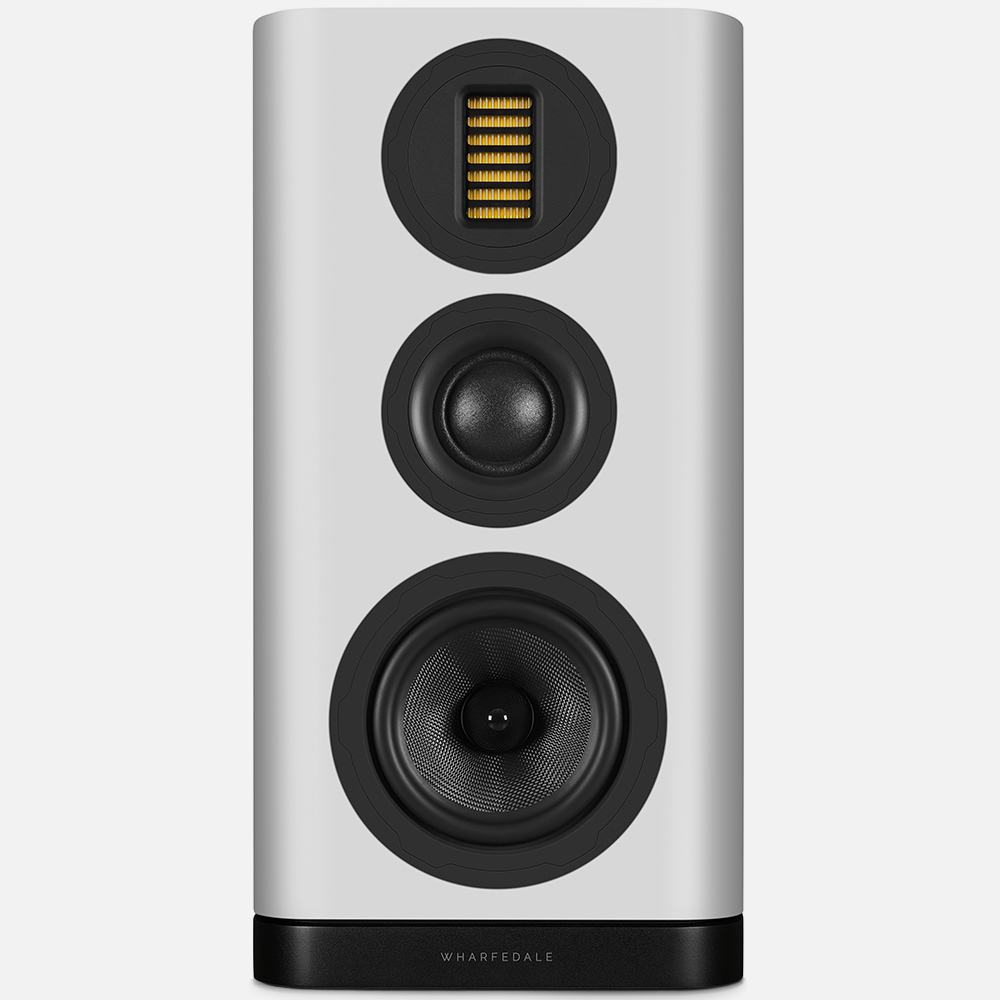

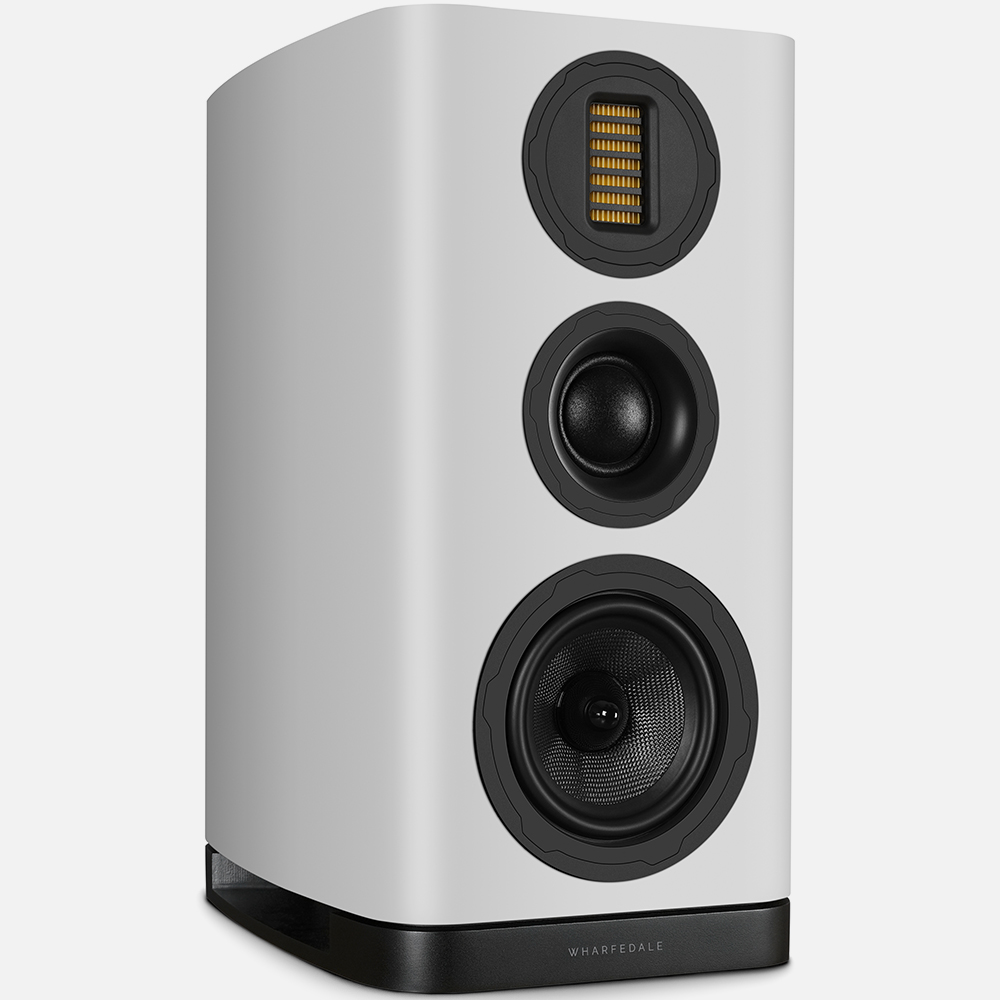

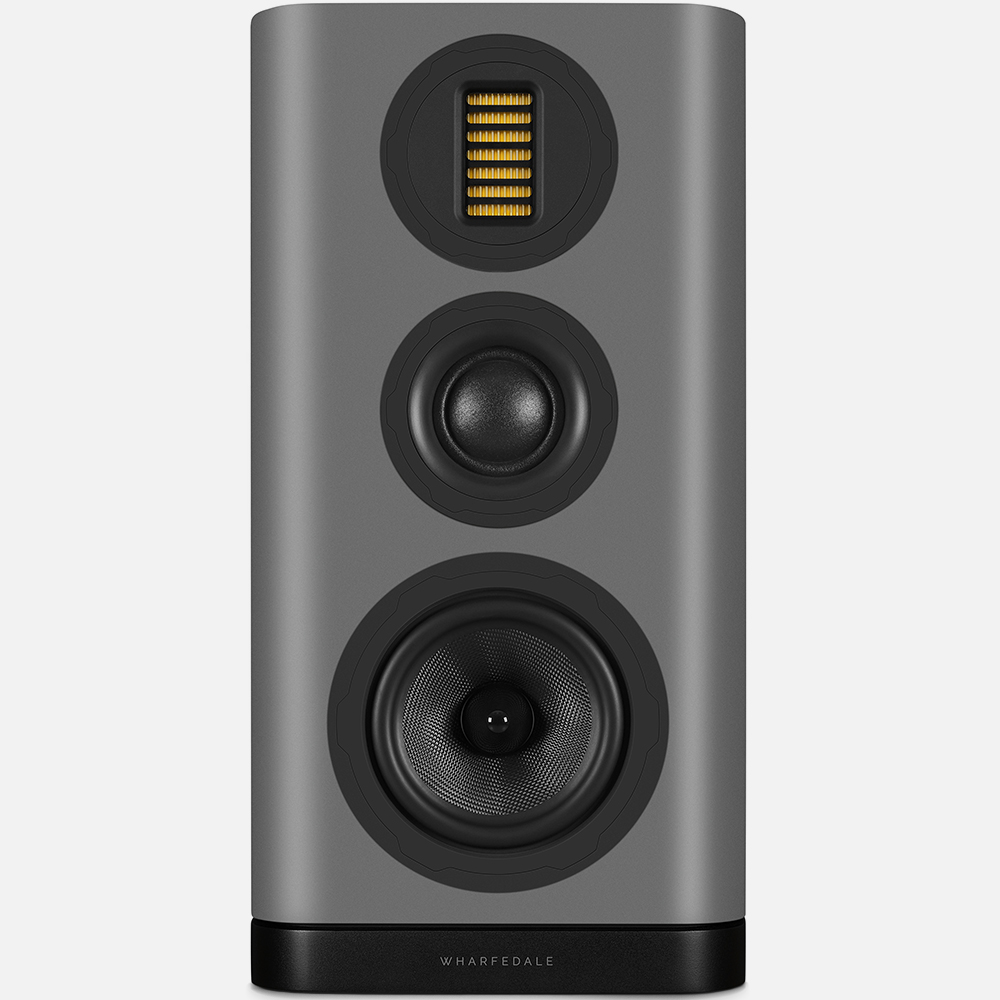

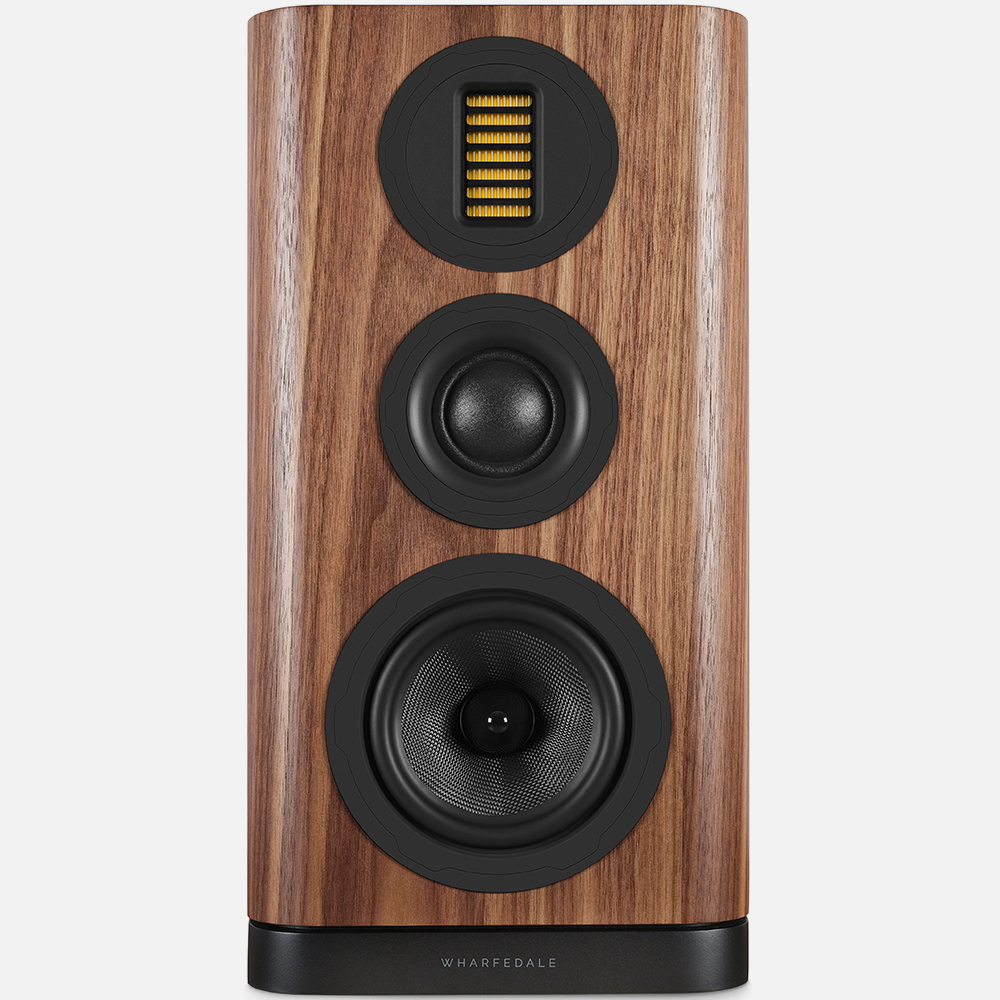

| General description | 3-way bookshelf speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
ABR
| Bass driver | 6.5"(165mm) Black Woven Kevlar Cone |
| Midrange driver | 2"(50mm) Soft Dome |
| Treble driver | 35 x 70mm AMT |
Full-range driver
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended amplifier power | 25-120W |
Peak power handling
| Peak SPL | 105dB |
| Nominal impedance | 4Ω (8Ω compatible ) |
| Minimum impedance | 3.2Ω |
| Frequency response (+/-3dB) | 44Hz – 24kHz |
| Bass extension (-6dB) | 38Hz |
| Crossover frequency | 800Hz,4.3kHz |
| Cabinet Volume (in litres) | 27.2L |
Dimensions (mm)
| Height (on plinth) | 497mm |
| Width | 260mm |
| Depth (with grille+terminal) | (350 + 40)mm |
| Carton size | 480 * 375 * 610mm |
| Net weight | 15.0kg/pcs |
| Gross weight | 16.5kg/ctn |
| Finish | Walnut/Black Oak Veneer |
| Standard accessories | rubber feet |
