General

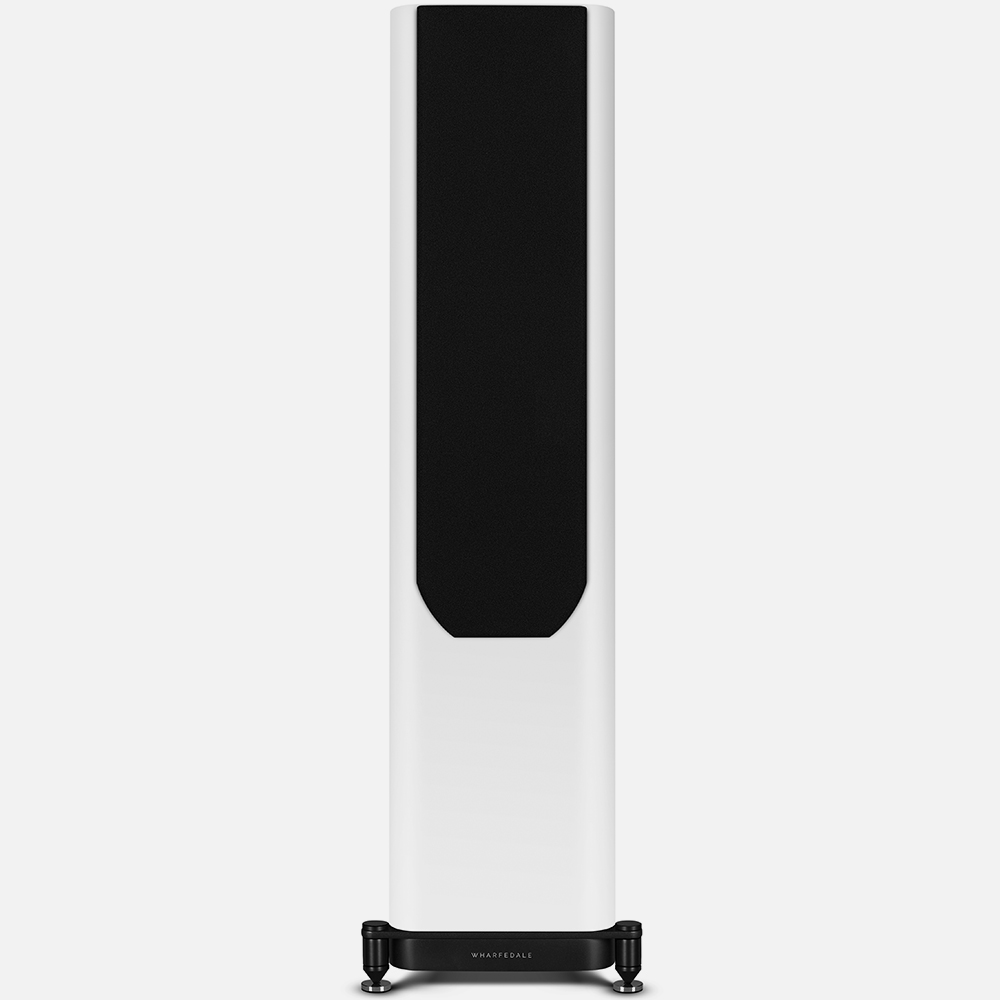

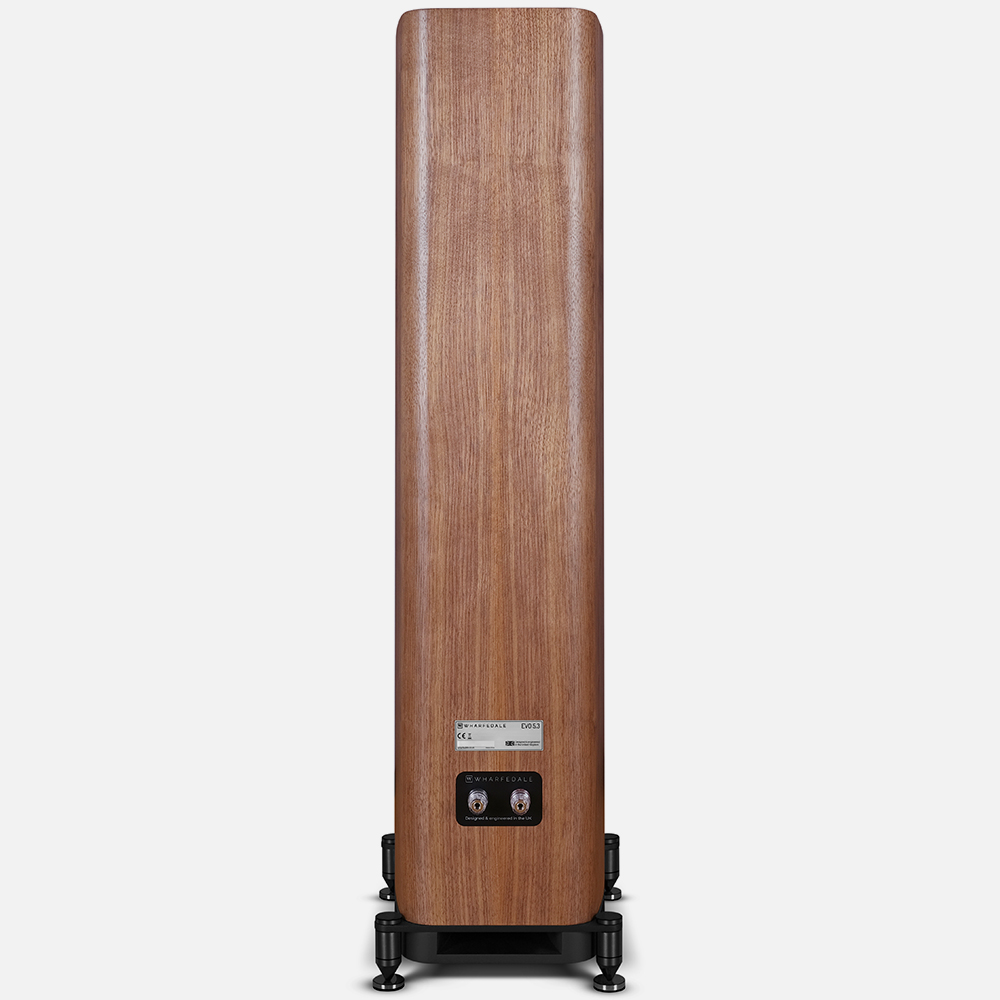

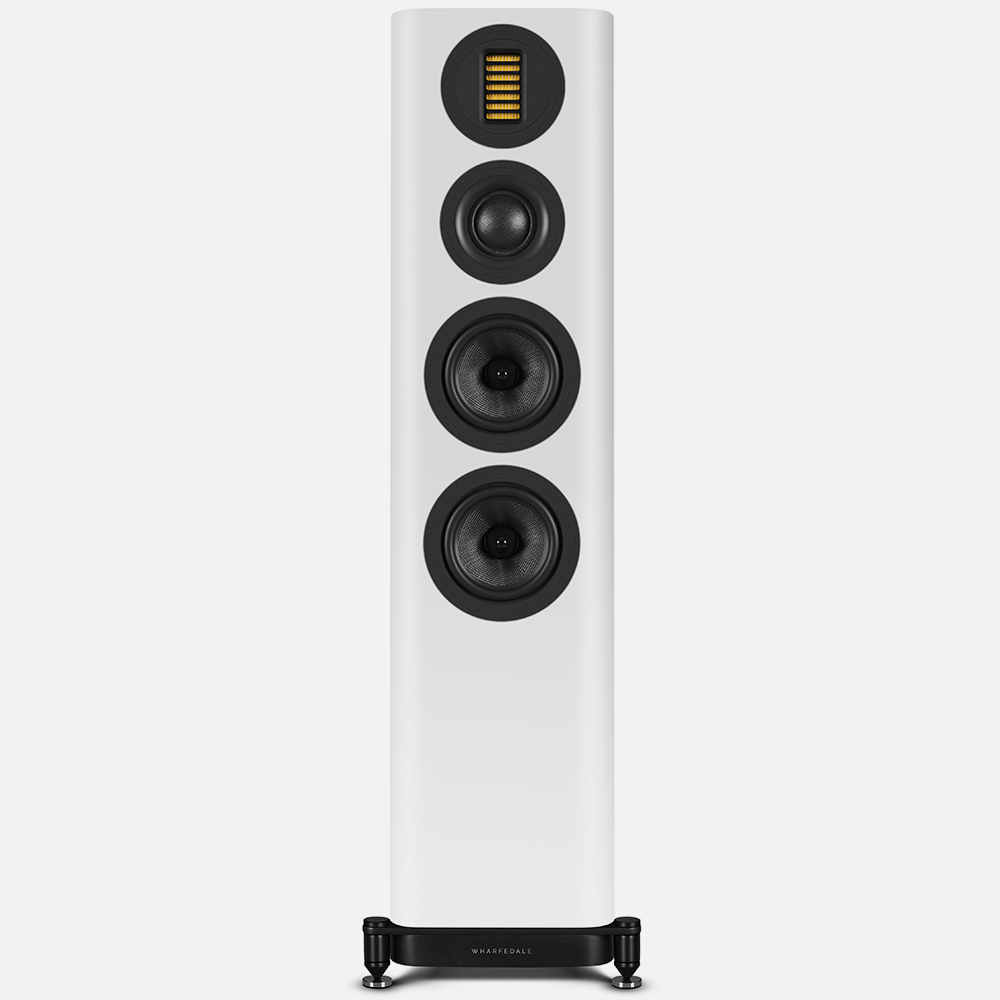

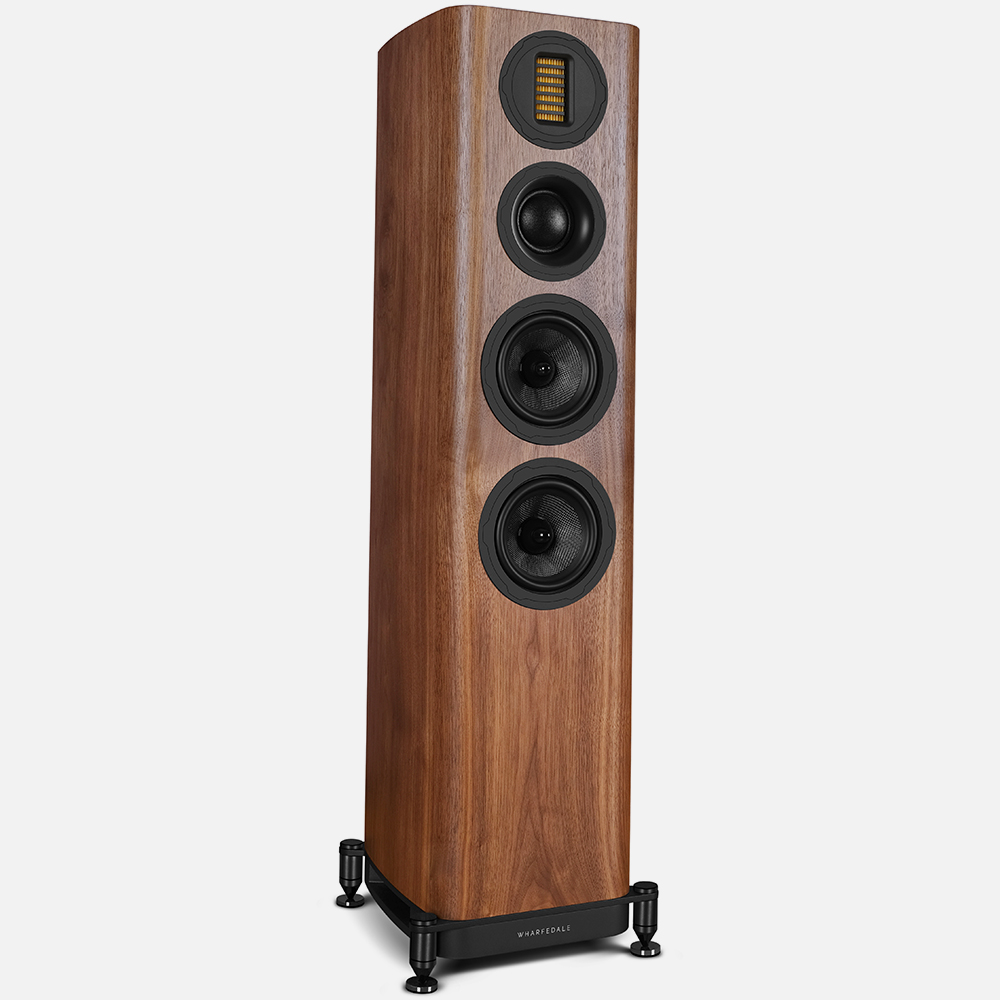

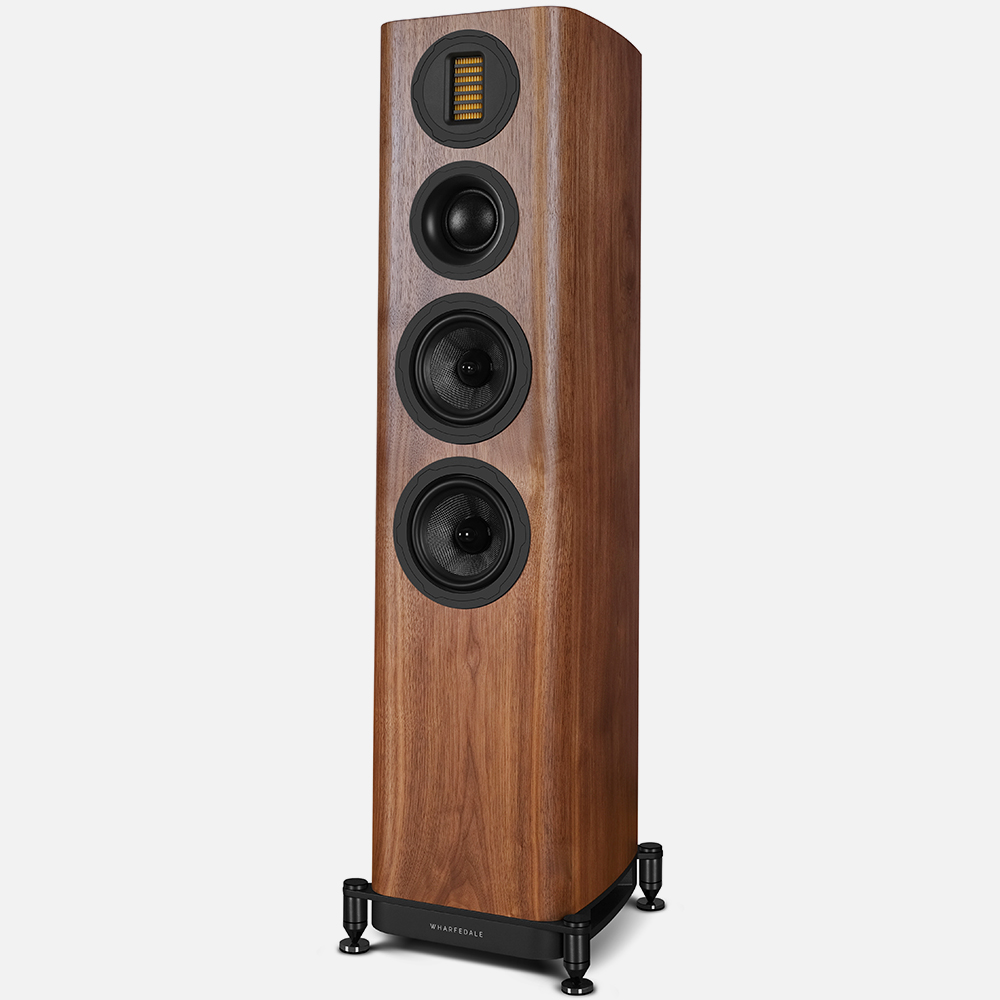

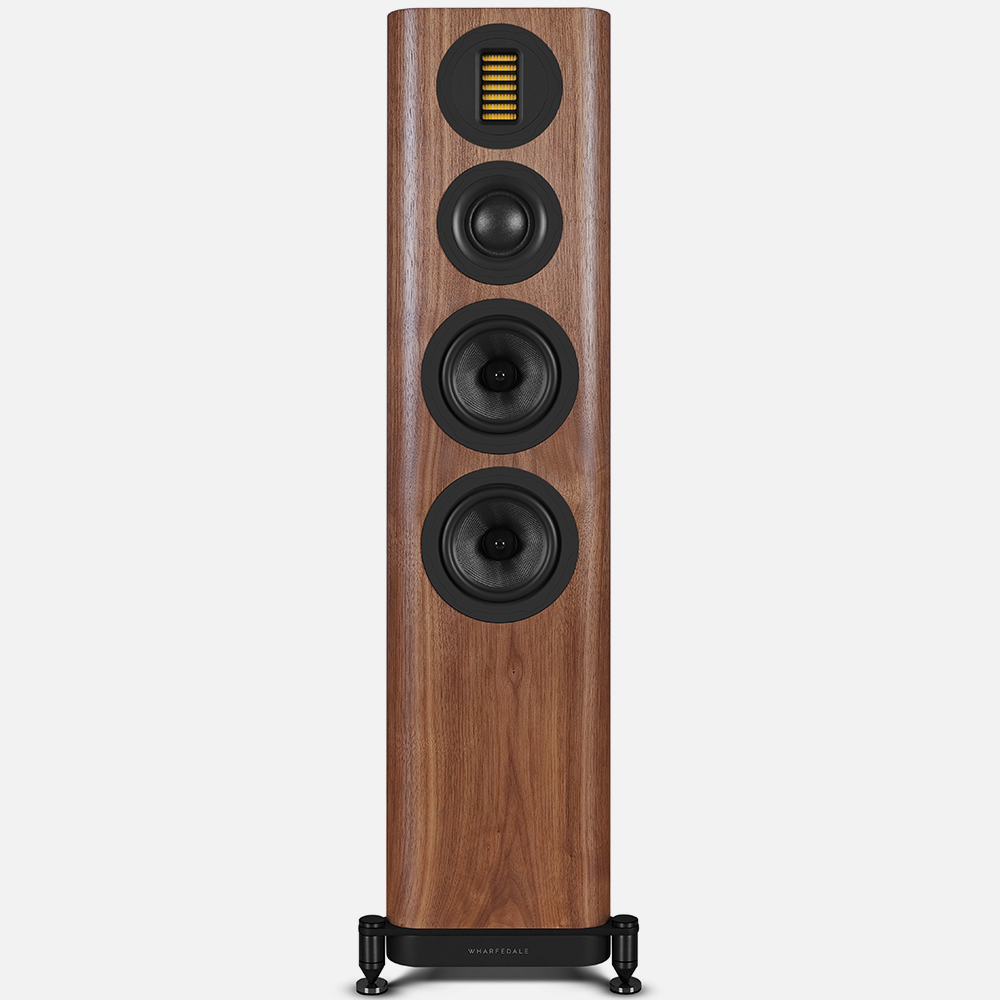

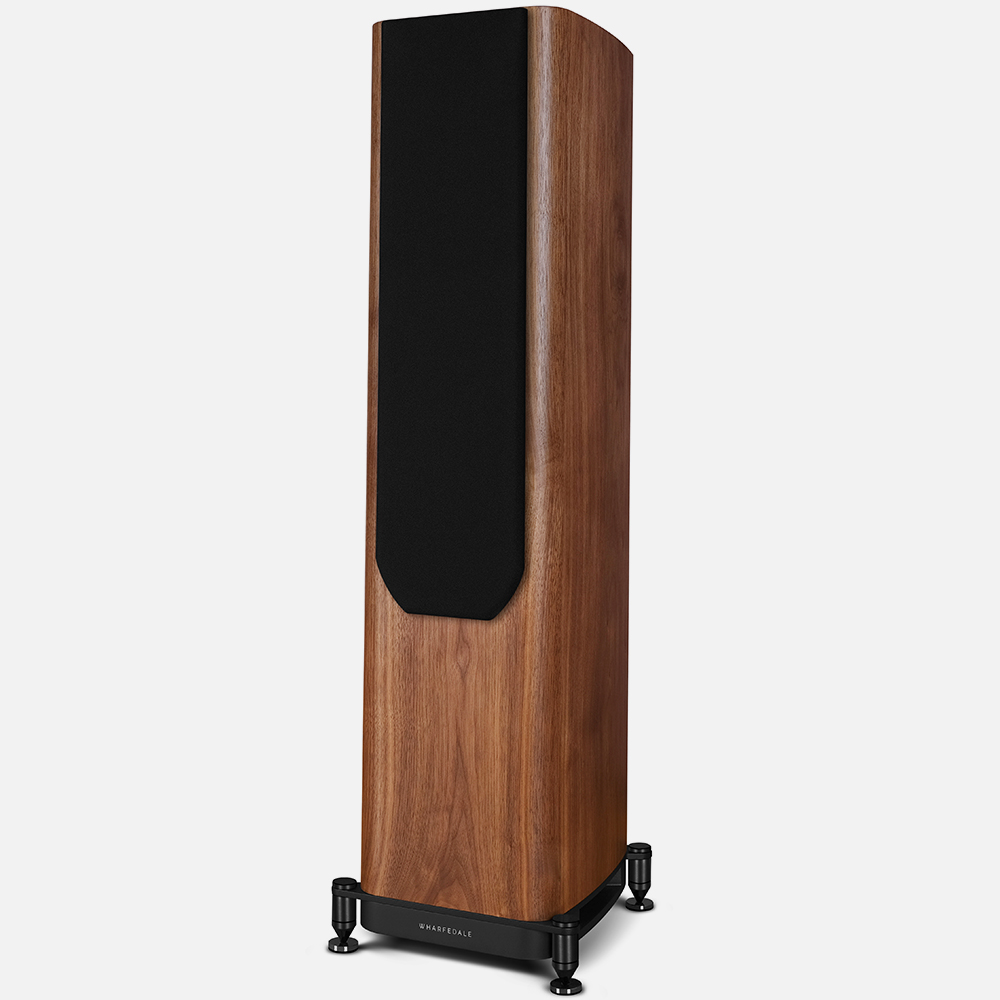

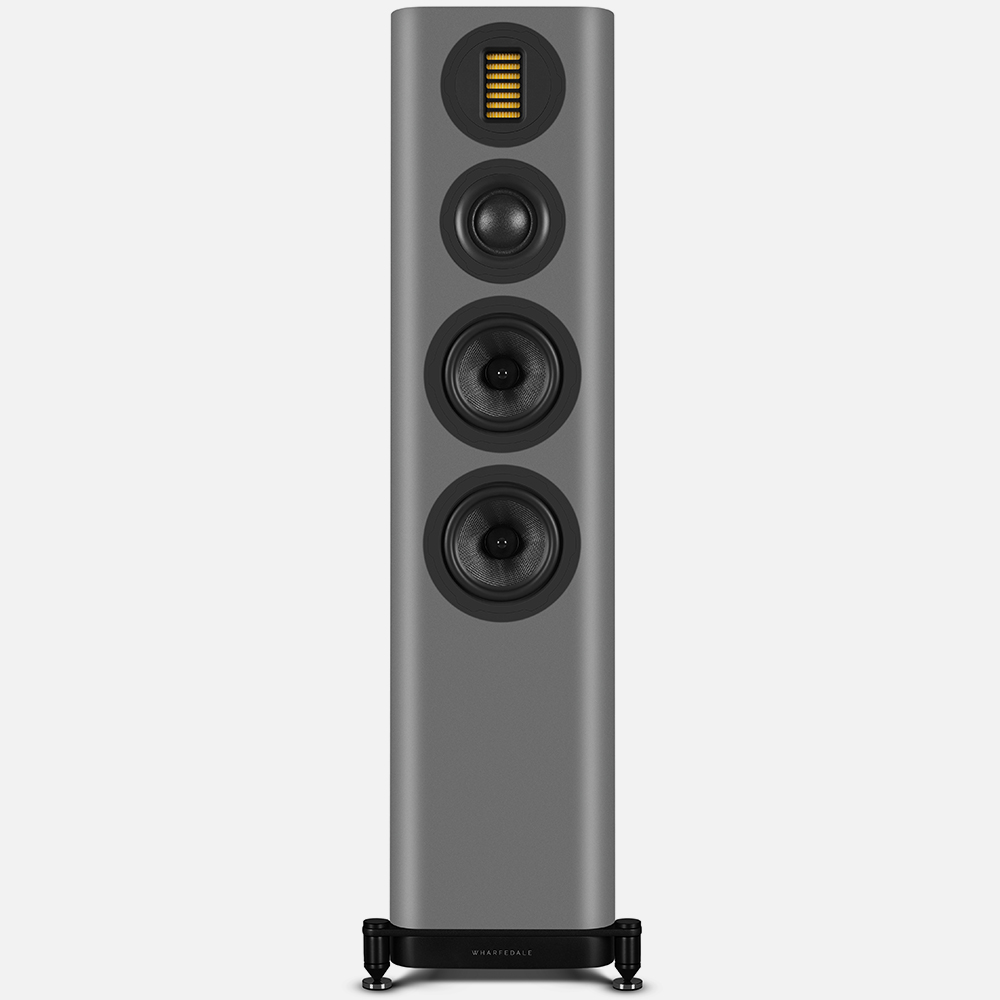

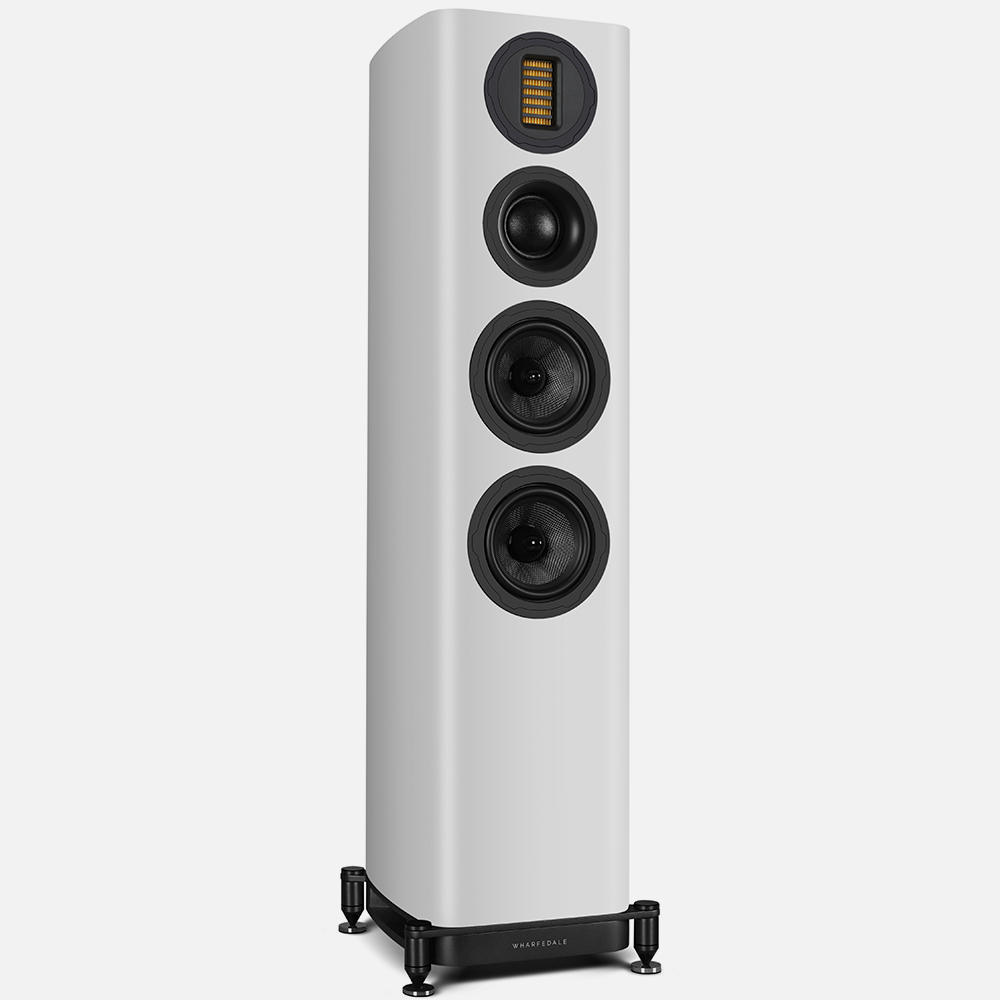

| General description | 3-way floorstanding speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
ABR
| Bass driver | 5"(130mm) Black Woven Kevlar Cone x2 |
| Midrange driver | 2"(50mm) Soft Dome |
| Treble driver | 35 x 70mm AMT |
Full-range driver
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended amplifier power | 25-150W |
Peak power handling
| Peak SPL | 106dB |
| Nominal impedance | 4Ω (8Ω compatible) |
| Minimum impedance | 3.5Ω |
| Frequency response (+/-3dB) | 46Hz – 24kHz |
| Bass extension (-6dB) | 40Hz |
| Crossover frequency | 825 Hz,4kHz |
| Cabinet Volume (in litres) | 35.4L |
Dimensions (mm)
| Height (on plinth&spike) | 933mm |
| Width | 266mm |
| Depth (with grille+terminal) | (285 + 40)mm |
| Carton size | 430 * 350 * 1055mm |
| Net weight | 21.5kg/pcs |
| Gross weight | 23.0kg/ctn |
| Finish | Walnut/Black Oak Veneer |
| Standard accessories | spike seat |
