General

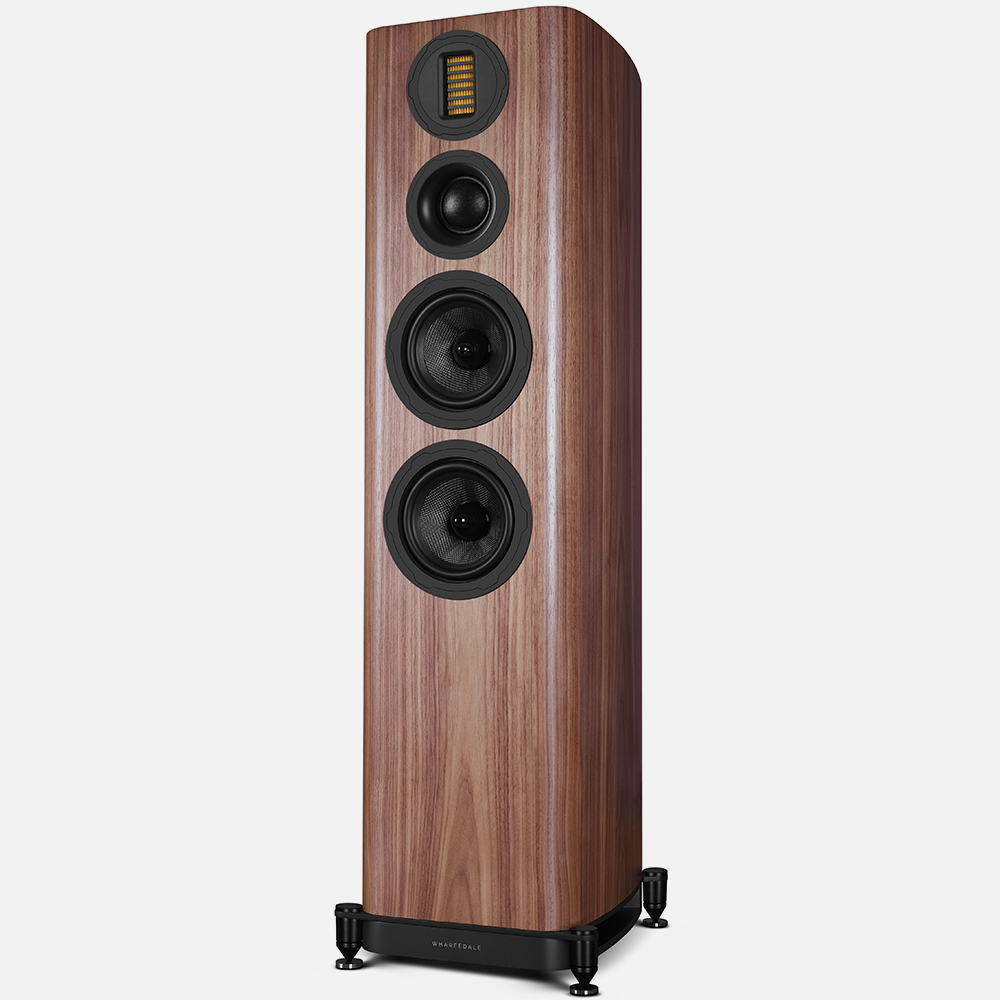

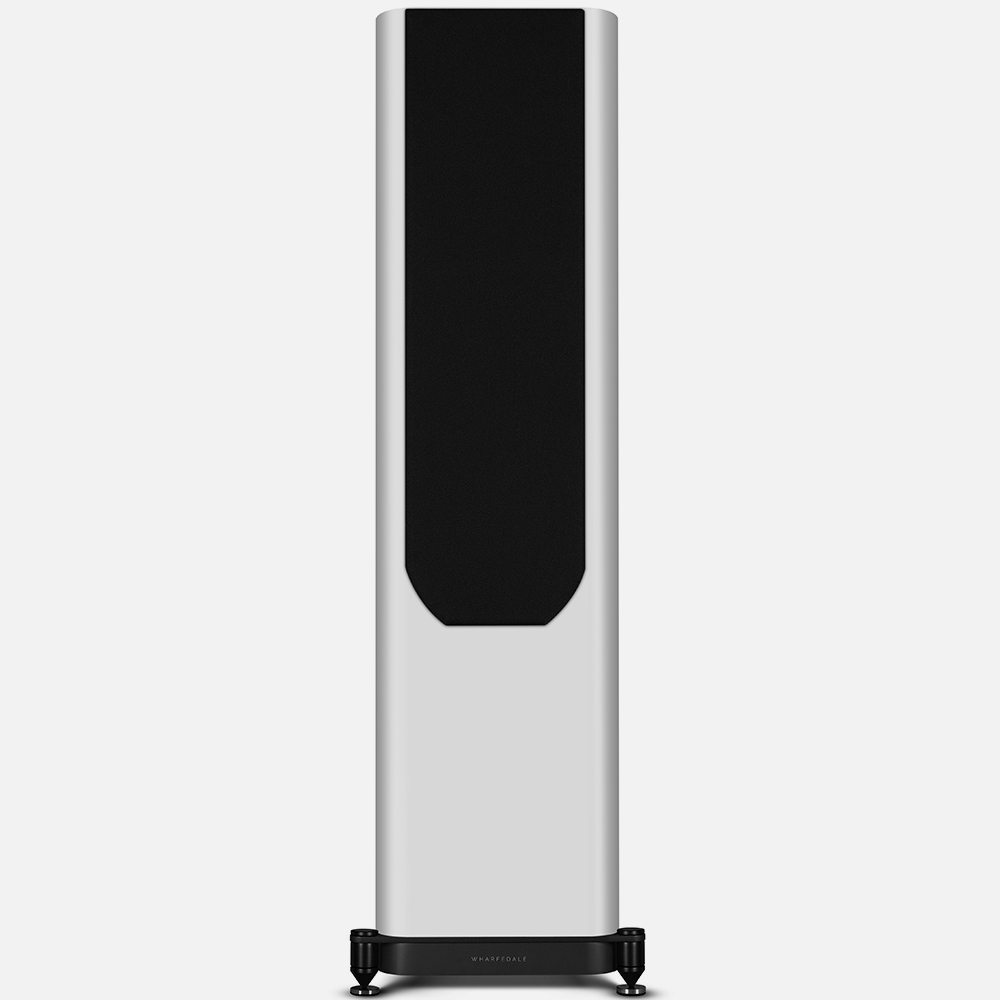

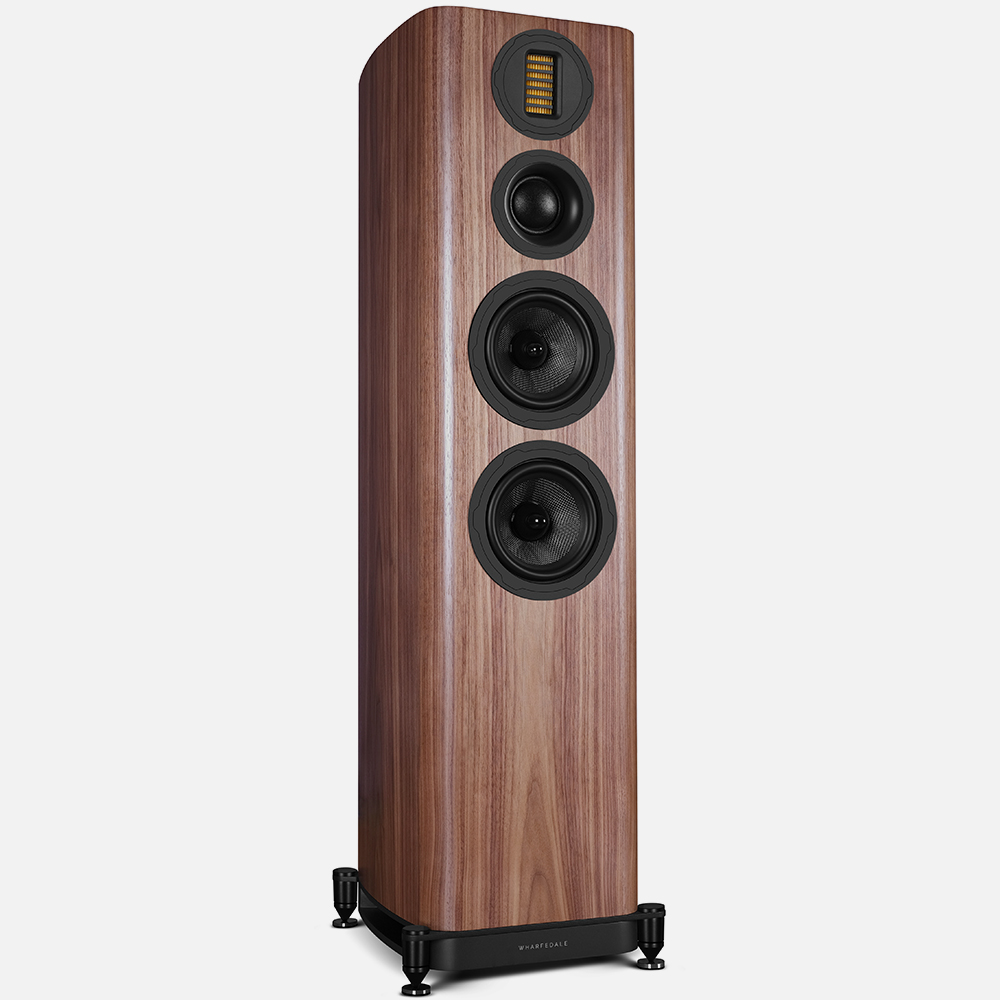

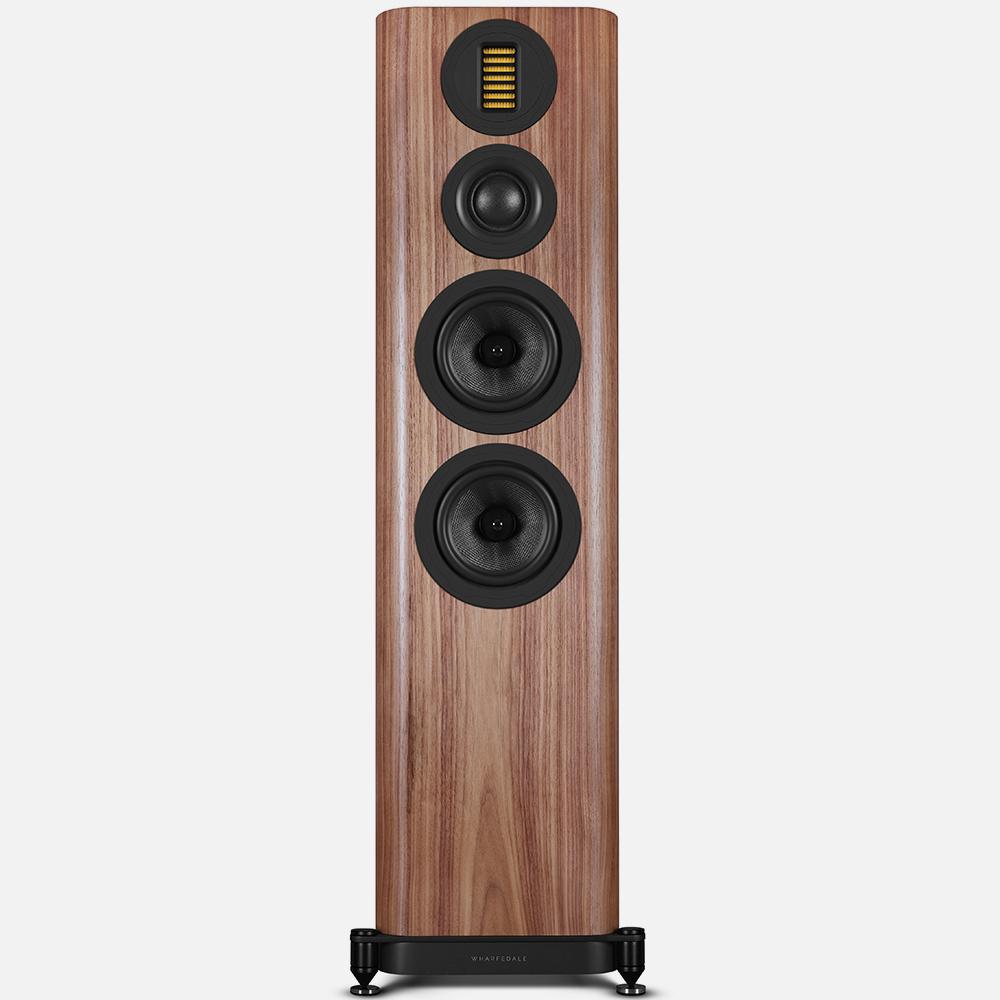

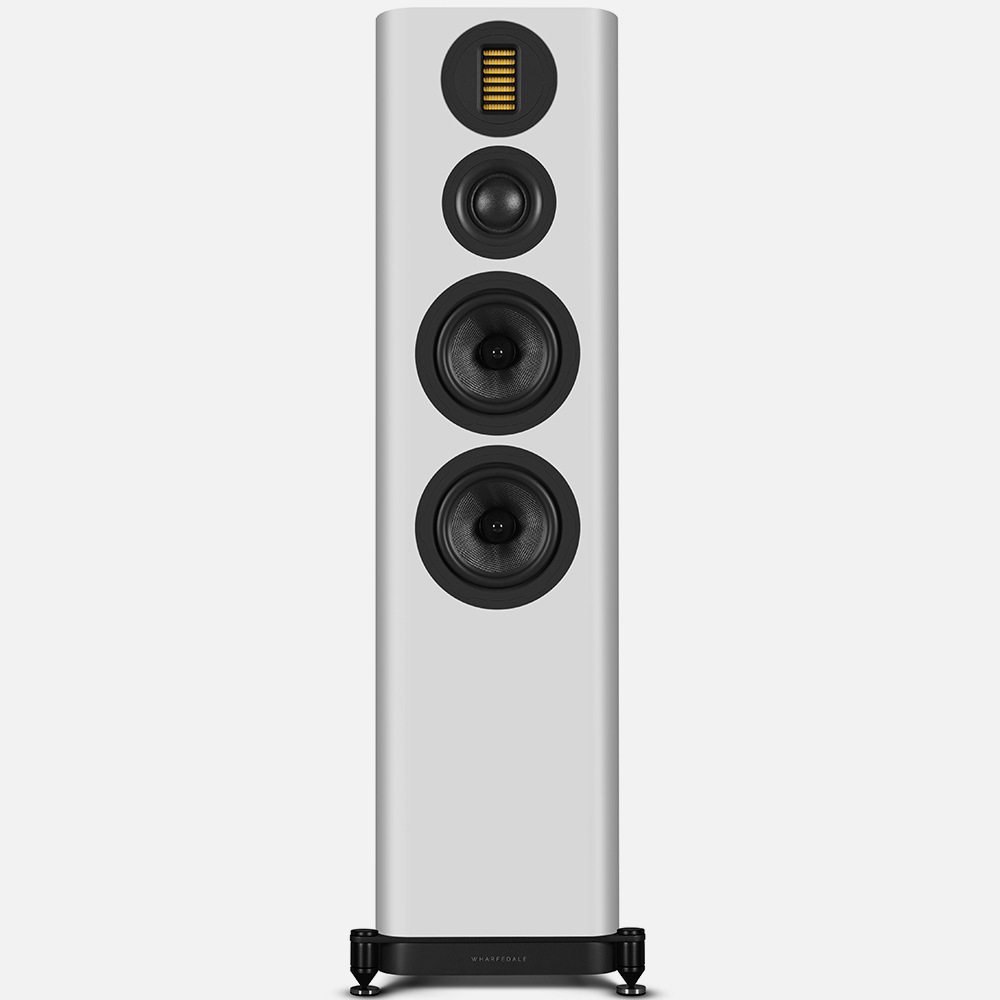

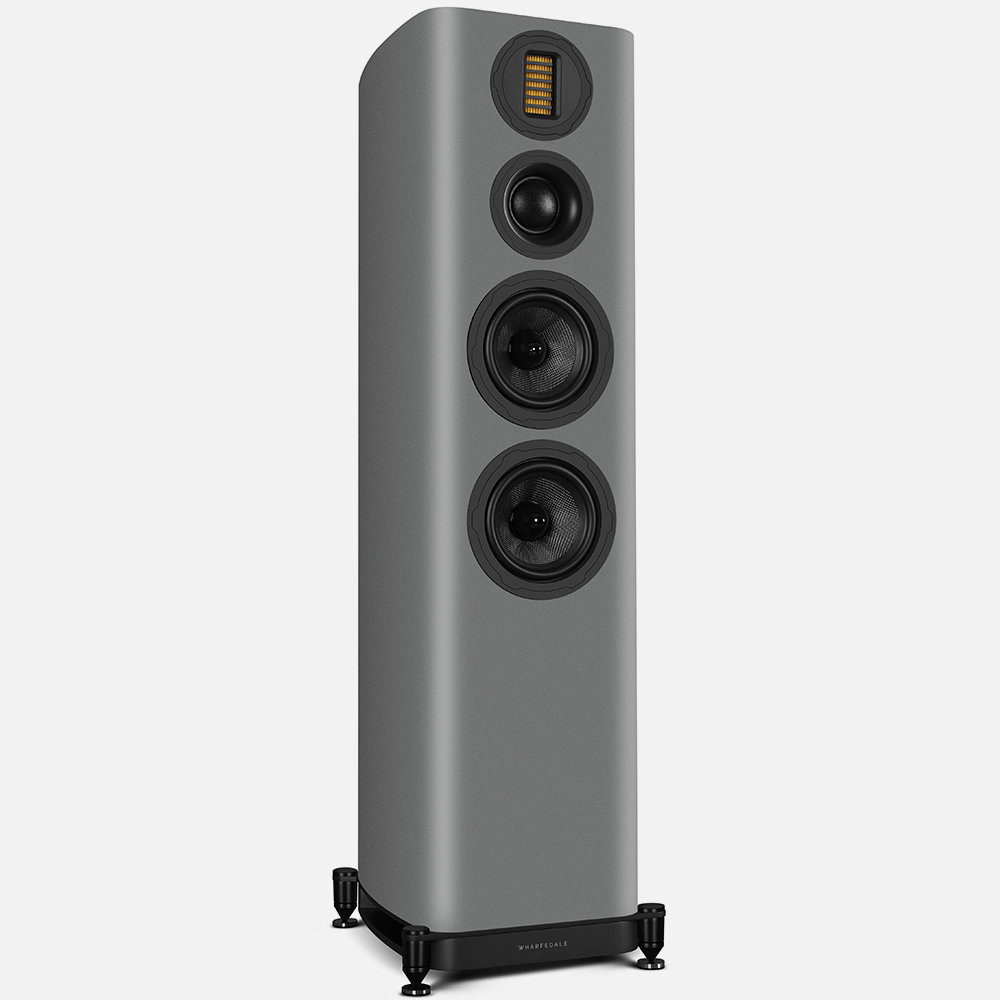

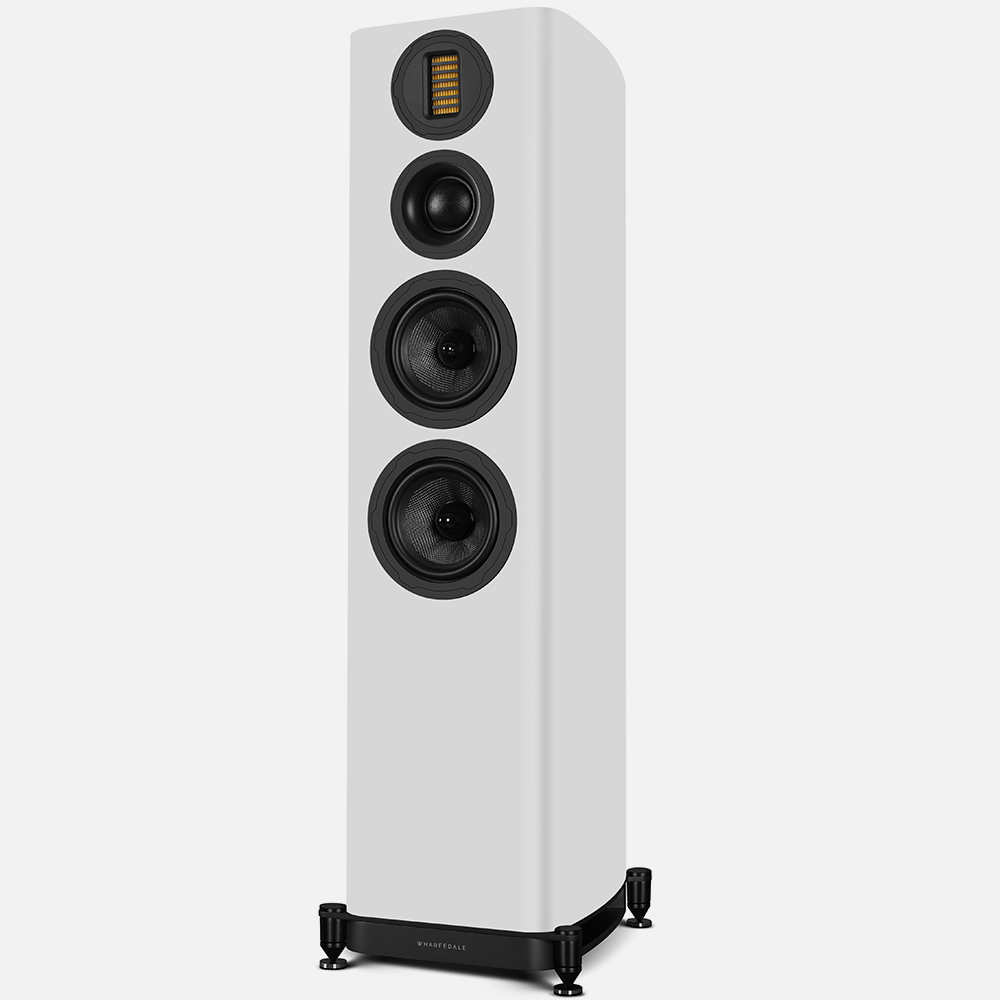

| General description | 3-way floorstanding speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
ABR
| Bass driver | 6.5"(165mm) Black Woven Kevlar Cone x2 |
| Midrange driver | 2"(50mm) Soft Dome |
| Treble driver | 35 x 70mm AMT |
Full-range driver
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 90dB |
| Recommended amplifier power | 30-200W |
Peak power handling
| Peak SPL | 108dB |
| Nominal impedance | 4Ω (8Ω compatible) |
| Minimum impedance | 4.3Ω |
| Frequency response (+/-3dB) | 42Hz – 24kHz |
| Bass extension (-6dB) | 36Hz |
| Crossover frequency | 1.1kHz, 4kHz |
| Cabinet Volume (in litres) | 59.5L |
Dimensions (mm)
| Height (on plinth&spike) | 1028mm |
| Width | 302mm |
| Depth (with grille+terminal) | (350 + 40)mm |
| Carton size | 495 * 390 * 1185mm |
| Net weight | 31.2kg/pcs |
| Gross weight | 33.2kg/ctn |
| Finish | Walnut/Black Oak Veneer |
| Standard accessories | spike seat |
