General

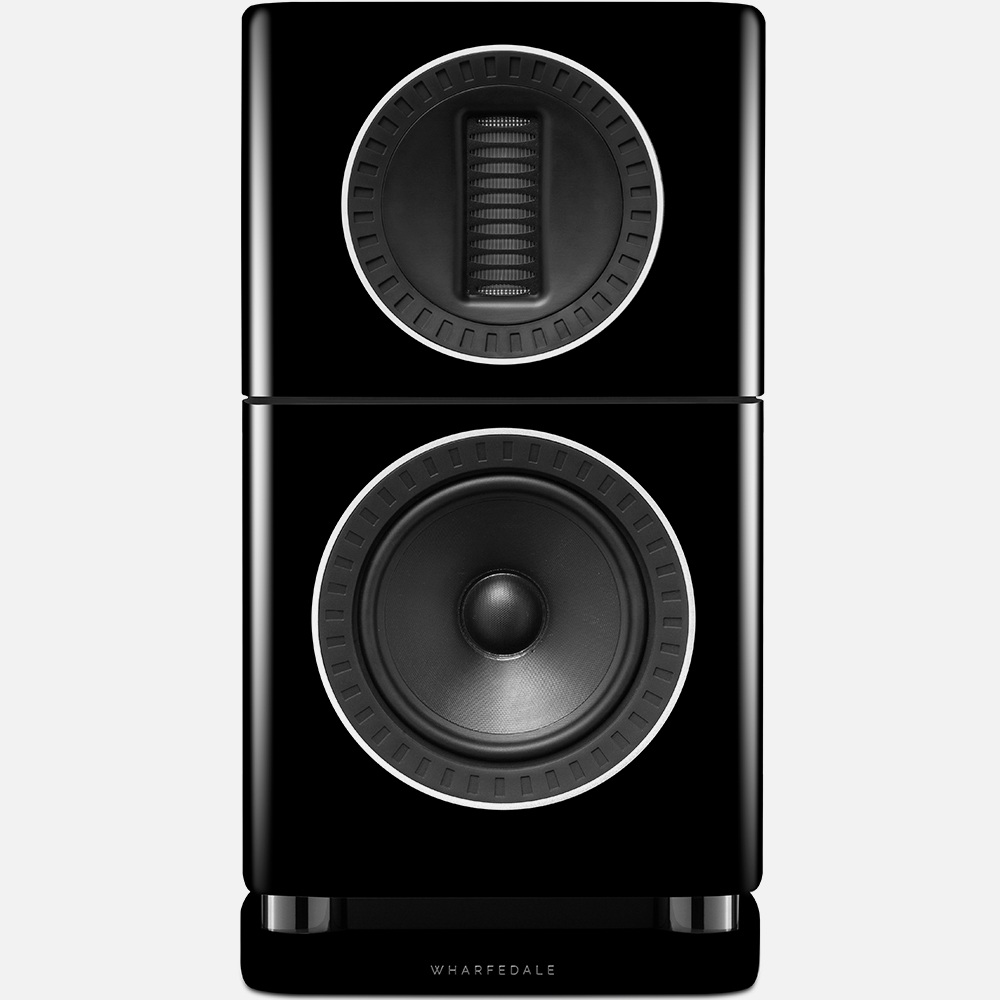

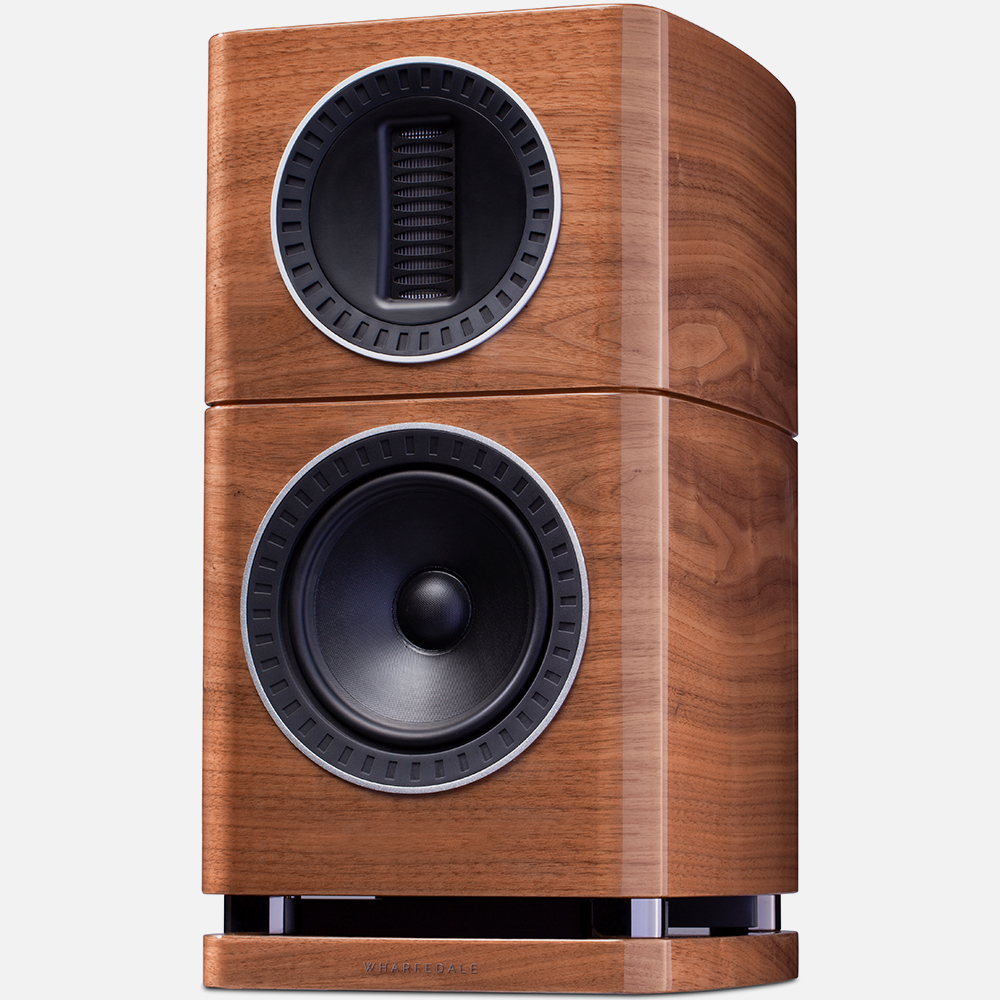

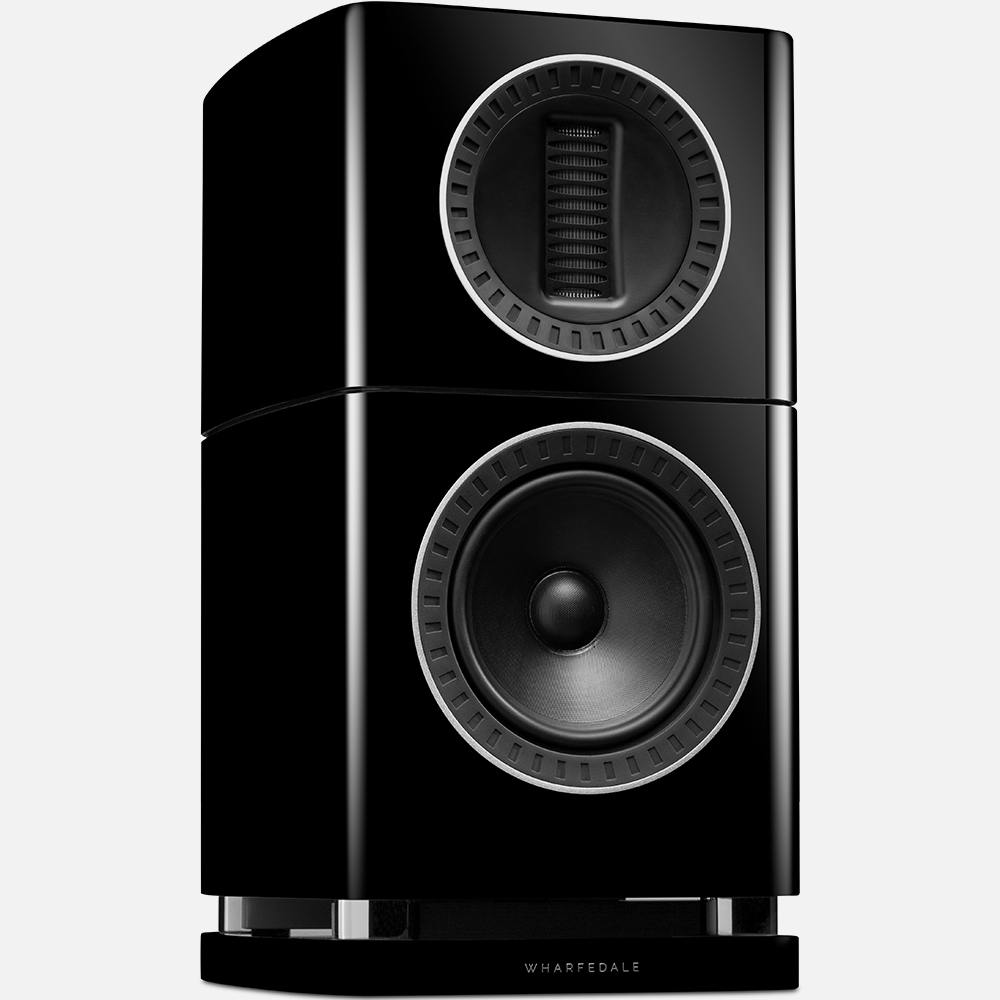

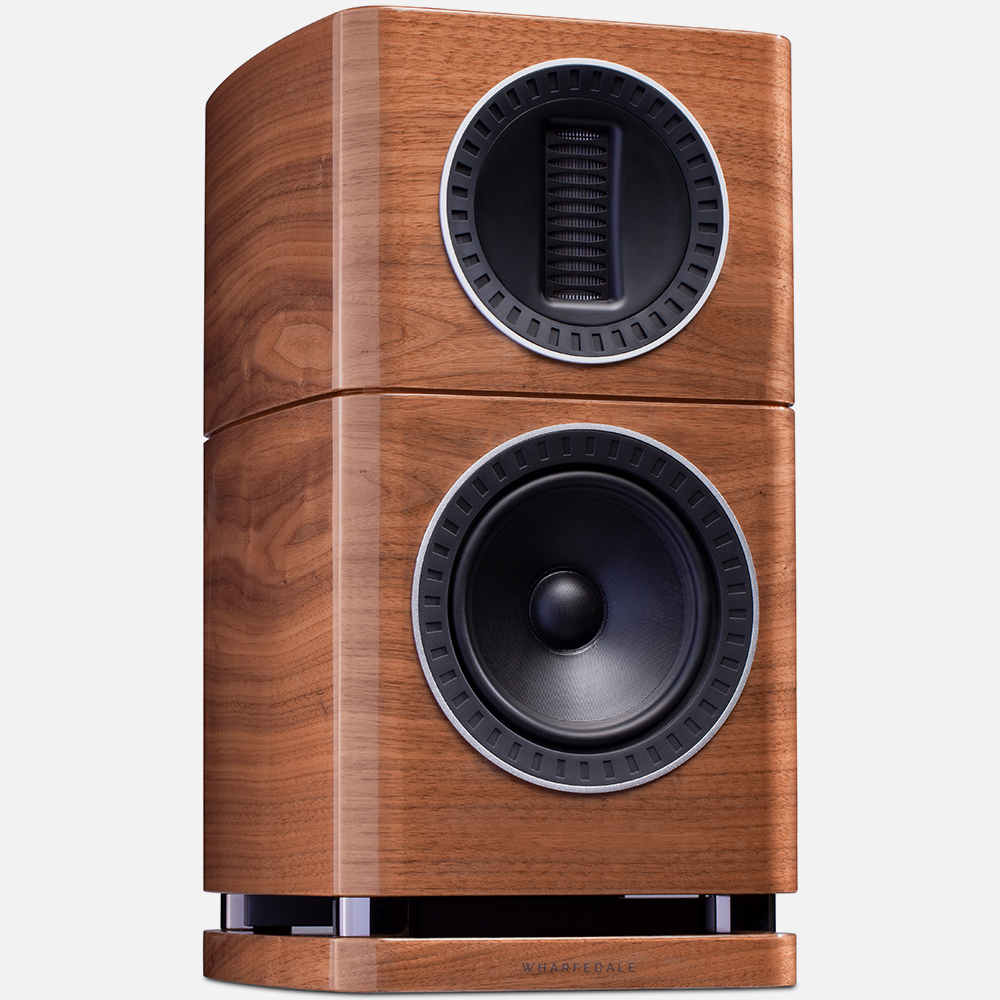

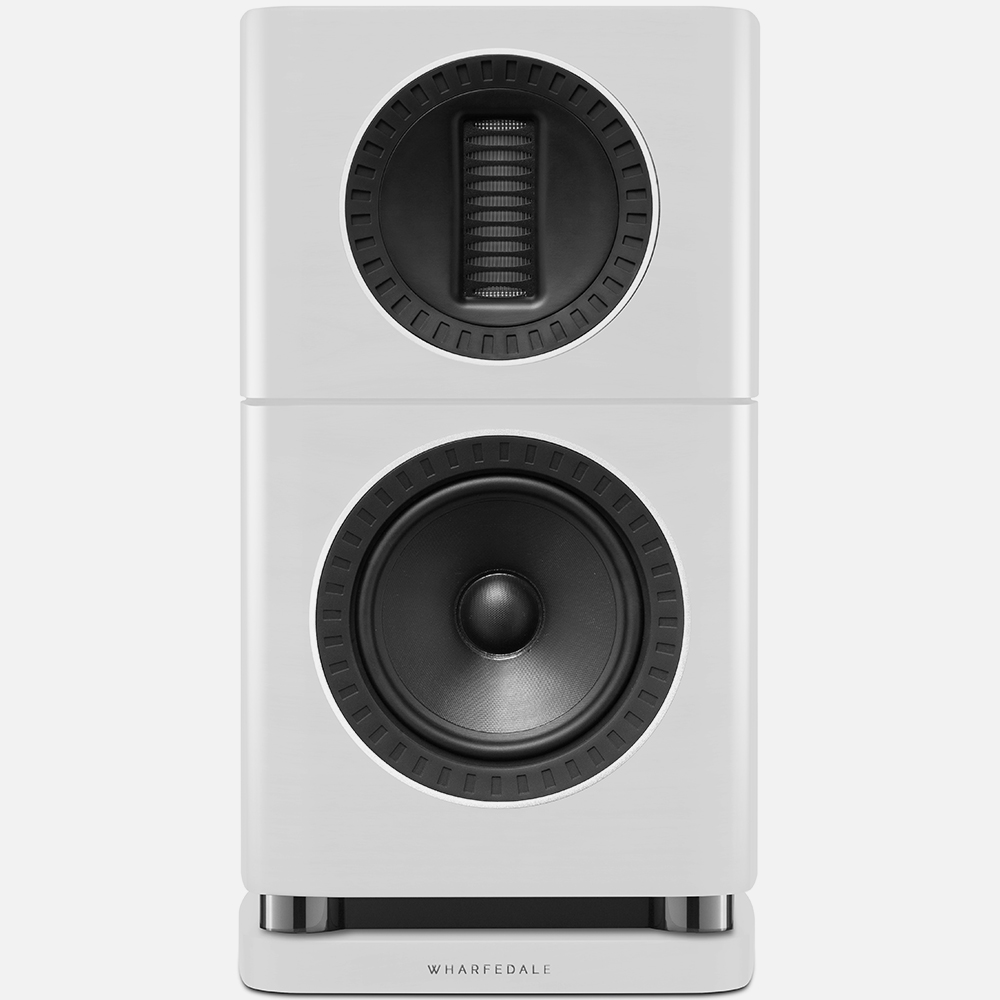

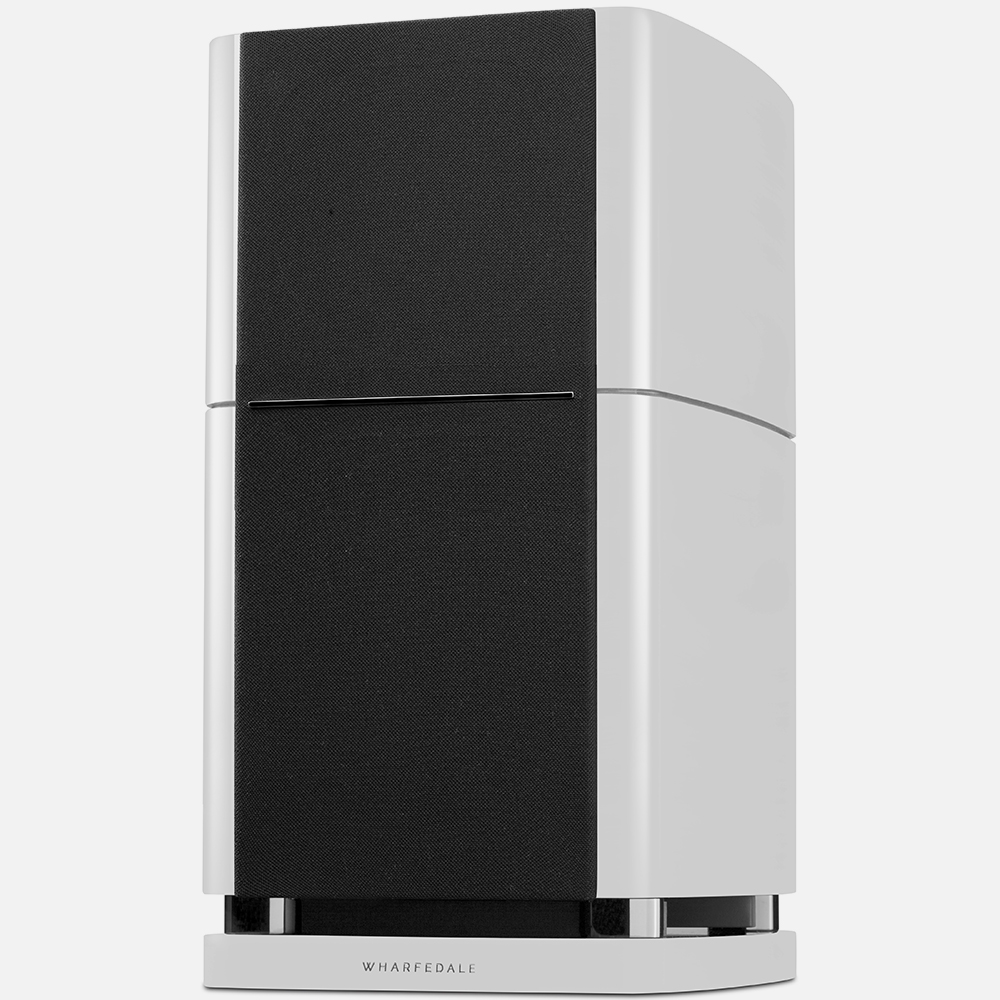

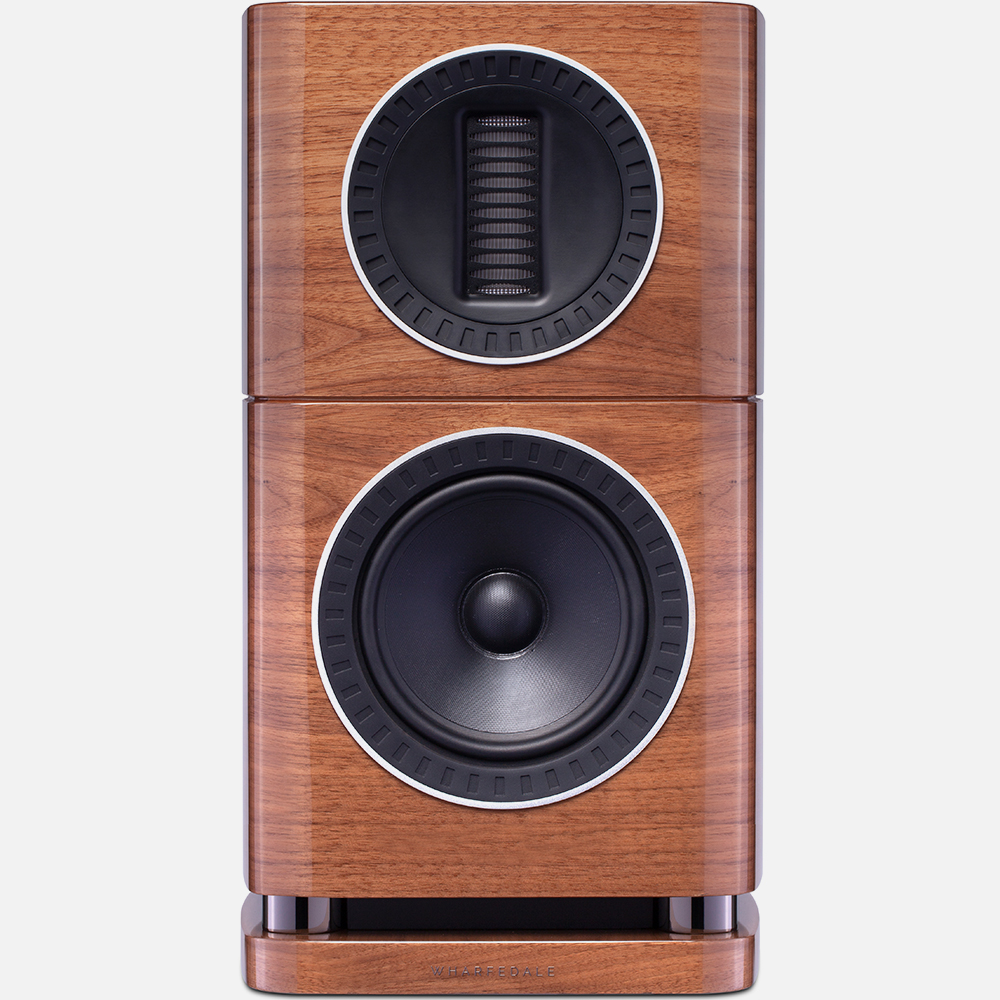

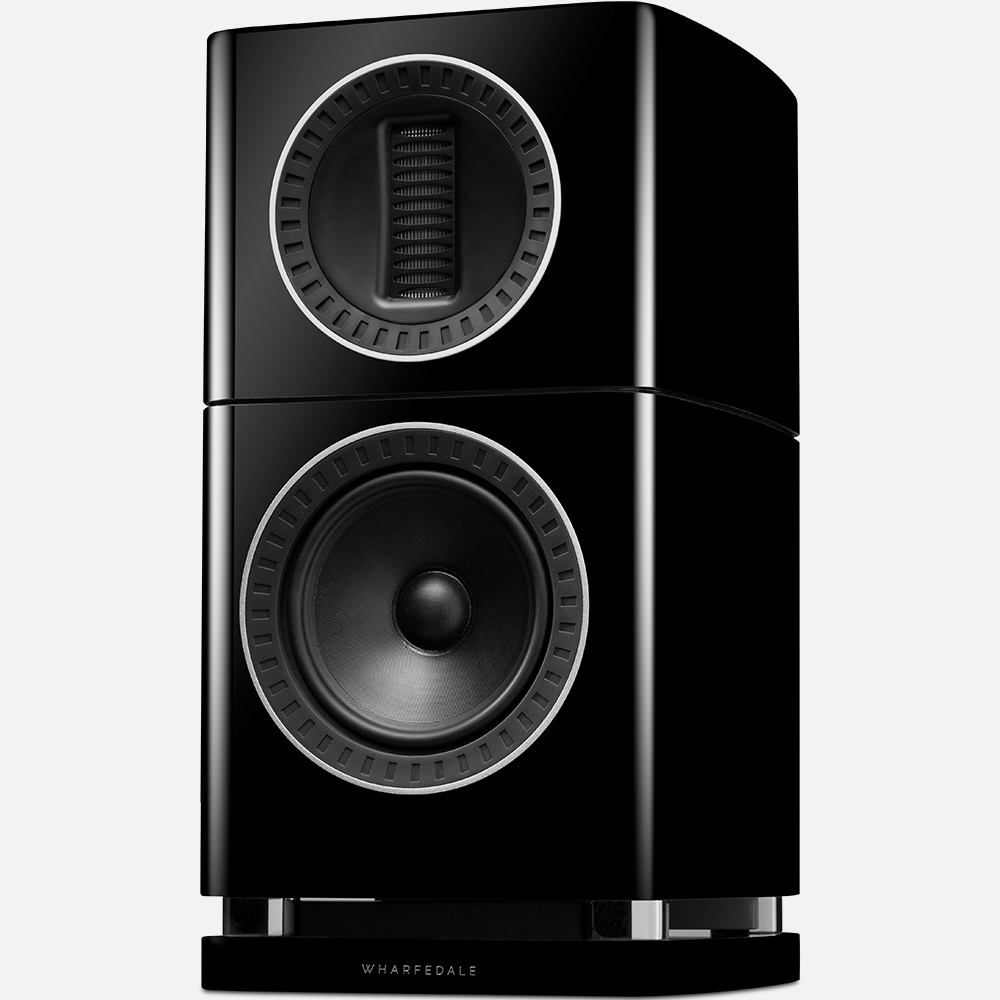

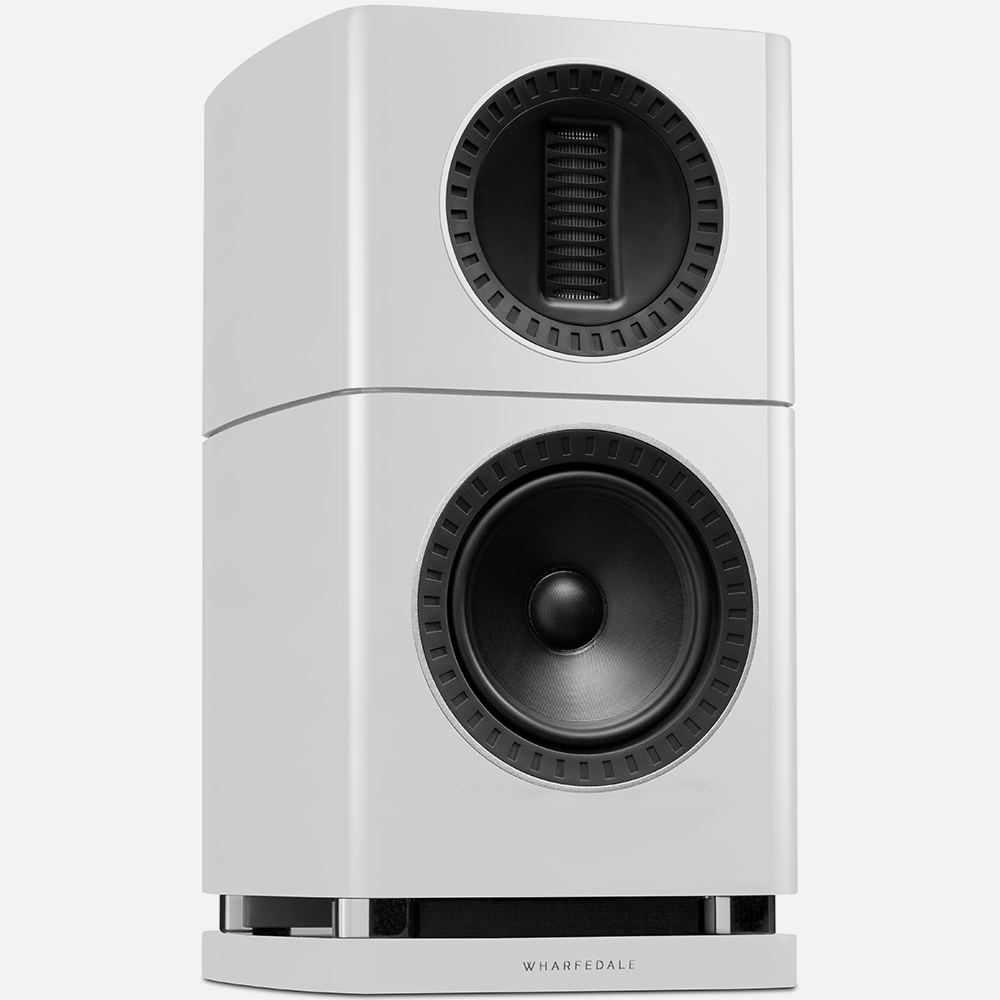

| General description | 2-way standmount speaker |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 7" (180mm) coated fibre glass matrix cone |
Midrange driver
| Treble driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended amplifier power | 25-175W |
| Peak SPL | 108dB |
| Nominal impedance | 4Ω (compatible 8Ω) |
| Minimum impedance | 3.8Ω |
| Frequency response(+/-3dB) | 49Hz ~ 22kHz |
| Bass extension(-6dB) | 44Hz |
| Crossover frequency | 2.6kHz |
| Cabinet Volume(in litres) | 21.6L |
Dimensions (mm)
| Height (on plinth) | 490mm |
| Width | 263mm |

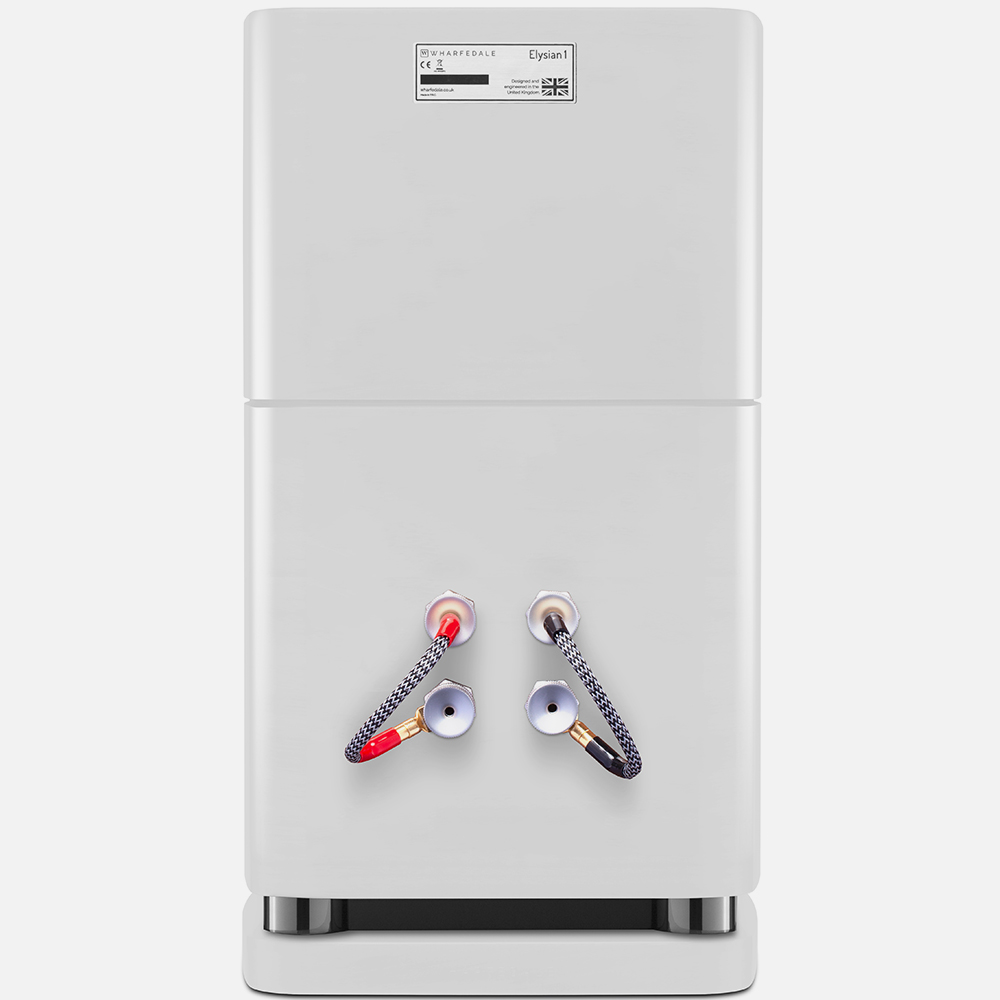

| Depth (with terminals) | (285+30)mm |
| Carton size | 690 x 445 x 625mm |
| Net weight | 15kg/pcs |
| Gross weight | 33.2kg/ctn |
