상세스펙
General

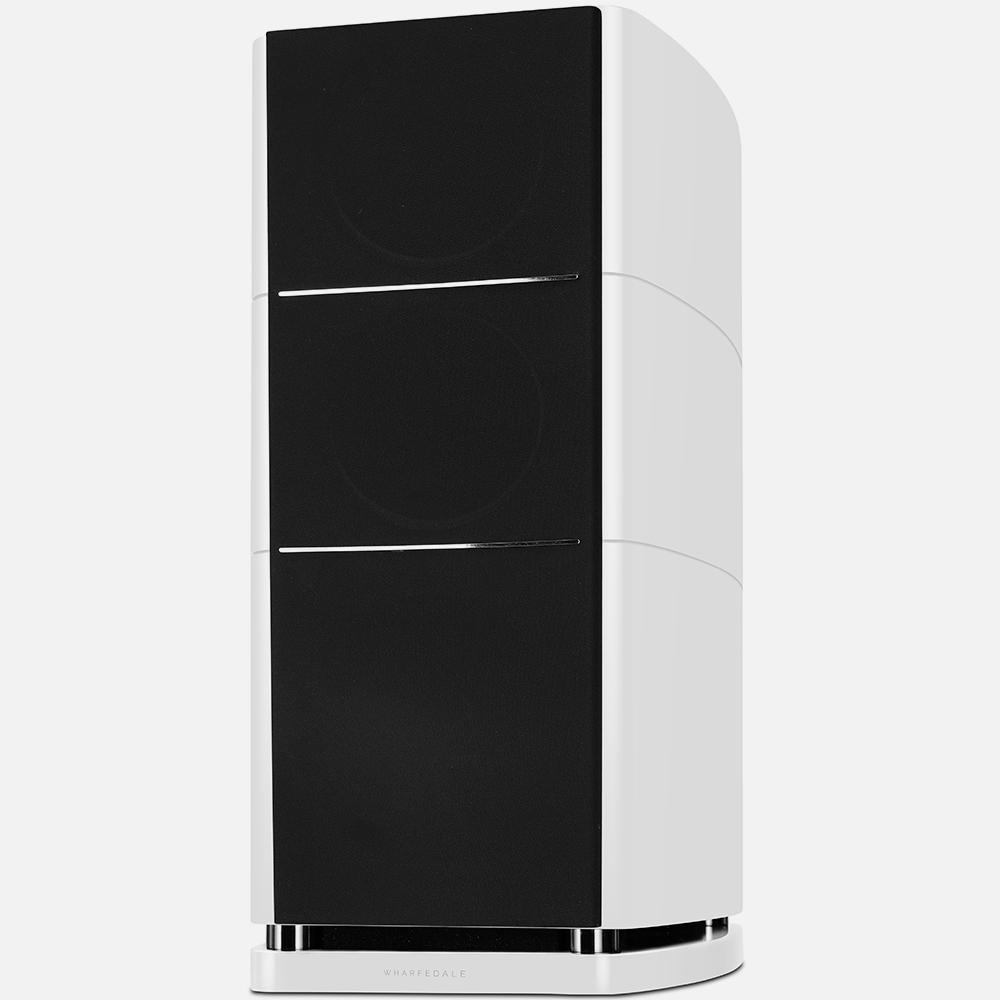

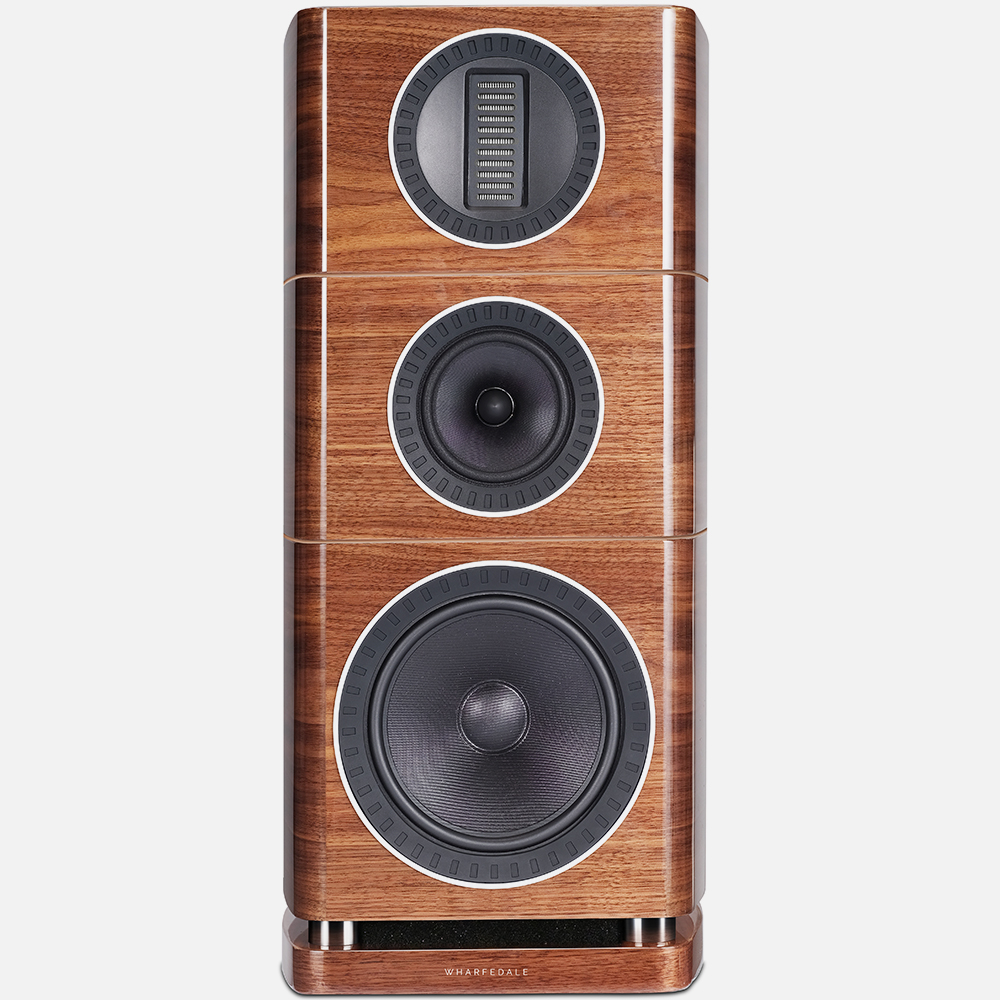

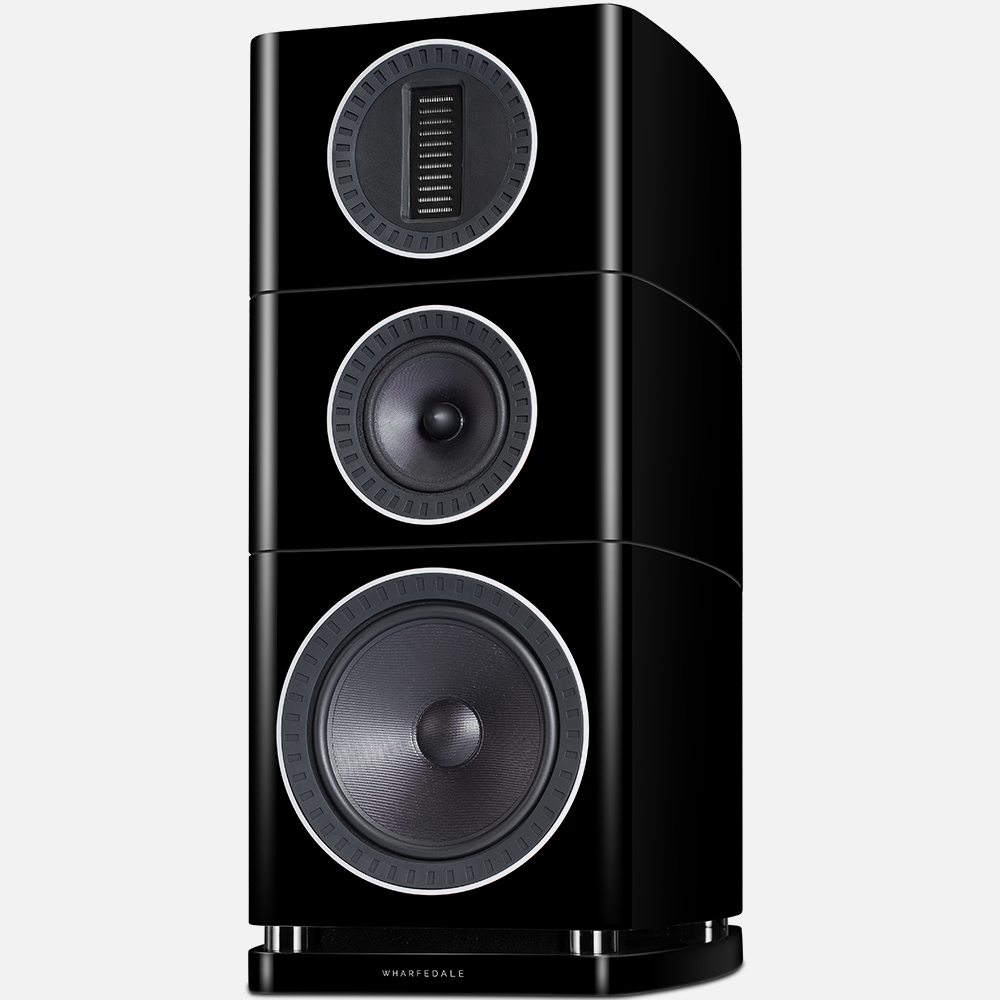

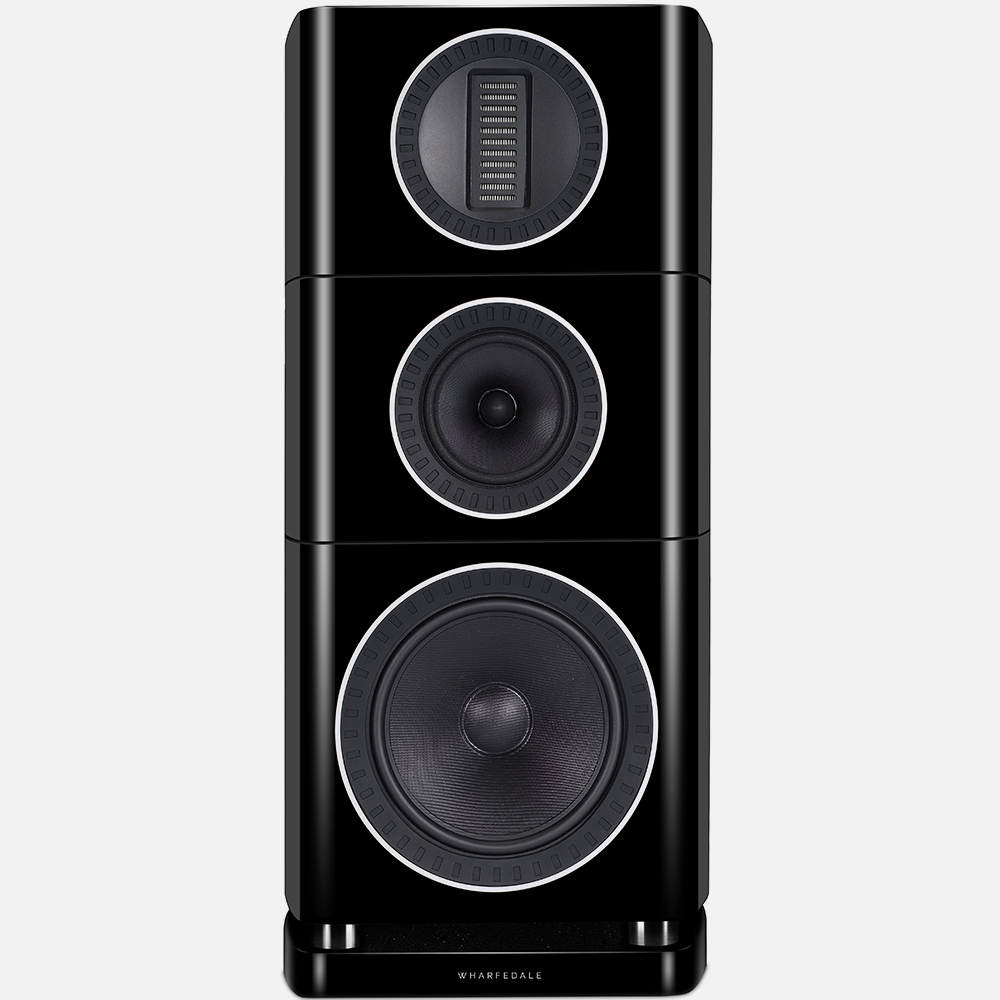

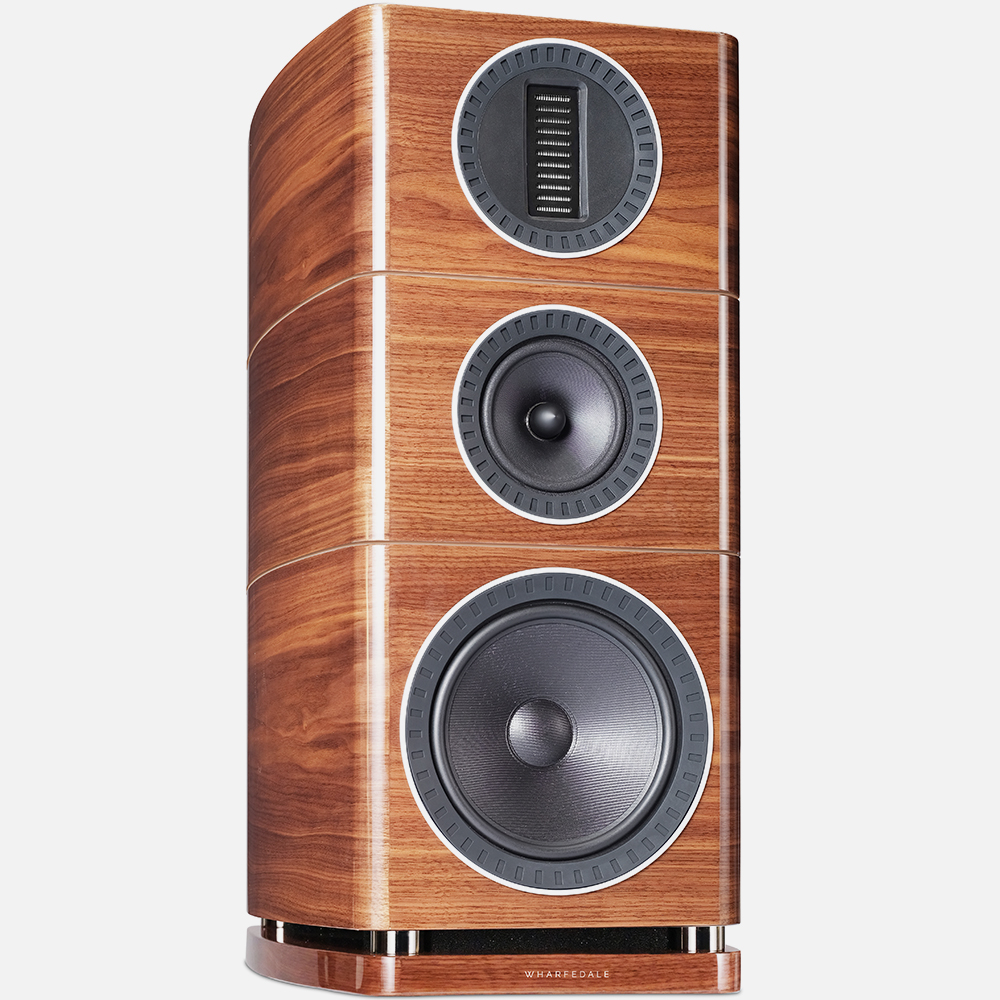

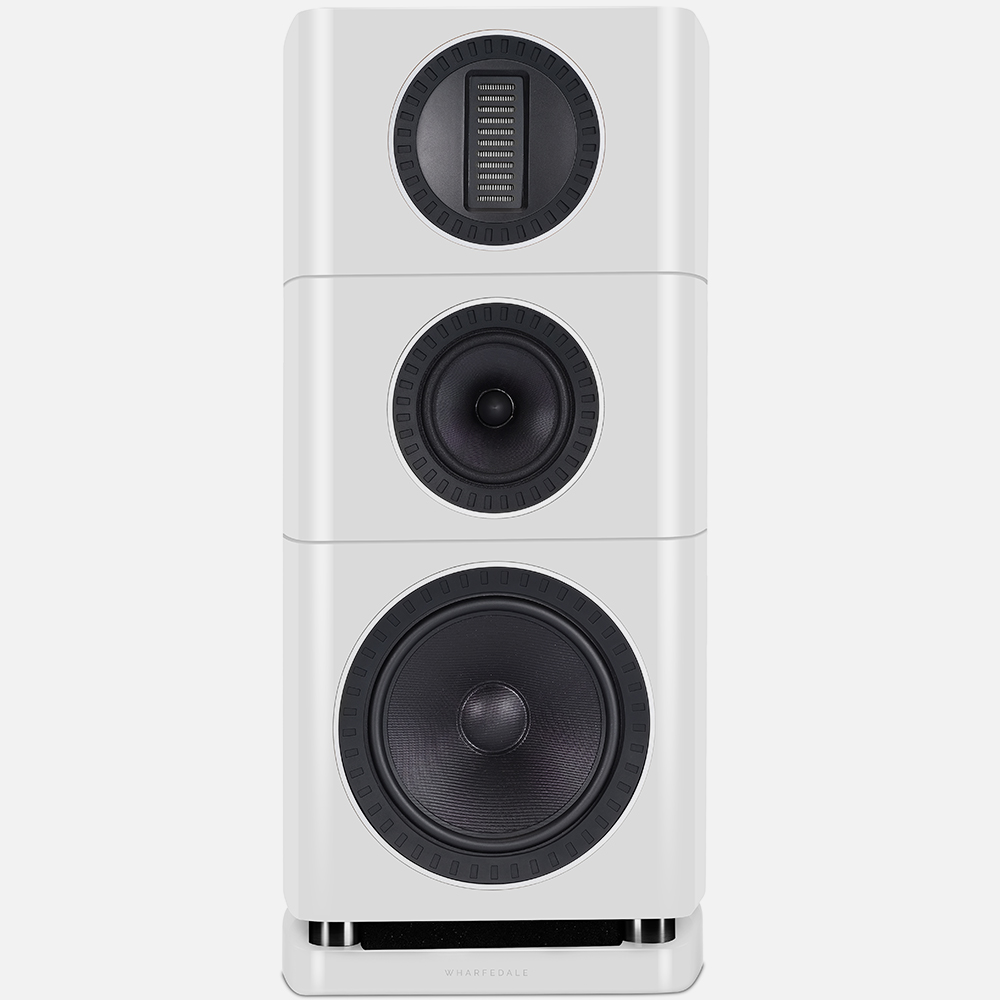

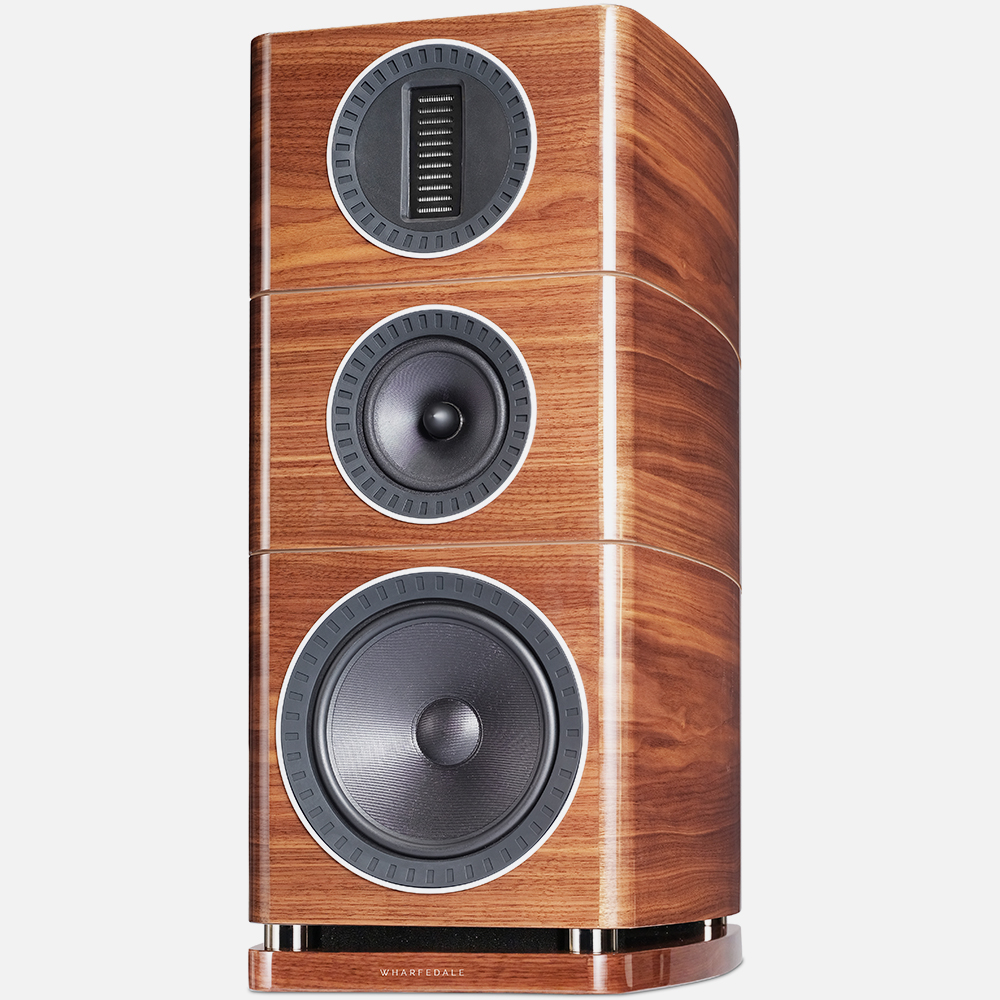

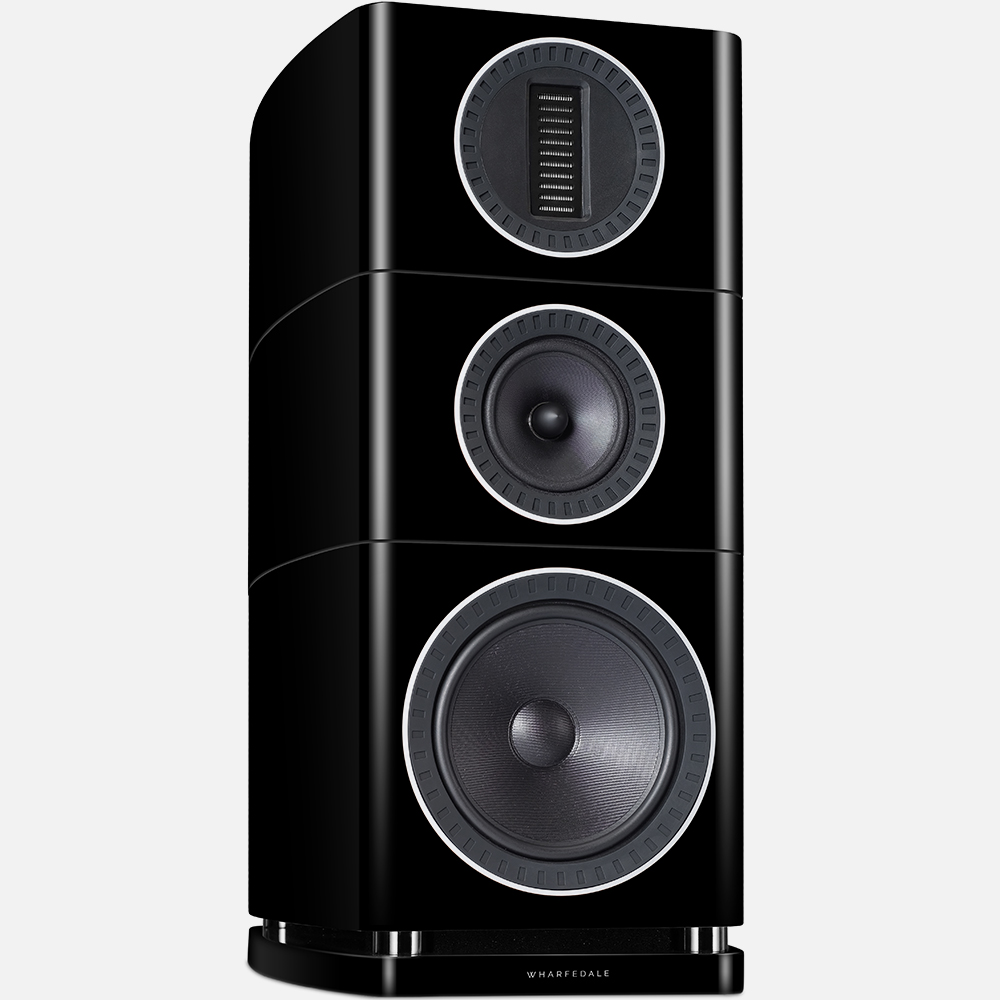

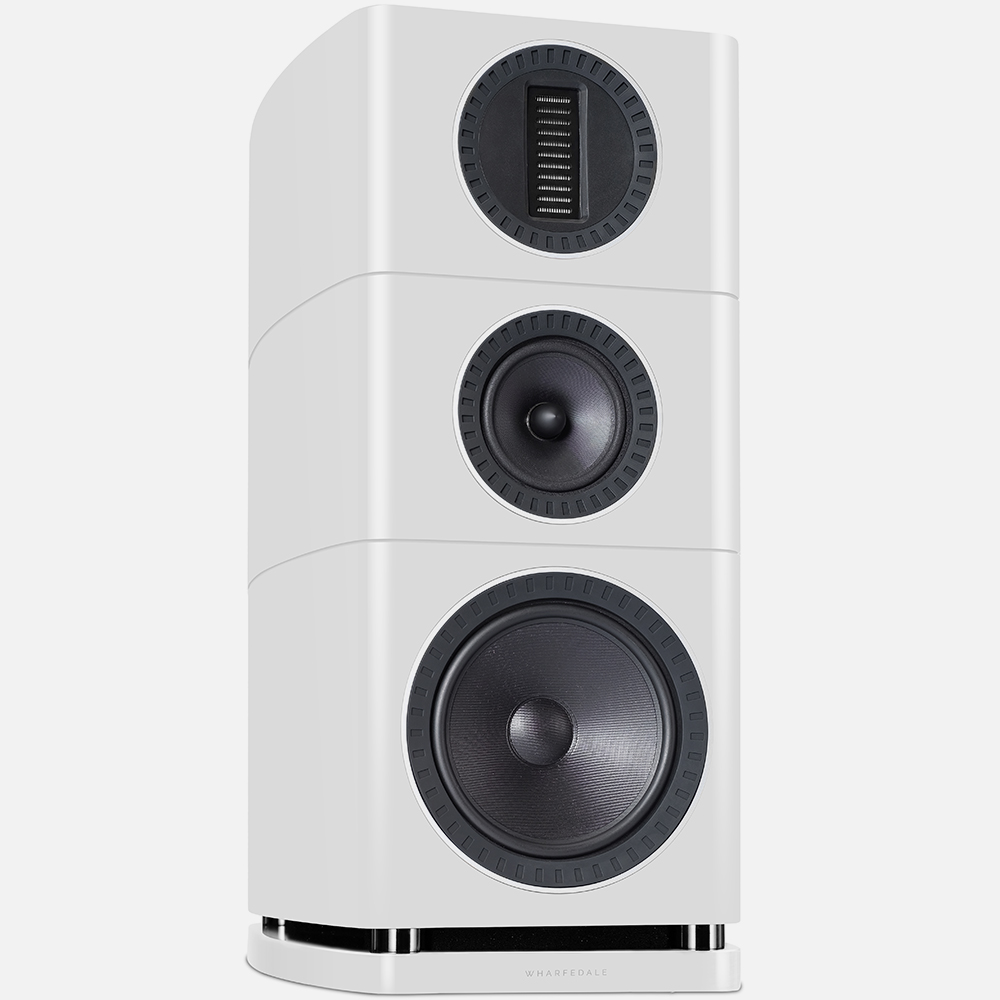

| General description | 3-way floorstanding speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
| Bass driver | 8.5" (220mm) coated fibre glass matrix cone |
| Midrange driver | 6" (150mm) coated fibre glass matrix cone |
| Treble driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended amplifier power | 25-250W |
| Peak SPL | 109dB |
| Nominal impedance | 4Ω (compatible 8Ω) |
| Minimum impedance | 3.6Ω |
| Frequency response(+/-3dB) | 35Hz ~ 22kHz |
| Bass extension(-6dB) | 28Hz |
| Crossover frequency | 360Hz, 2.9kHz |
| Cabinet Volume(in litres) | 17.5L, 43.6L |
Dimensions (mm)
| Height (on plinth) | 700mm |
| Width | 334mm |

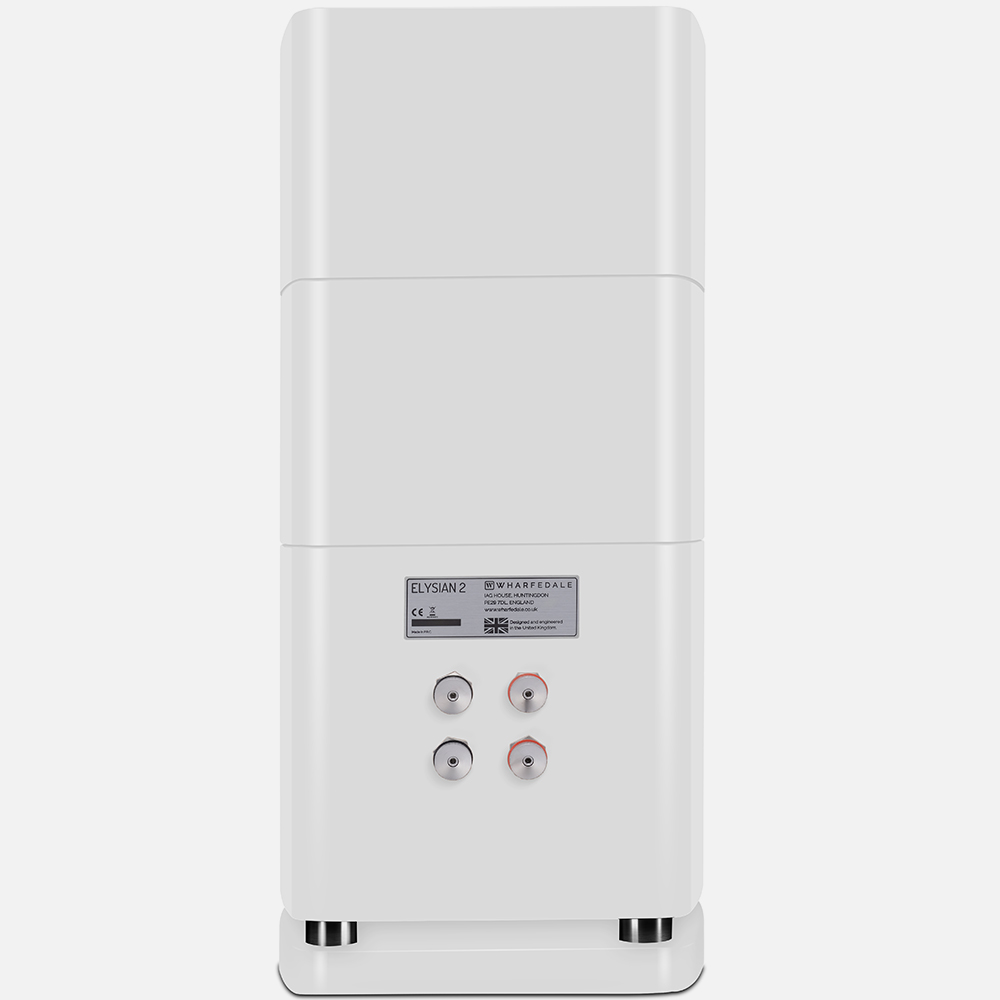

| Depth (with terminals) | (432+30)mm |
| Carton size | 580 x 460 x 830mm |
| Net weight | 30.5kg/pcs |
| Gross weight | 35.3kg/ctn |
