General

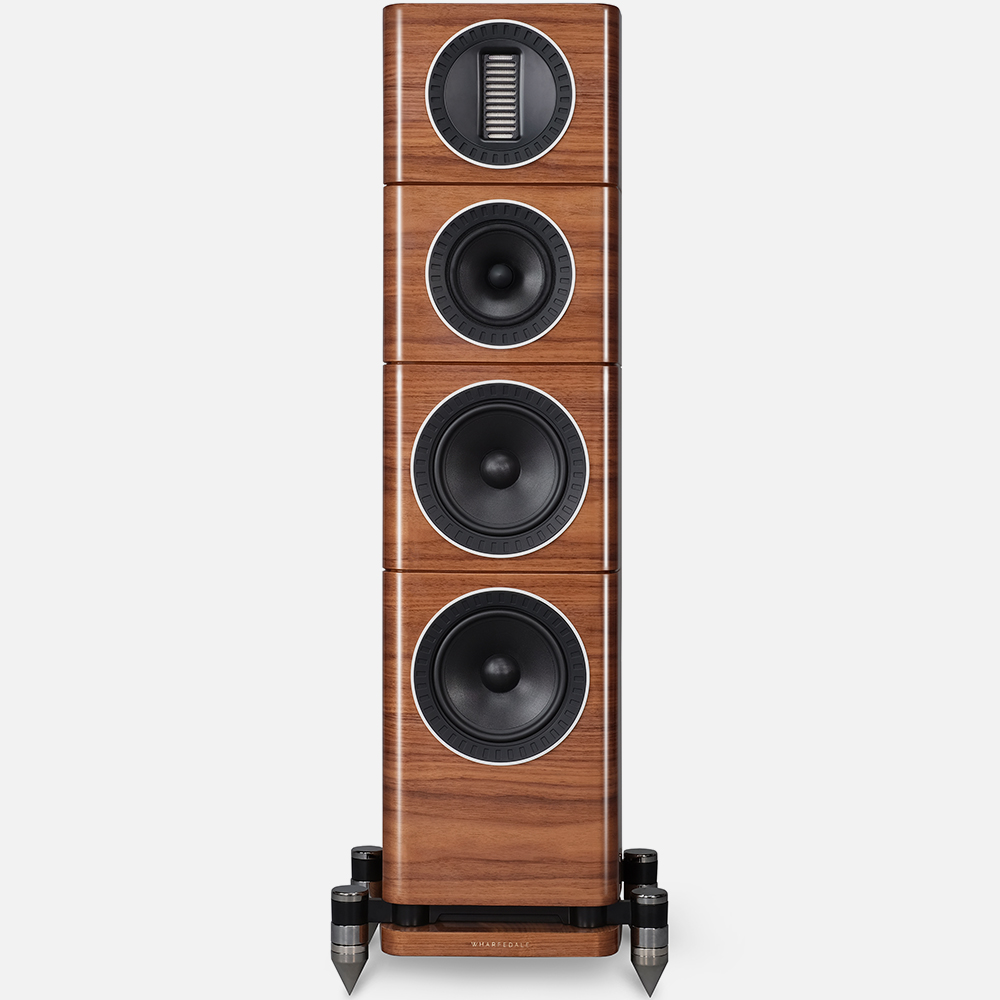

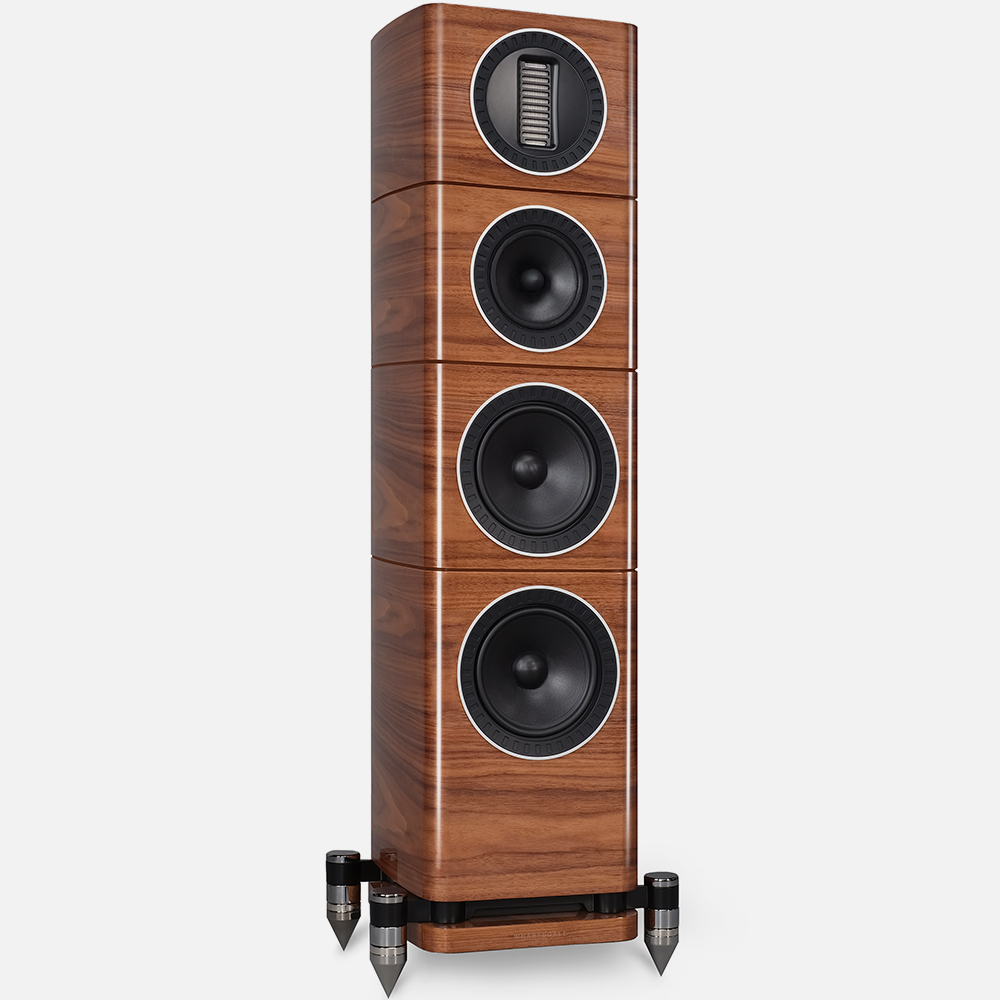

| General description | 3-way floorstanding speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
| Bass driver | 7" (180mm) coated fibre glass matrix cone x 2 |
| Midrange driver | 6" (150mm) coated fibre glass matrix cone |
| Treble driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended amplifier power | 30-200W |
| Peak SPL | 108dB |
| Nominal impedance | 4Ω (compatible 8Ω) |
| Minimum impedance | 2.3Ω |
| Frequency response(+/-3dB) | 44Hz ~ 22kHz |
| Bass extension(-6dB) | 35Hz |
| Crossover frequency | 375Hz, 2.9kHz |
| Cabinet Volume(in litres) | 9.4L, 35L |
Dimensions (mm)
| Height (on plinth) | 1050mm |
| Width | 263mm |
| Depth (with terminals) | (285+30)mm |
| Carton size | 425 x 415 x 1155mm |
| Net weight | 28.44kg/pcs |
| Gross weight | 35.37kg/ctn |
