상세스펙
General

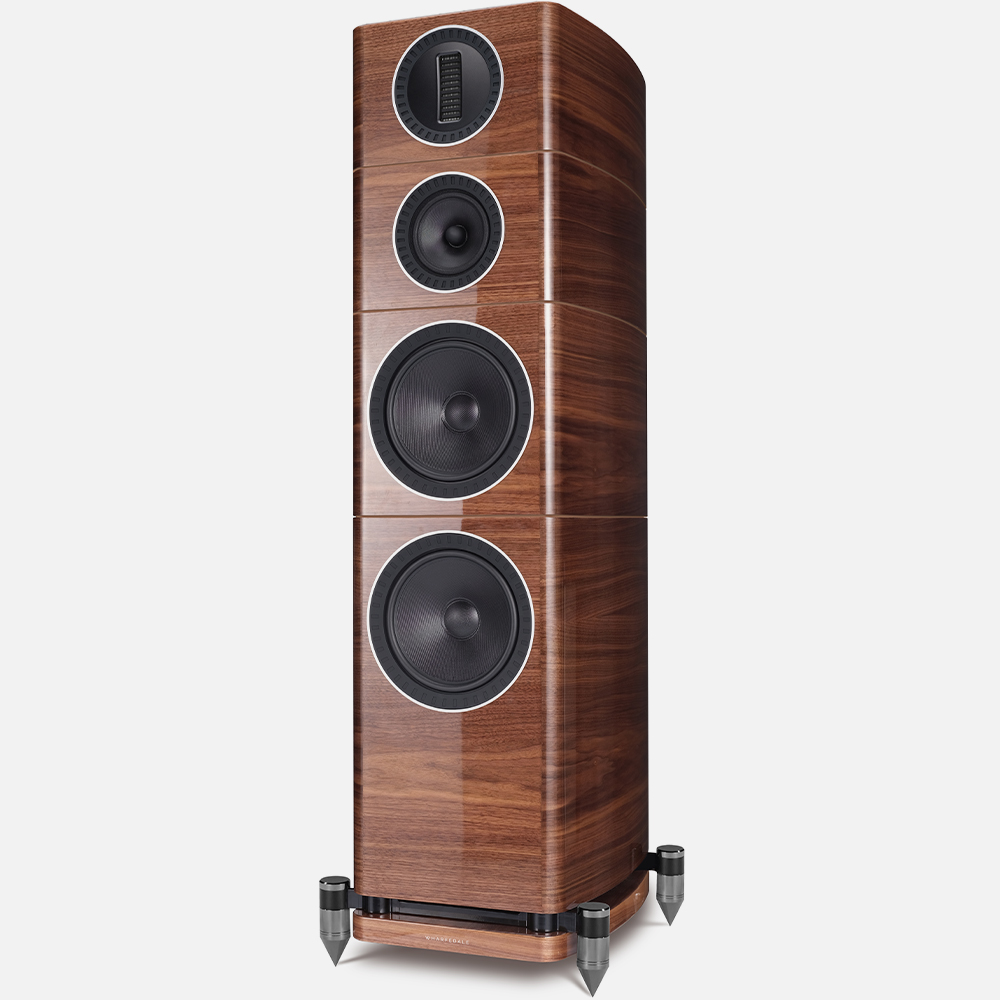

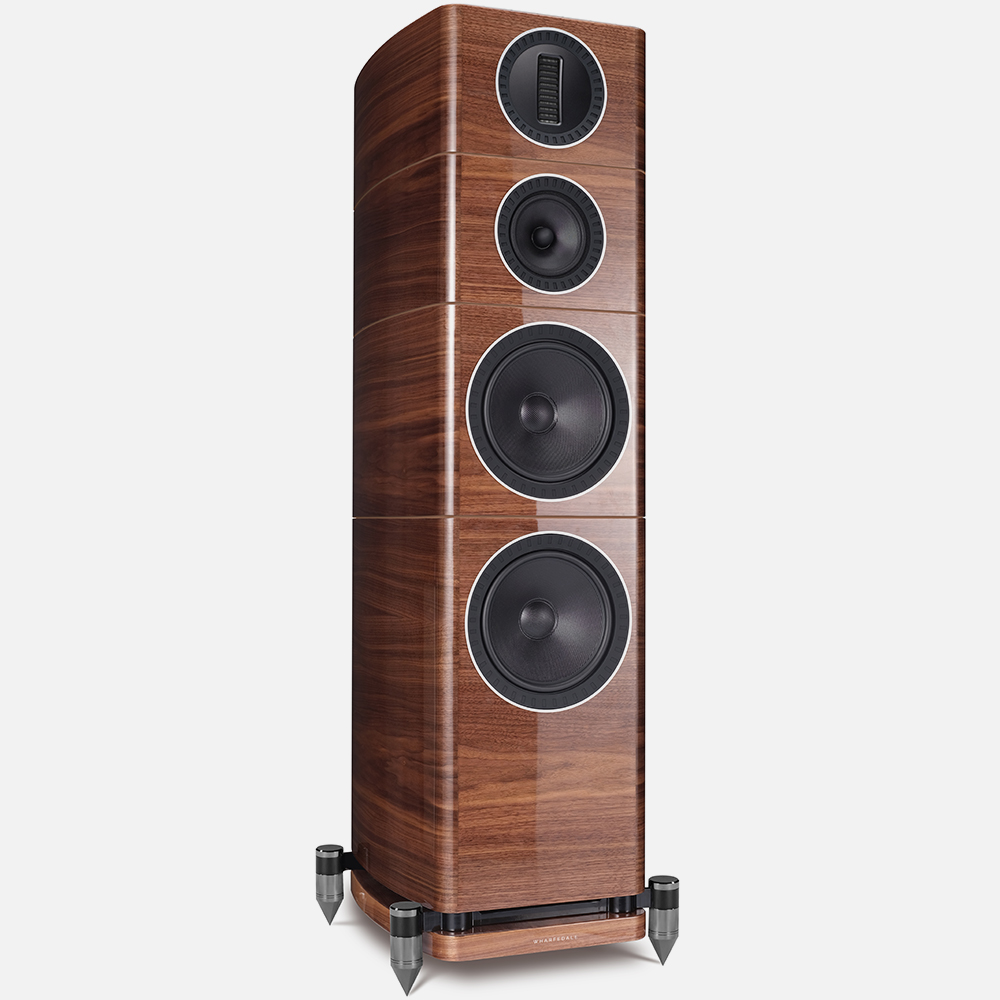

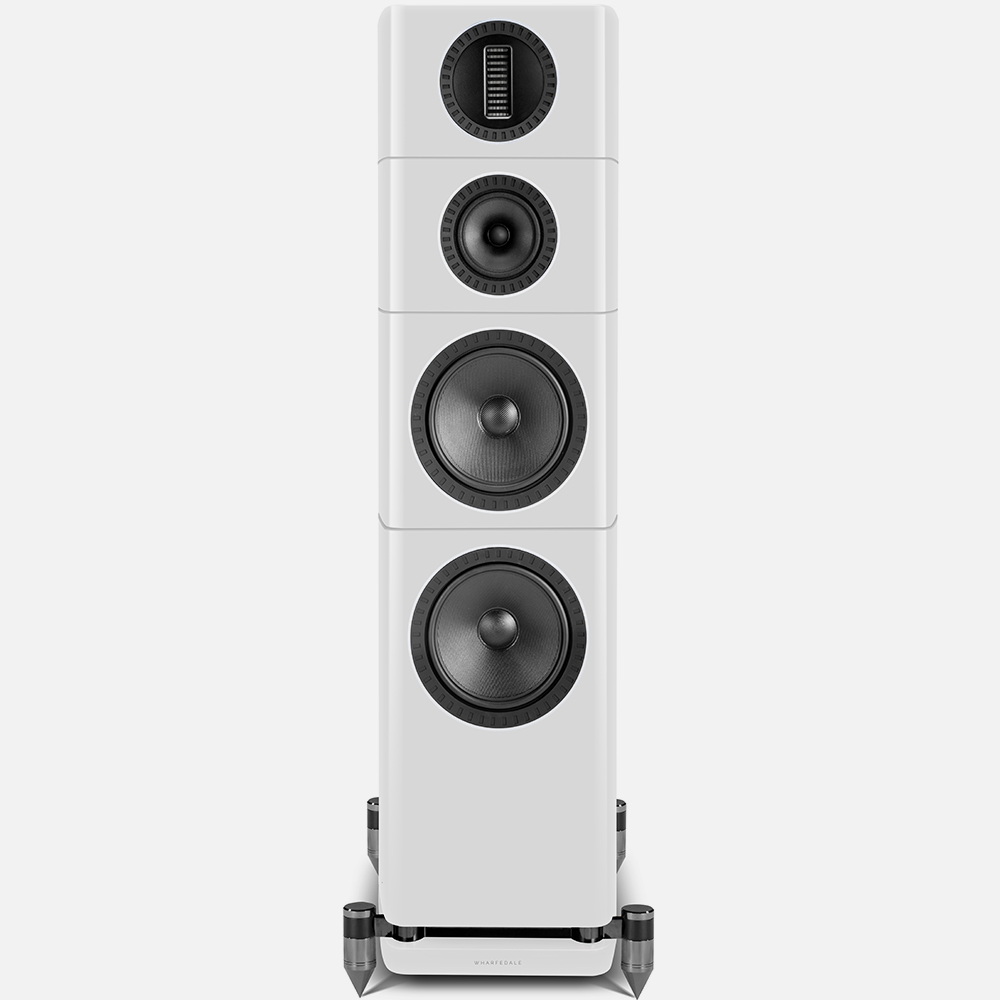

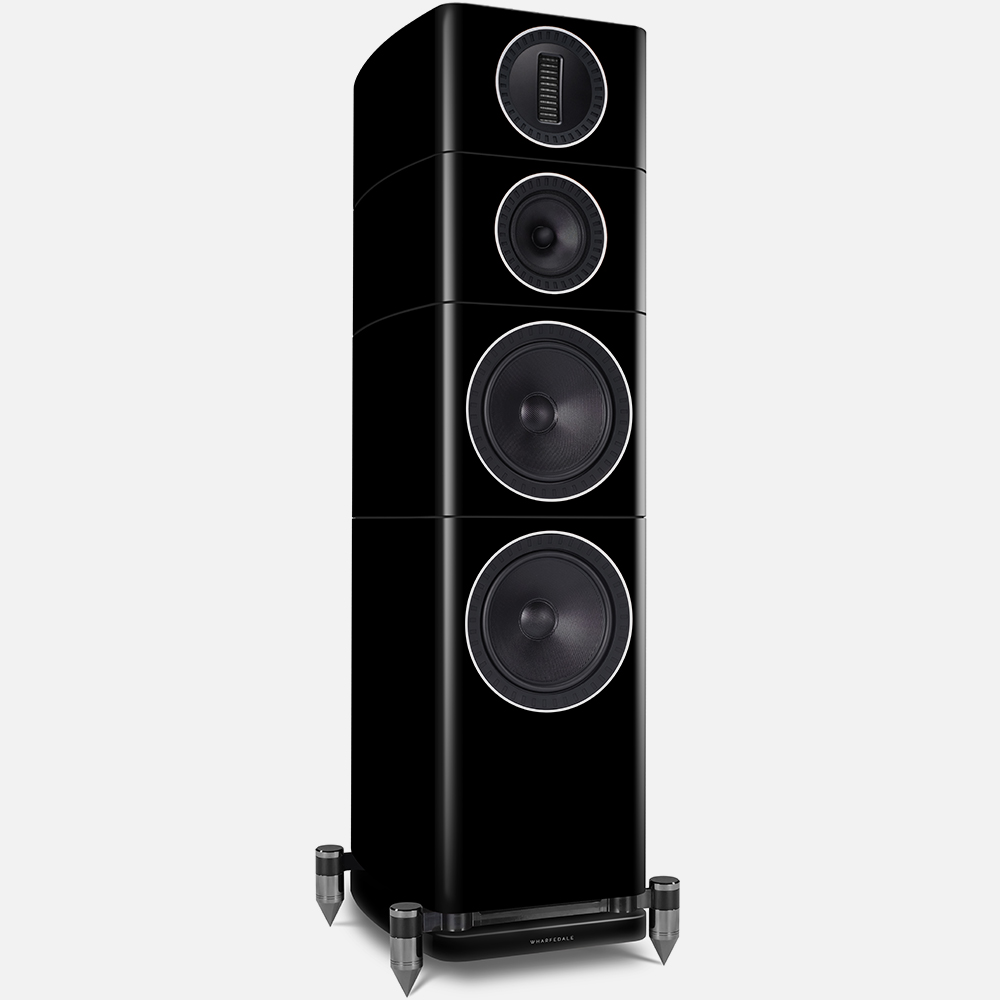

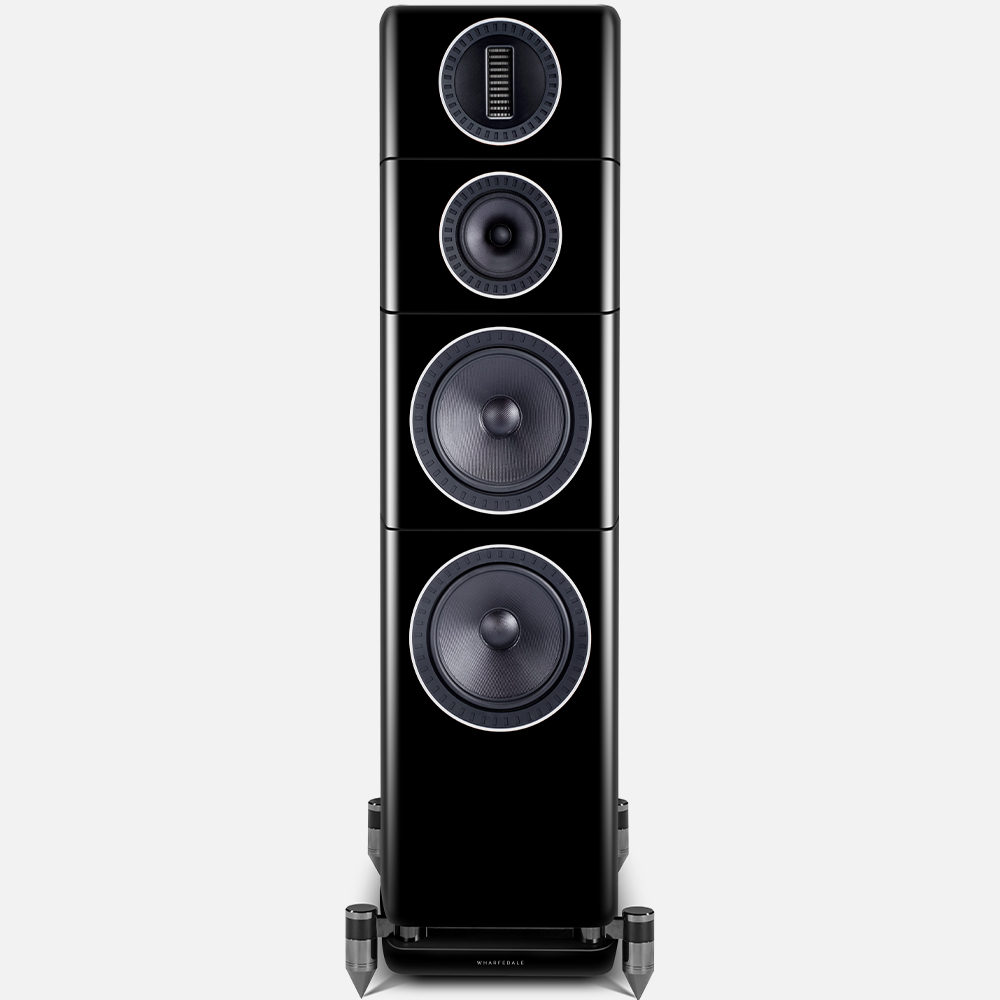

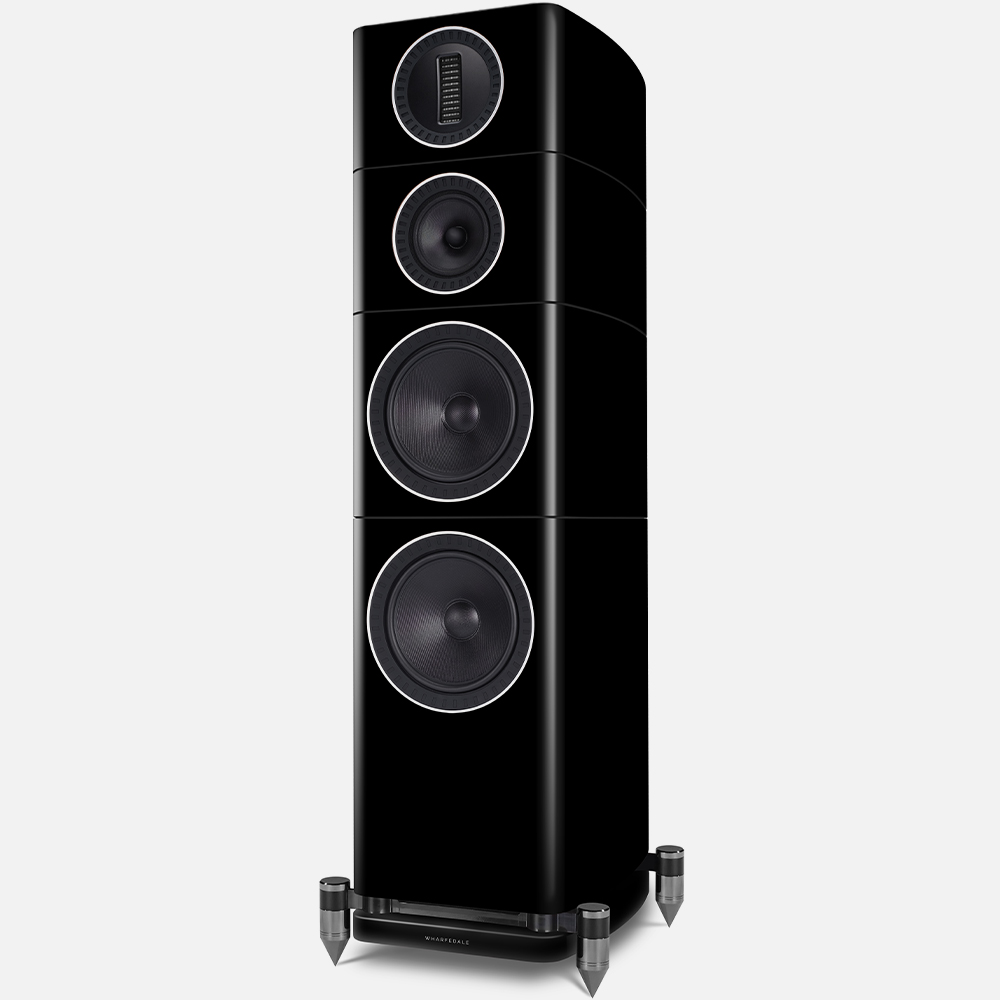

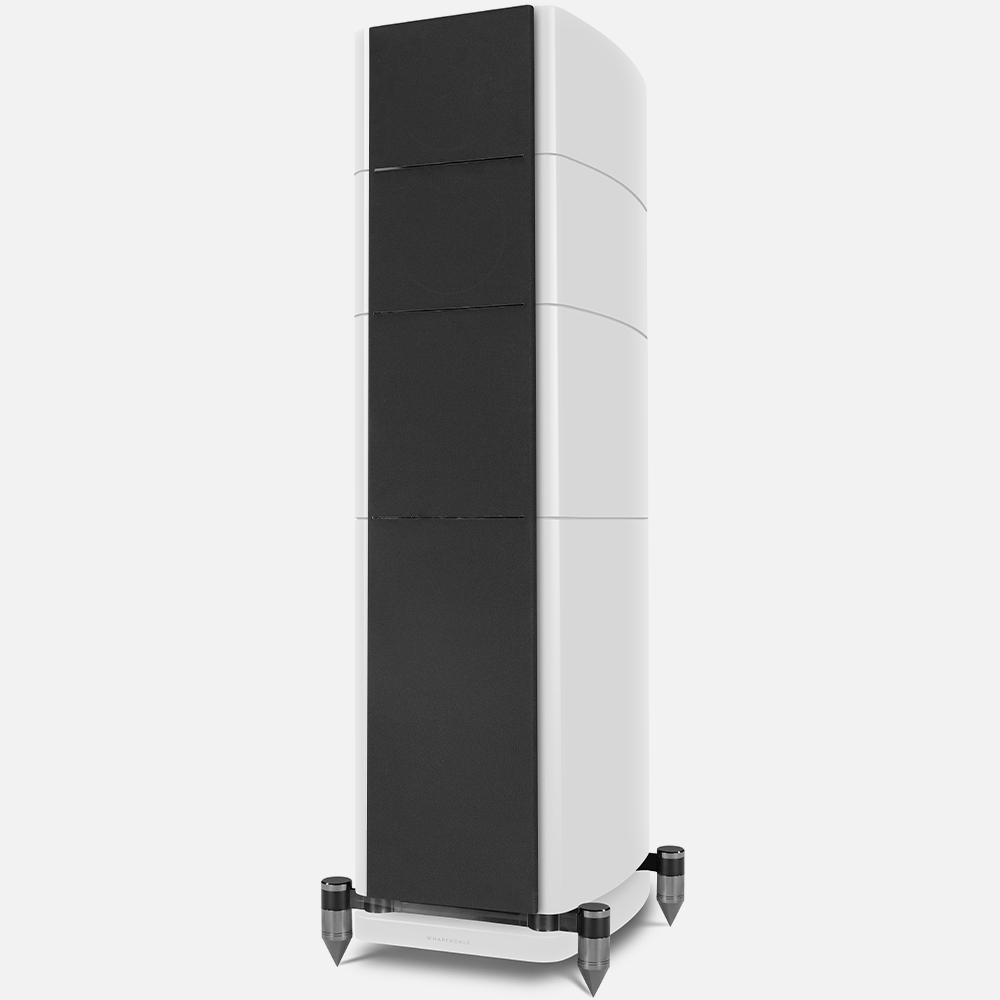

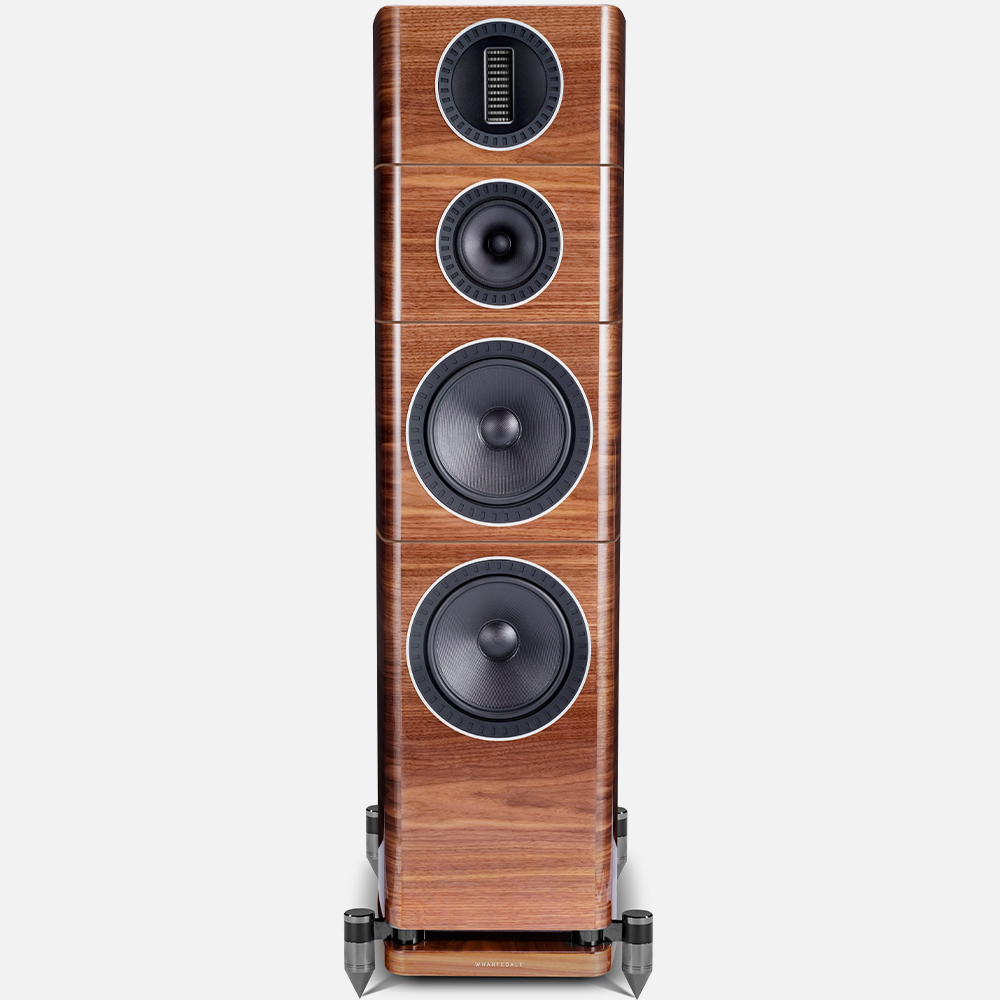

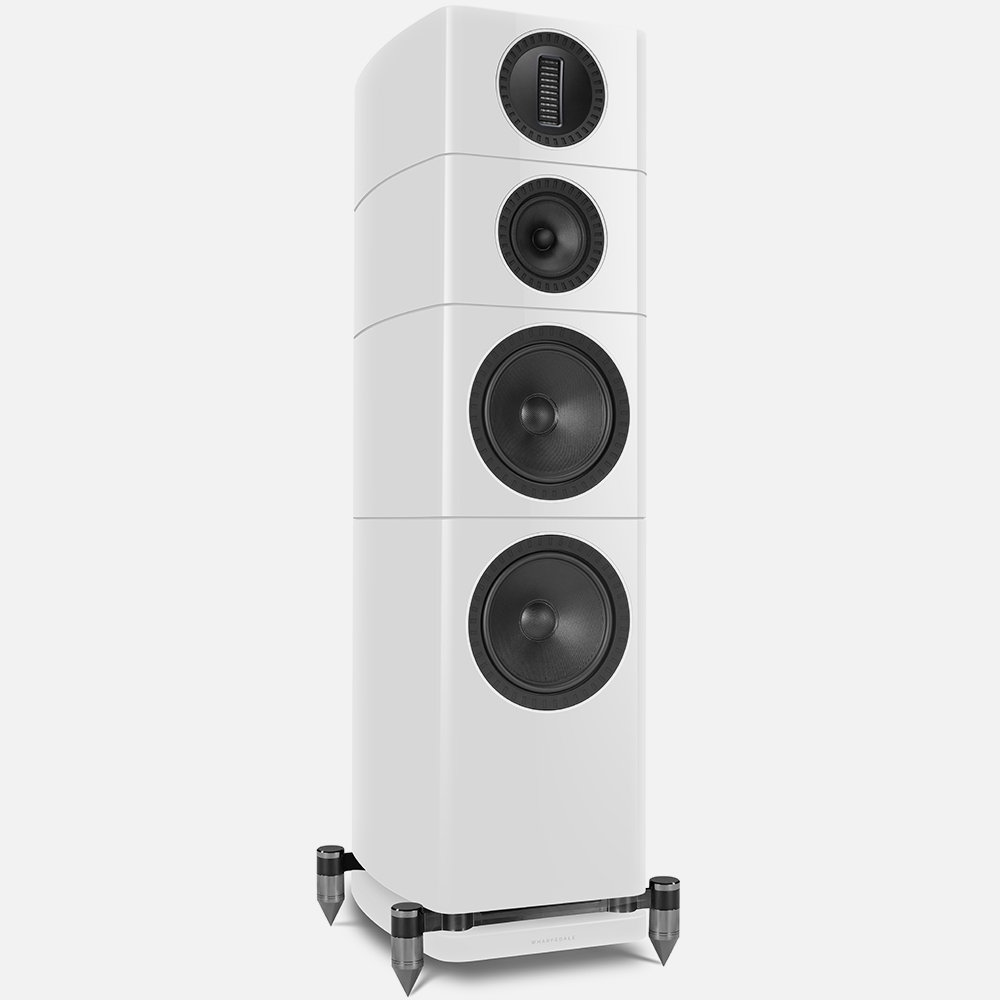

| General description | 3-way floorstanding speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
| Bass driver | 8.5" (220mm) coated fibre glass |
| matrix cone x 2 | |
| Midrange driver | 6" (150mm) coated fibre glass |
| matrix cone | |
| Treble driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 92dB |
| Recommended amplifier power | 15-250W |
| Peak SPL | 110dB |
| Nominal impedance | 4Ω (compatible 8Ω) |
| Minimum impedance | 3.2Ω |
| Frequency response(+/-3dB) | 30Hz ~ 22kHz |
| Bass extension(-6dB) | 24Hz |
| Crossover frequency | 340Hz, 3 .1kHz |
| Cabinet Volume(in litres) | 38L, 79.4L |
Dimensions (mm)
| Height (on plinth) | 1188mm |
| Width | 402mm |

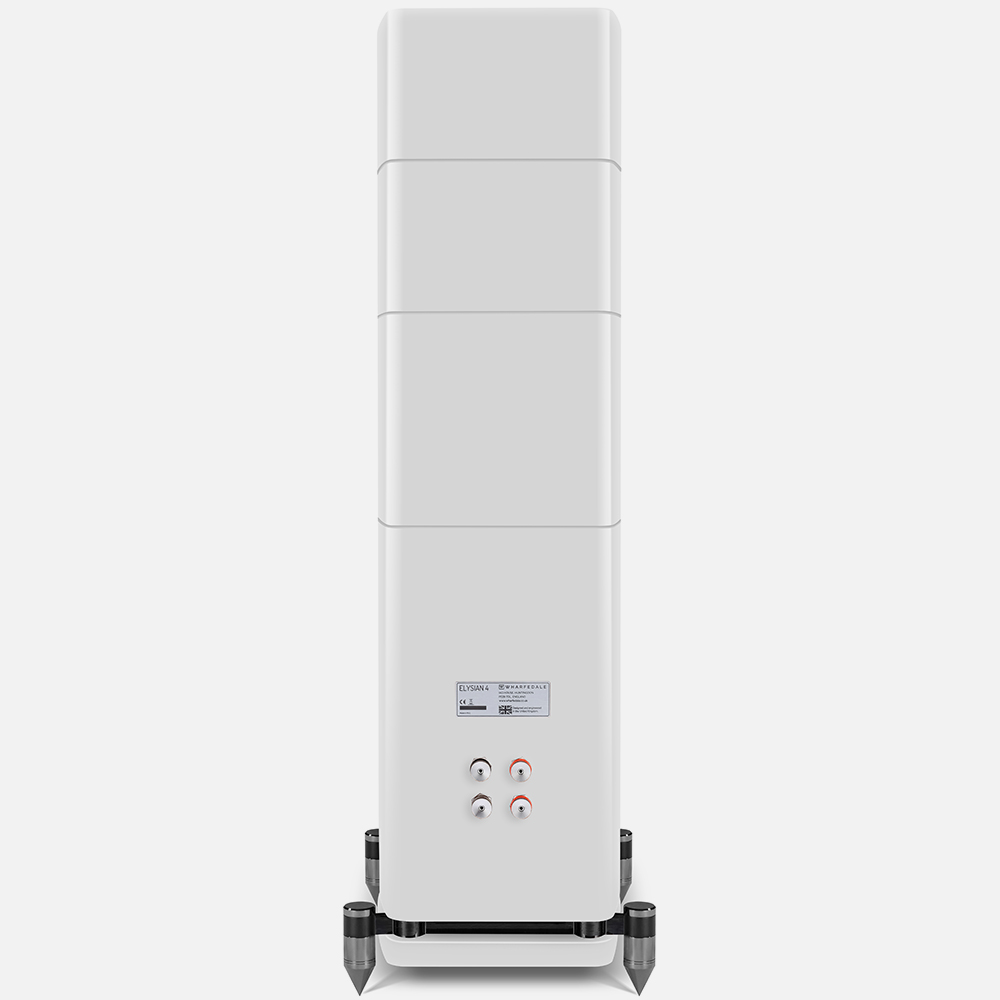

| Depth (with terminals) | (432+30)mm |
| Carton size | 1285 x 595 x 480mm |
| Net weight | 49.5kg/pcs |
| Gross weight | 55.8kg/ctn |
