General

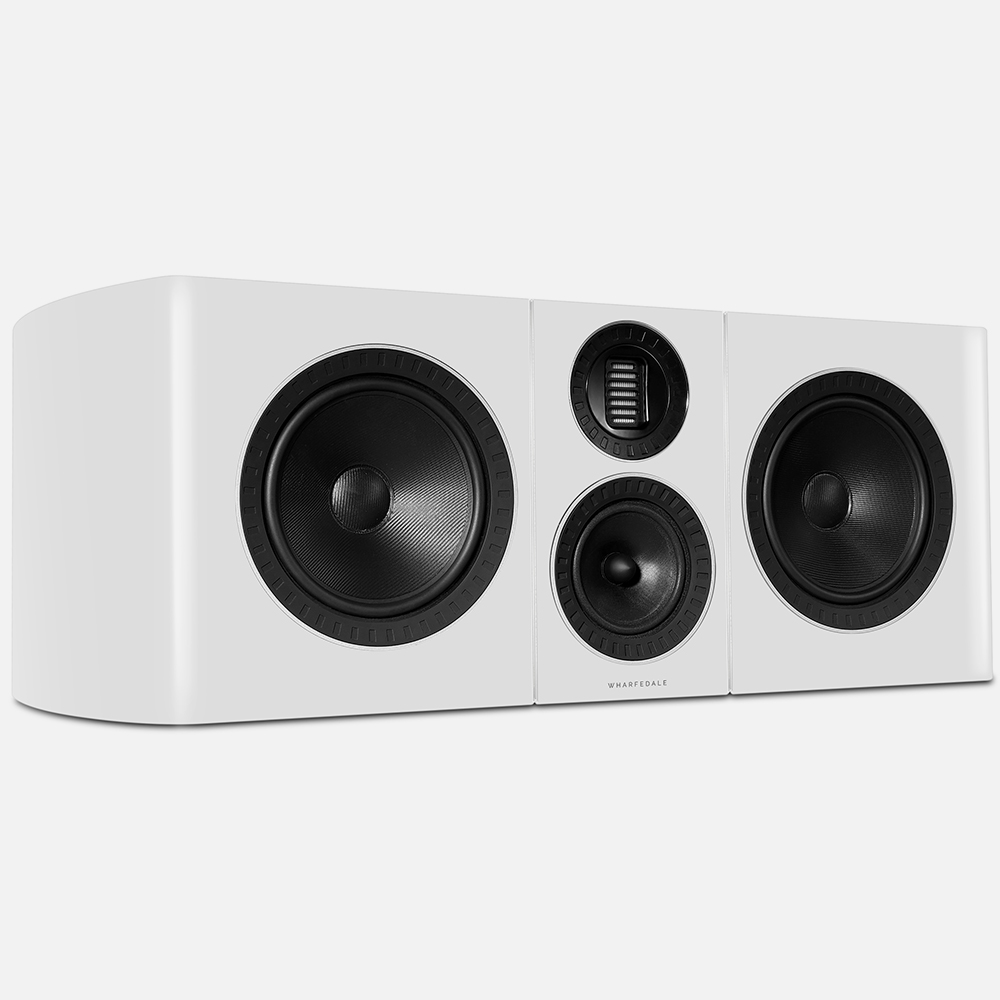

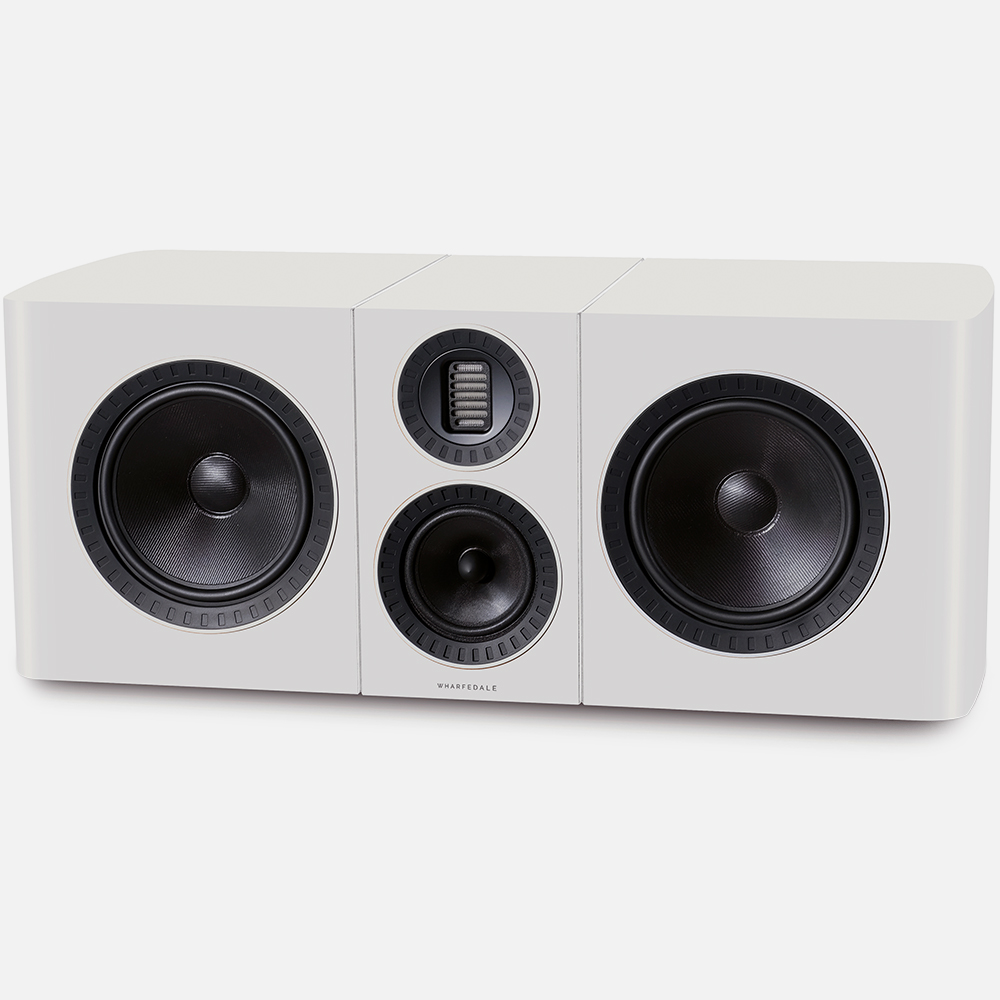

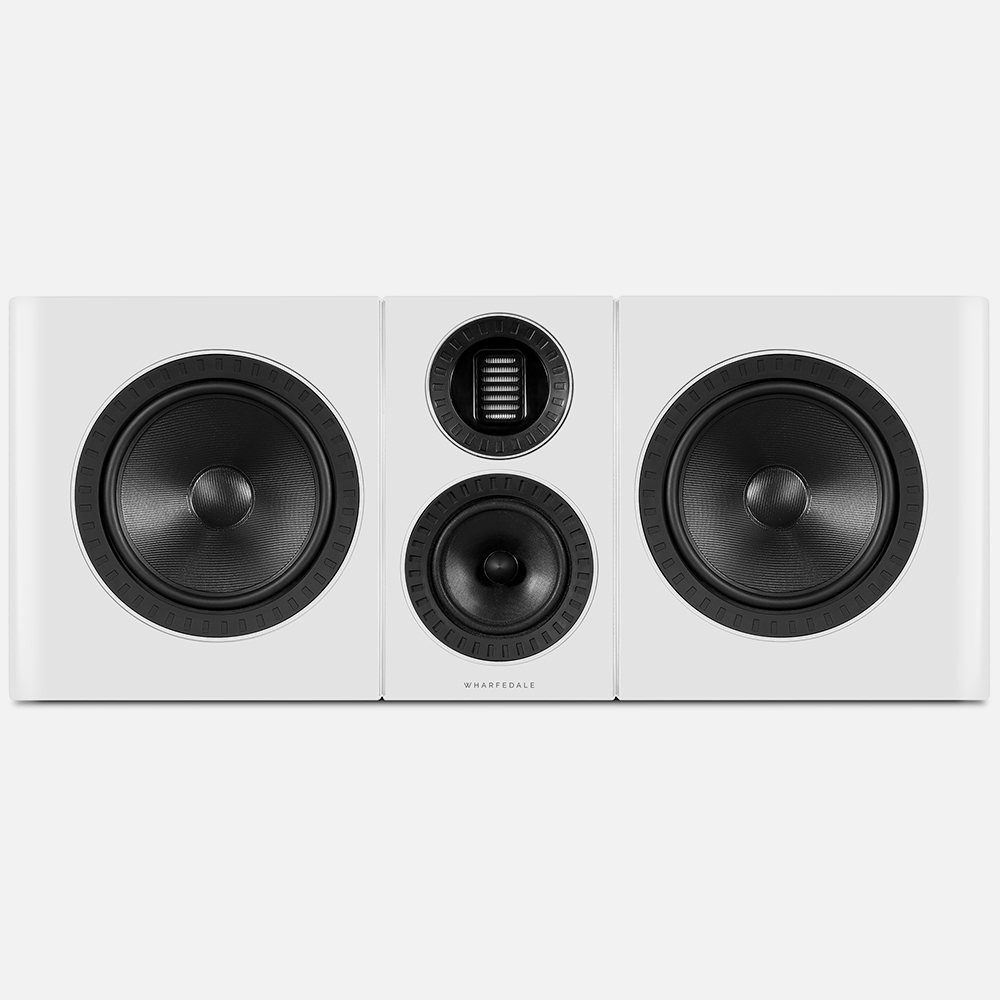

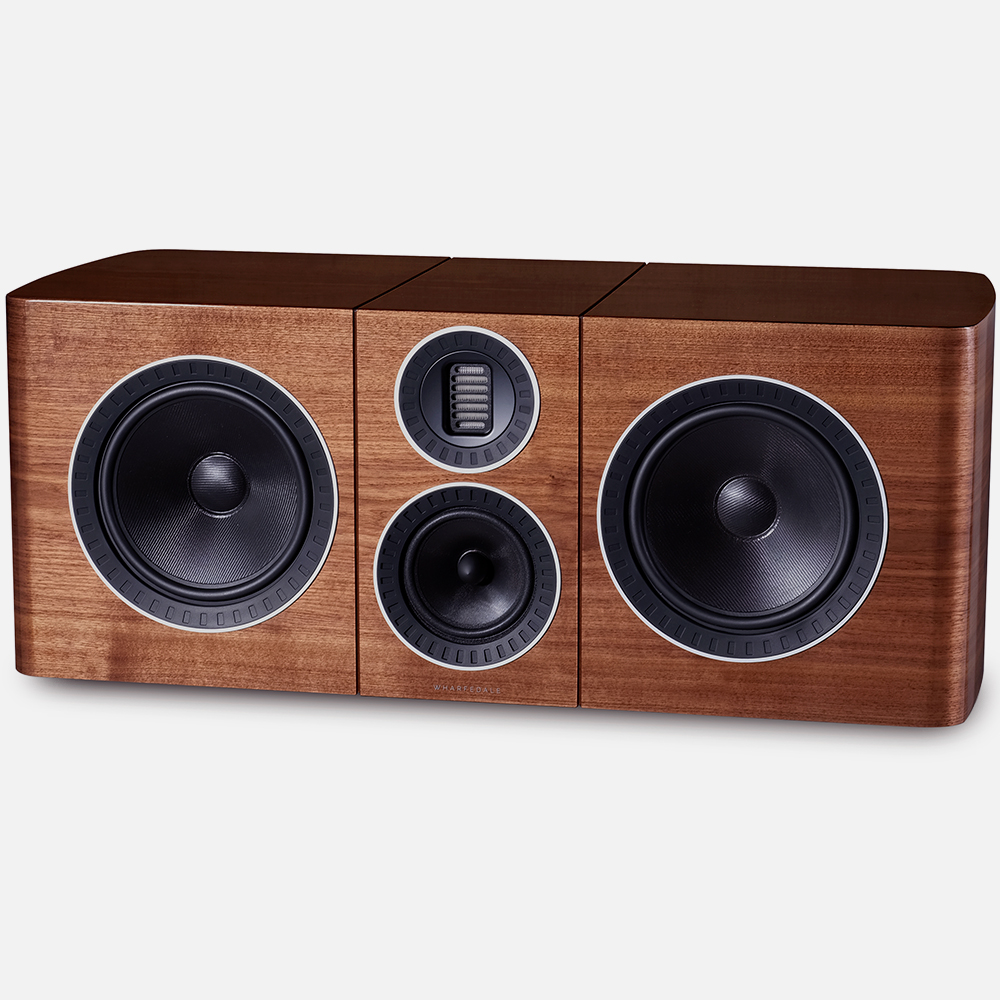

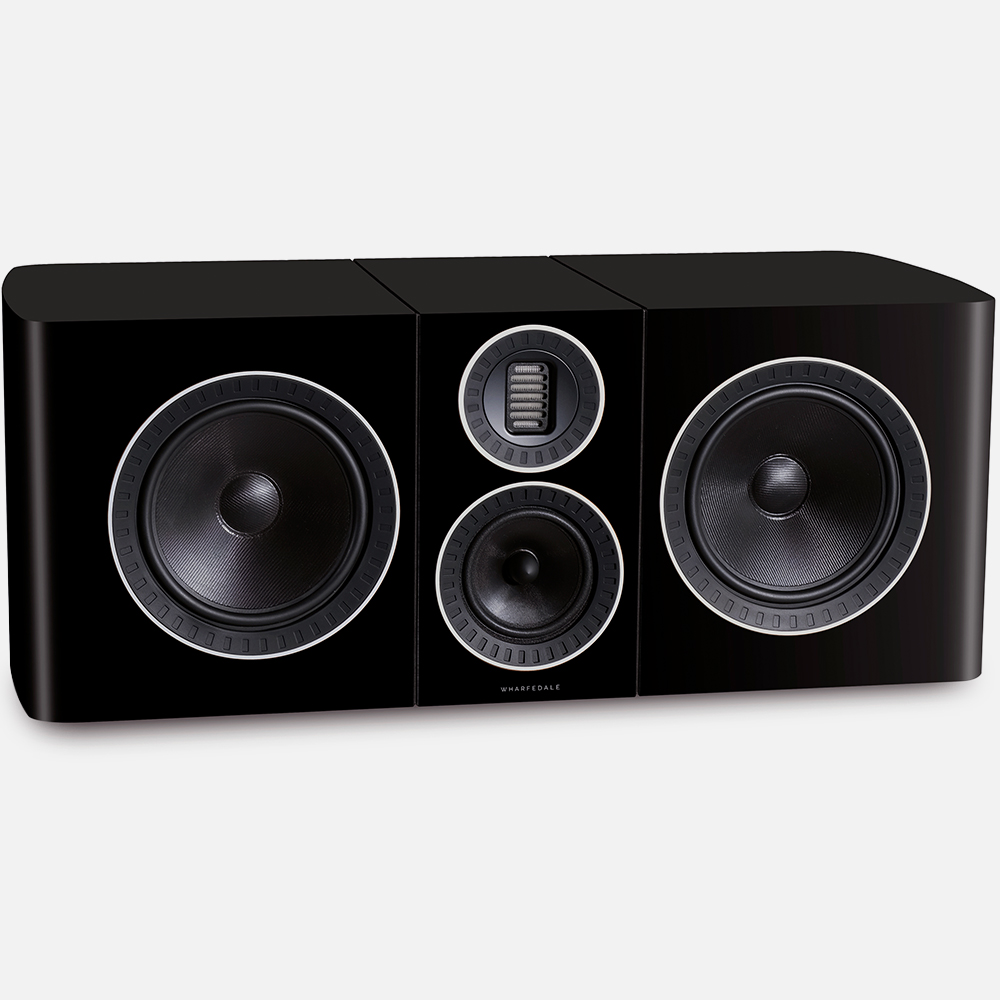

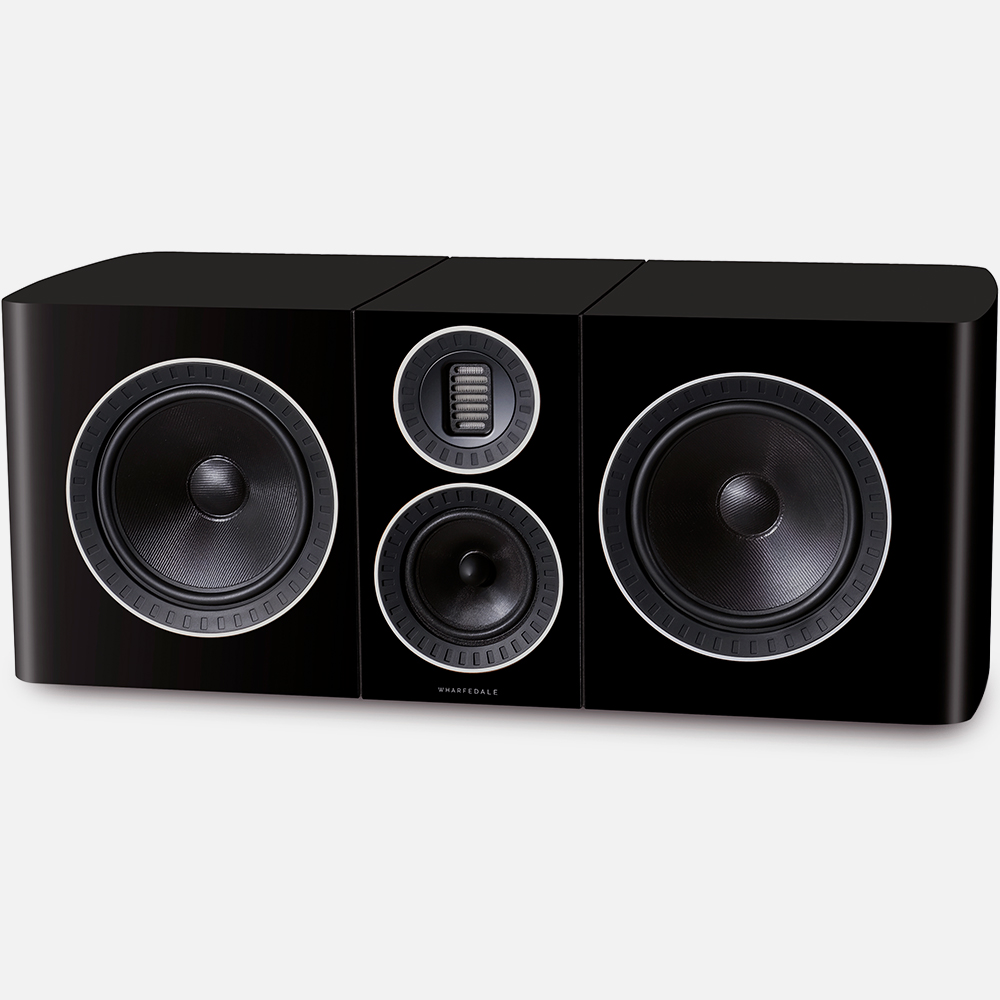

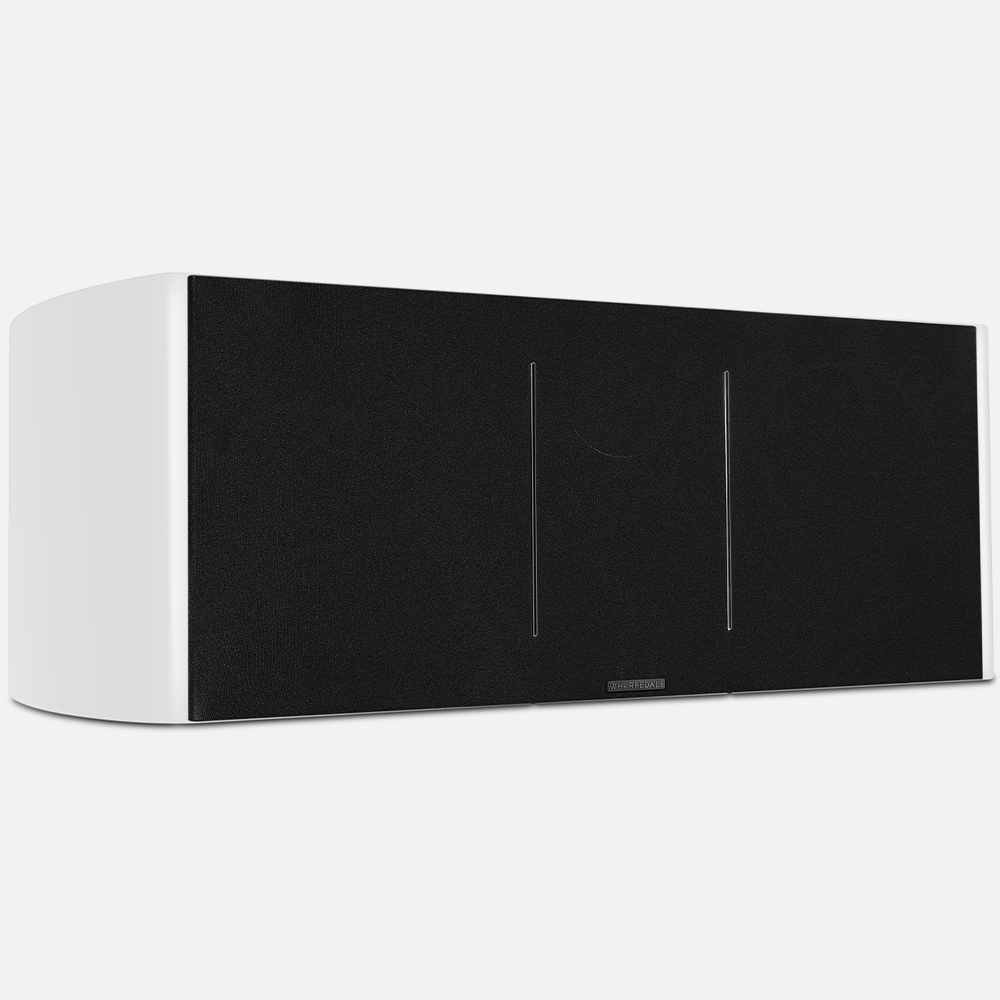

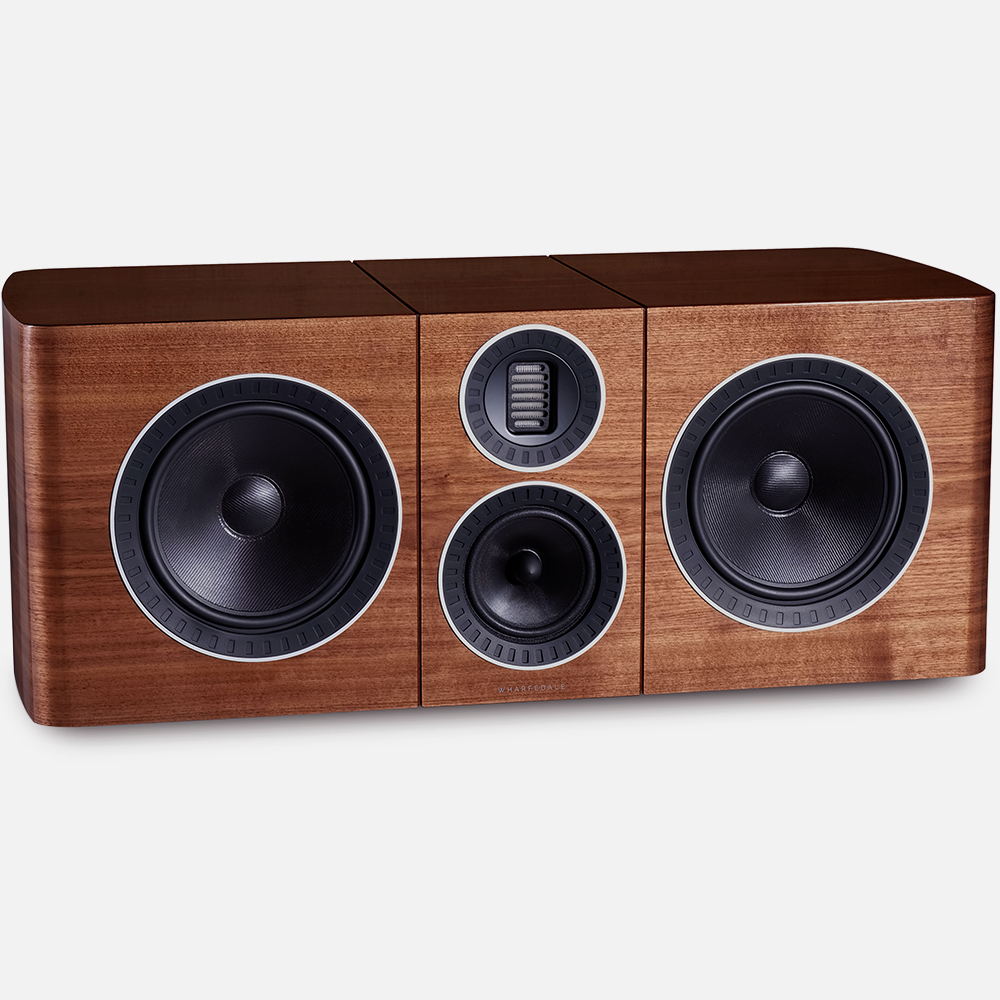

| General description | 3-way centre speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
| Bass driver | 8.5" (220mm) Coated Fibre Glass Matrix Cone x2 |
| Midrange driver | 6" (150mm) Coated Fibre Glass Matrix Cone |
| Treble driver | 27 x 45mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 91dB |
| Recommended amplifier power | 25-250W |
| Peak SPL | 110dB |
| Nominal impedance | 6Ω (Compatible 8Ω ) |
| Minimum impedance | 3.5Ω |
| Frequency response(+/-3dB) | 35Hz ~ 22kHz |
| Bass extension(-6dB) | 27Hz |
| Crossover frequency | 360Hz, 2.9kHz |
| Cabinet Volume(in litres) | 5.7L, 64.0L |
Dimensions (mm)
| Height (on plinth) | 320mm |
| Width | 830mm |

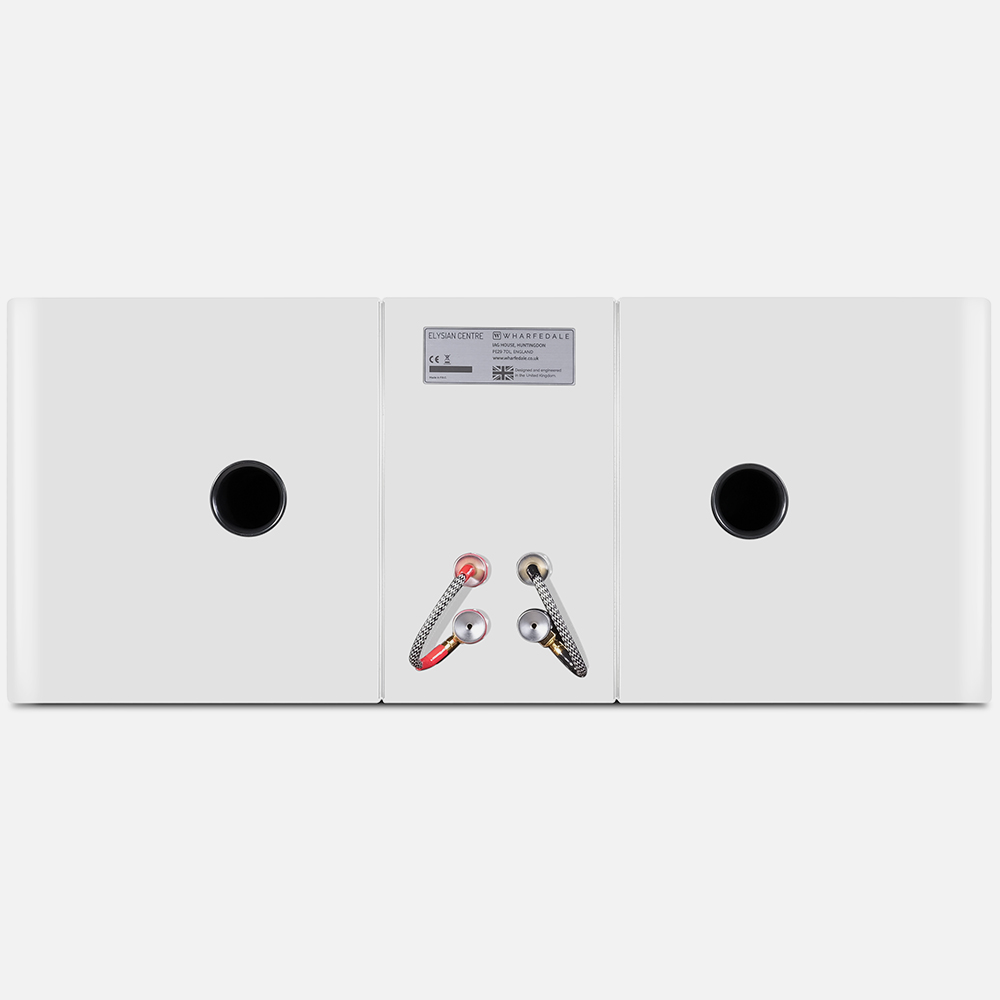

| Depth (with terminals) | (340+30)mm |
| Carton size | 965 x 495 x 455mm |
| Net weight | 30.2kg/pcs |
| Gross weight | 35.0kg/ctn |
