상세스펙
General

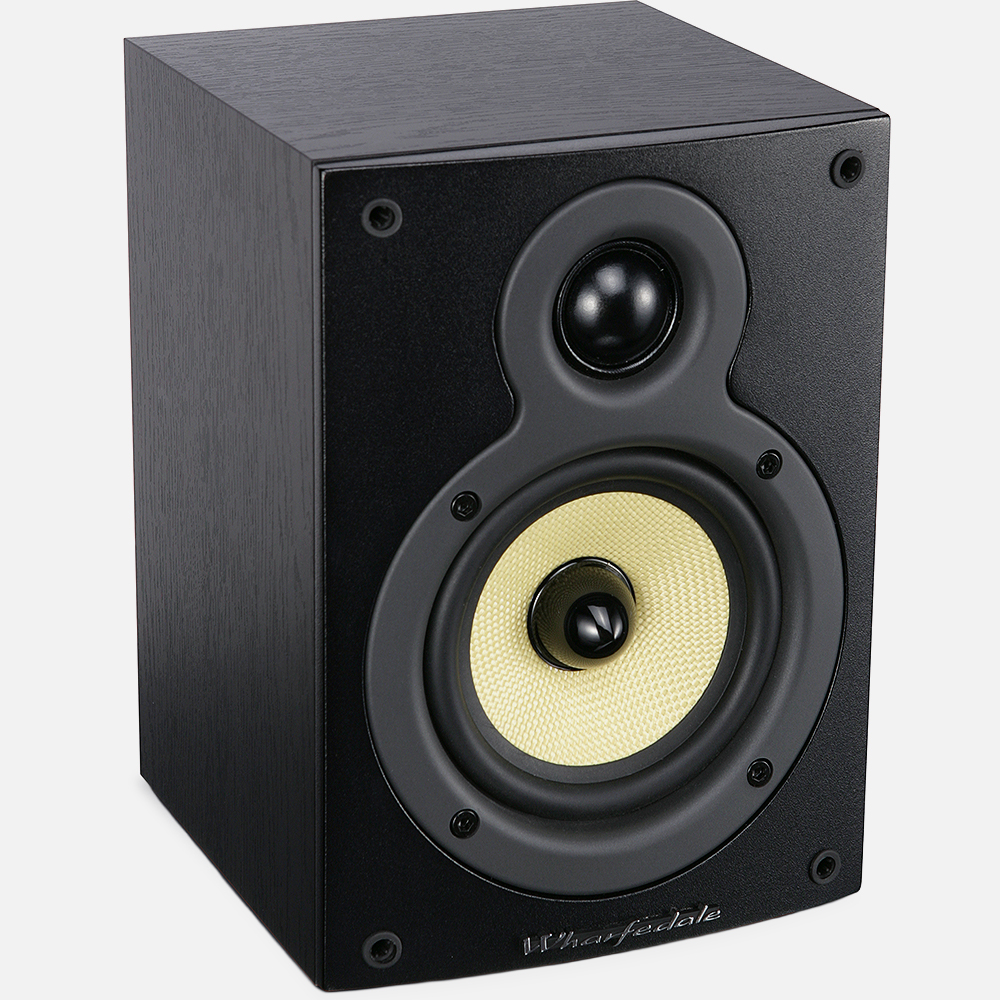

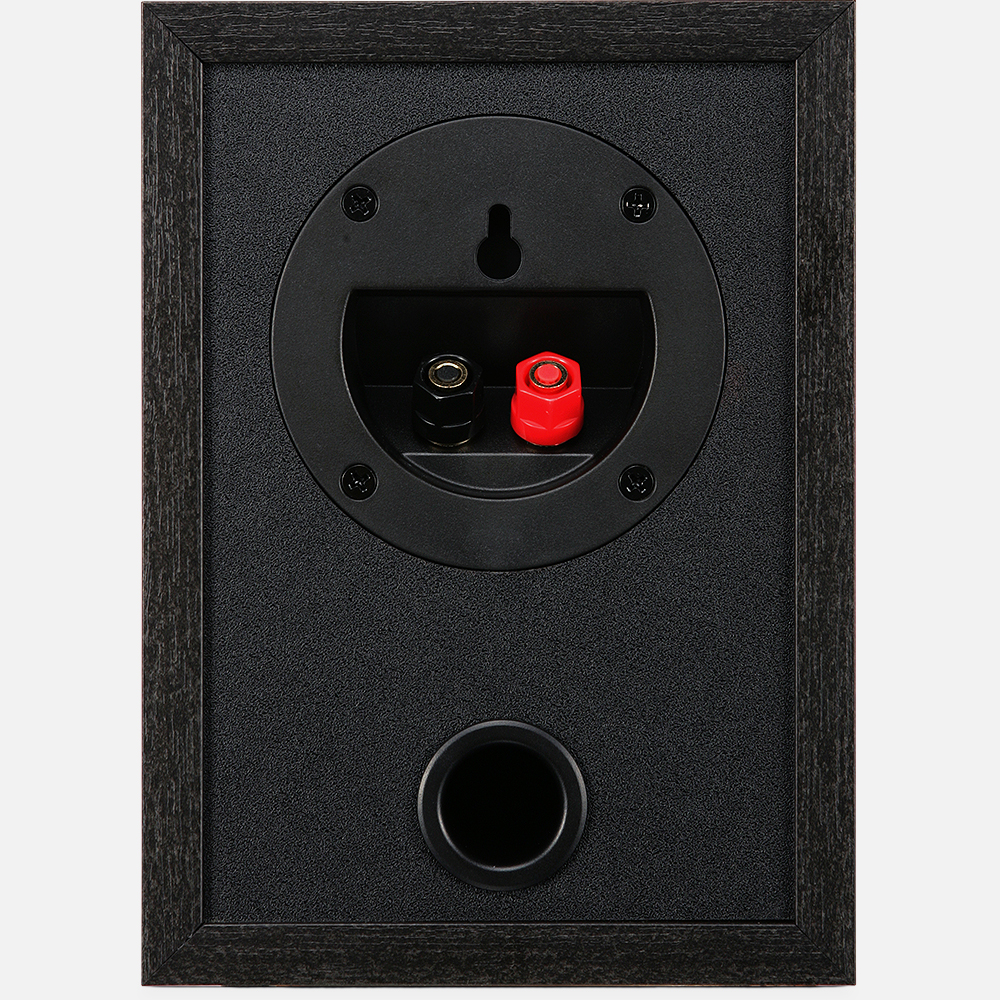

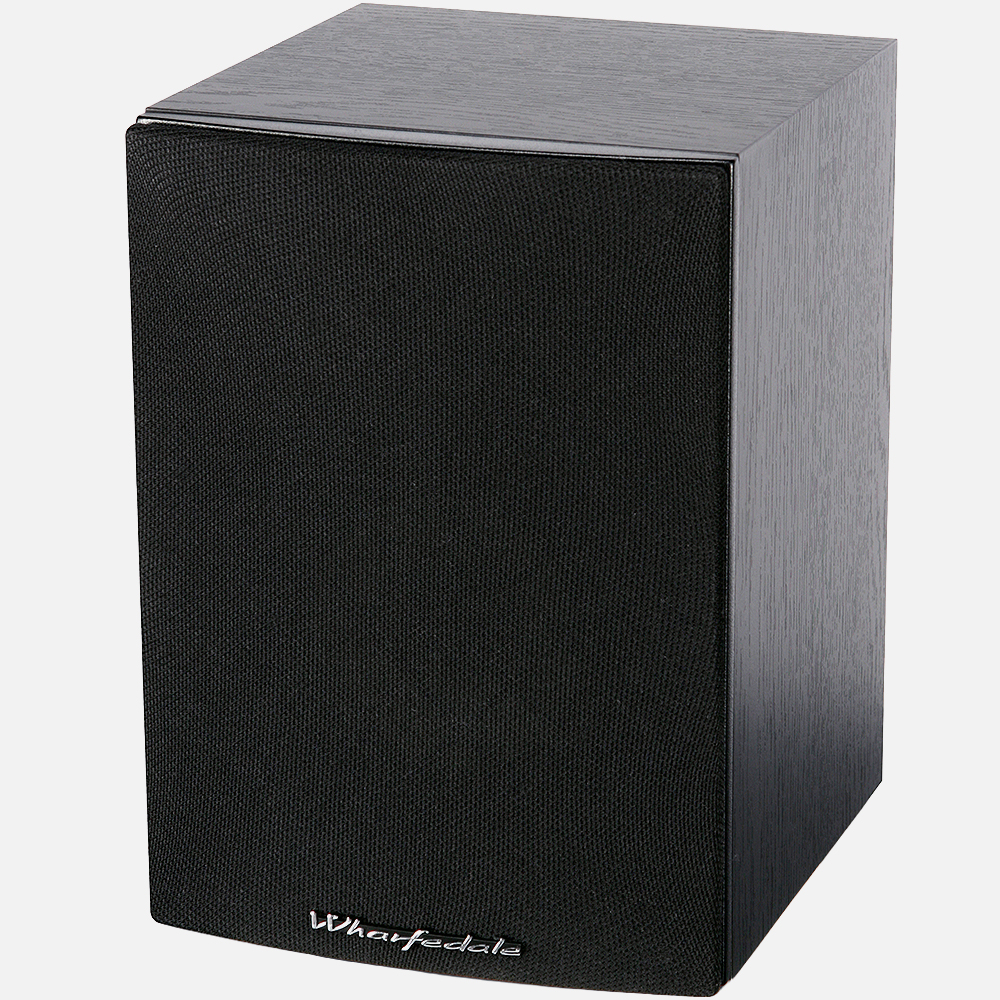

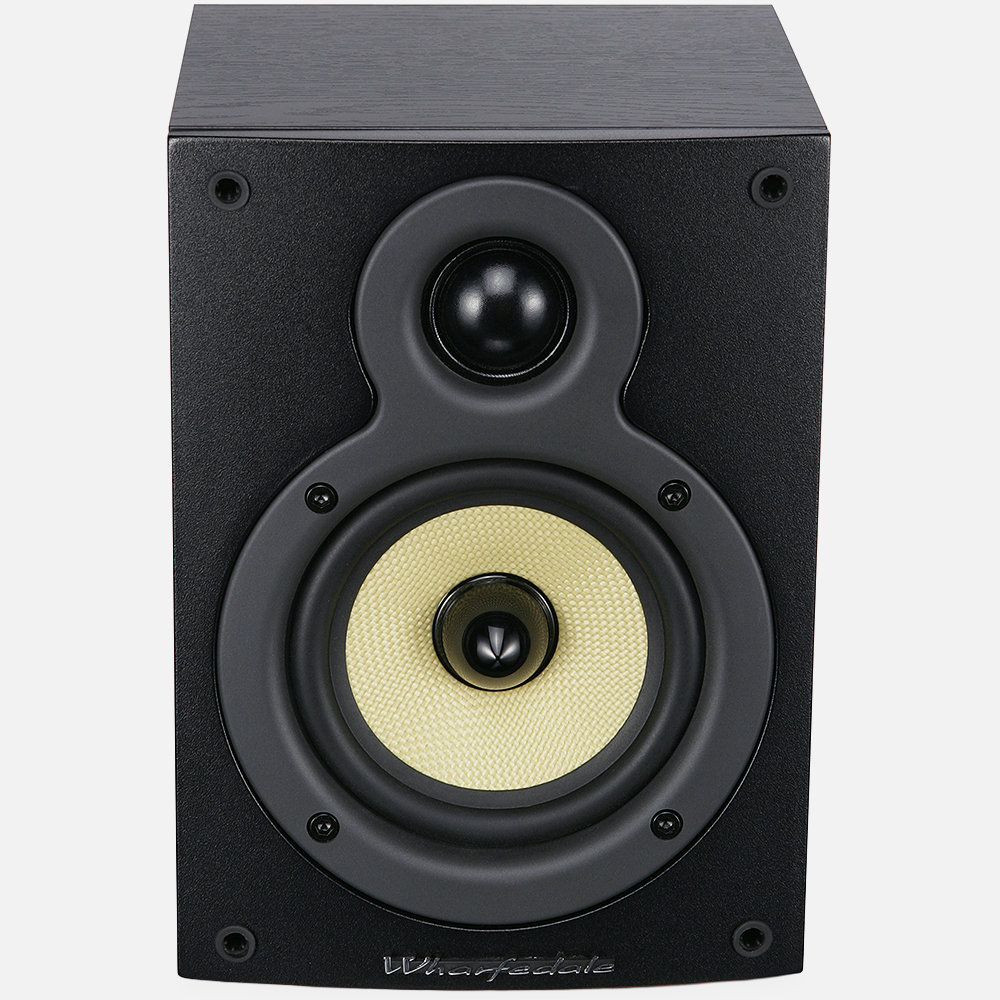

| General description | Bookshelf Speaker |
| Enclosure type | Bass Reflex |
| Transducer complement | 2-way |
| Bass driver | 100mm Woven Kevlar Cone |
Midrange driver
| Treble driver | 25mm Soft Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 86dB |
| Recommended amplifer power | 20-60W |
| Peak SPL | 95dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.3Ω |
| Frequency response(+/-3dB) | 75Hz - 20kHz |
| Bass extension (-6dB) | 70Hz |
| Crossover frequency | 3.4kHz |
| Cabinet Volume (in litres) | 2.3L |
Dimensions(mm)
| Height (on plinth) | 194mm |
| Width | 141mm |
| Depth(with grille&terminal) | (147 + 10)mm |
| Carton size | 382 x 225 x 280mm |
| Net weight | 2kg each |
| Gross weight | 4.8kg/ctn |
