상세스펙
Specifications
| Description/Format | Active Dynamic-Drive IB subwoofer system |
| Drive Units | 1 x (10")250mm cone long-throw |
| Enclosure Type | Closed box |
| Frequency Response (±3dB) | 35Hz - 120Hz |
| Bass Extension | 30Hz |
| Amplifier Power Output | 150W |
| Peak Power Output | 300W |
| Line Input Sensitivity | 200mV for maximum output |
| Crossover Range | 40Hz -150Hz |

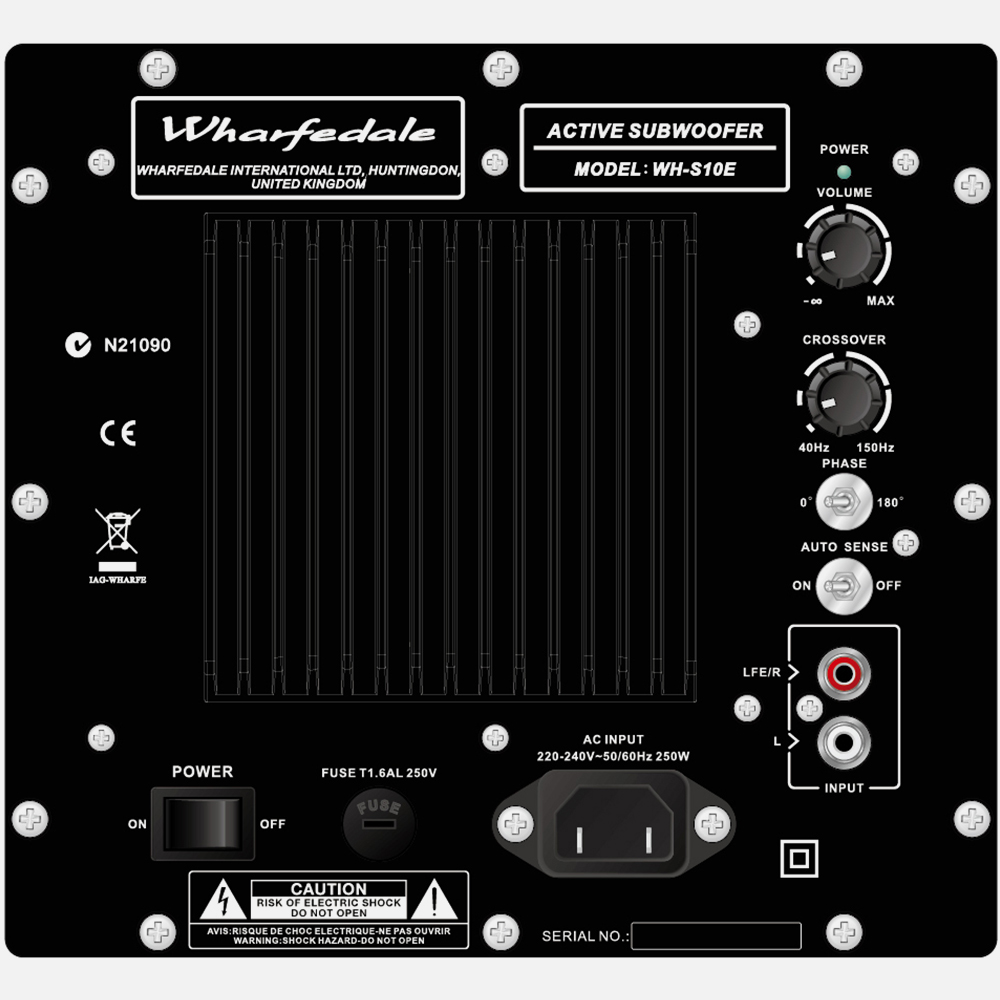

| Inputs | Stereo Line In (2 x RCA Phono) Mono (LFE) Line In (RCA Phono) |
| Input Impedance | Line In: 20kΩ LFE: 5kΩ |
| Signal-to-Noise Ratio (S/N) | ≥86dB |
| Peak SPL | 115dB |
| Features | phase inversion, high pass output, lowpass filter slope adjustment, auto on/of |
| Dimensions (H × W × D) | 394 × 333 × 397 (mm) |
| Net Weight | 14.4kg |
| Accessories | IEC power cord, spikes as standard, plastic feet |
