System
| Frequency response 1 | 28 Hz - 27 kHz (-6 dB) |
| Recommended amplifier power | 20 - 300 W RMS |
| Power handling (IEC) | 150 W continuous, 600 W peak |
| Nominal dispersion | 90 degrees conical |
| Sensitivity 2 | 96 dB (1 W @ 1 m) |
| Impedance | 8 Ω |
| Maximum SPL 2 | 118 dB continuous, 124 dB peak |
Components

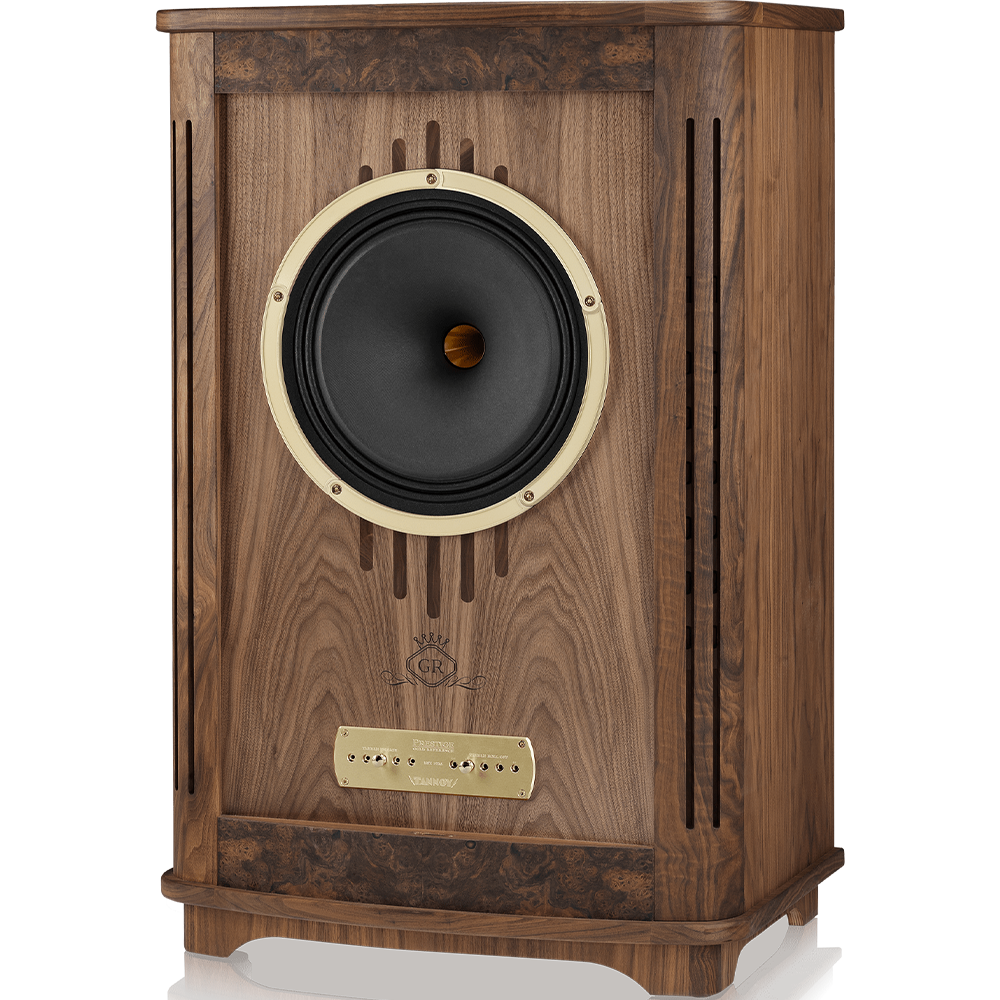

| Low frequency dual concentric | 380 mm (15") with paper pulp cone and twin roll impregnated fabric surround, 52 mm (2") round wire voice coil |
| High frequency dual concentric | 52 mm (2") aluminium/magnesium alloy dome with round wire voice coil |
Crossover
| Frequency | 1.1 kHz |
| Type | Bi-wired, hard wired passive, low loss. Time compensated 2nd order low pass, 2nd order high pass |
| Adjustment | ±3 dB over 1.1 kHz to 27 kHz shelving, +2 dB to -6 dB per octave over 5 kHz - 27 kHz slope |
Enclosure
| Type | Dual variable distributed ported |

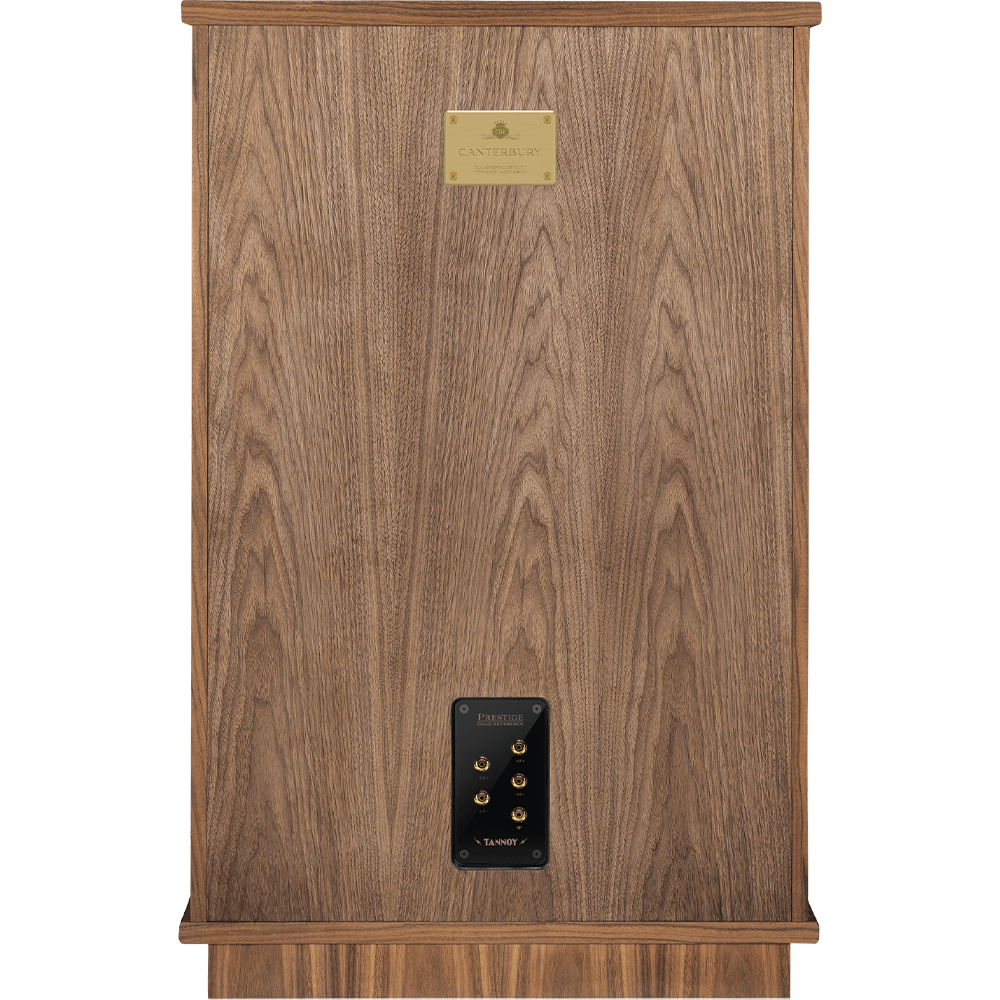

| Connectors | 5 x 4 mm 24 ct Tannoy customized binding posts |
| Dimensions (HWD) | 480 x 680 x 1100 mm (18.9 x 26.8 x 43.3") |
| Net weight | 68 kg (149.6 lbs) |
| Construction | 19 mm (3/4") MDF with plywood internal bracing, heavily damped |
| Finish | Walnut veneer and high acoustic transparency nylon grill cover |
Accessory pack (included)
| Bi-wire bridge connectors | |
| Prestige wood wax | |
| Felt pad | |
| Grille key | |
| Metal feet | |
| Welcome pack documentation |
