System
| Frequency response 1 | 34 Hz - 44 kHz (-6 dB) |
| Recommended amplifier power | 20 - 200 W RMS |
| Power handling (IEC) | 100 W continuous, 400 W peak |
| Nominal dispersion | 90 degrees conical |
| Sensitivity 2 | 93 dB (1 W @ 1 m) |
| Impedance | 8 Ω |
| Maximum SPL 2 | 113 dB continuous, 119 dB peak |
Components

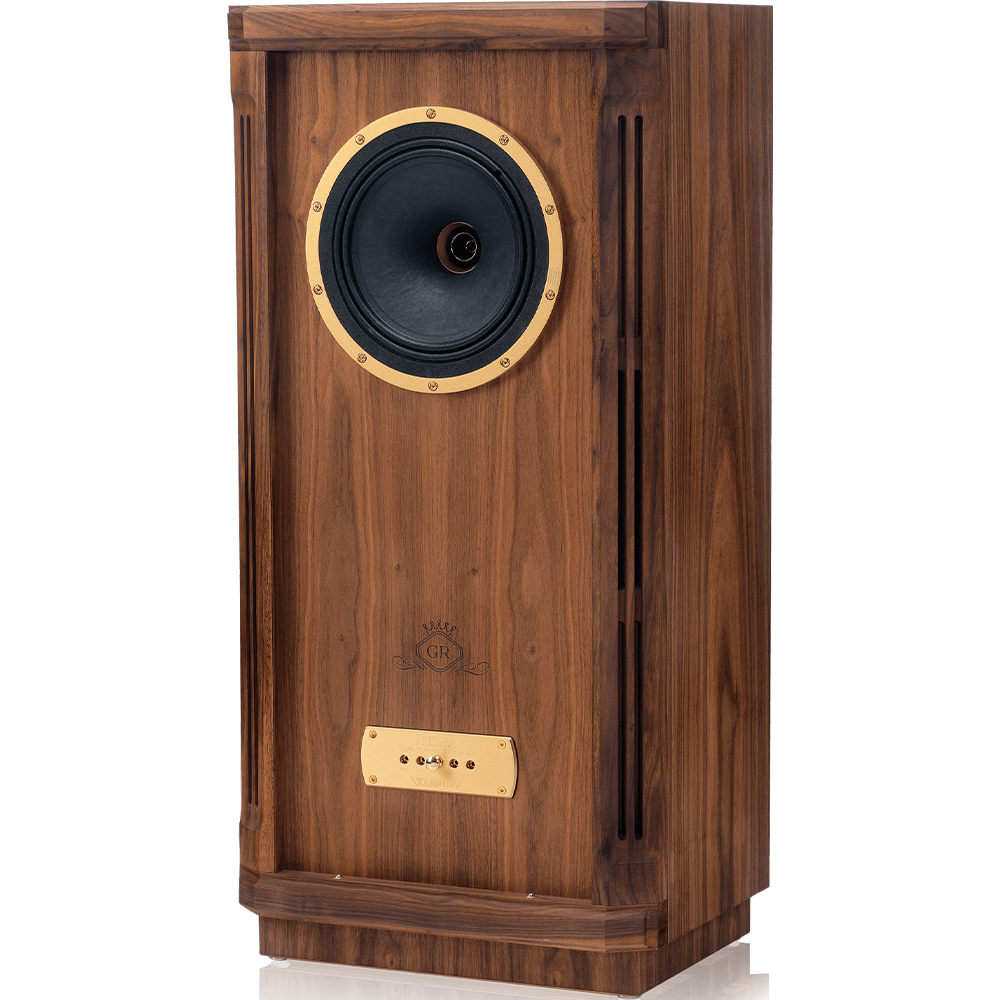

| Low frequency dual concentric | 254 mm (10") with paper pulp cone with twin roll impregnated fabric surround, 52 mm (2") edge wound voice coil |
| High frequency dual concentric | 33 mm (1.3") aluminium/magnesium alloy dome with edge wound voice coil |
Crossover
| Frequency | 1.3 kHz |
| Type | Bi-wired, hard-wired passive, low loss 2nd order low pass, 2nd order high pass |
| Adjustment | ±3 dB over 1.3 kHz to 44 kHz shelving |
Enclosure
| Type | Dual distributed port |

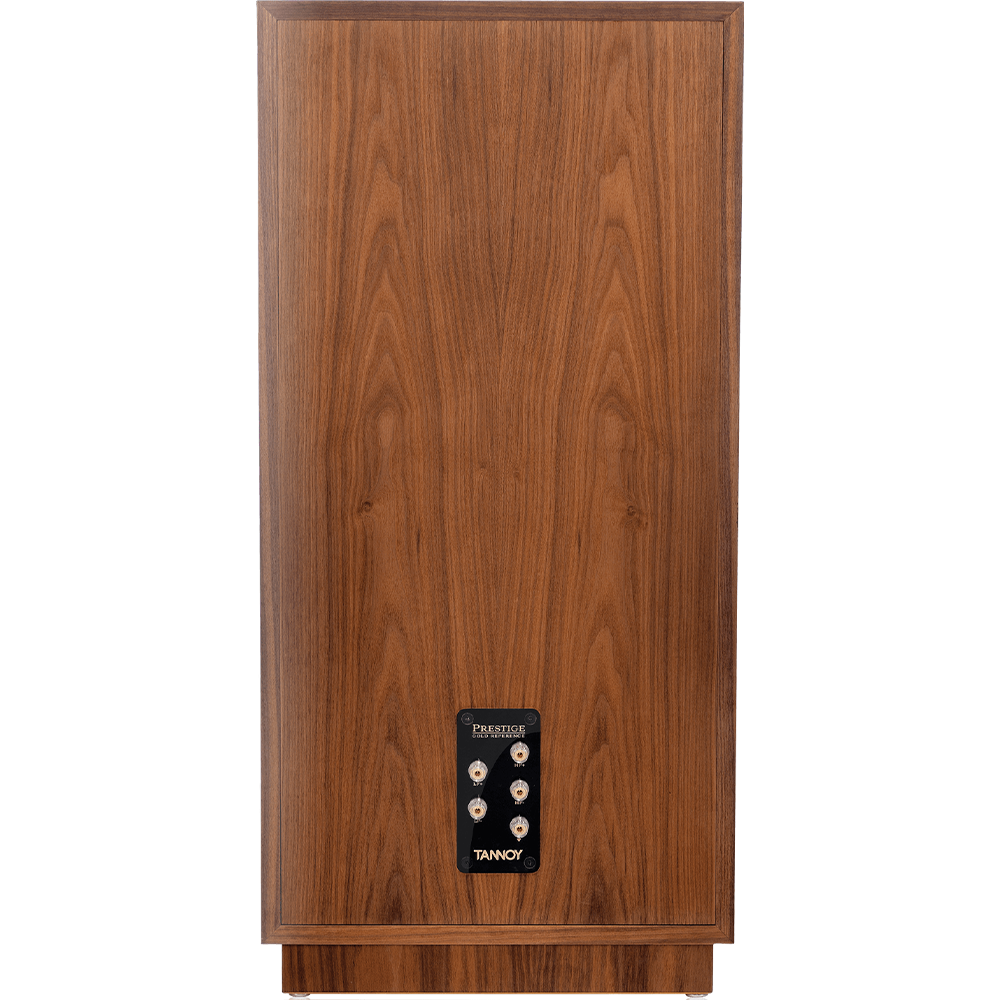

| Connectors | 5 x 4 mm 24 ct Tannoy customized binding posts |
| Dimensions (HWD) | 950 x 456 x 336 mm (37.4 x 18.0 x 13.2") |
| Net weight | 36.5 kg (80.3 lbs) |
| Construction | 19 mm (3/4") MDF with plywood internal bracing, heavily damped |

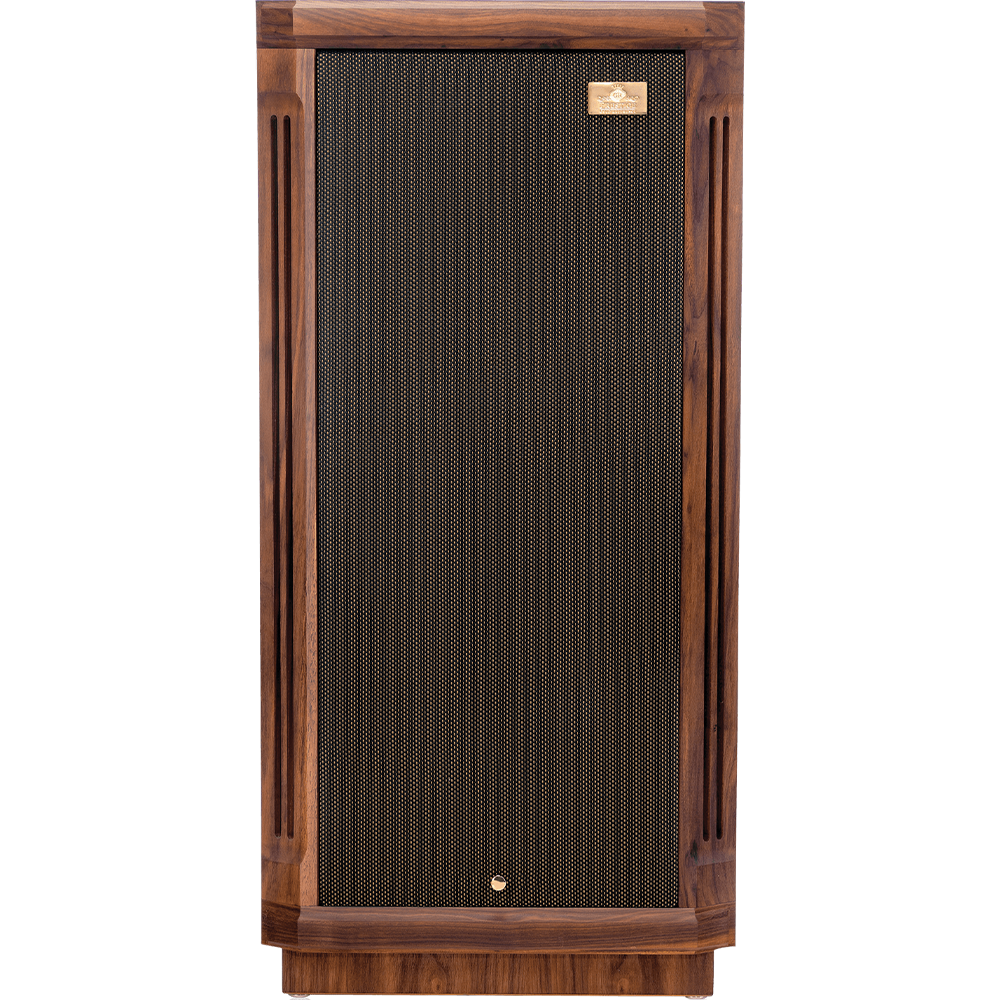

| Finish | Walnut veneer and high acoustic transparency nylon grill cover |
Accessory pack (included)
| Bi-wire bridge connectors | |
| Prestige wood wax | |
| Carpet protectors | |
| Ajustable feet | |
| Welcome pack documentation |
