System
| Frequency response | 38 Hz - 30 kHz ± 6 dB |
| Recommended amplifier power | 20 - 250 W |
| Power handling (IEC) | 125 W continuous, 500 W peak |
| Sensitivity | 91 dB (1 W @ 1 m) |
| Impedance | 8 Ω |
Components
| Low frequency dual concentric | 1 x 12" (300 mm) paper pulp cone with twin roll impregnated fabric surround, 52 mm (2") edge wound voice coil |
| High frequency dual concentric | 1 x 1.3" (33 mm) aluminium/magnesium alloy dome with edge-wound voice coil |
| Crossover | |
| Frequency | 1.2 kHz |
| Type | Bi-wired, hard wired passive, low loss 2nd order low pass, 1st order high pass |
| Adjustment | ±3 dB over 1 kHz to 30 kHz shelving, 2 dB to -6 dB per octave over 5 kHz to 30 kHz slope |
| User controls | treble roll off, treble energy |
Enclosure
| Type | Twin distributed port |

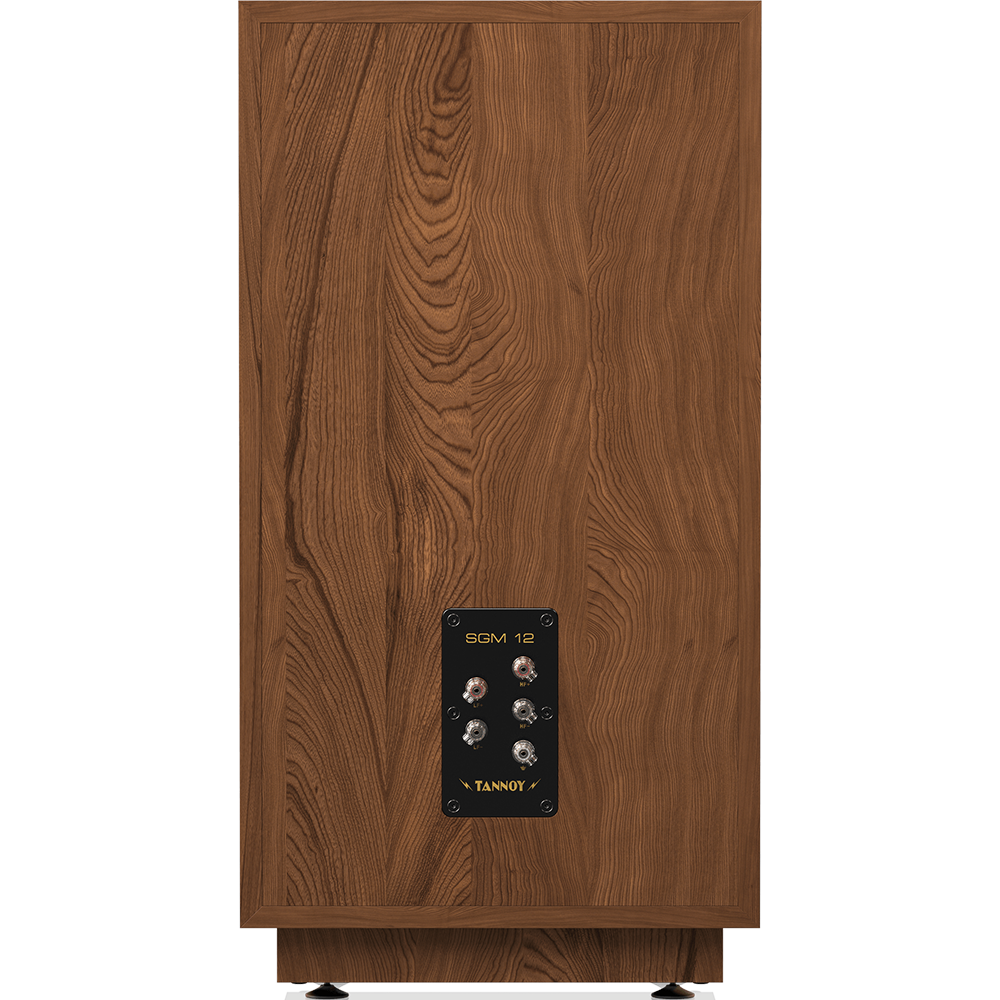

| Connectors | 5 x 4 mm 24ct Tannoy customized binding posts |
| Dimensions HWD | 447 x 308 x 863.3 mm (17.6 x 12.1 x 40") |
| Net weight | 29.4 kg (64.8 lbs) |
| Construction | 19 mm (3/4") Particle Board, MDF with plywood internal bracing - heavily damped |
| Finish | Walnut veneer and high acoustic transparency nylon grill cover |
Accessory pack (included)
| Bi-wire bridge connectors | |
| Prestige wood wax | |
| Adjustable feet |
