TECHNICAL DATA
| TOTAL WEIGHT kg | 48 |
| DIMENSIONS (L/W/H in mm) | 525.0 / 316.0 / 215.0 |
| CONSTRUCTION PRINCIPLE | High-precision mass drive |
| DRIVE | Decoupled, brushless, 24 V Lorenzi DC motor quartz-regulated round belt drive |
| POWER SUPPLY / POWER SUPPLY | Viella Forte power supply 230 V |
| SPEEDS rpm | 33.33 / 45 / 78 |
| Bearings | 20 mm high precision shaft, partial hydrodynamic high precision solid bearing with central permanent oil bearing teflon mirror |
| PLATE DISH / MATERIAL | 3-piece composite platter, finely balanced / main carrier made of high-density aluminium with anodised coating, Shadow Black / PUR damping layer / optimised carrier plate made of highly absorbent polymer |
| HEIGHT PLATE DISH (mm) | 86 |
| MATERIAL CHASSIS / COLOUR | High-density aerospace aluminium / Eloxal coating Shadow Black |
| WEIGHT PLATE PLATE kg | 14 |
COMBINATIONS / UPGRADES

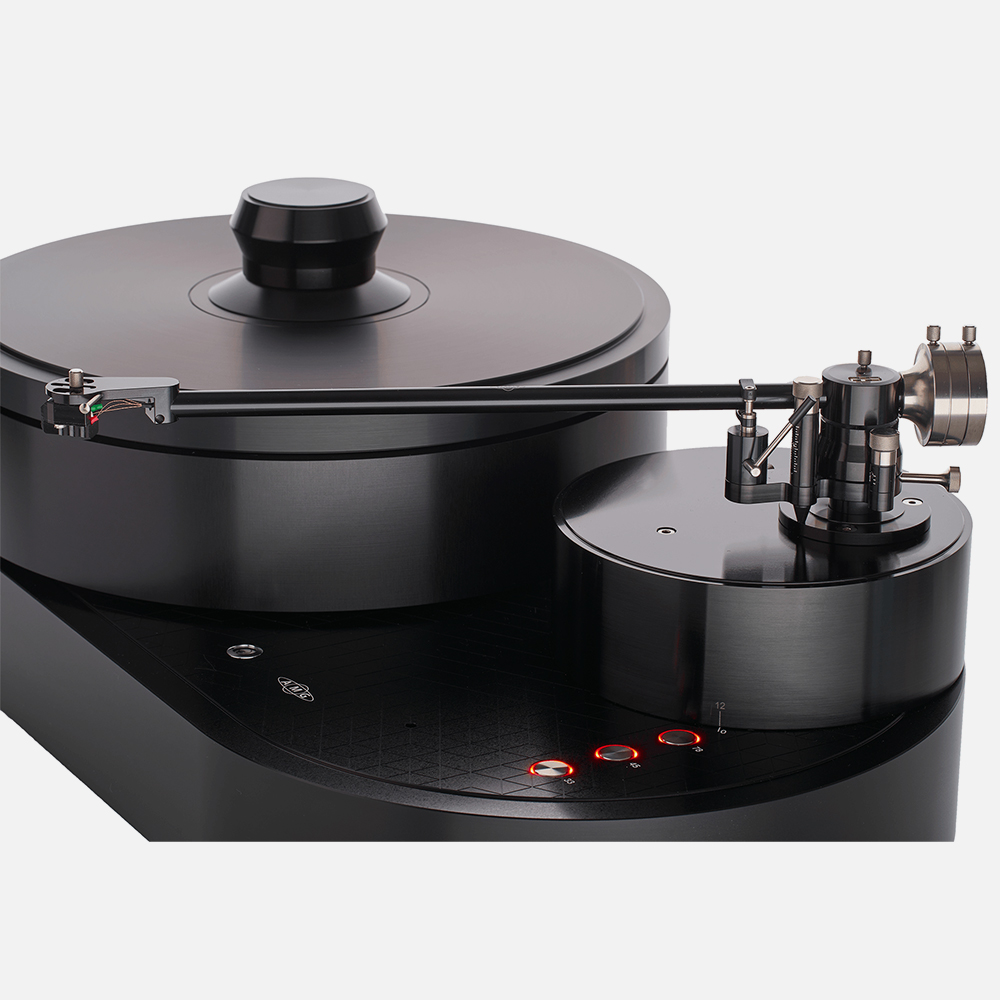

| TONEARM | Available with 9W1, 12J2 or AMG 12JT tonearm Compatible with all AMG tonearms Foreign brands partially adaptable Available without tone arm |

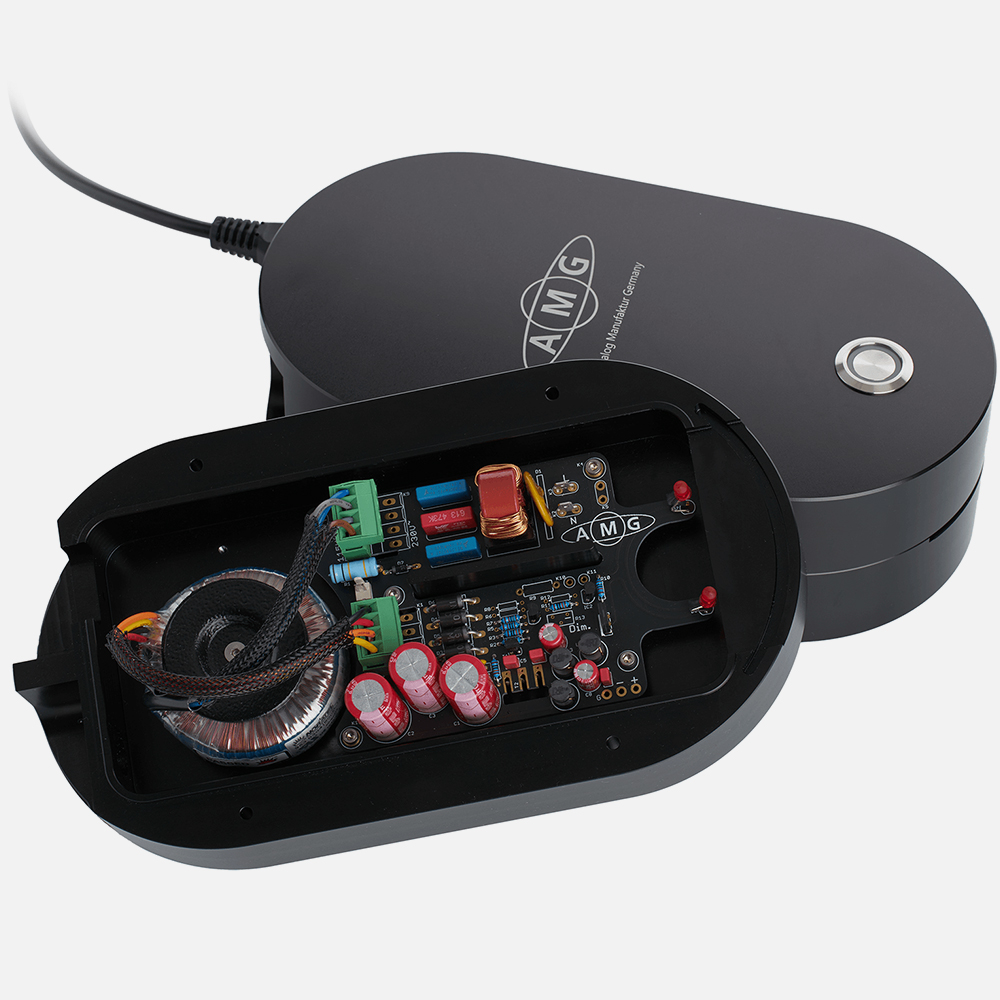

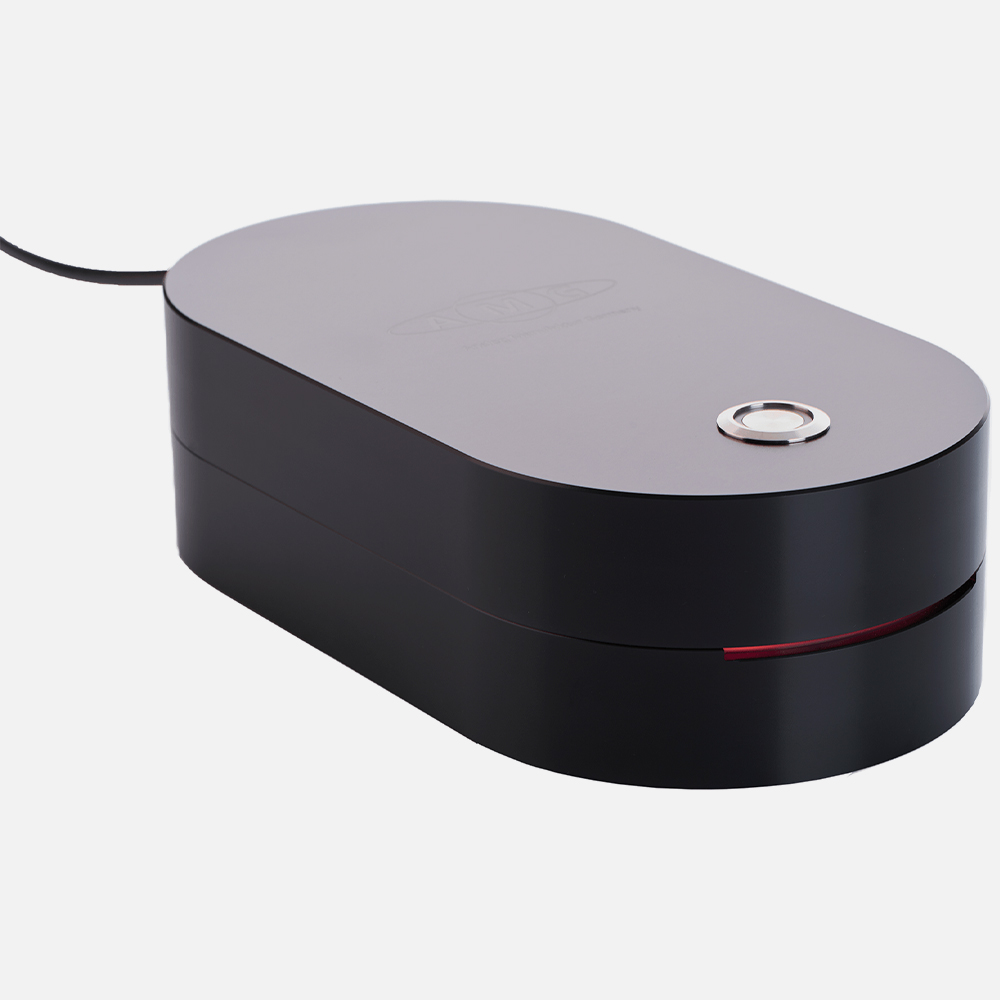

| POWER SUPPLY | Viella Forte 24 V power supply 230V Viella Forte 24 V power supply 115V |

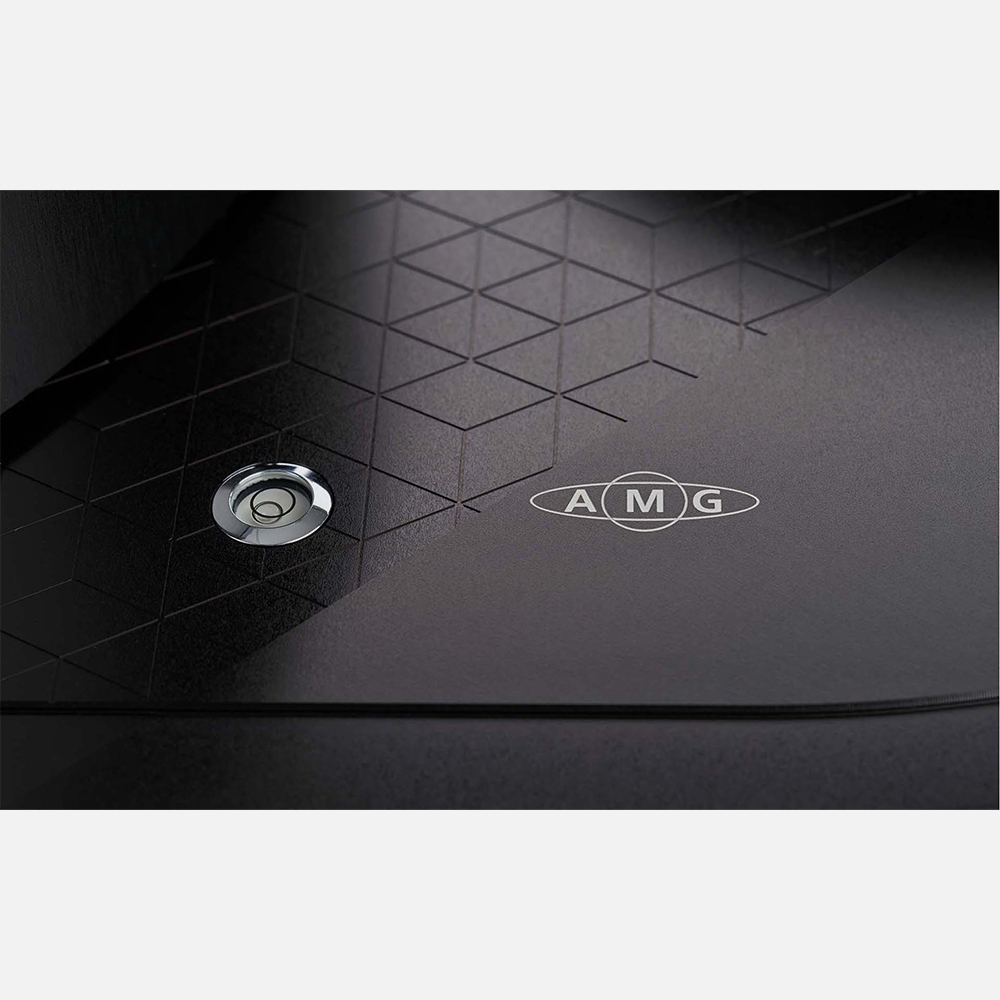

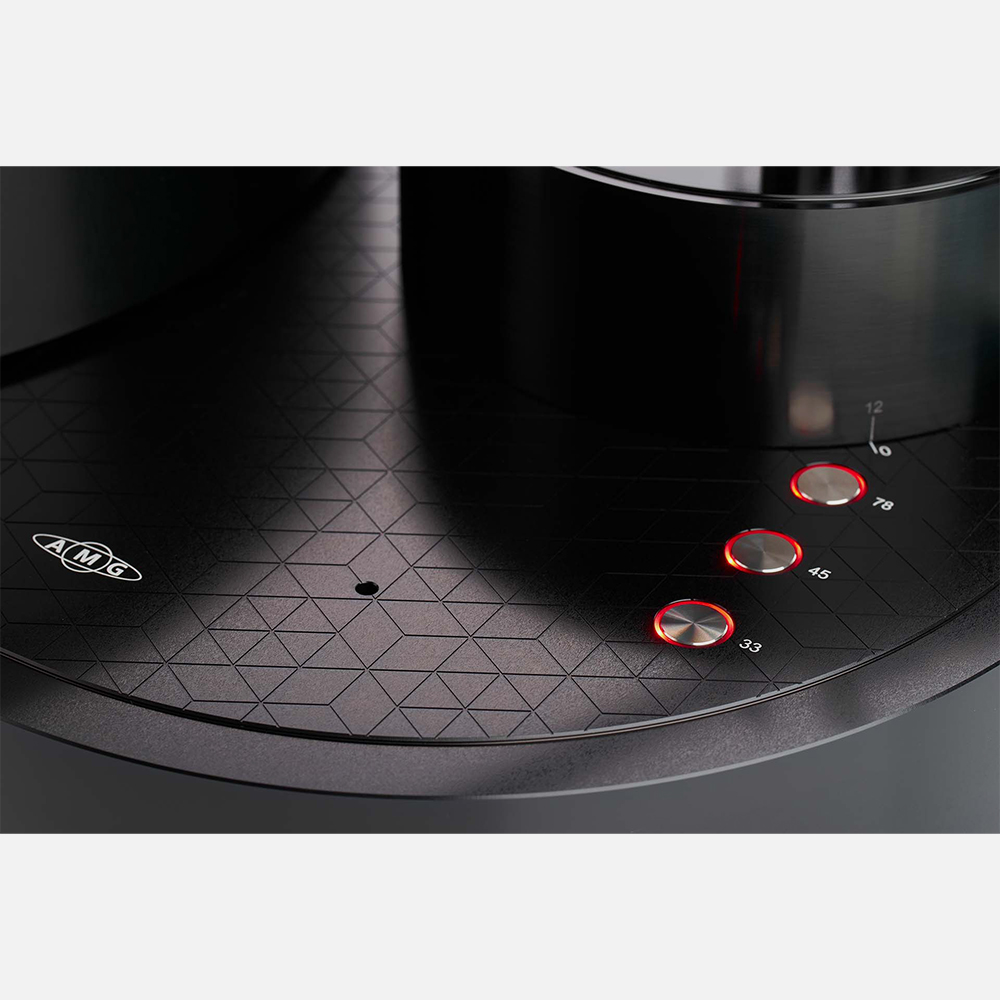

| CHASSIS UPGRADES | Chassis surface with specifically developed 3D engraving |
