Specifications

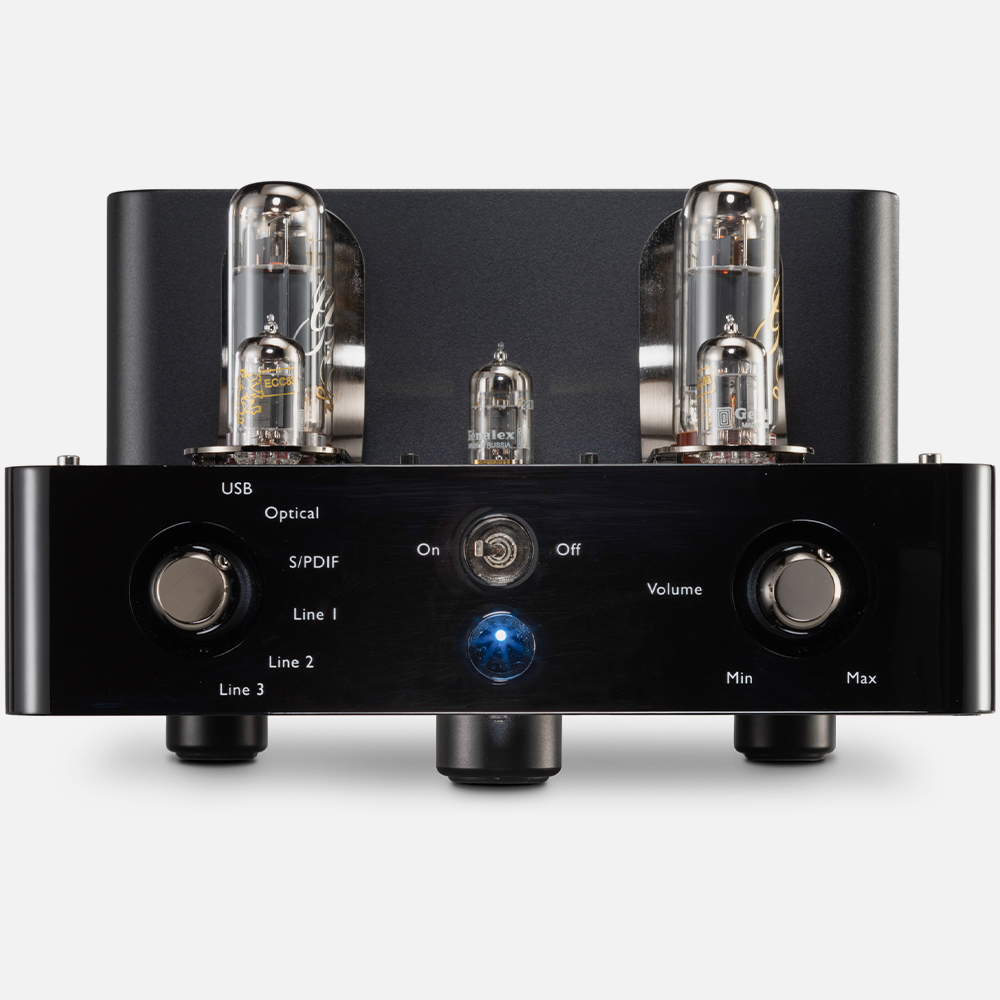

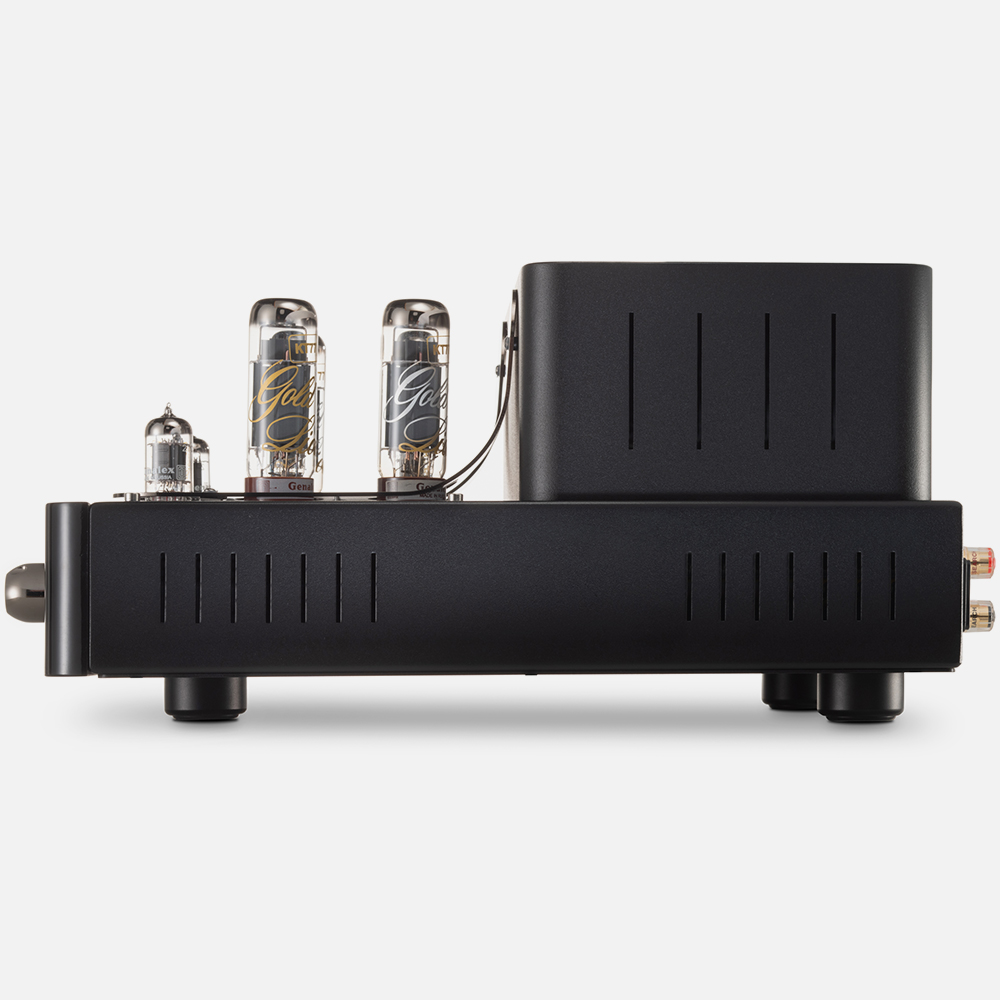

| Type | Valve Power Amplifier |

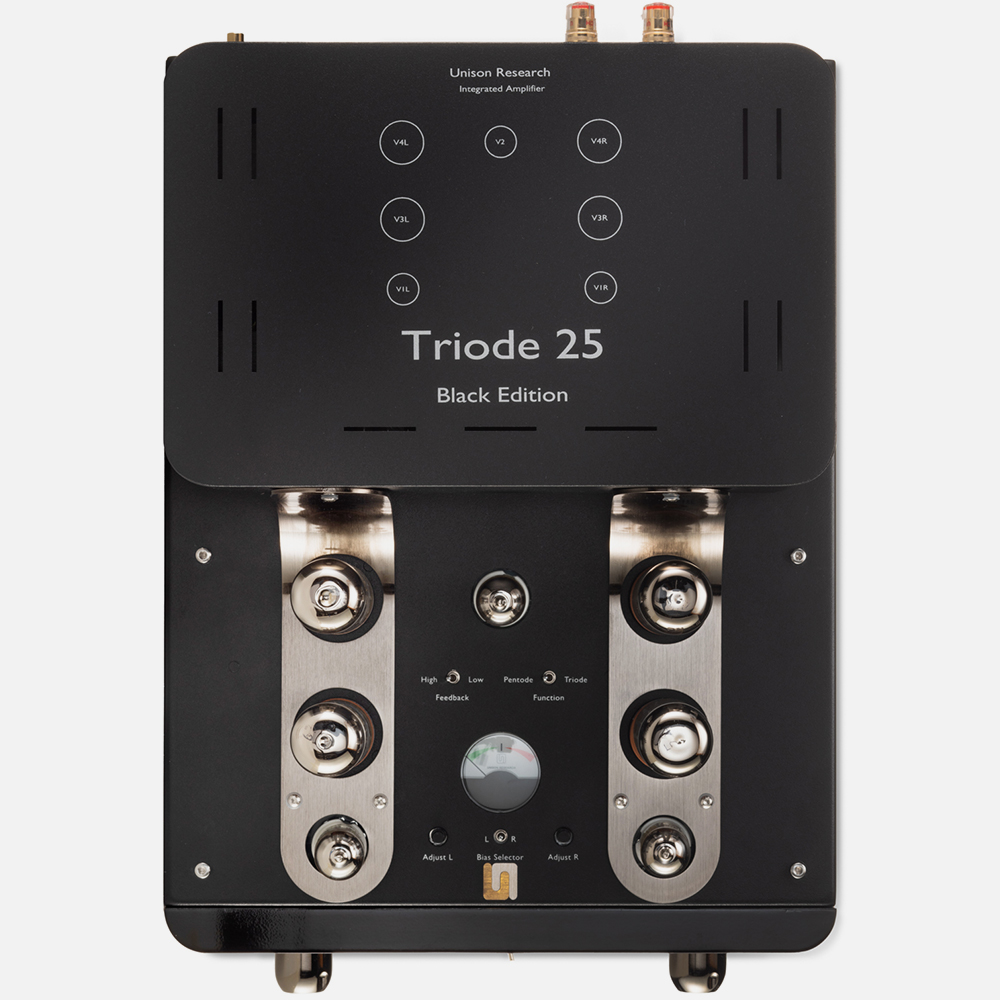

| Valves | V1L/R : ECC83/12AX7 V2 : ECC82/12AU7 V3L/R, V4L/R : KT77 |
| Operating Mode | Class AB |
| Output Stage | Push-Pull Triode or Ultralinear |
| Bias | Fixed, partially adjustable by the user |
| Inputs | 3 Analog inputs 3 Digital inputs (Usb, Optical, S/Pdif) |
| Output Power | 50W Pentode mode on 6Ω 30W Triode mode on 6Ω |
| Input Impedance | 47kΩ : Unbalanced |

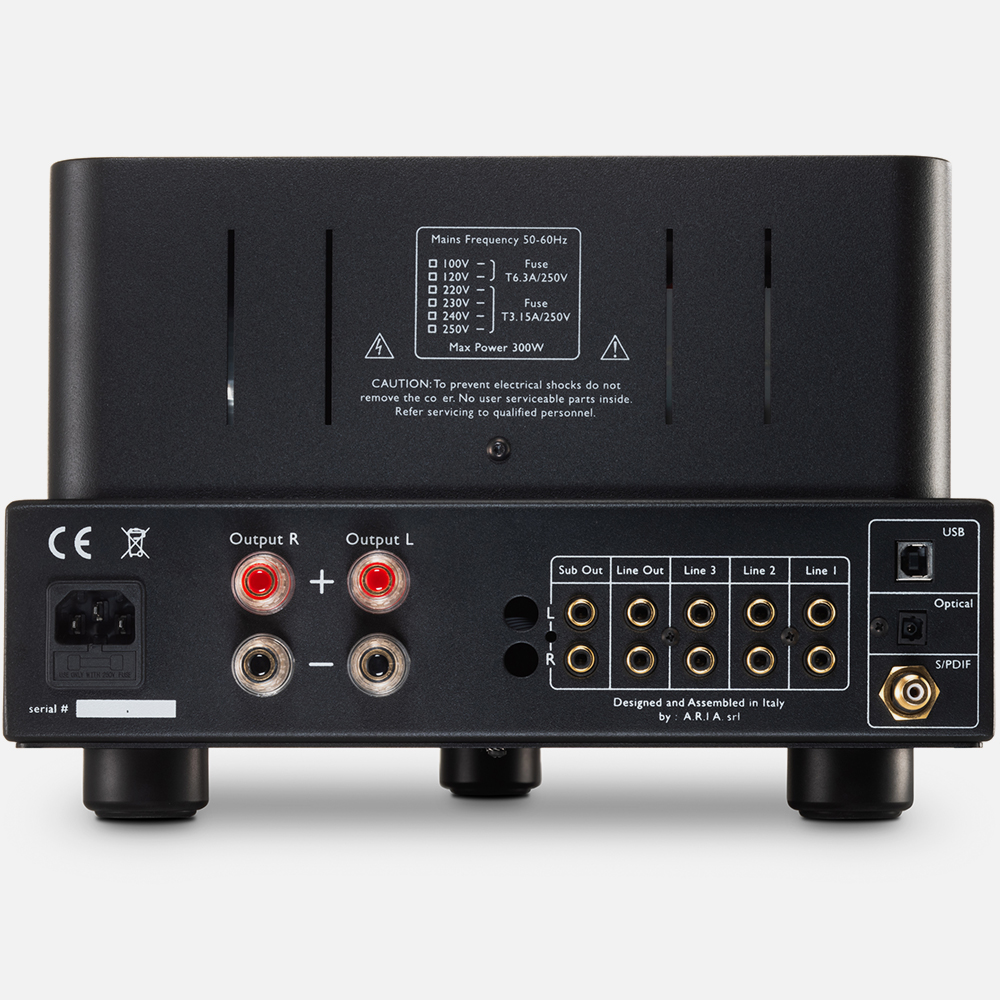

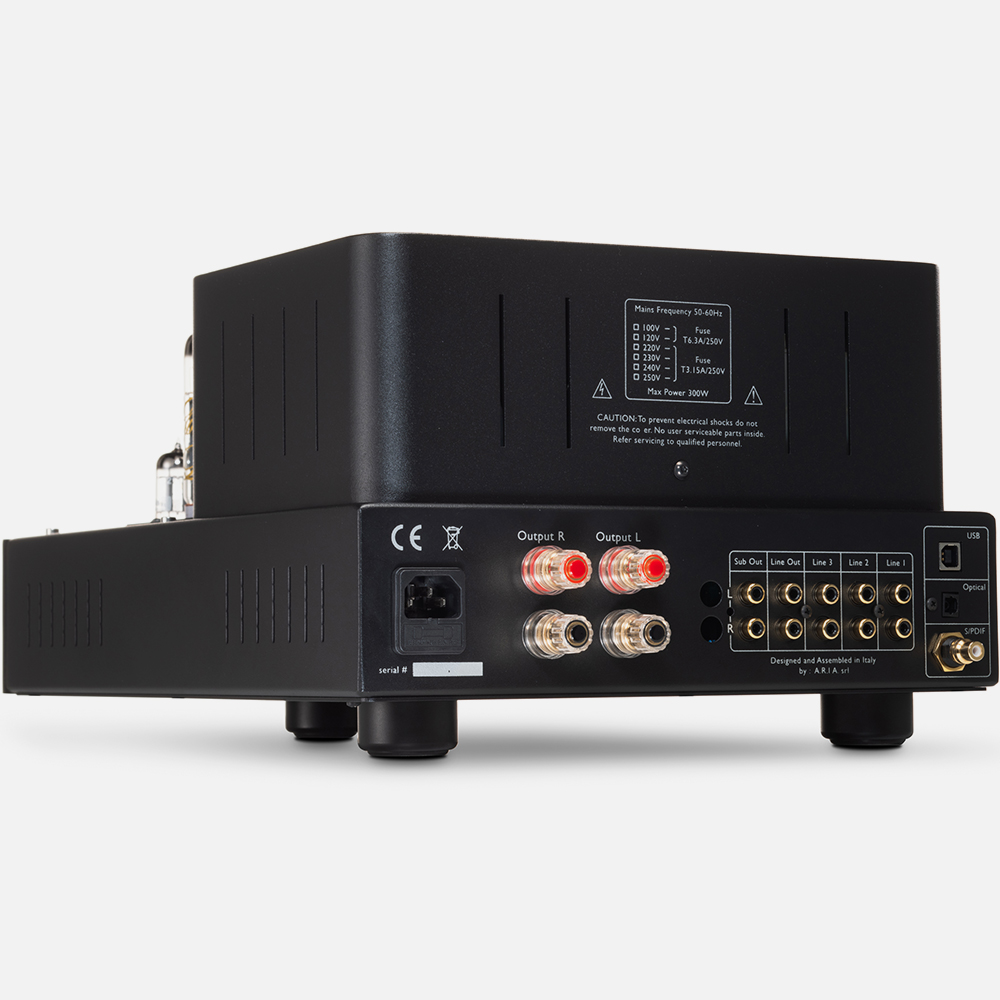

| Outputs | Speaker outputs Sub Out line level, not filtered Line Out |
| Output Impedance | 6Ω |
| Power Consumption | 300W maximum |
| Dimensions | 30 x 45 x 20 cm (w x d x h) 12 x 18 x 8 inches (w x d x h) |
| Net Weight | 20kg (44lbs) |
| Main Fuse | 6.3A slow type (100V-120V) 3.15A slow type (220V-240V) |
| DAC | |
| Converter | Sabre ES9018K2M |
| USB | PCM up to 384kHz DSD native up to 256x DoP up to 128x |
| Tos-link | Up to 192kHz |
| S/PDIF | Up to 192kHz |
